True Parts OEM - GDM-23F-HC-LD: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
LEG, 6" 1/2-13 x 1" SEISMIC STEM ADJUSTABLE STAINLESS BOTH TOP AND BOTTOM PIECE. EXPOSED STEM. USED TO BOLT COOLER TO FLOOR. ADJUST 6" TO 8". 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER. TOP DIAMENTER OF LEG IS 2 1/4"
LEG KIT 6" 4)830409 1/2" STEM GDM/T/TM/TR/TSSU/TPP ADJUSTS FROM 6" TO 7-1/2". MADE OF ZINC DIE CAST. 4)830409 LEGS & SCREWS. TOP DIAMETER IS 2 1/4"
LEG KIT 6" 4)830437 SEISMIC 1/2" STEM INCLUDES: 4)830437 LEGS. LEG HAS TWO HOLES IN FOOT TO USE SCREWS TO SECURE TO FLOOR. LEGS ADJUST FROM 6" TO 8". STAINLESS STEEL. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.

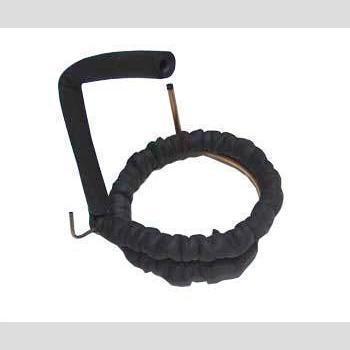

LINE SET GDM-23F-LD-HC INCLUDES: 964000 SUCTION LINE, 930212 CAP TUBE, 864606 ACCUMULATOR, TAPE AND TUBING.

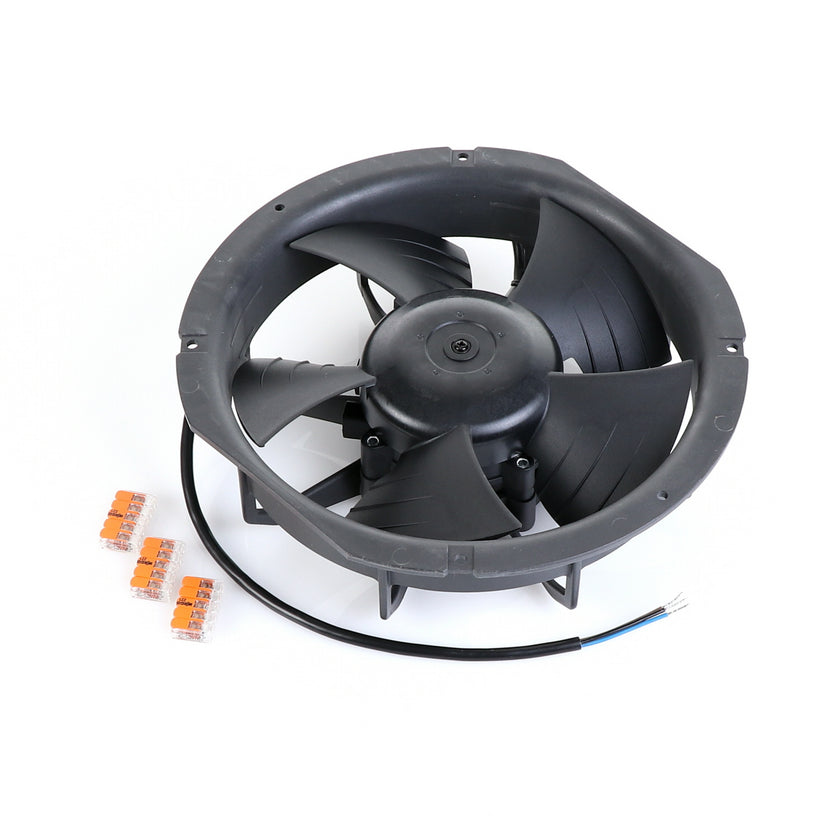

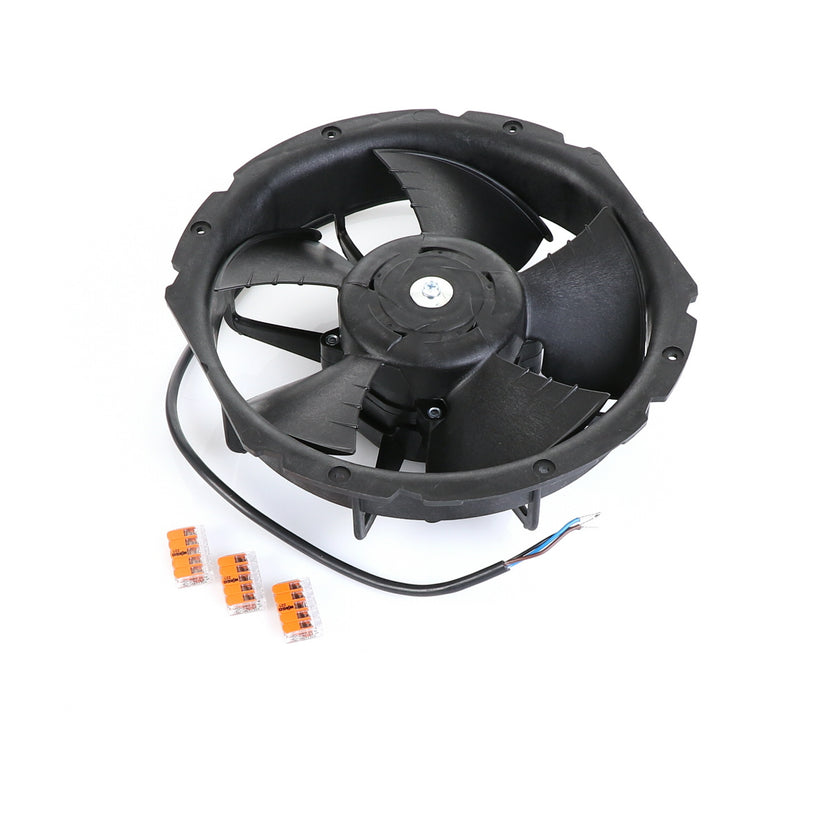

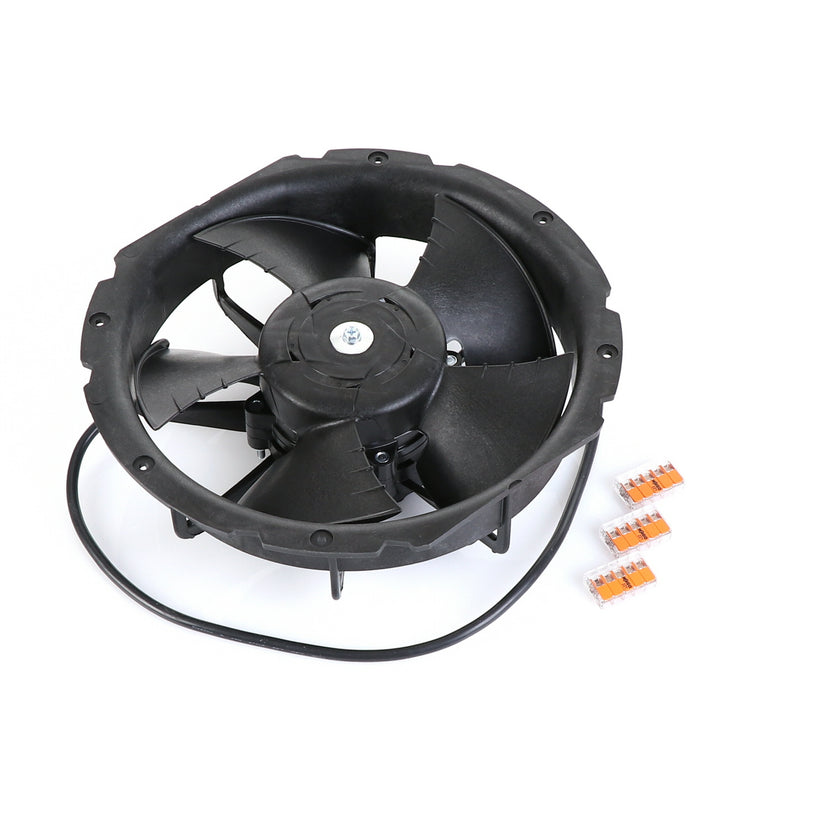

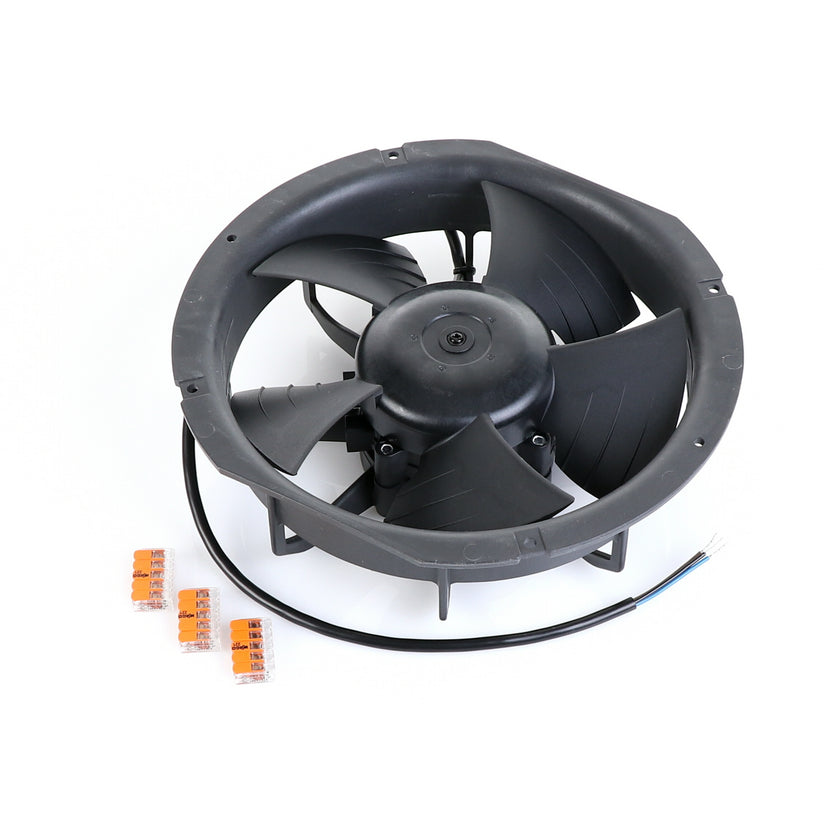

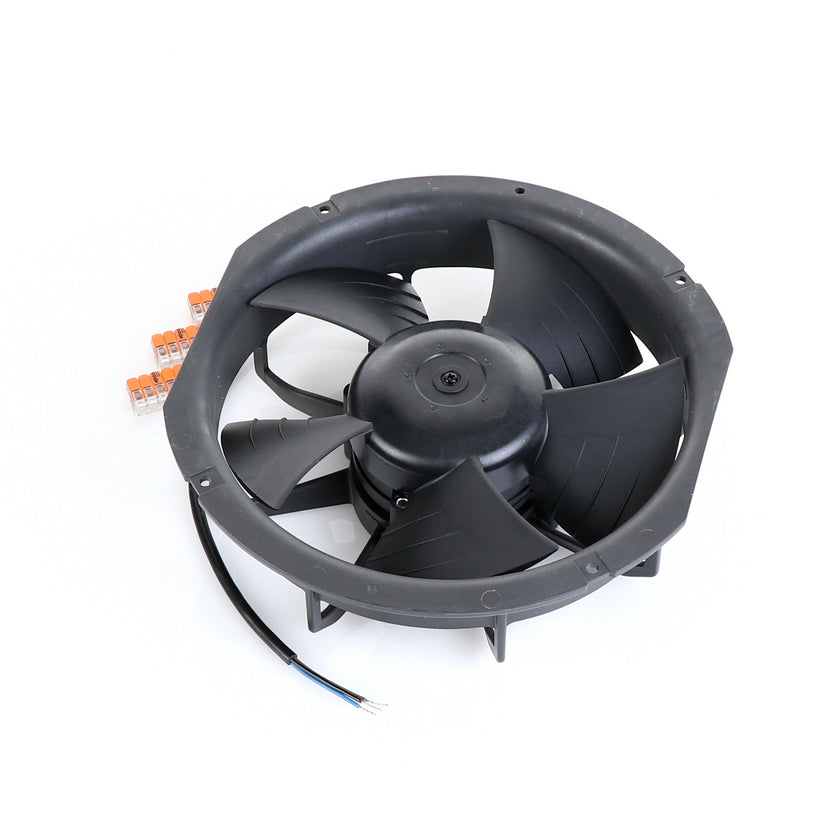

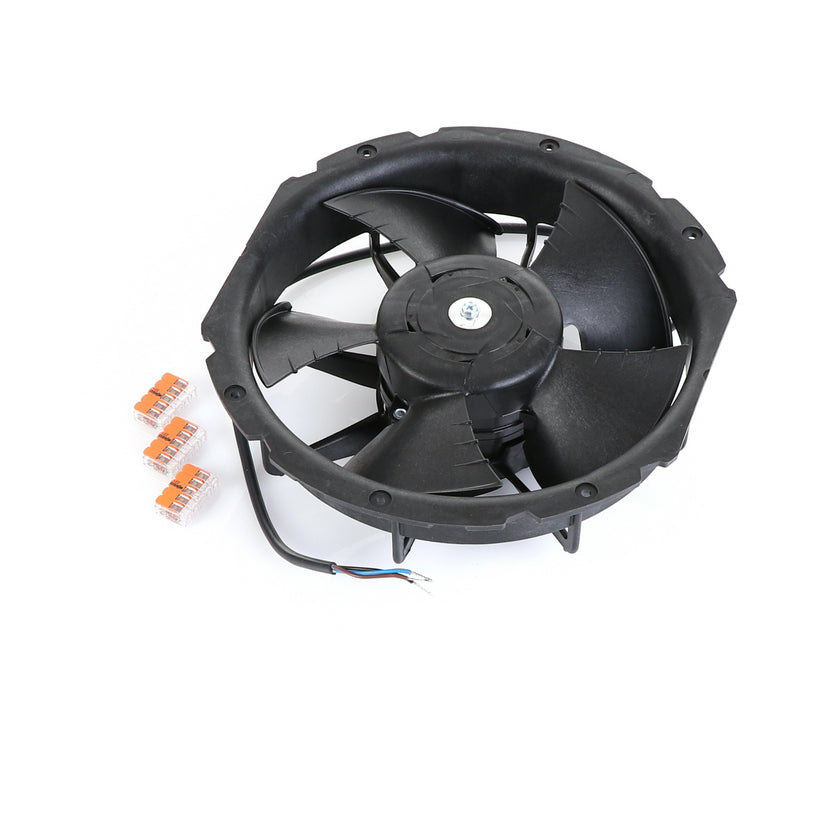

FAN MOTOR RETROFIT KIT INCLUDES: 817939 MOTOR, 3) 202747 CONNECTORS, AND 817938 INSTRUCTIONS. WARRANTY MUST ISSUE A CALL TAG – SEE CALL TAG LIST
FAN MOTOR KIT 115V NO BLADE INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM

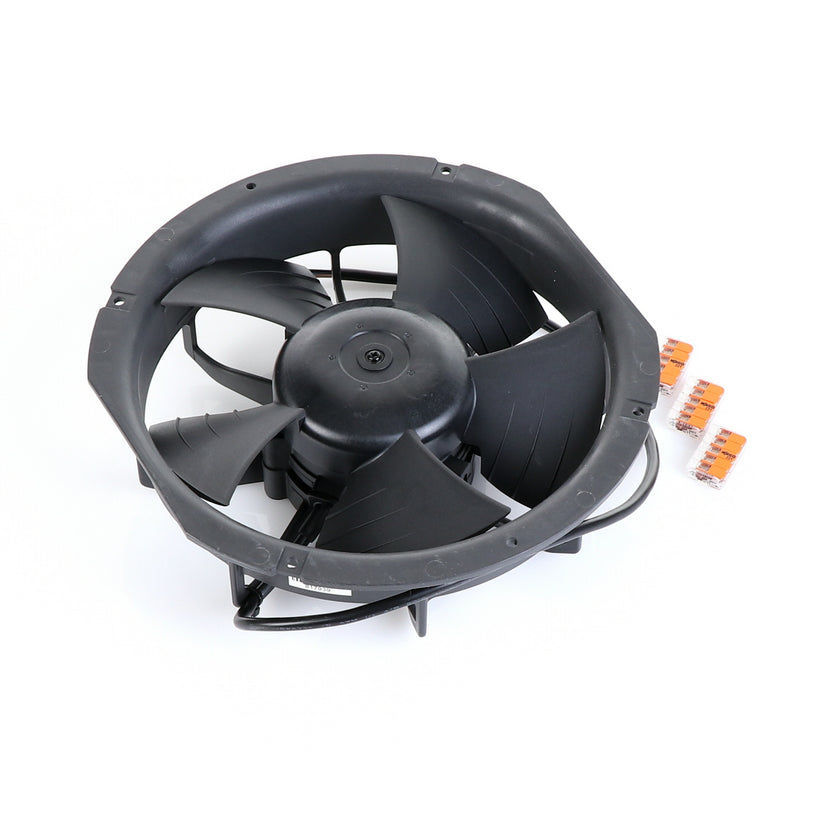

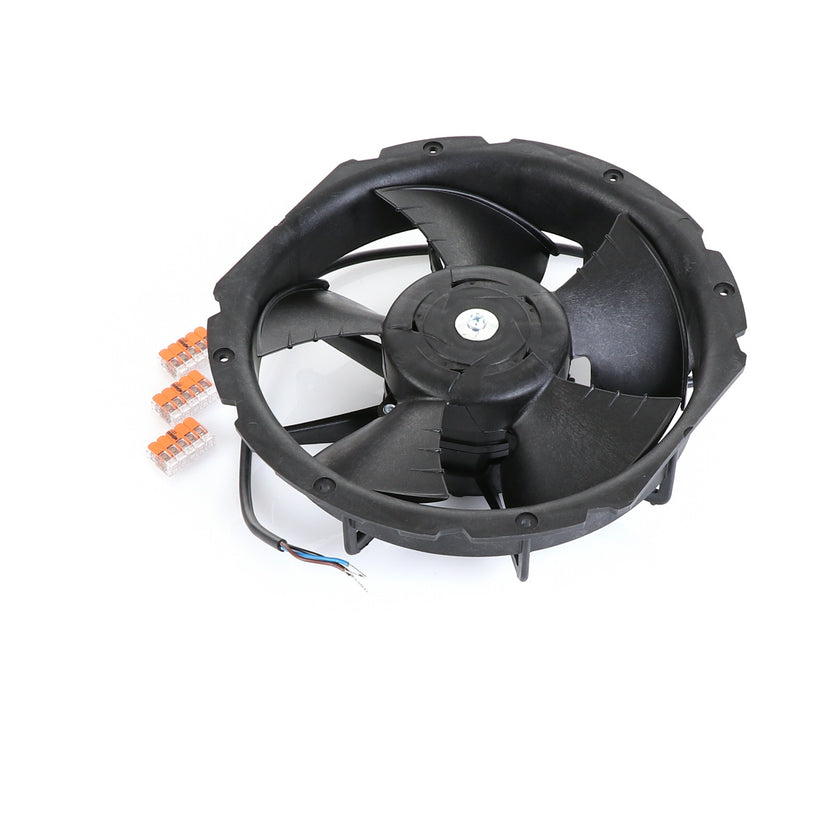

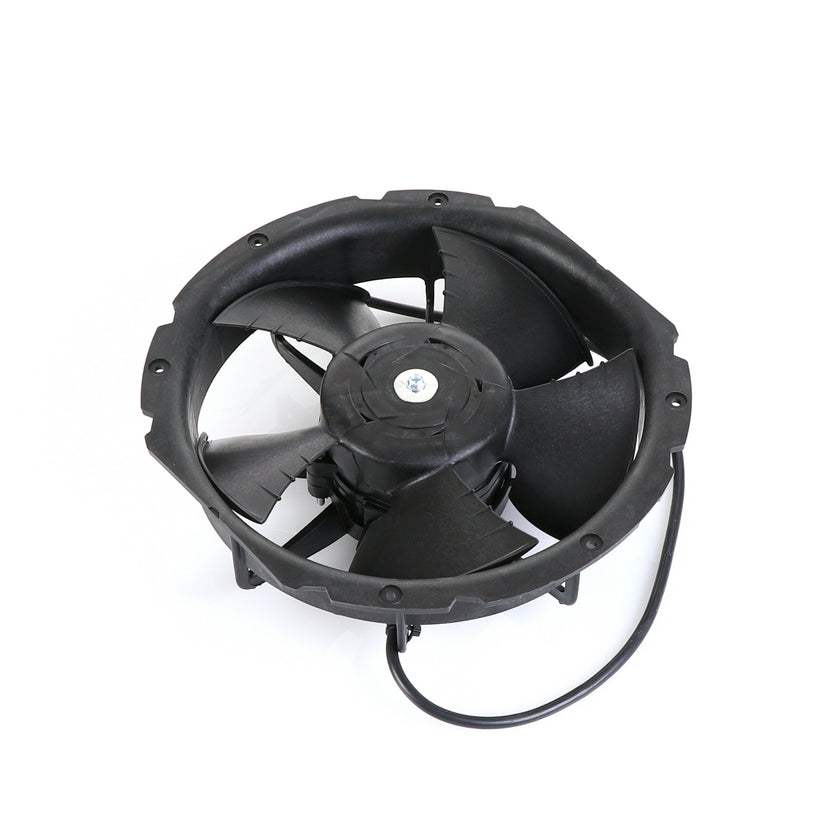

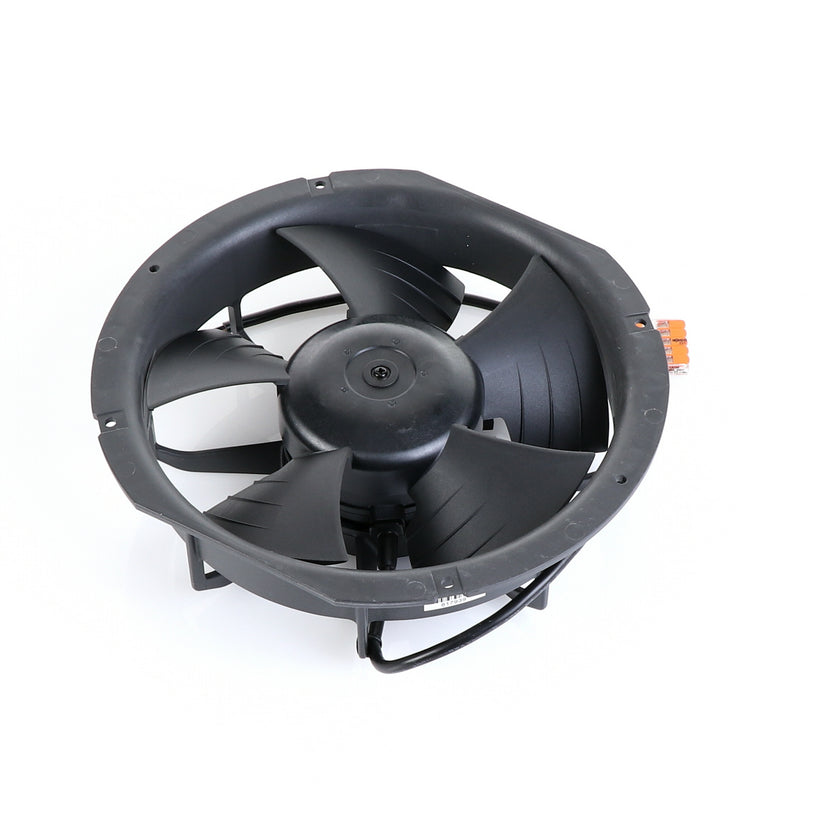

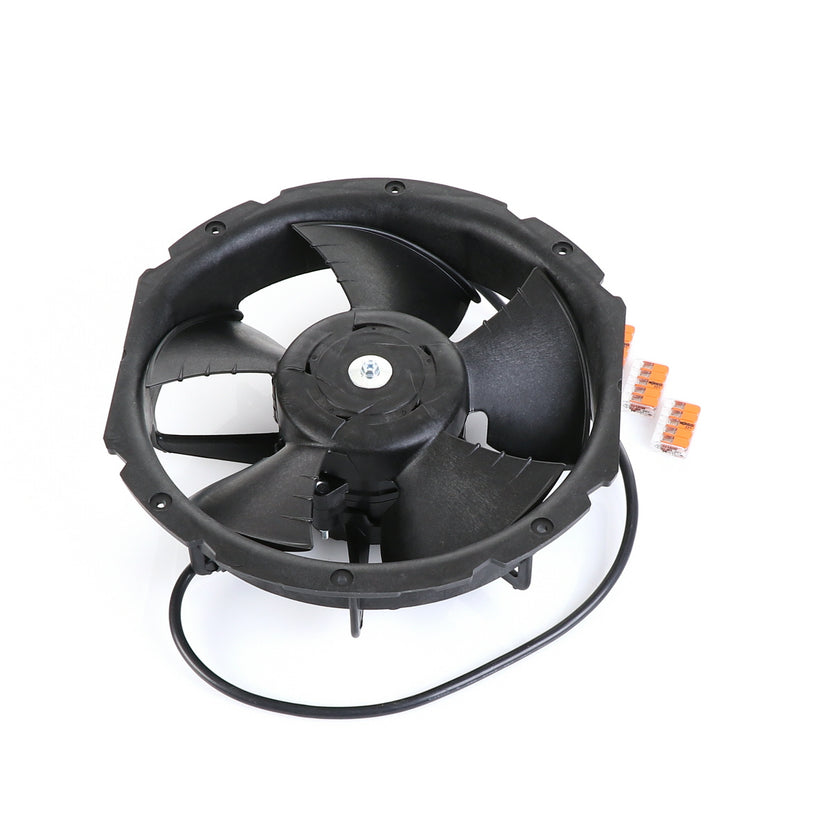

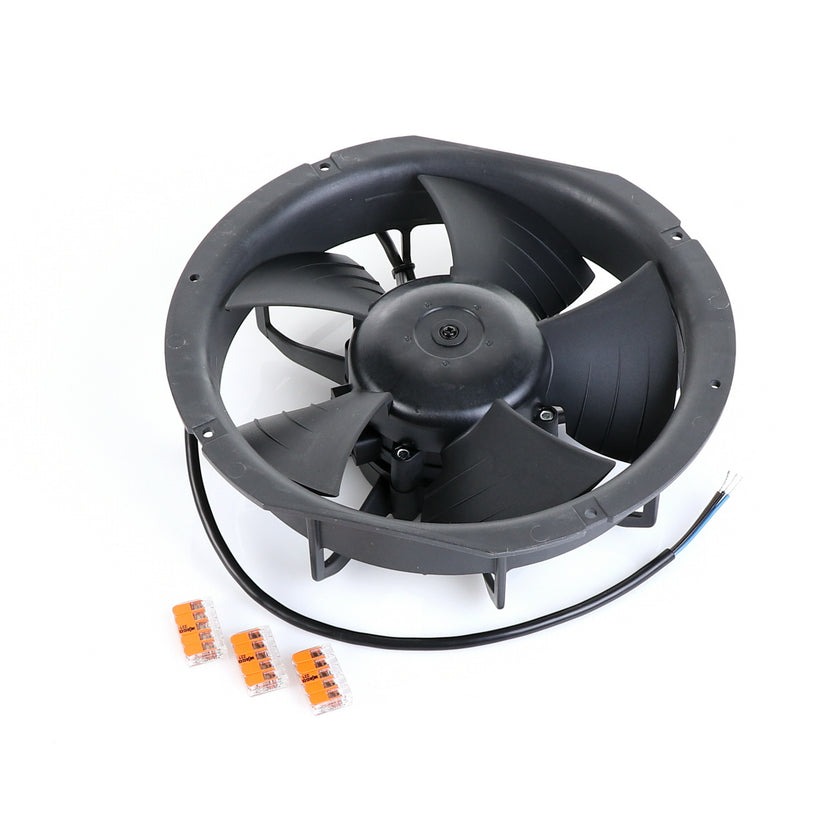

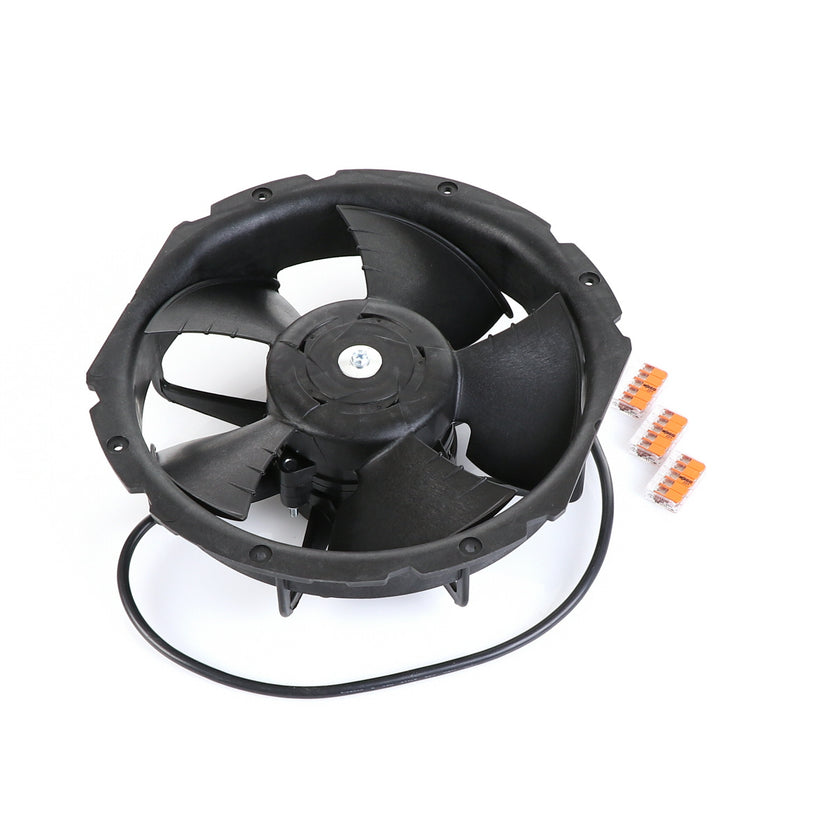

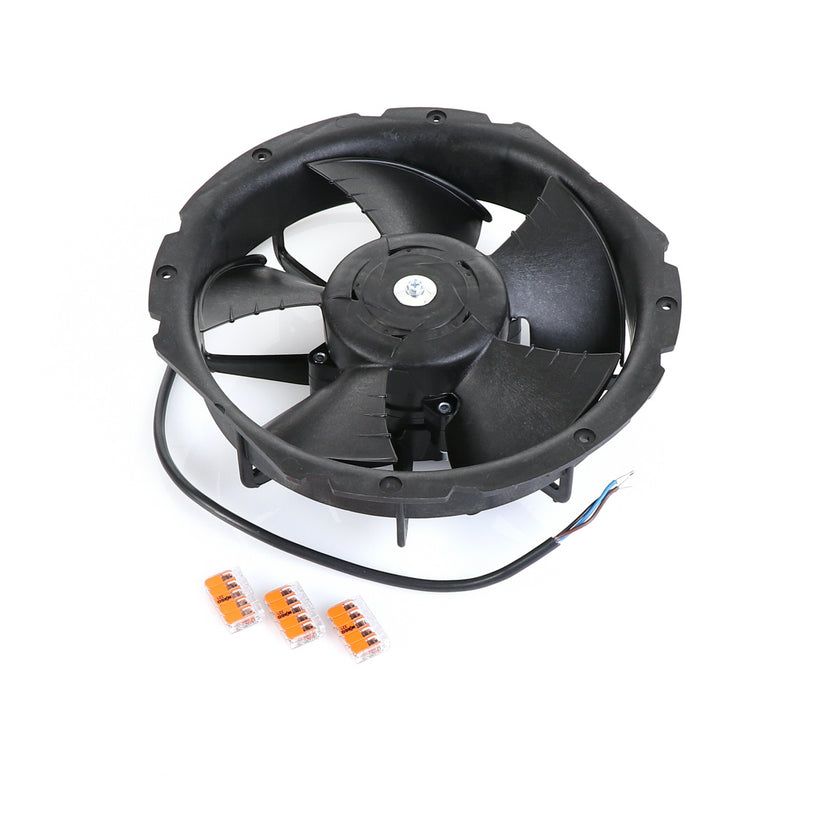

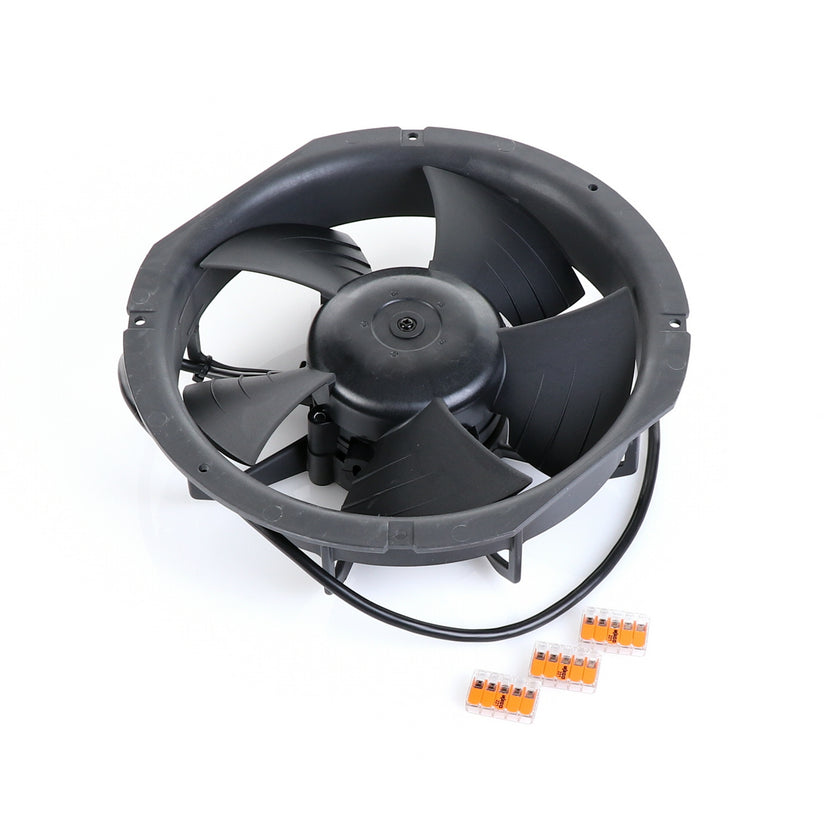

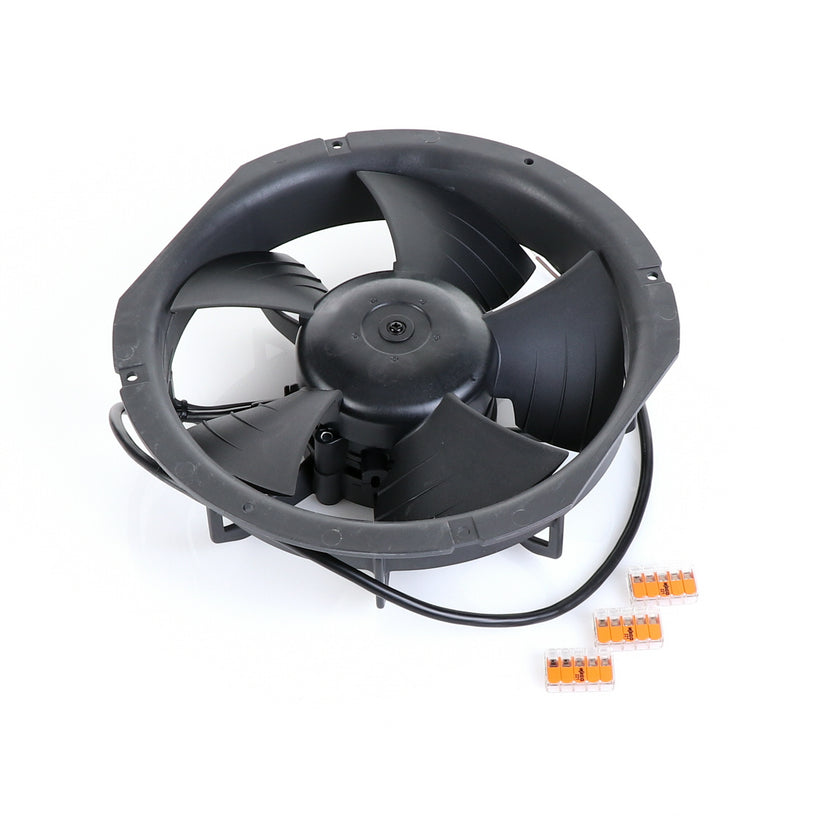

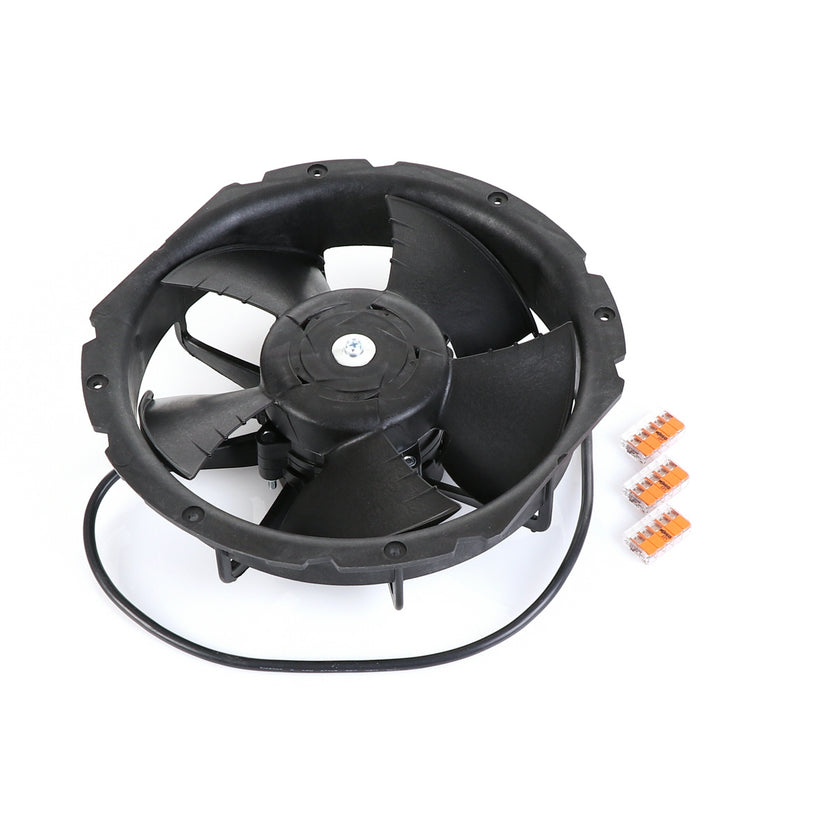

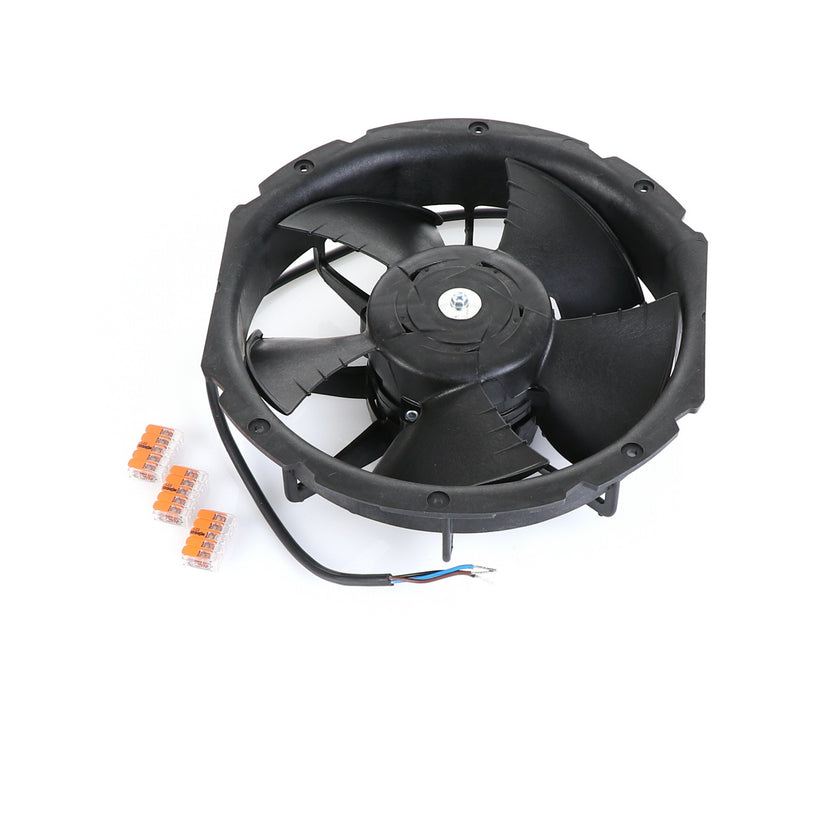

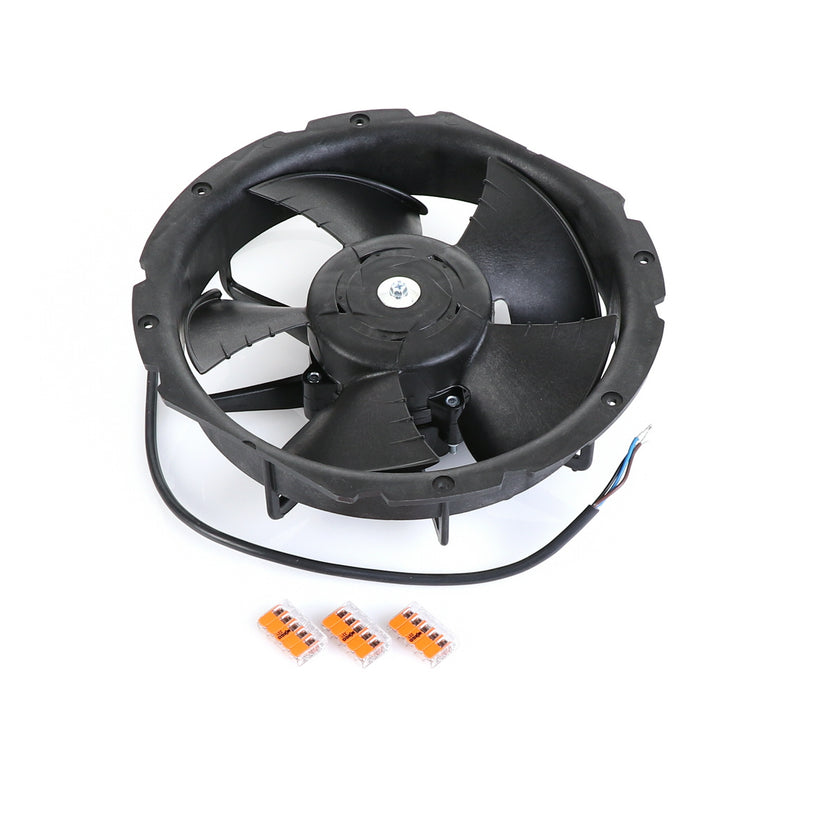

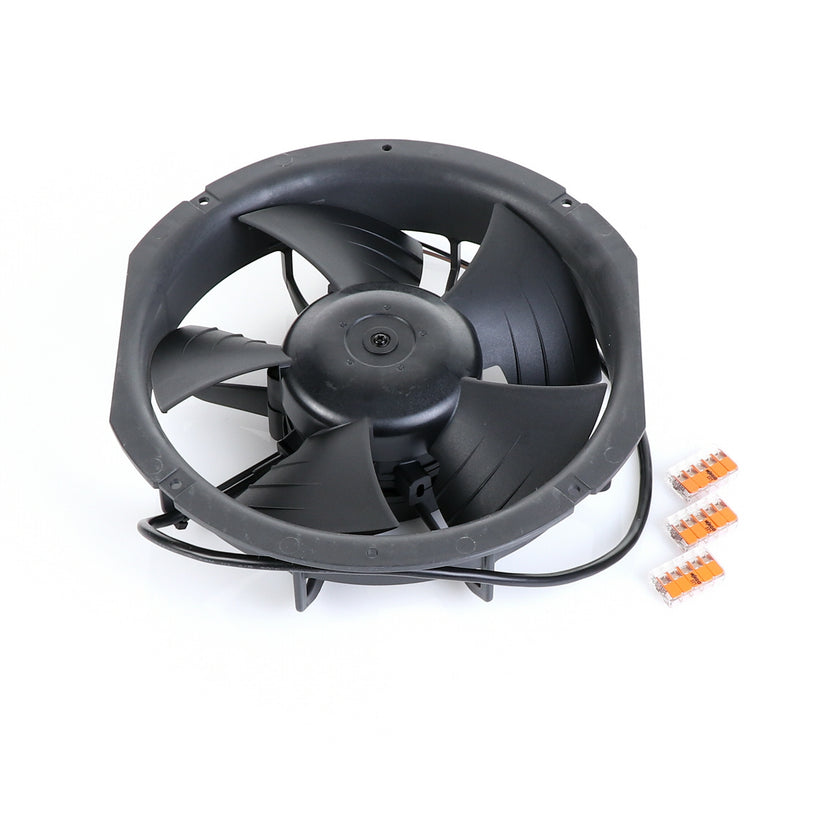

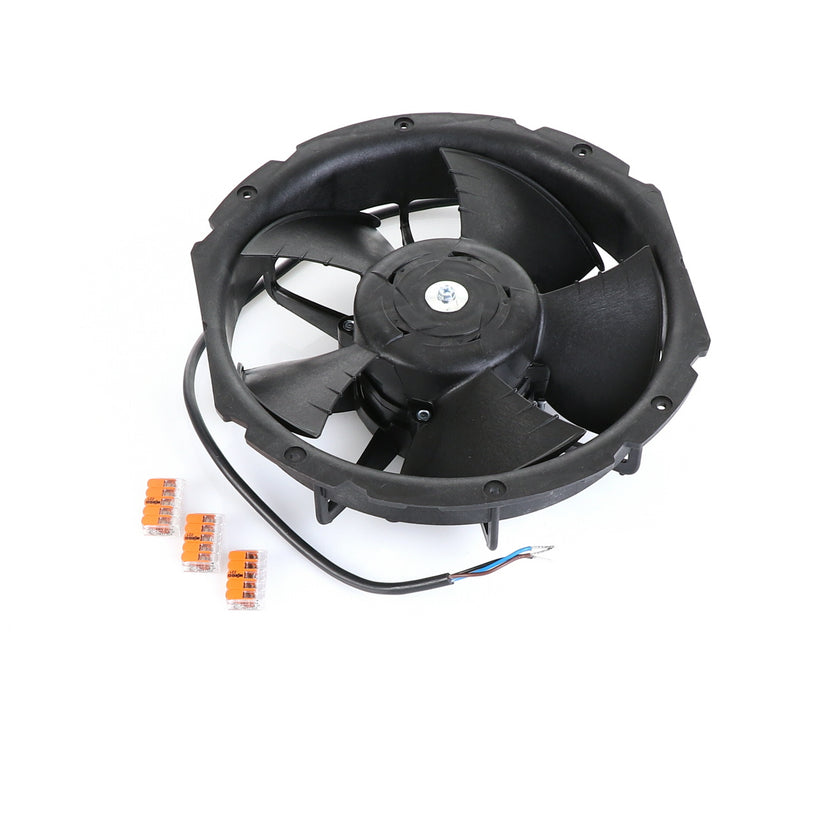

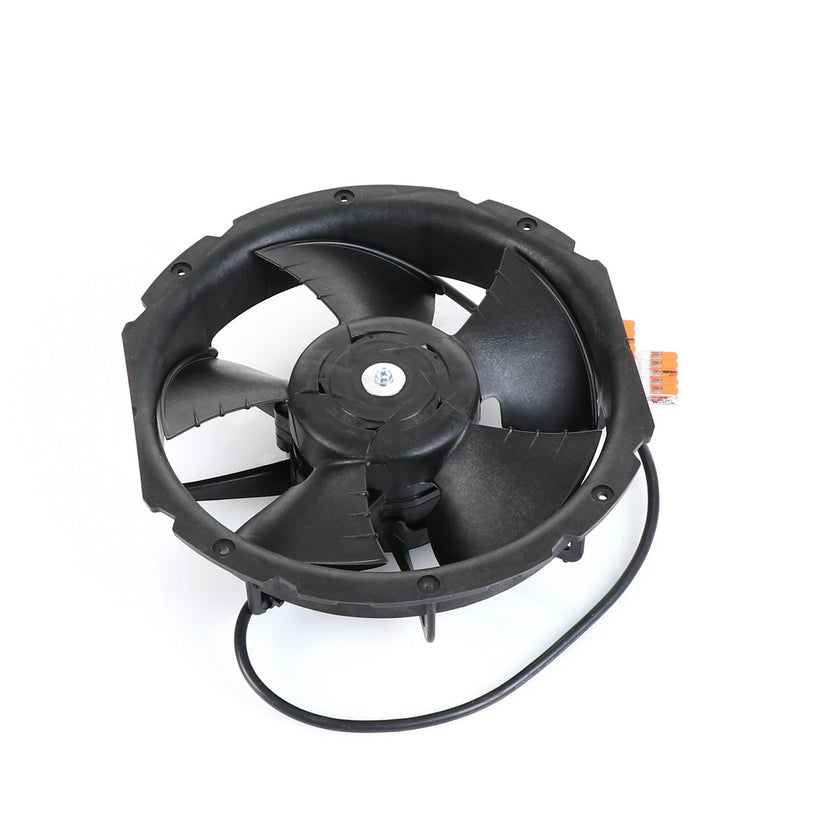

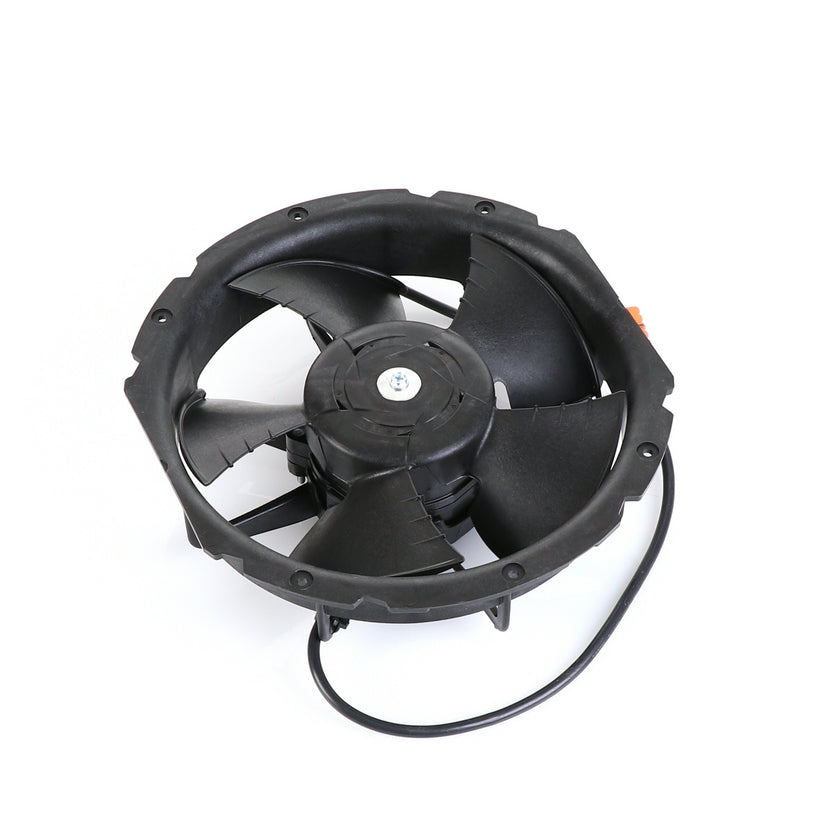

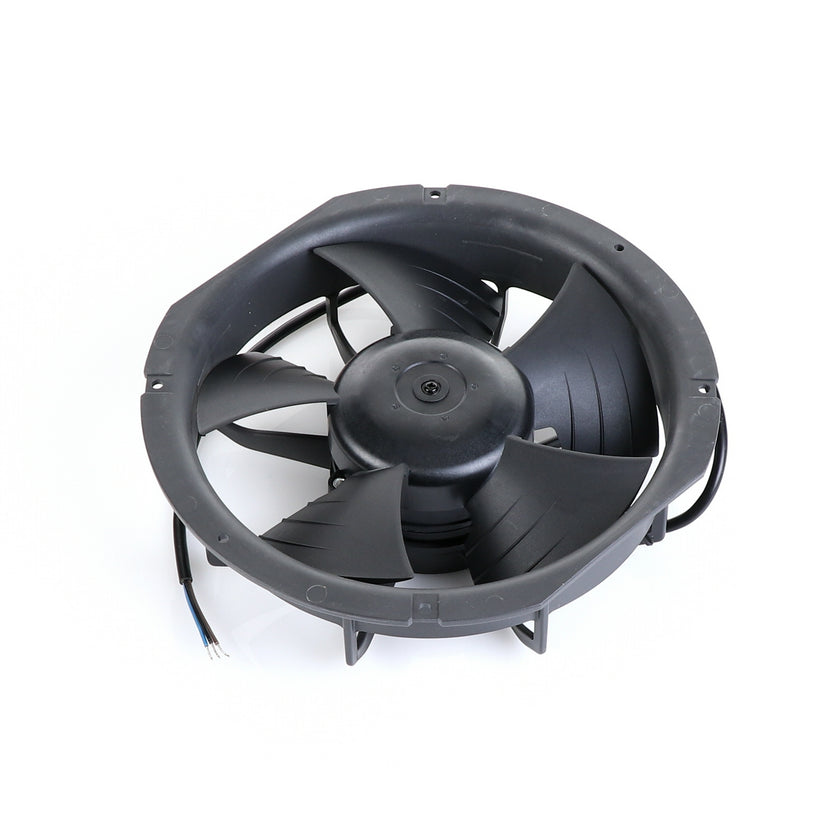

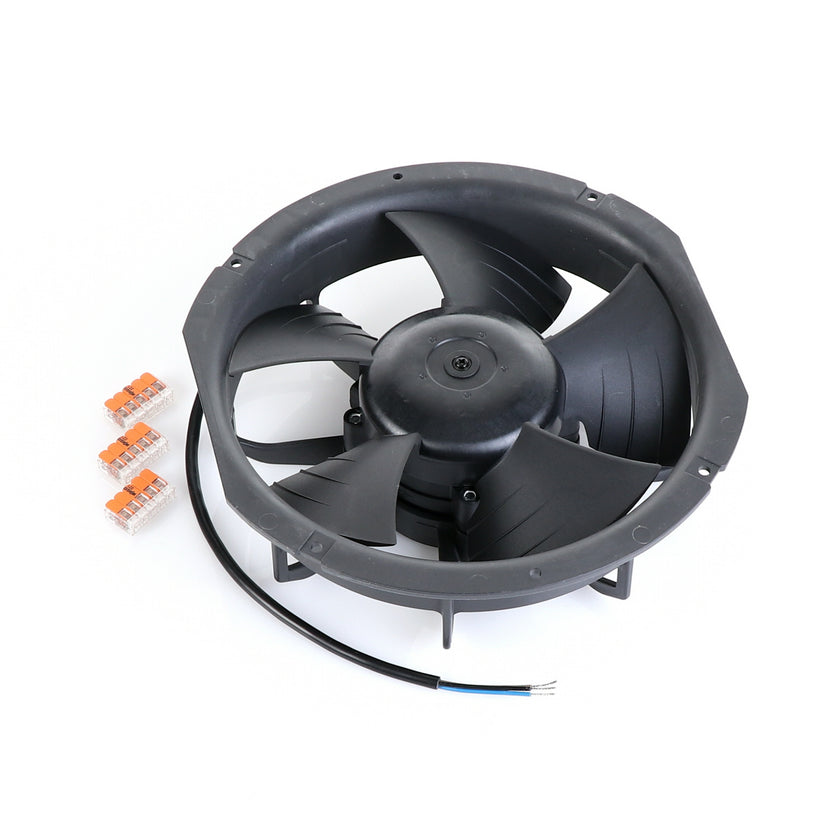

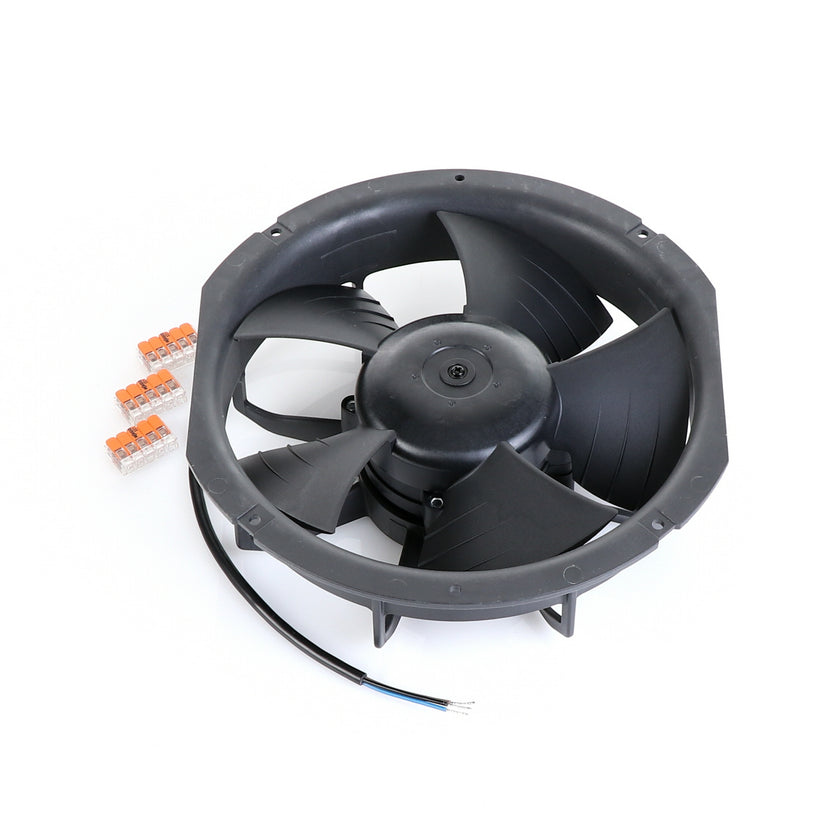

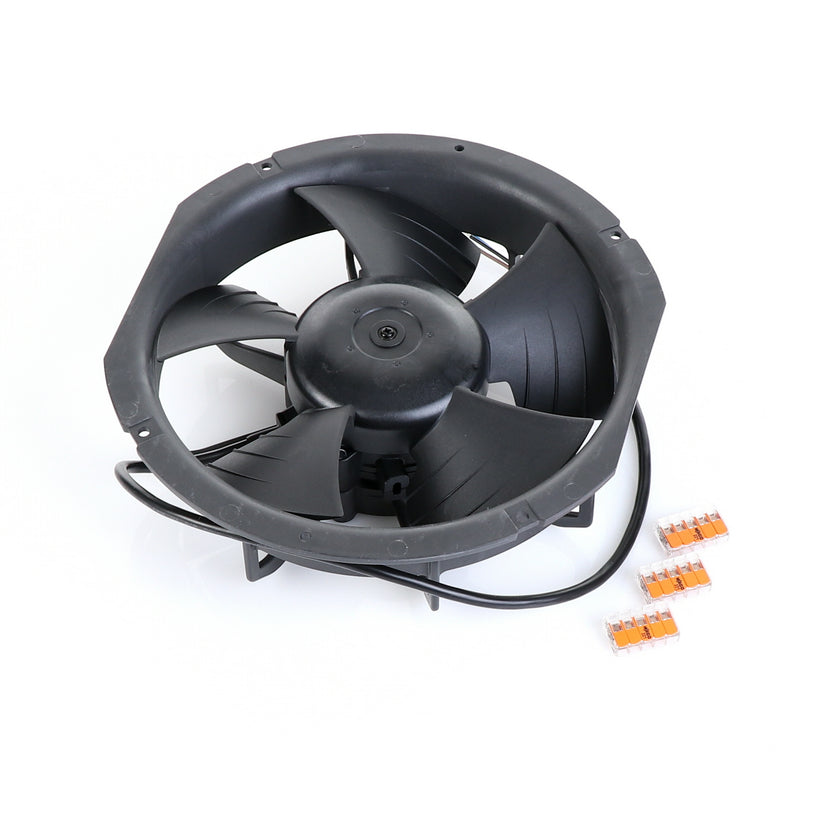

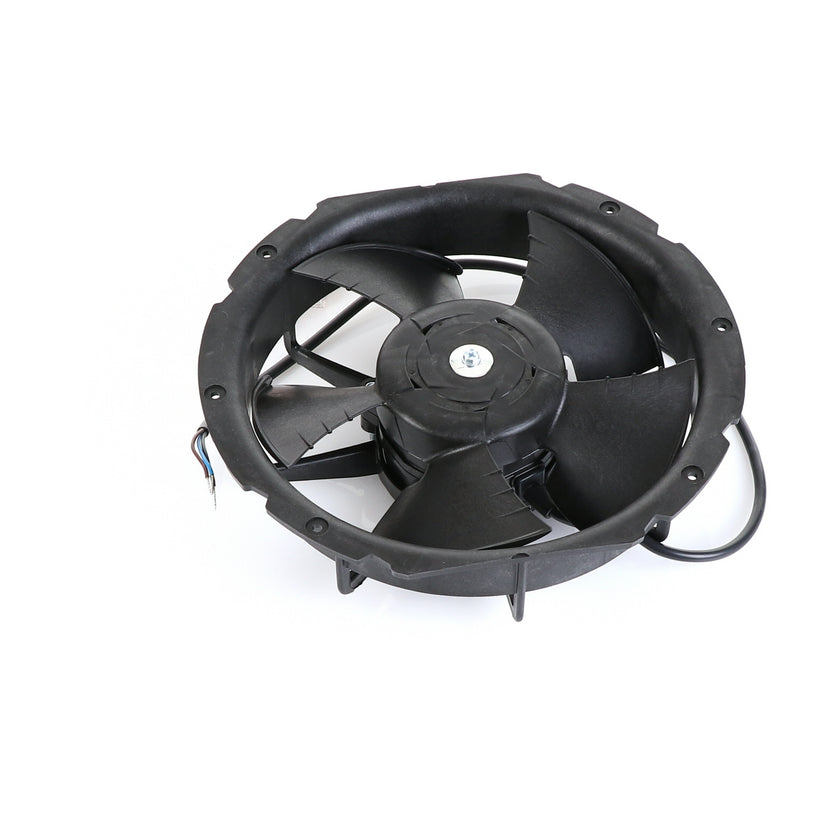

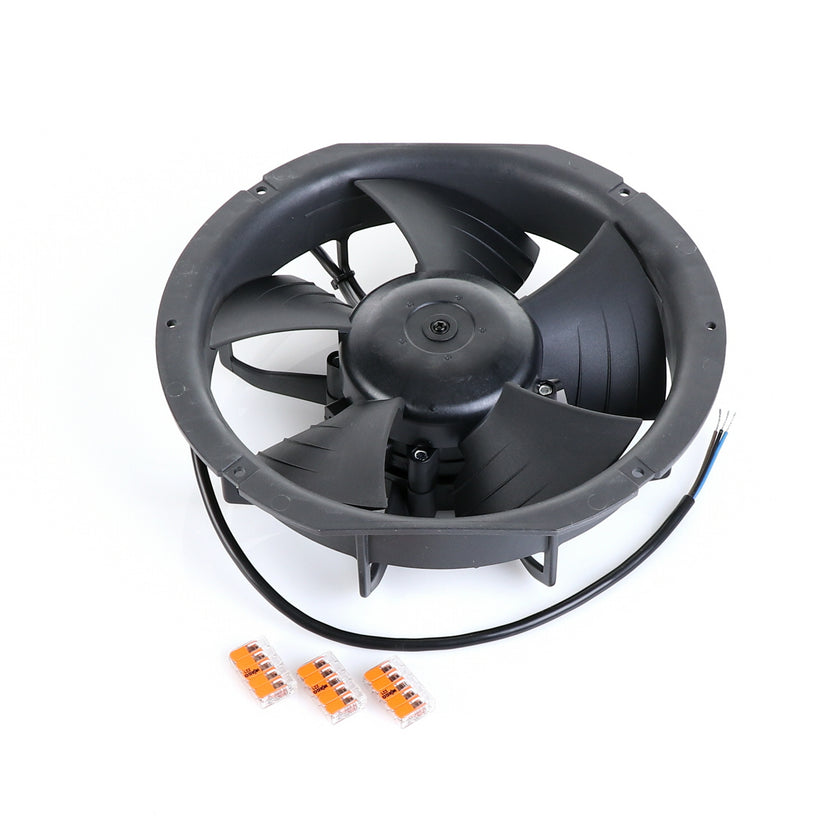

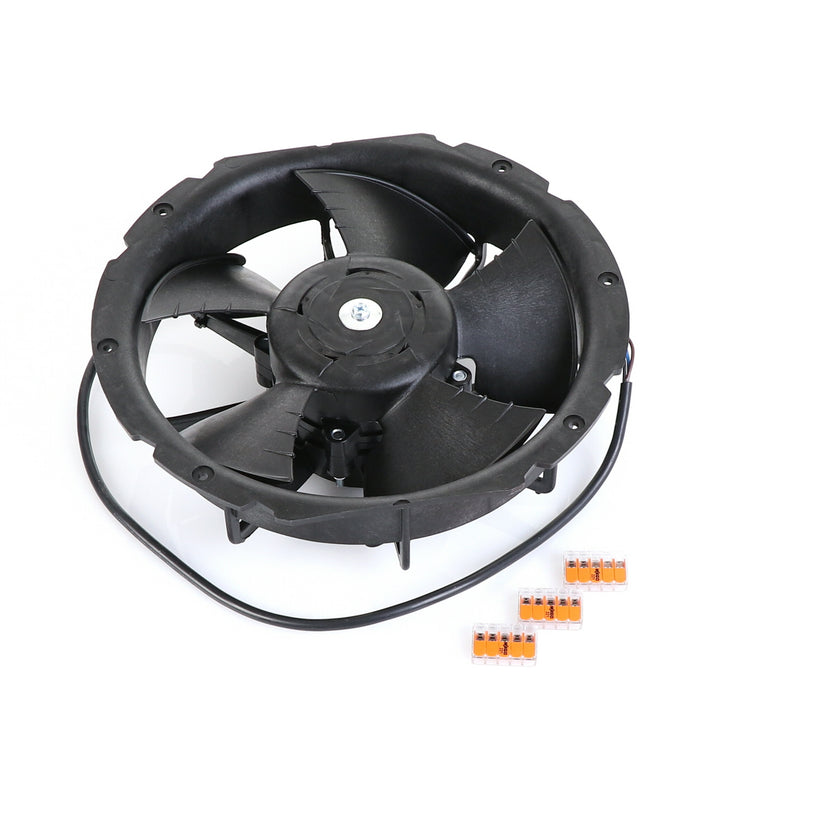

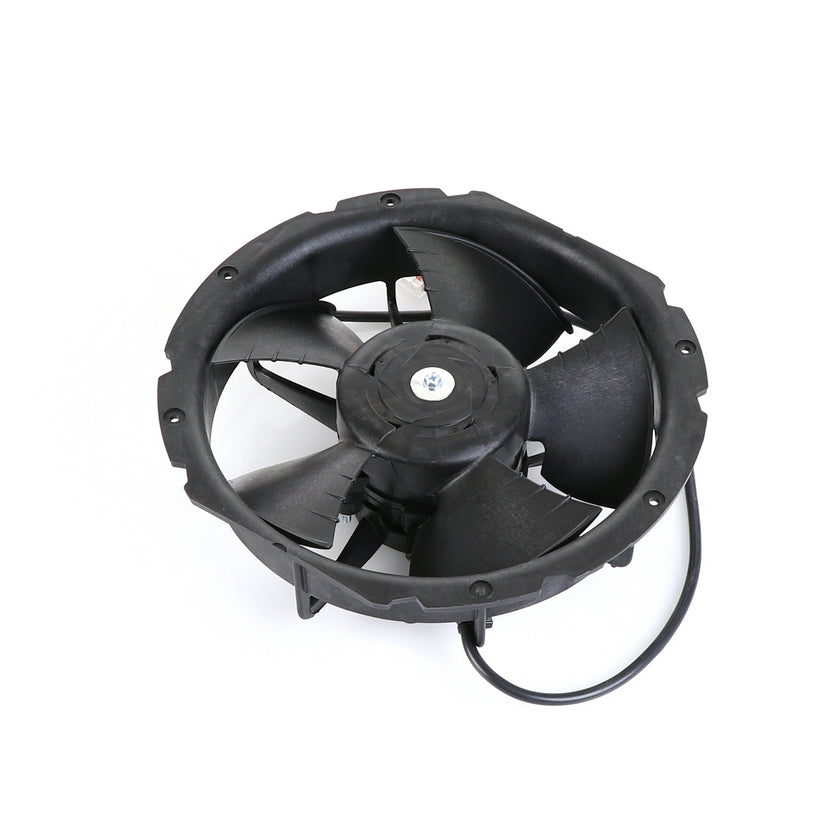

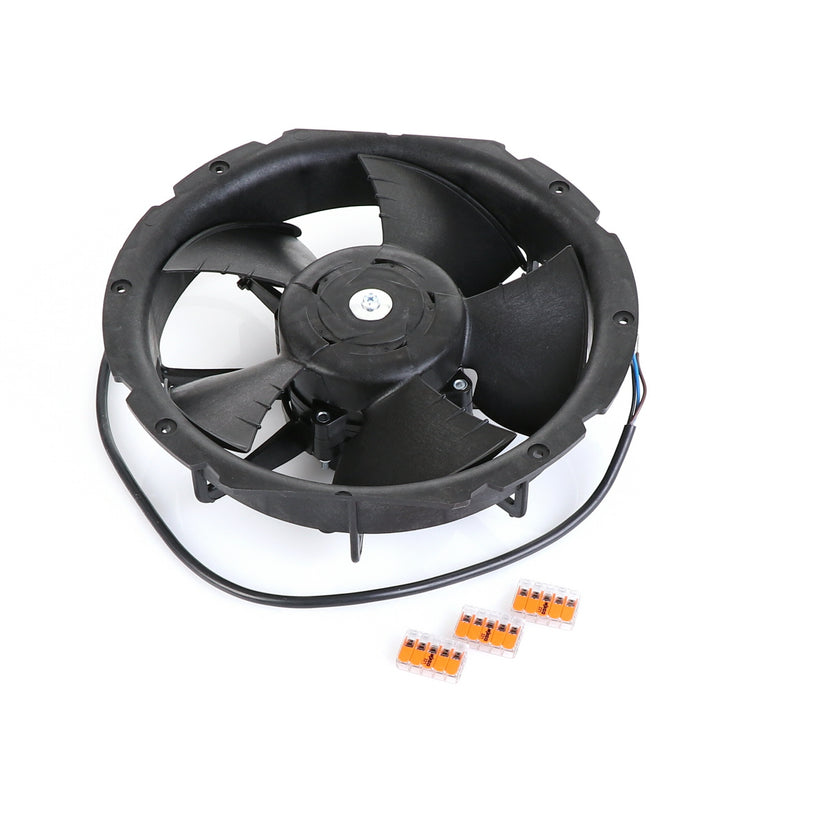

FAN MOTOR KIT, 115V UPS ONLY INCLUDES: 872090 FAN MOTOR, 3) 202747 5WAY LEVER CONNECTORS, 846450 INSTALLATION INSTRUCTIONS REPLACES 217268 PER PCN-12648. MOTOR/FAN BLADE W/PLASTIC HOUSING COMBO. MOTOR COMES WITH POWERCORD ATTACHED.

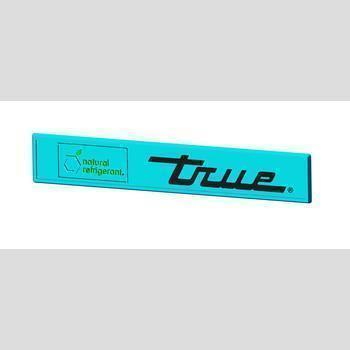

NAMEPLATE, TRUE HC 51165-P HAS TWO WAY TAPE ON BACK OF NAMEPLATE
RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG

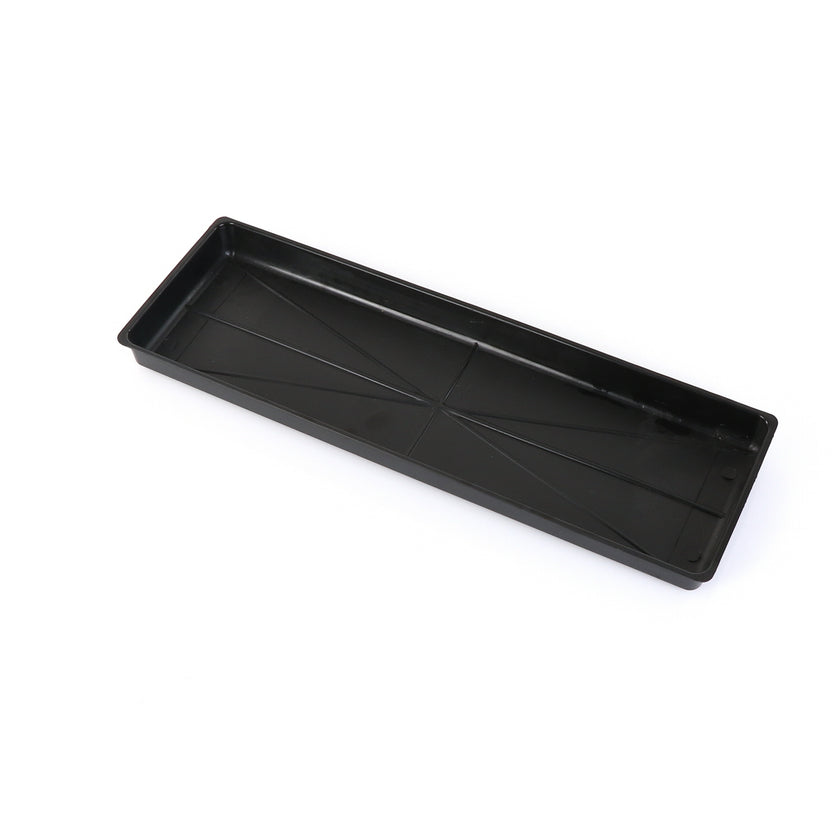

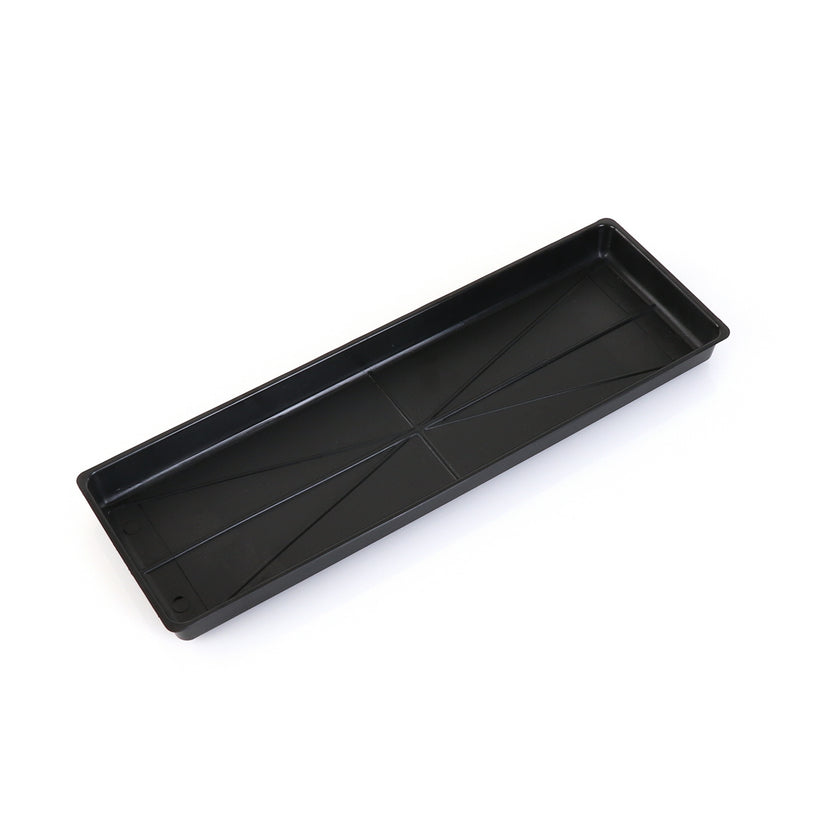

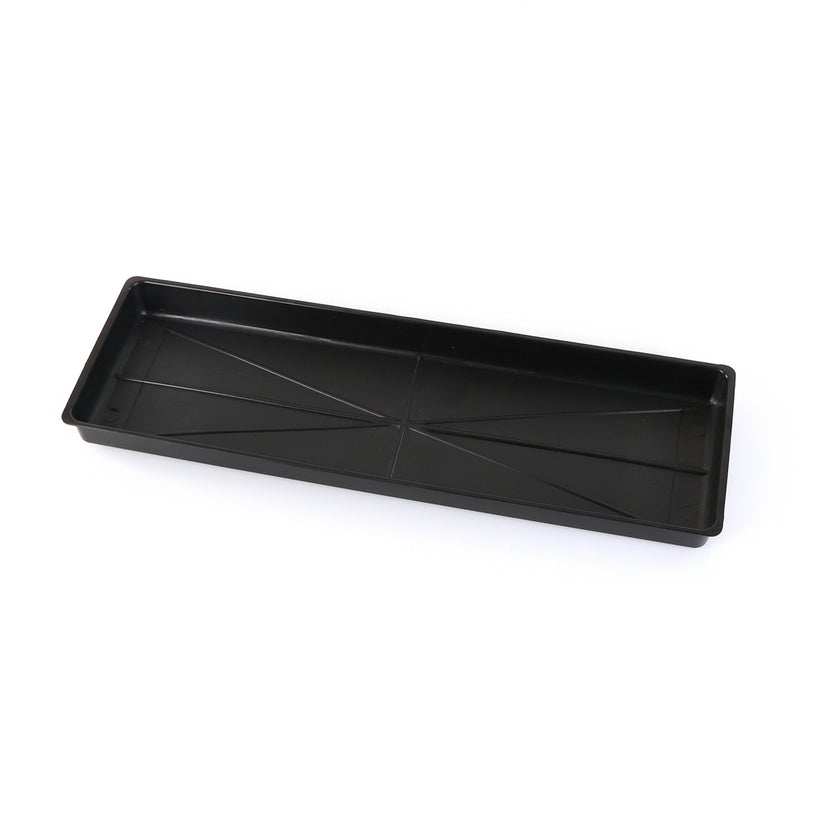

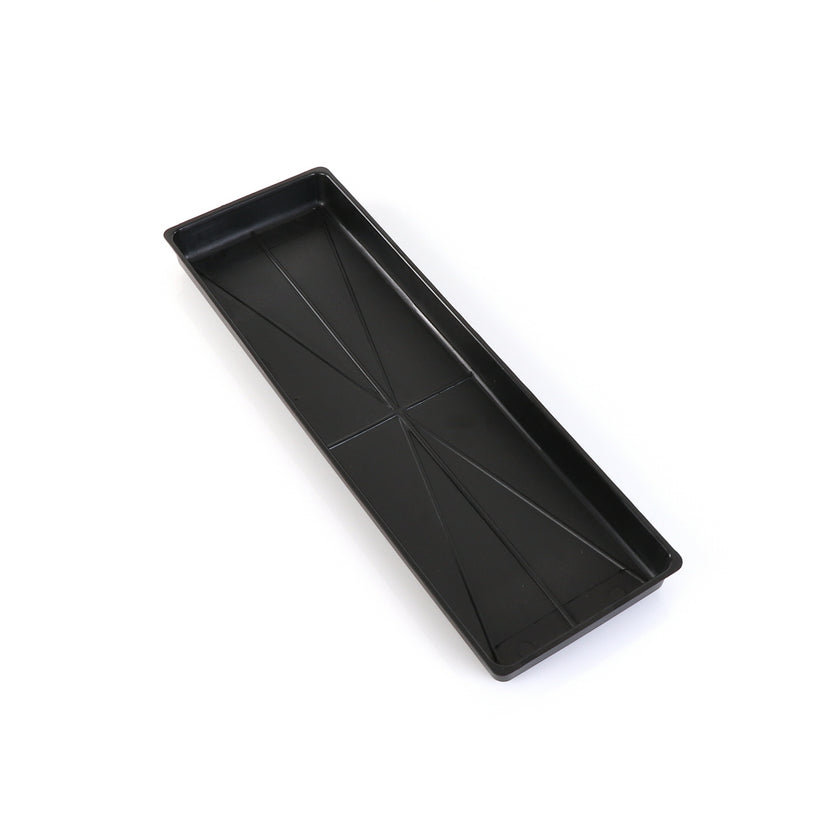

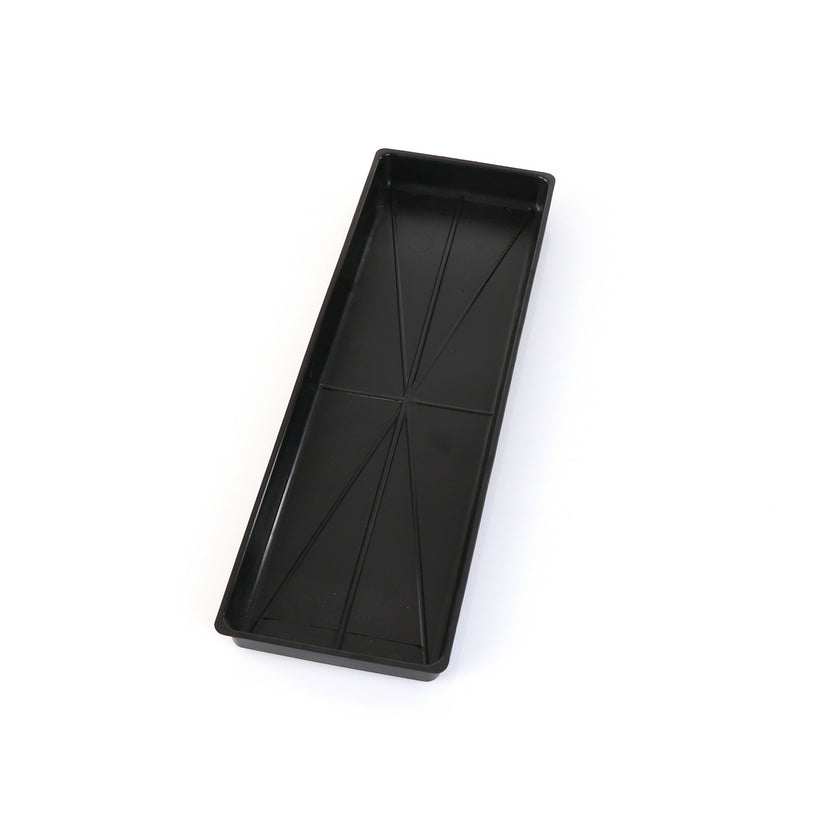

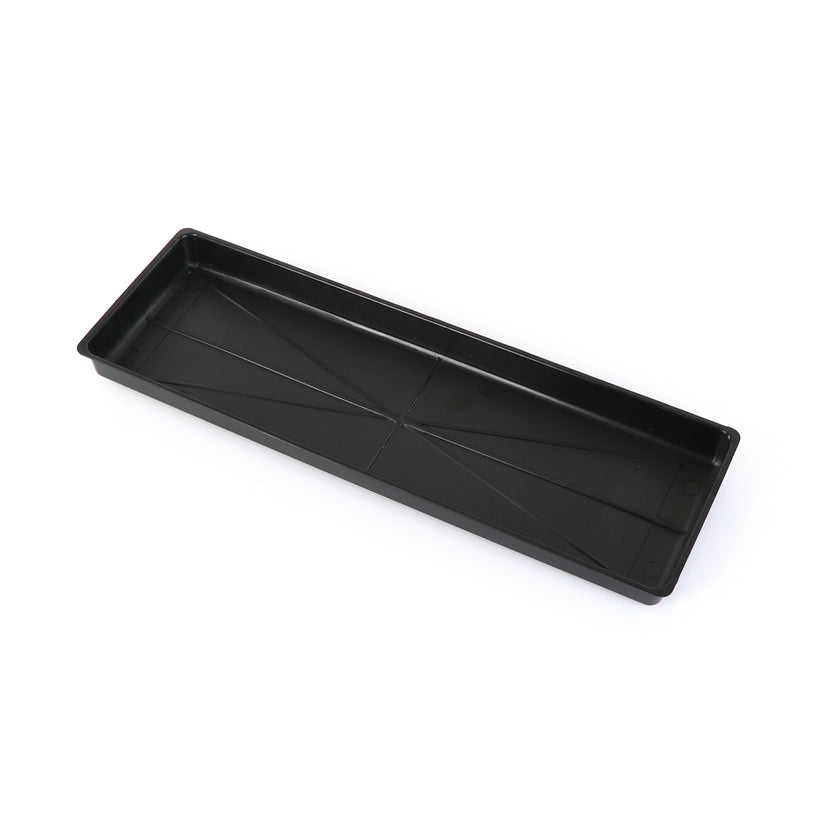

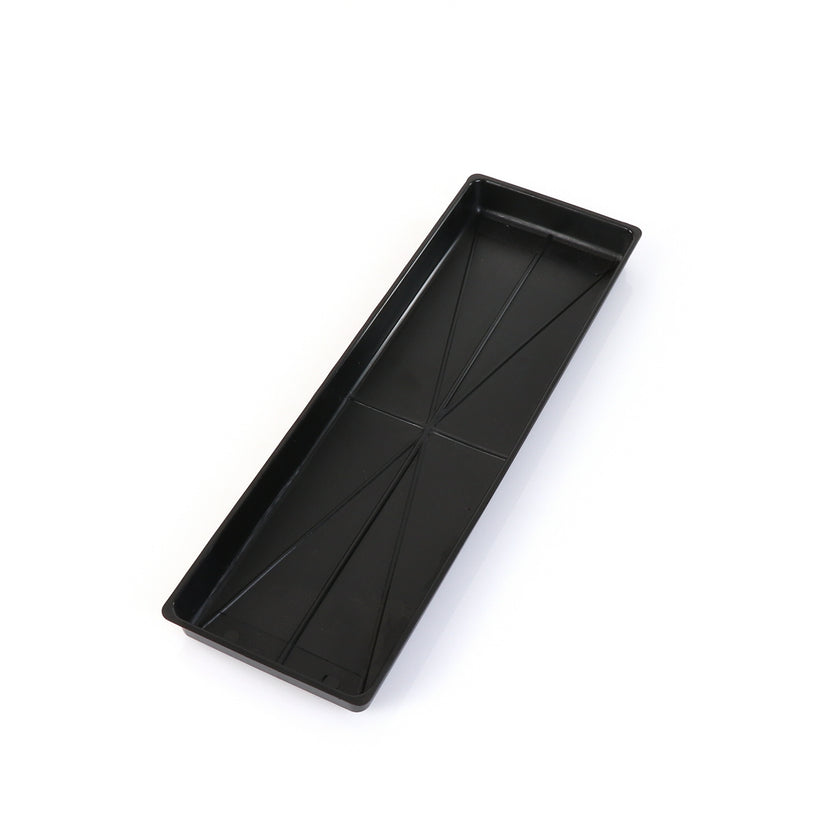

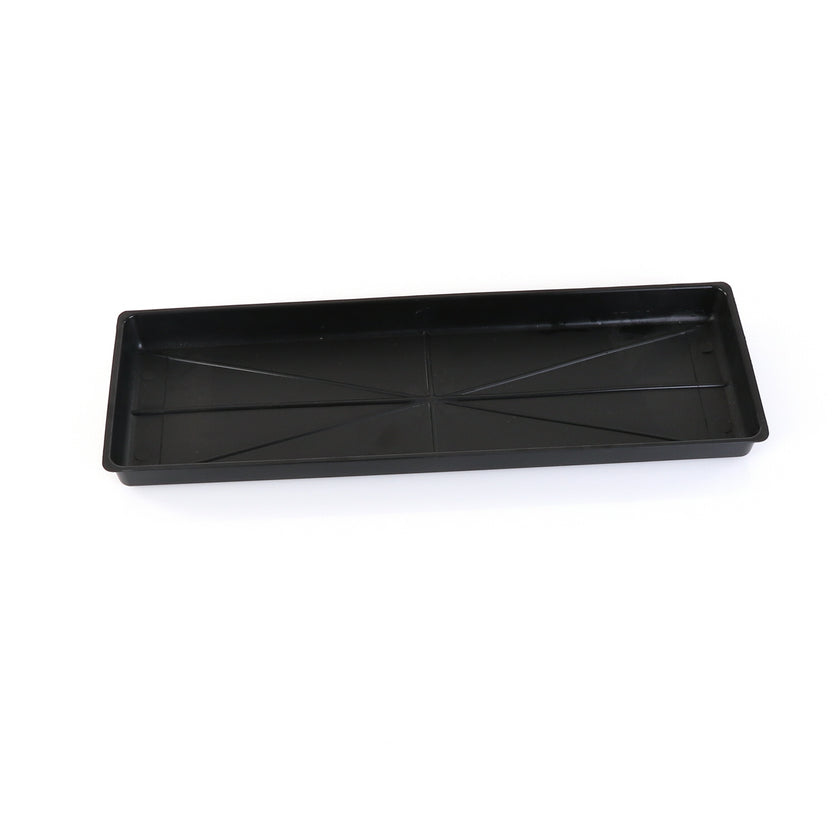

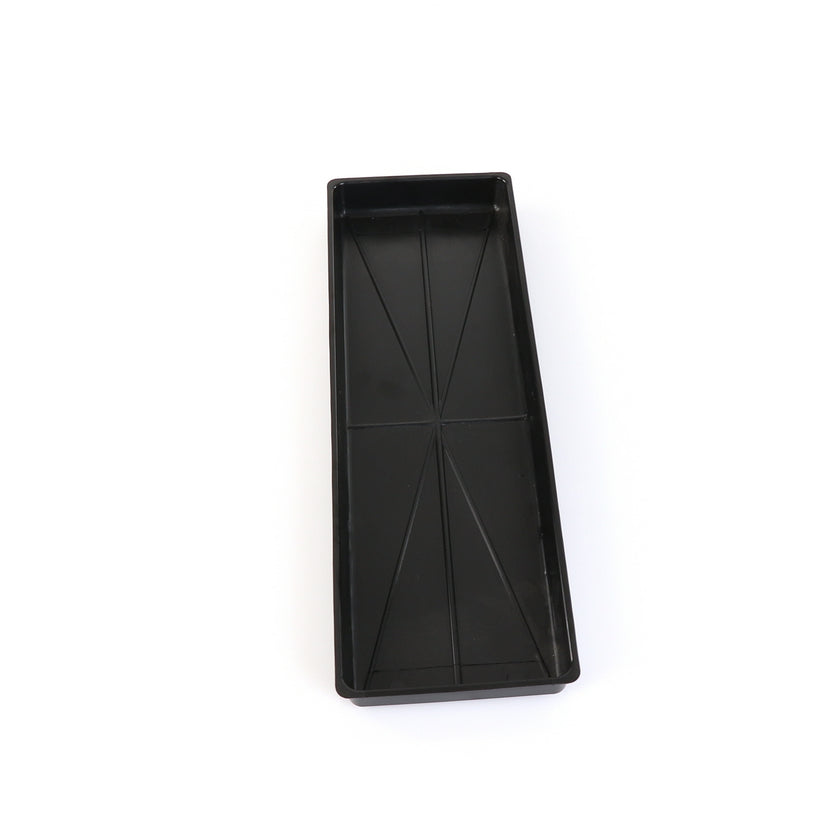

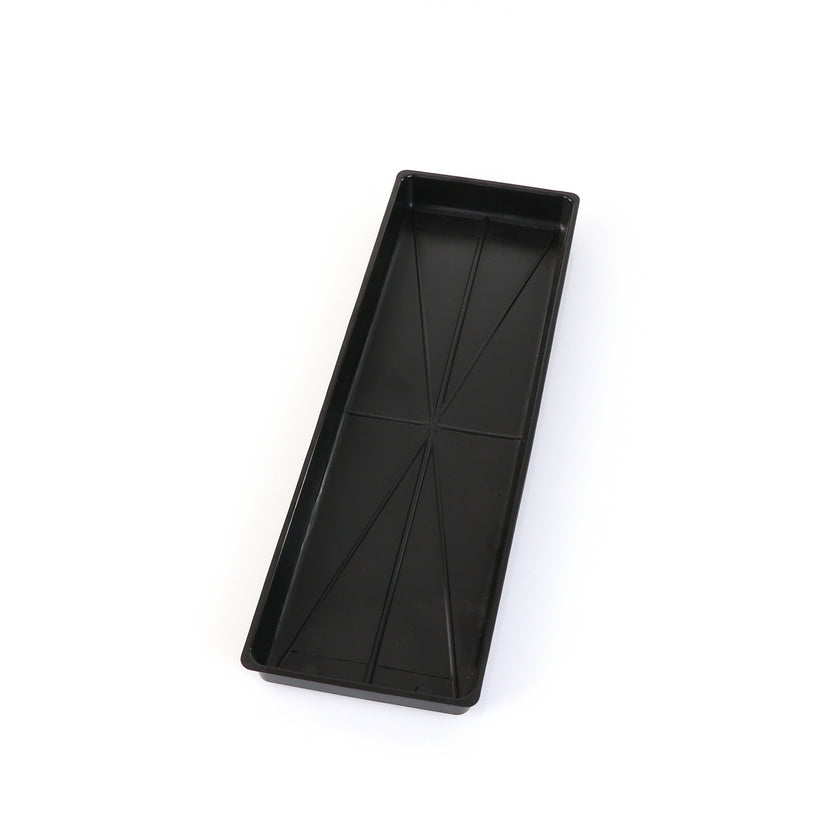

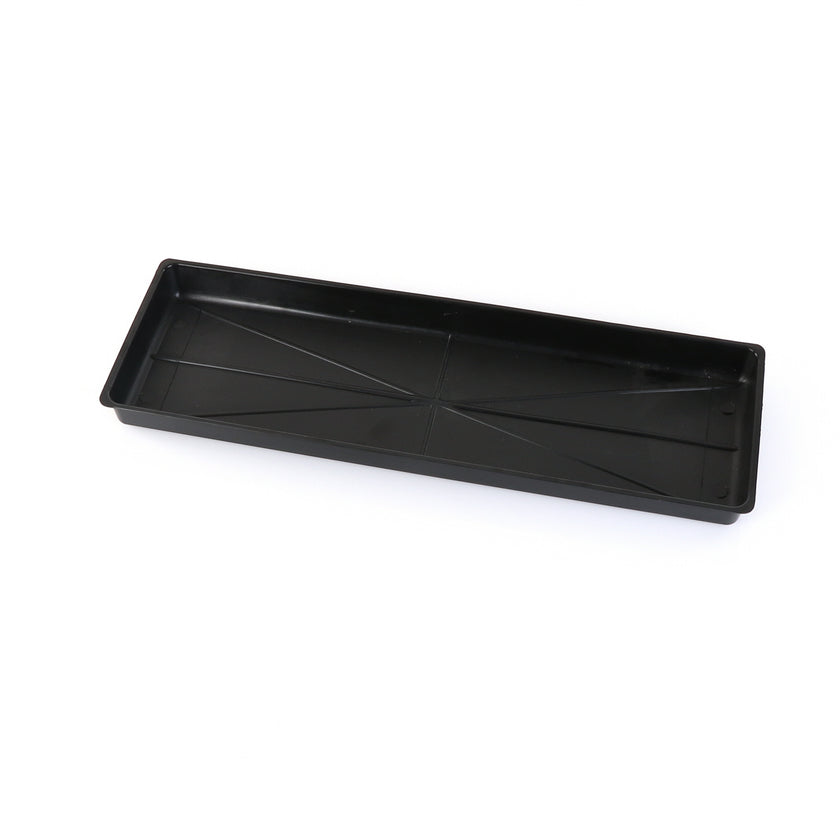

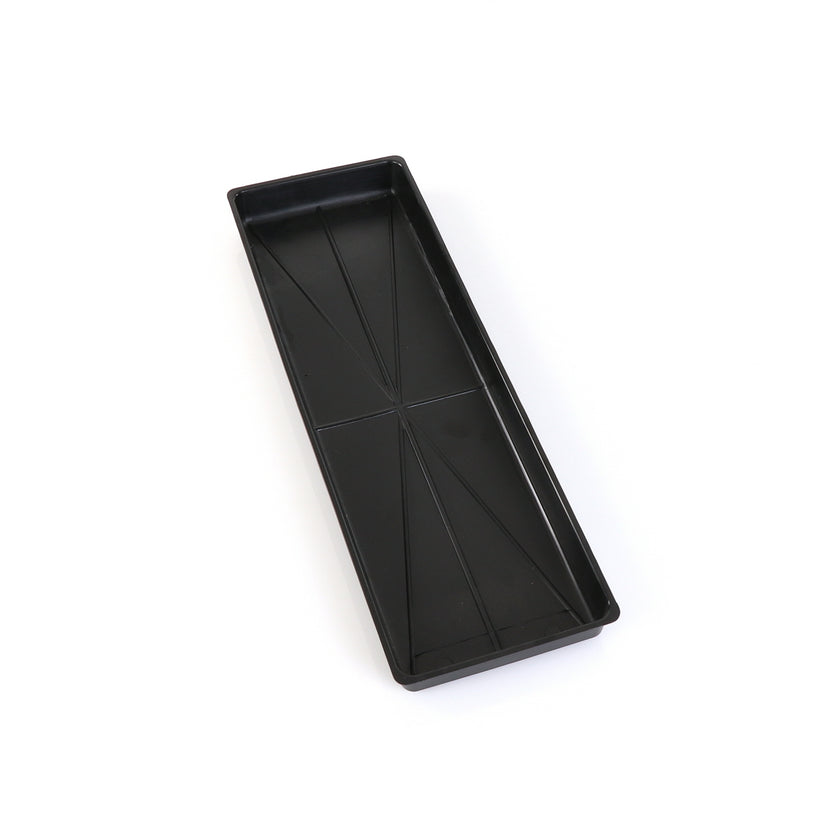

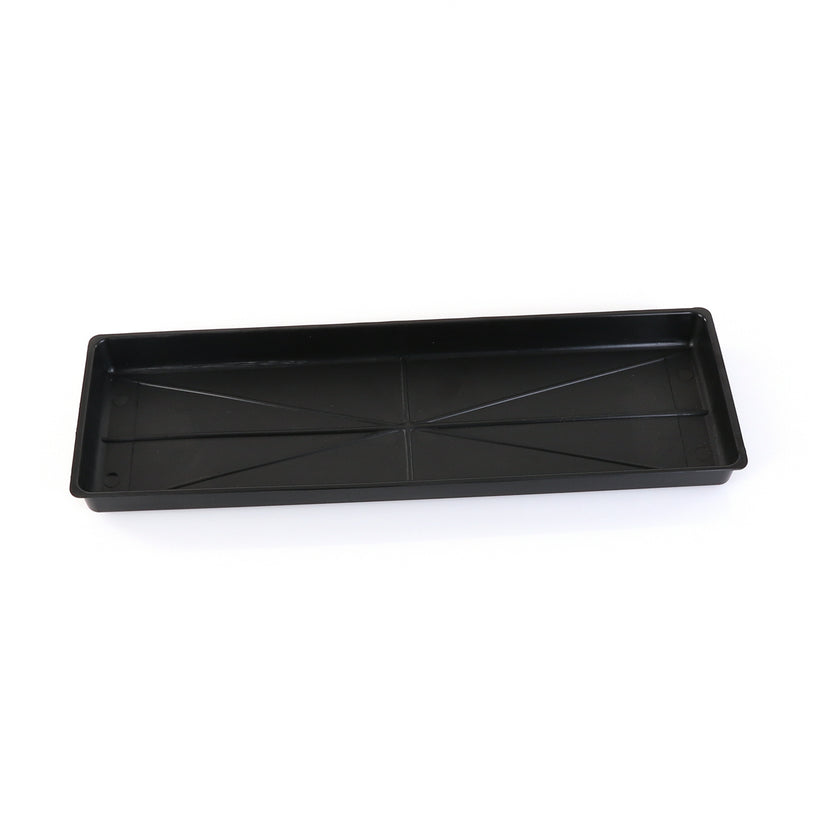

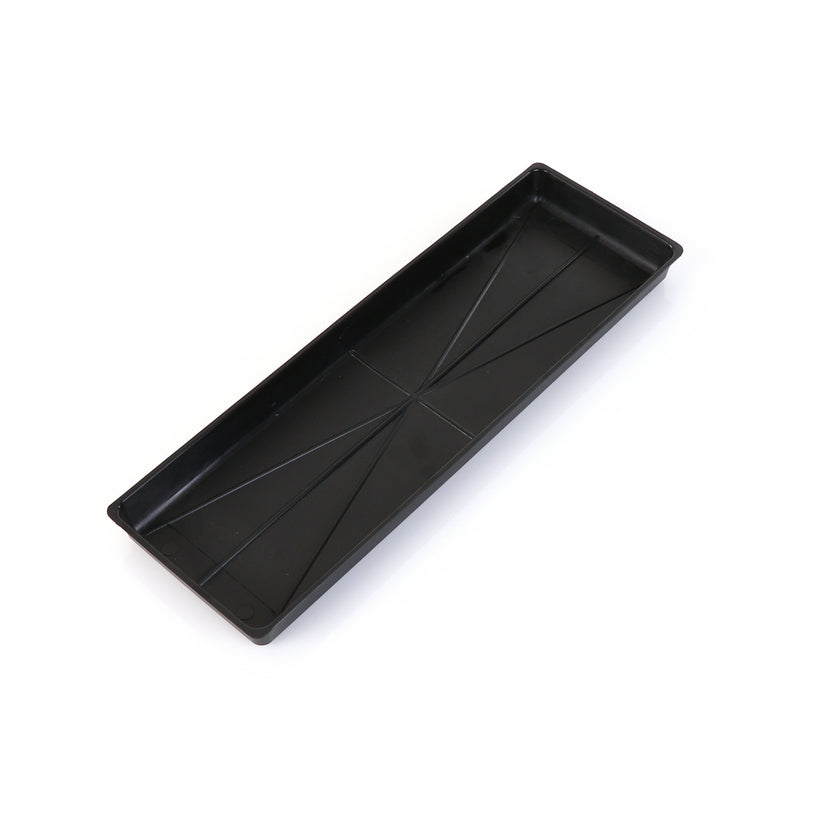

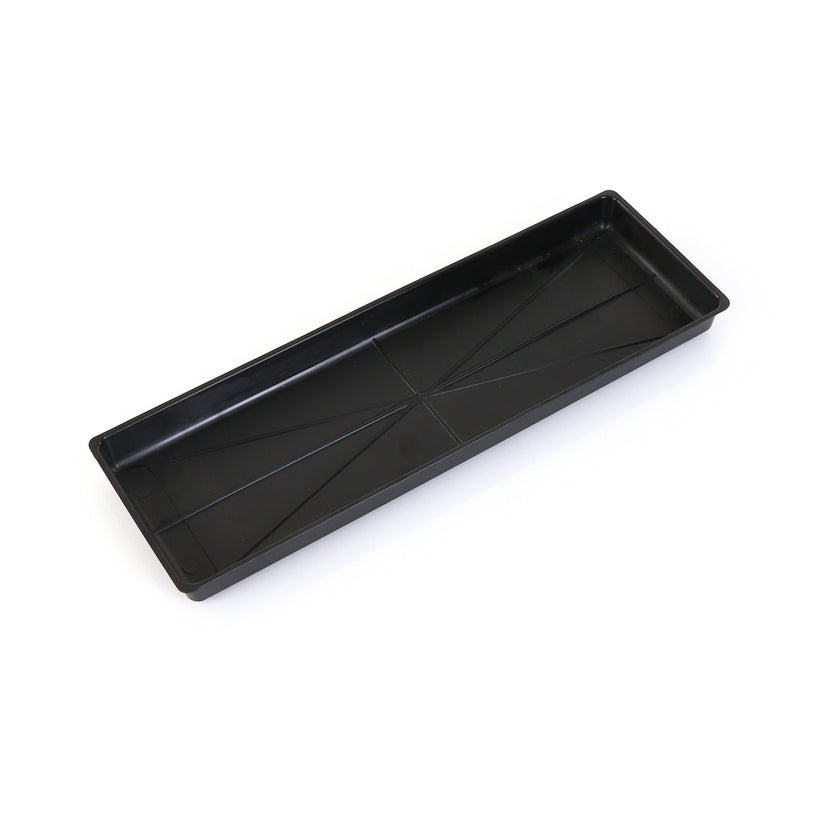

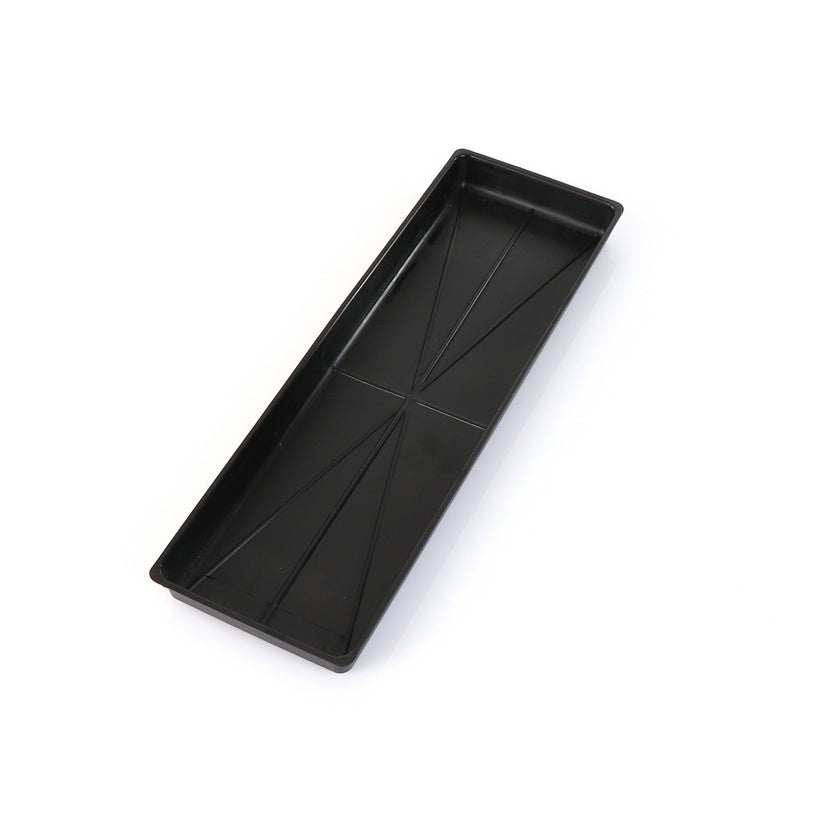

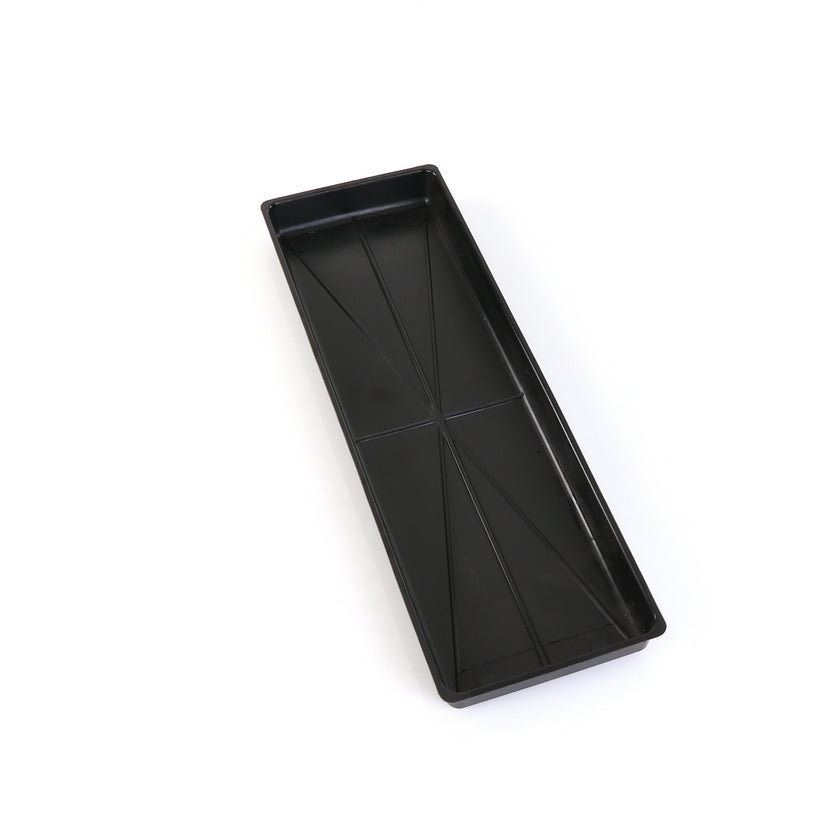

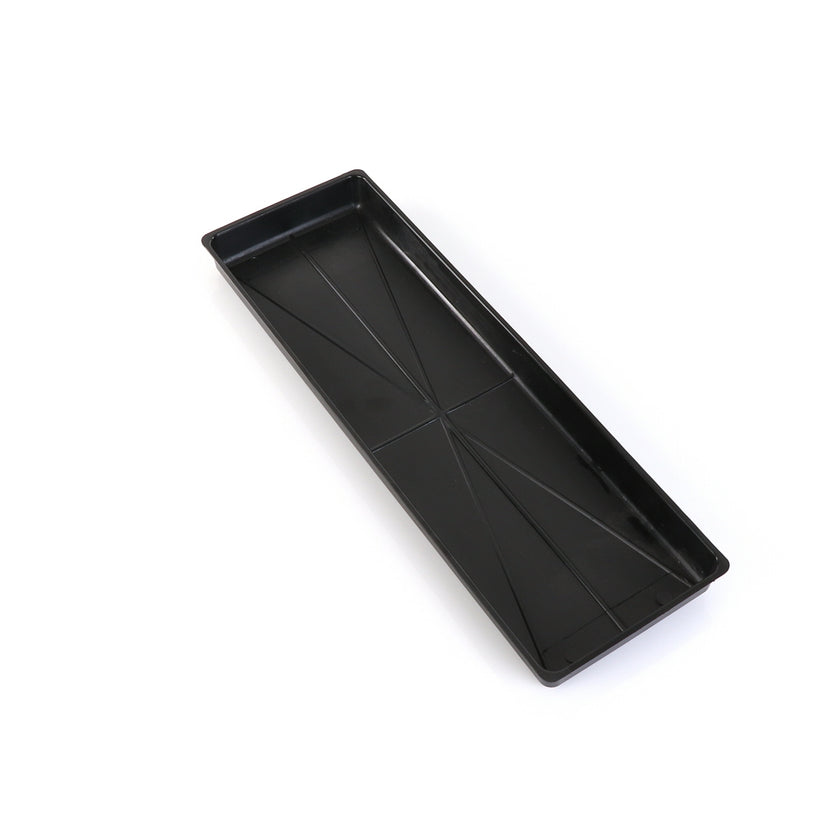

EVAP PAN ASM GDM-23F-LD LOCATED BELOW EVAPORATOR COIL. FOR FREEZERS. INCLUDES: PAN 864305 AND BLACK DRAIN ELBOW.
POWER CORD, 23.6" EBM w/ferrules(2 wire)10800-4-1040 USED WITH 944876/957891/ 217249 CONDENSOR MOTOR. REPLACES THE 948128 CORD PER PCN 6171
R290 ADAPTER HOSE KIT INCLUDES: 977075 HOSE, 977211 HOSE DEPRESSOR .
R290 SERVICE KIT HC2 W/O REFRIGERANT INCLUDES: 965087 GAS MATE LEAK DETECTOR, 931318 VICE GRIPS, 977075 12" HOSE. 977076 12" HOSE, 977407 DANGER PROPANE SIGN, 3) 200962 2WAY CONNECTOR,3) 202747 5WAY CONNECTOR, 819576 R290 ADAPTER L NEW STYLE, 221725 INSTRUCTIONSORDER PROPANE 969292 AS SEPARATE LINE ITEM.

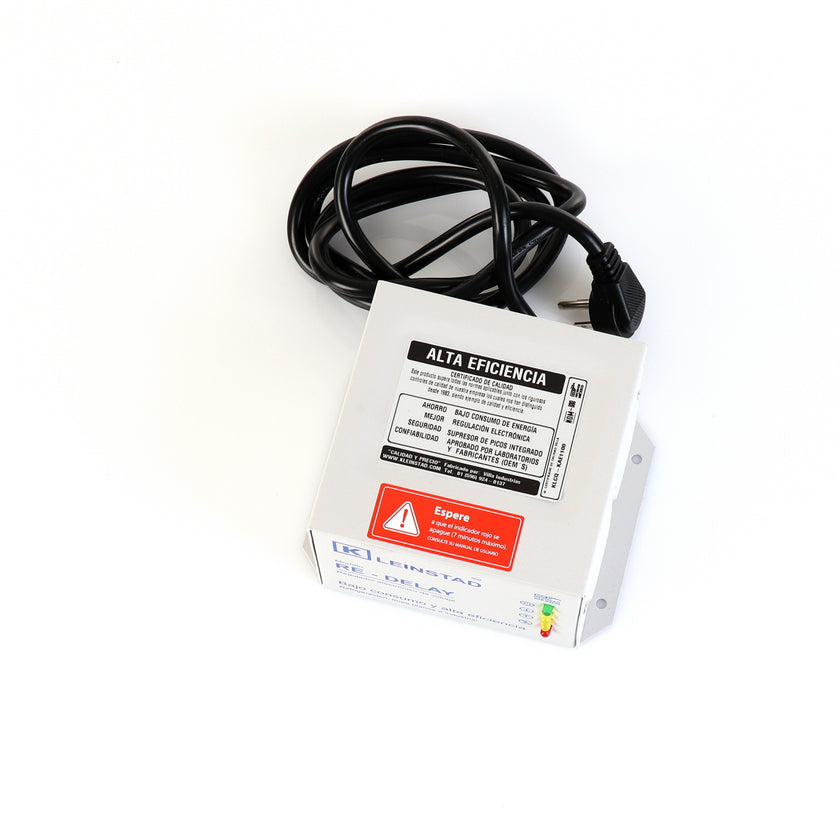

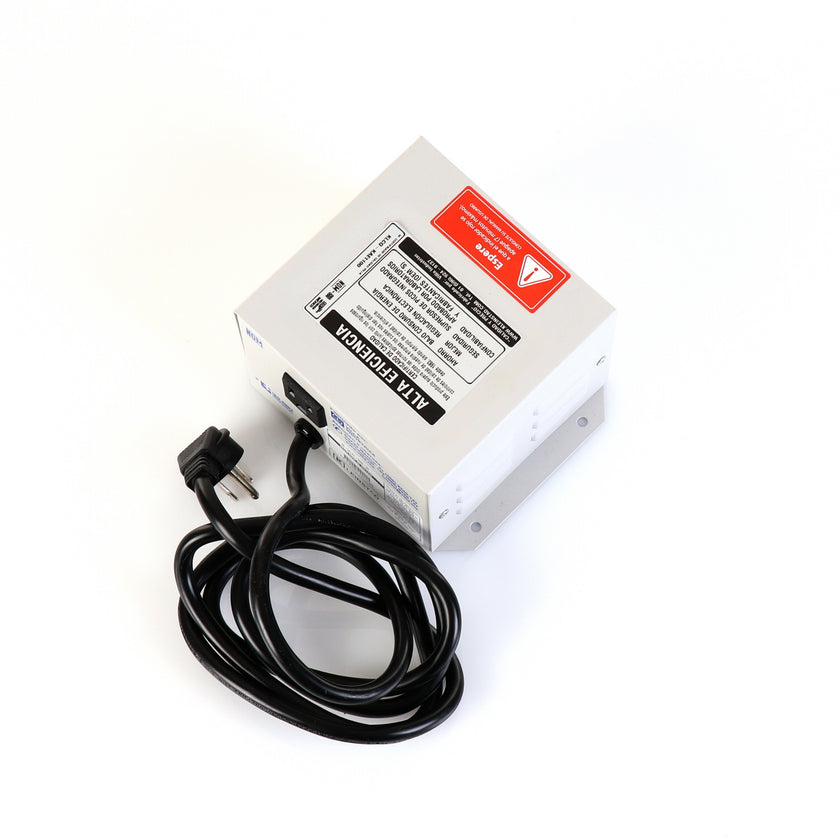

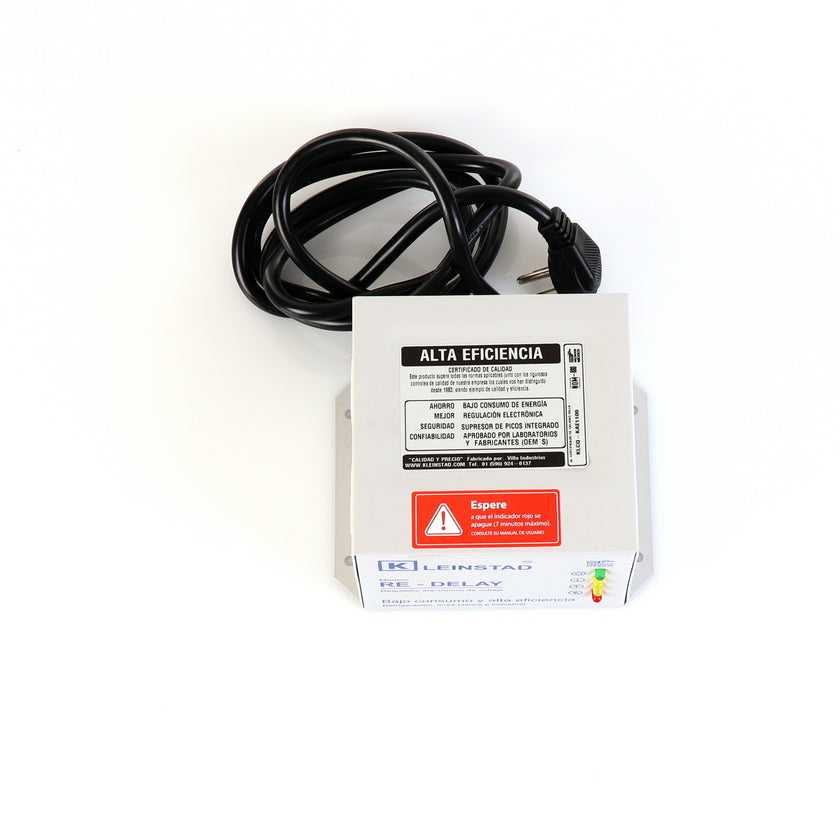

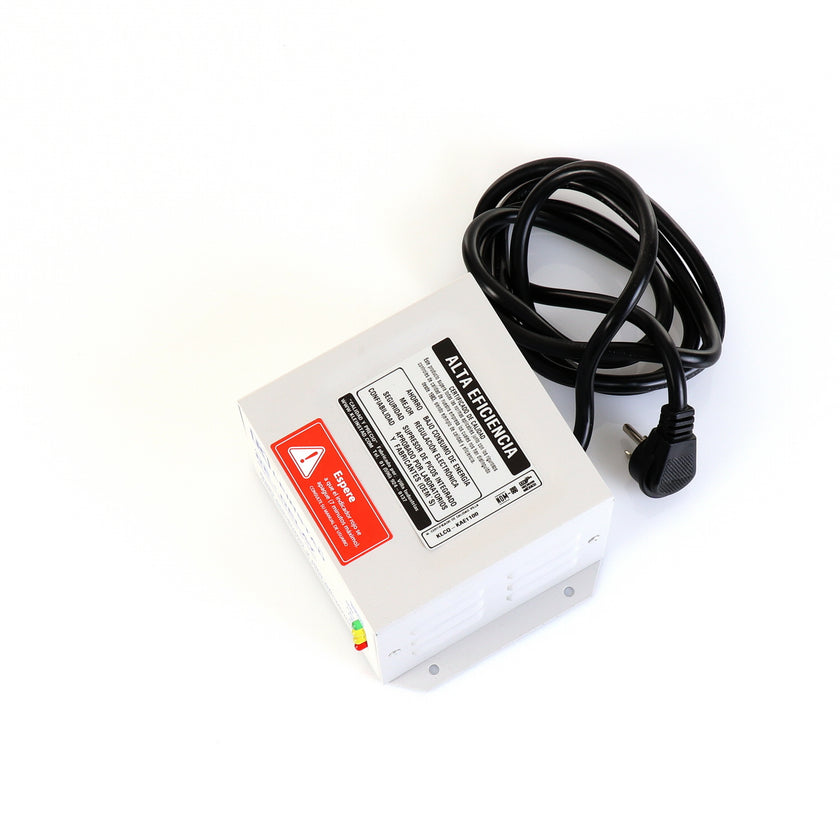

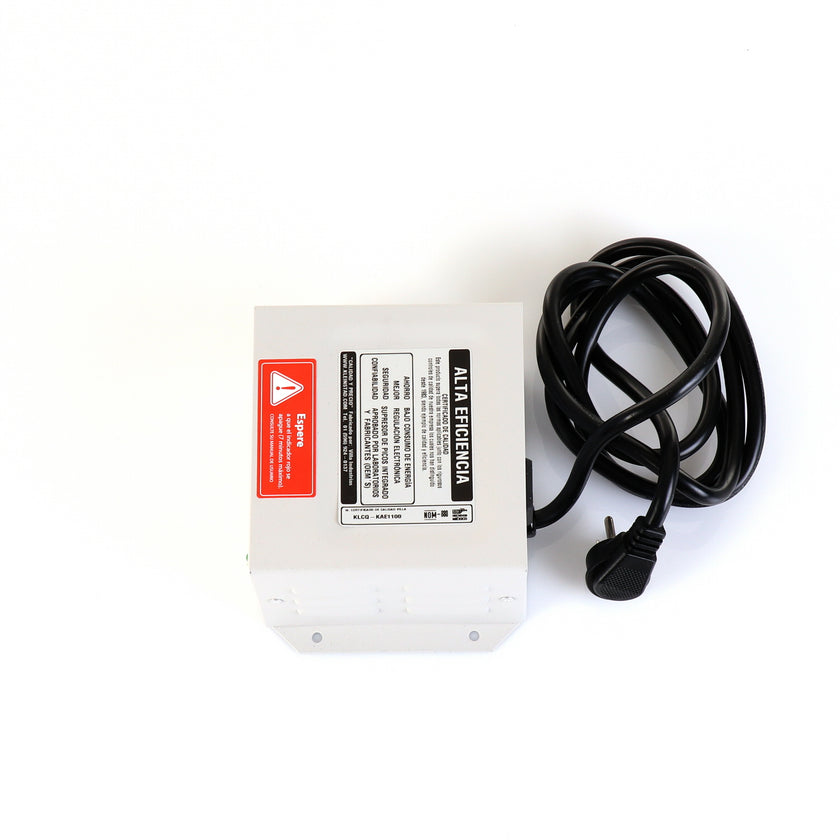

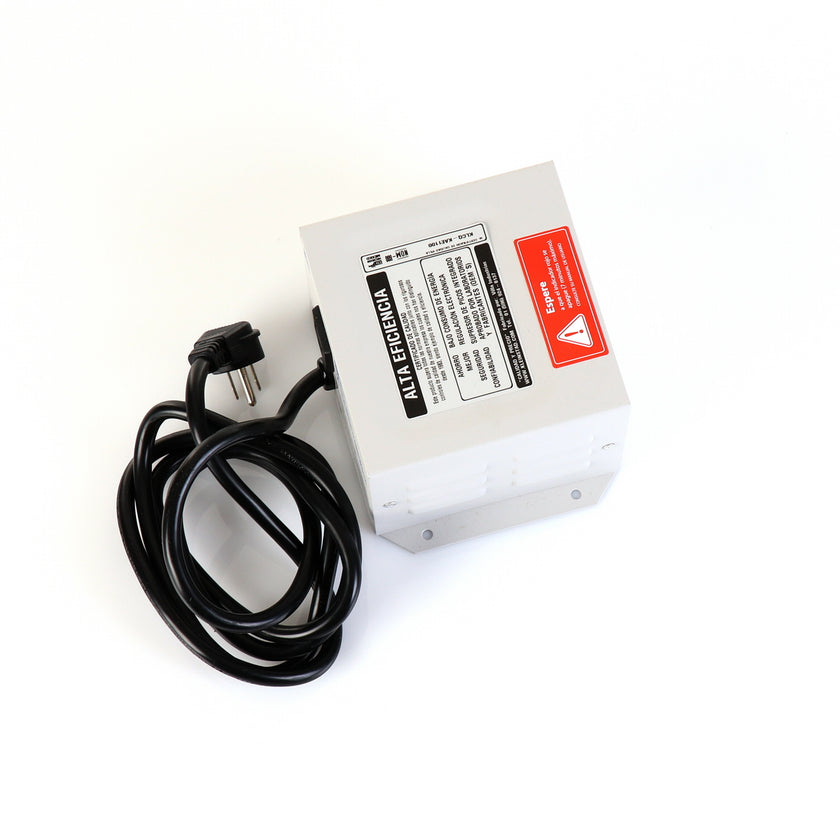

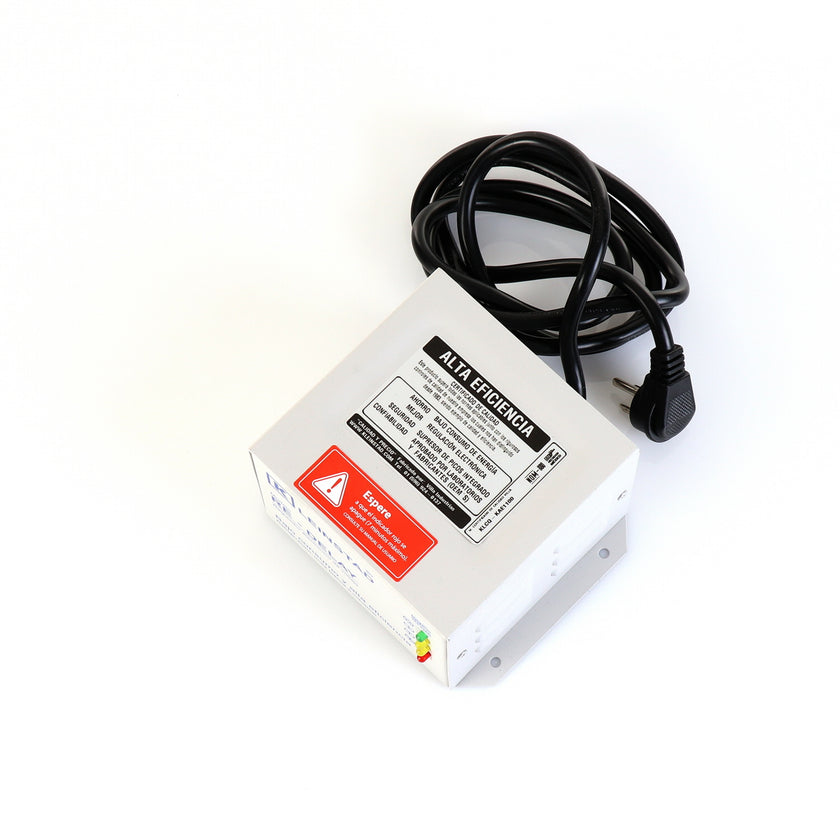

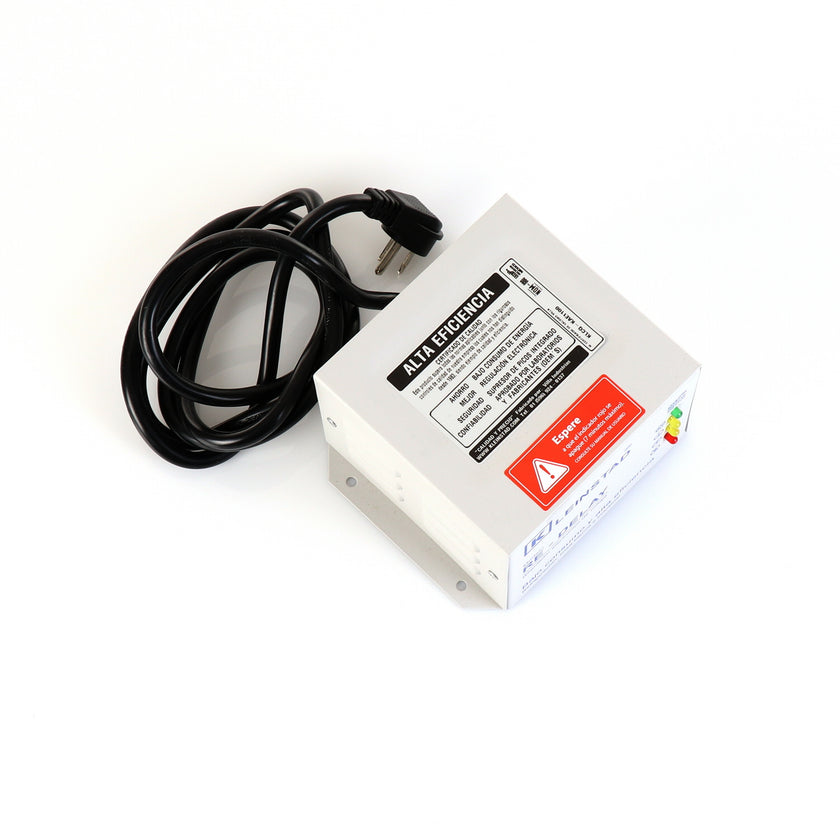

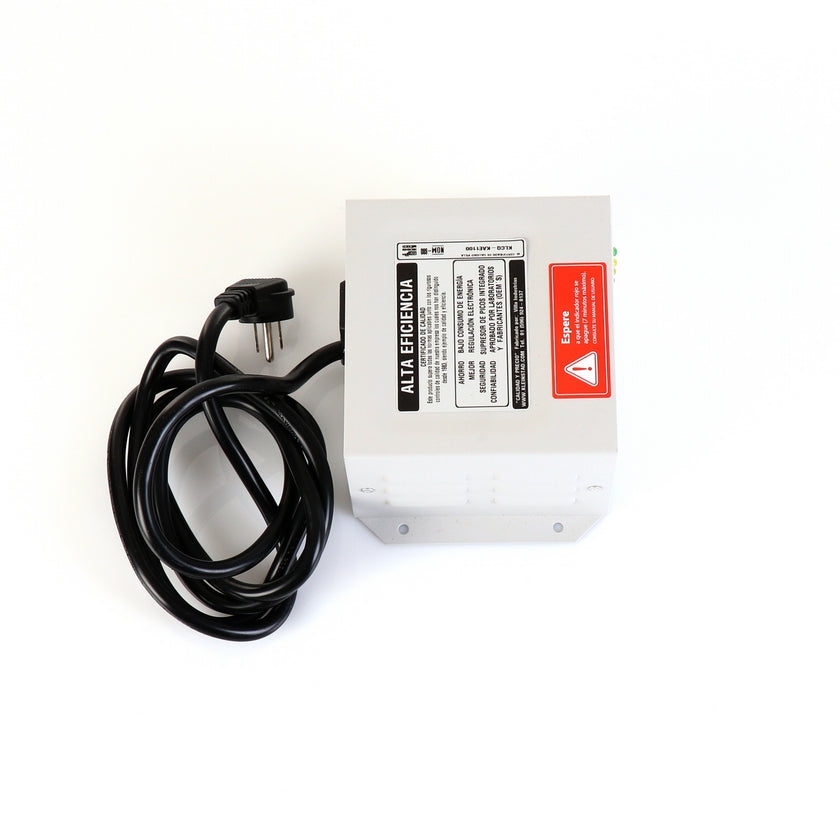

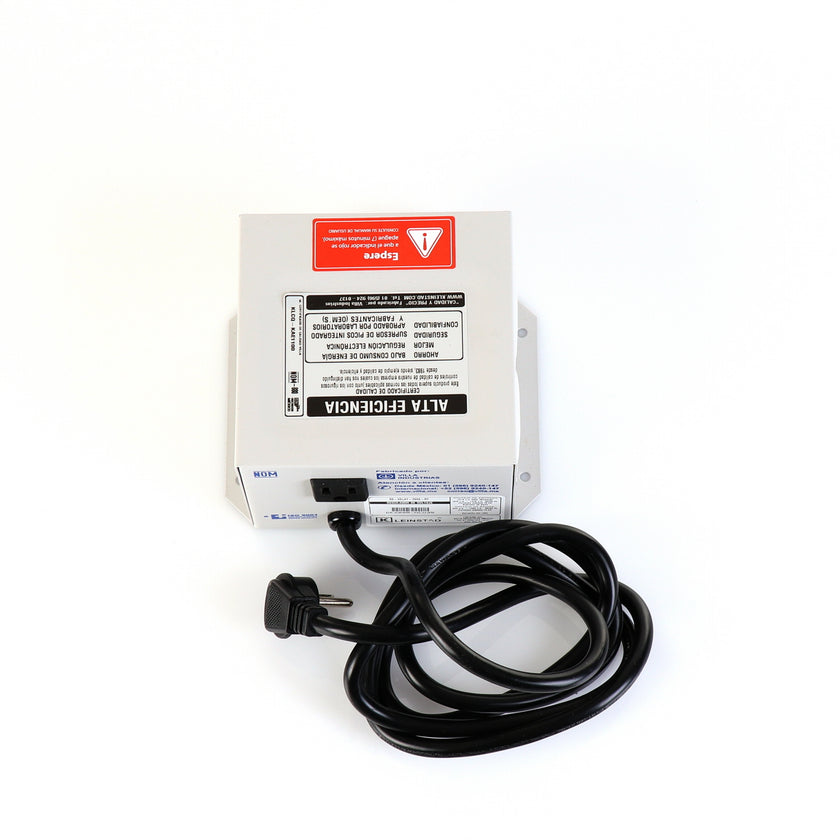

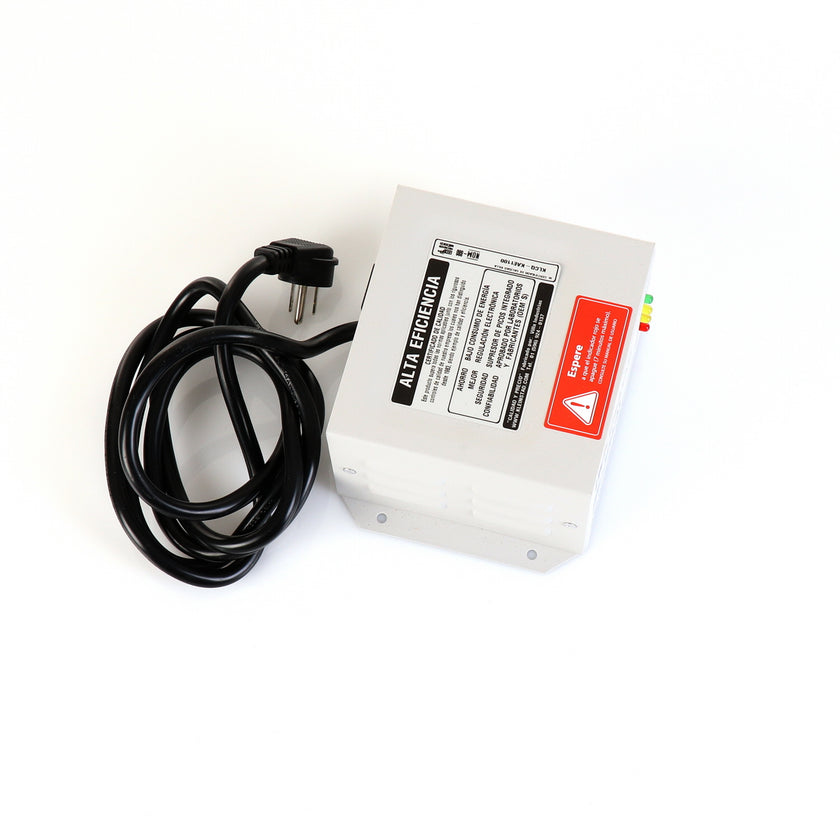

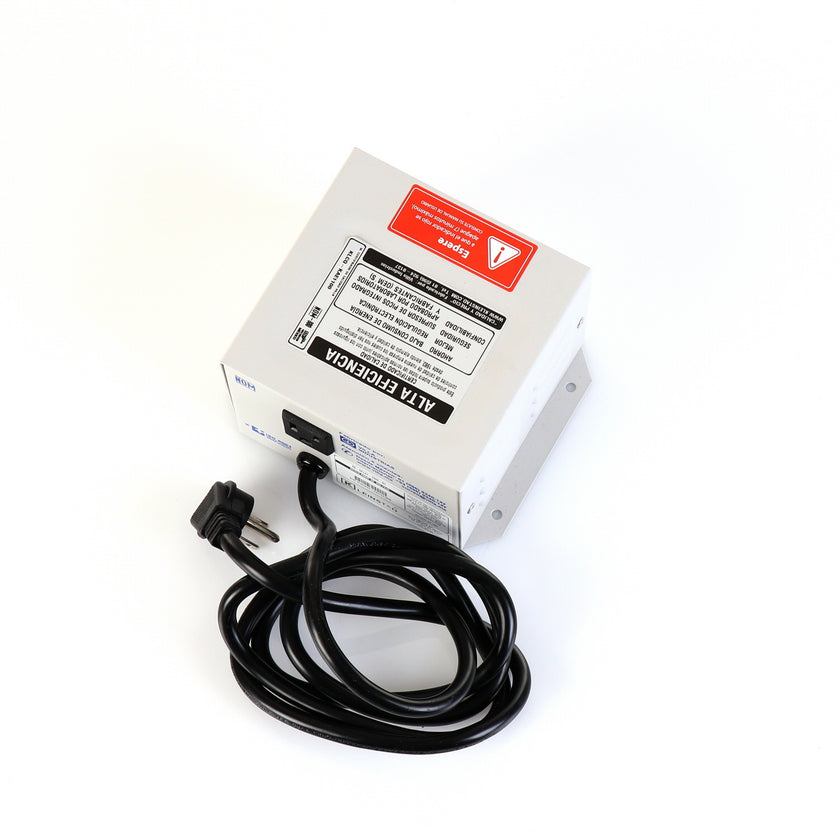

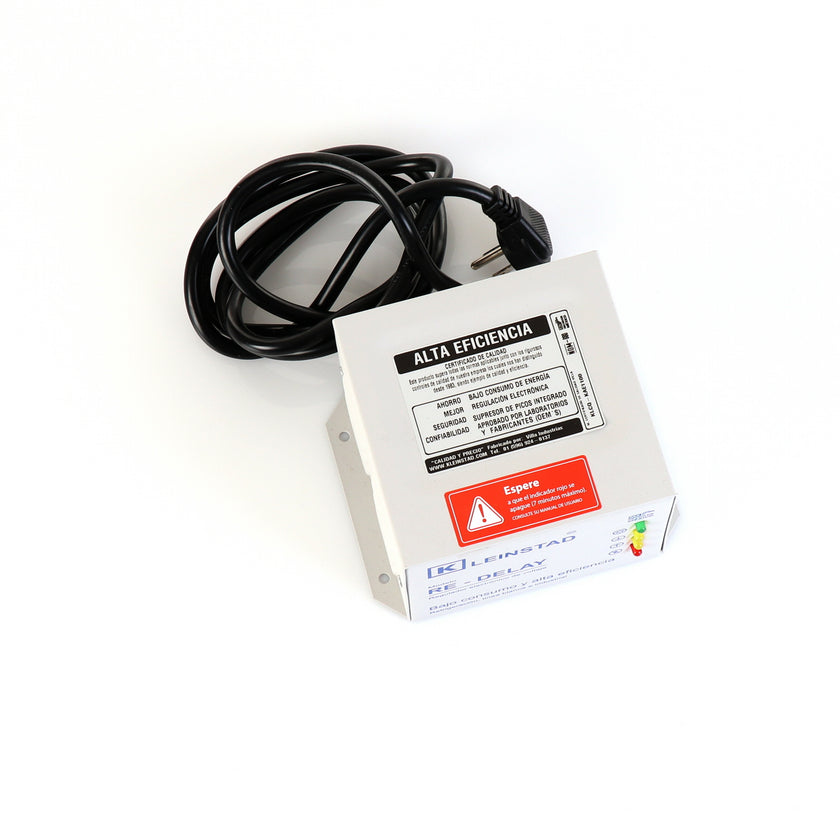

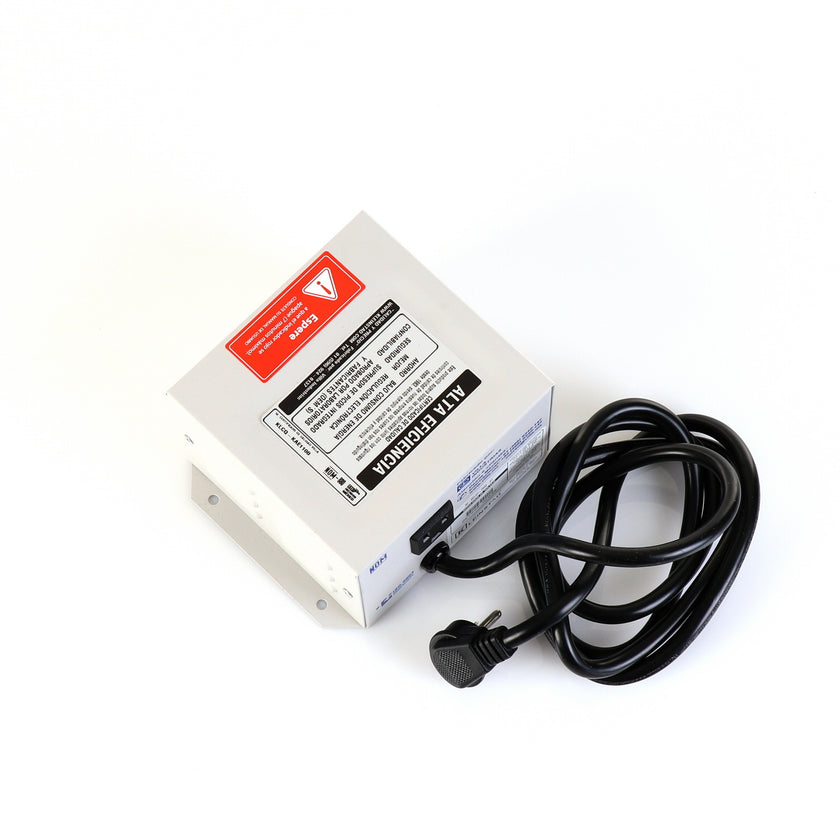

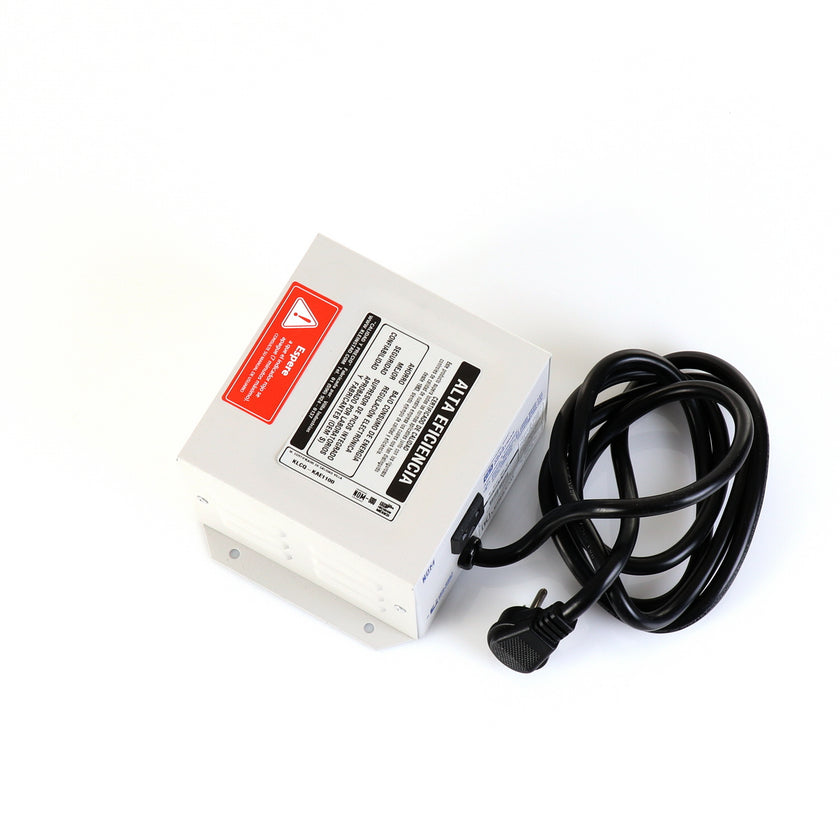

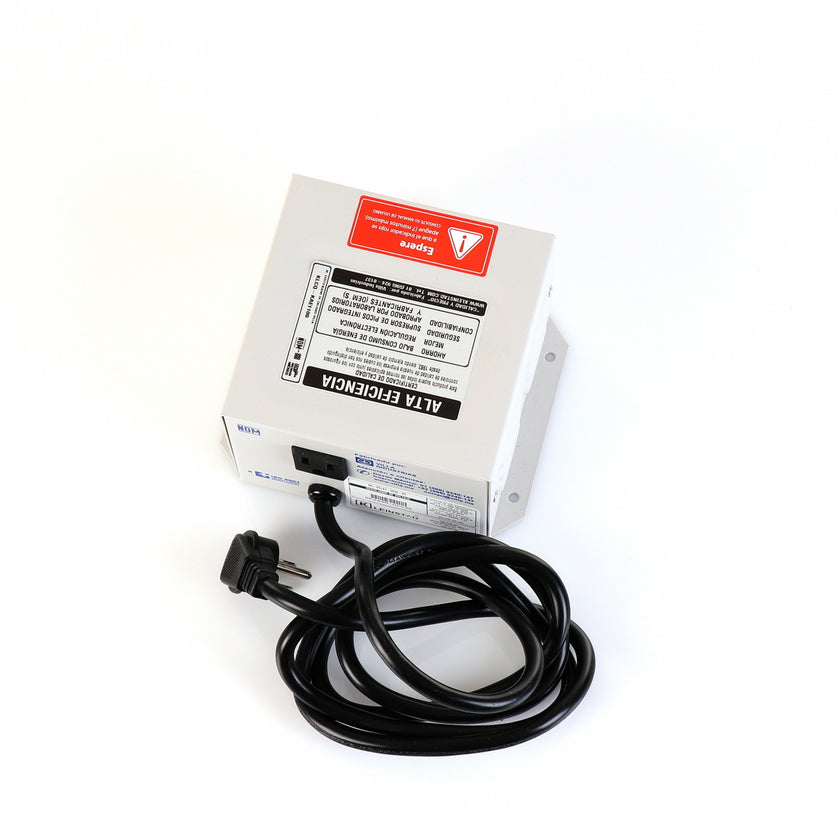

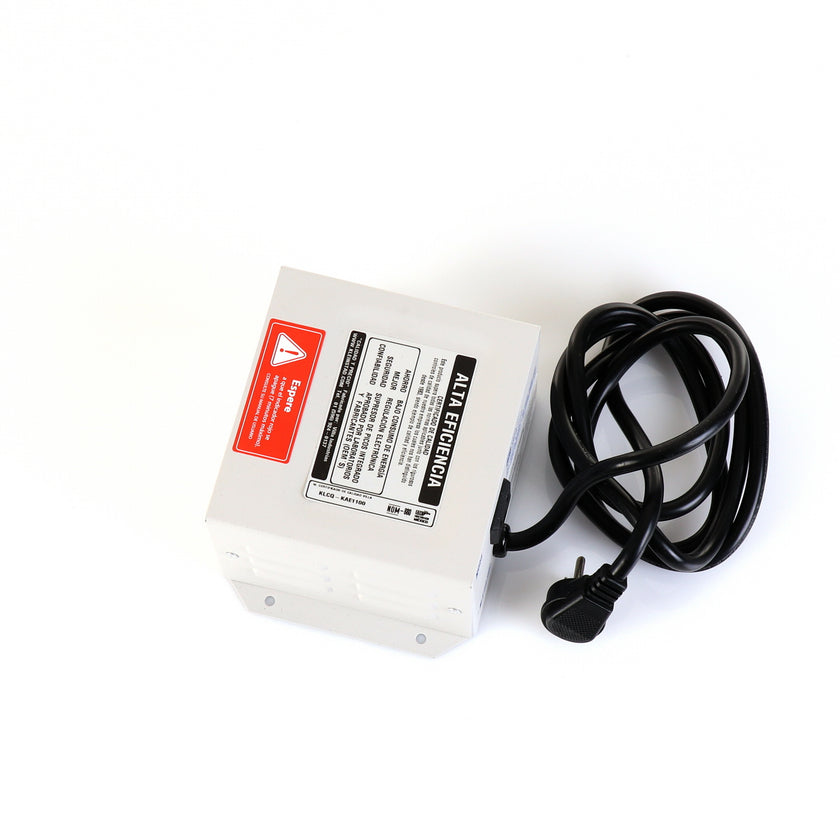

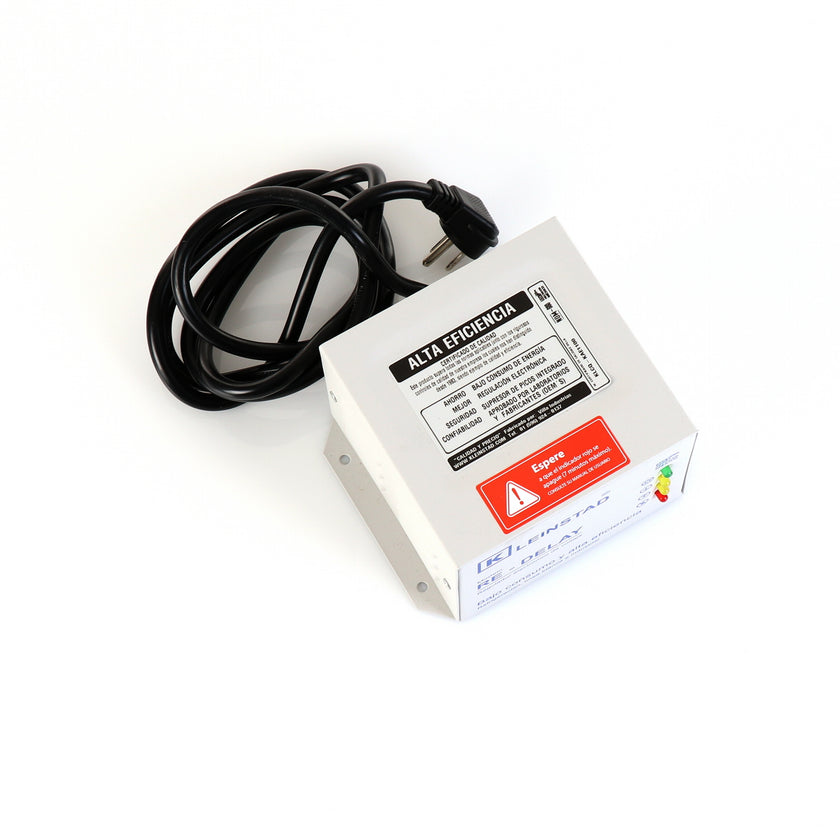

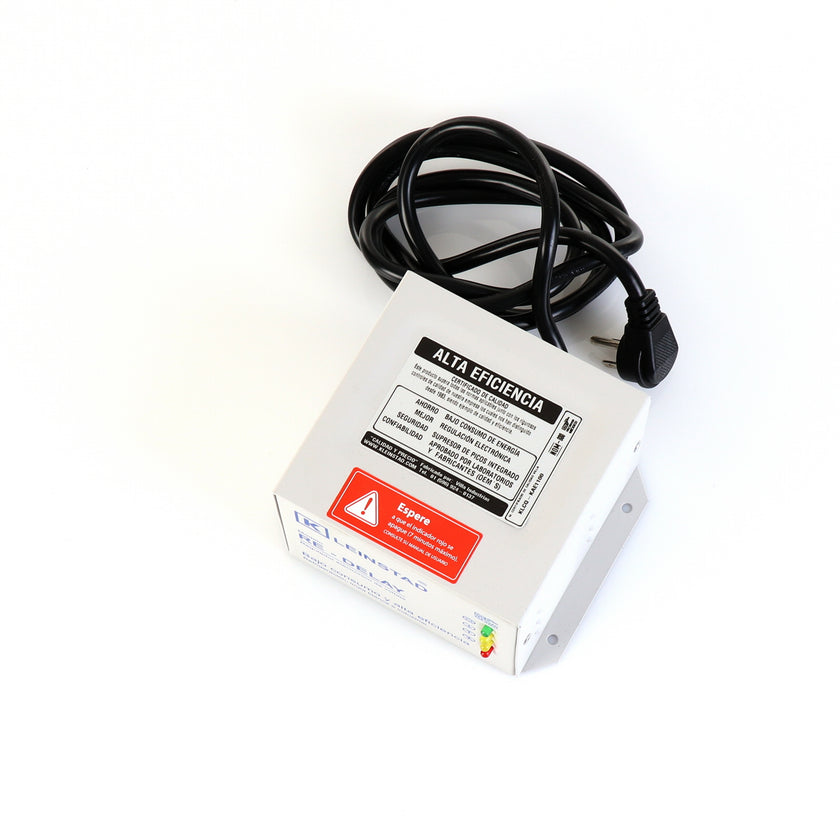

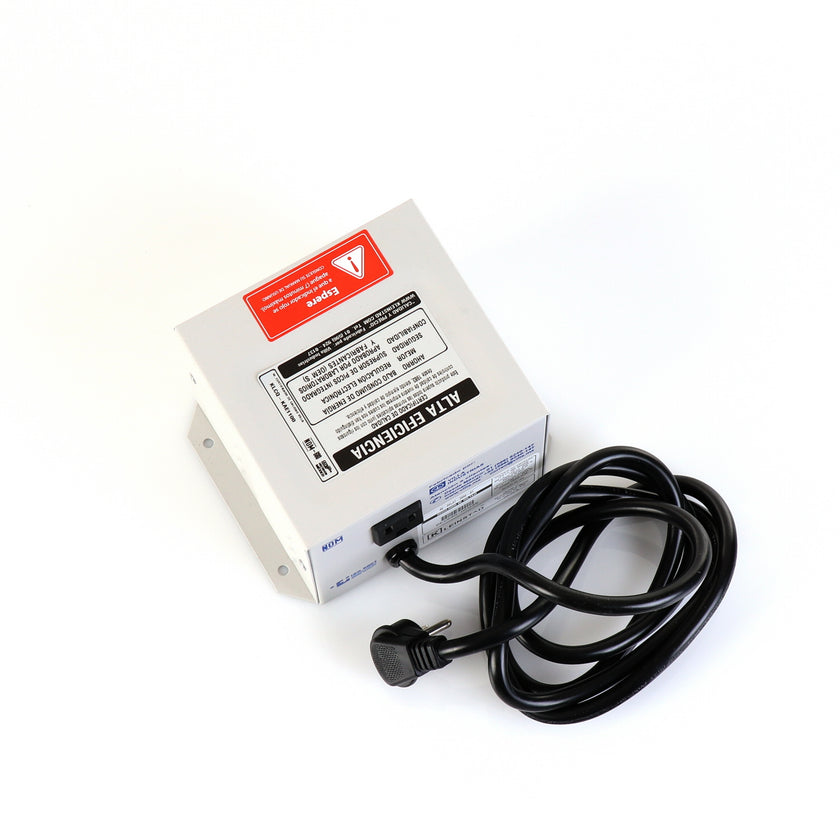

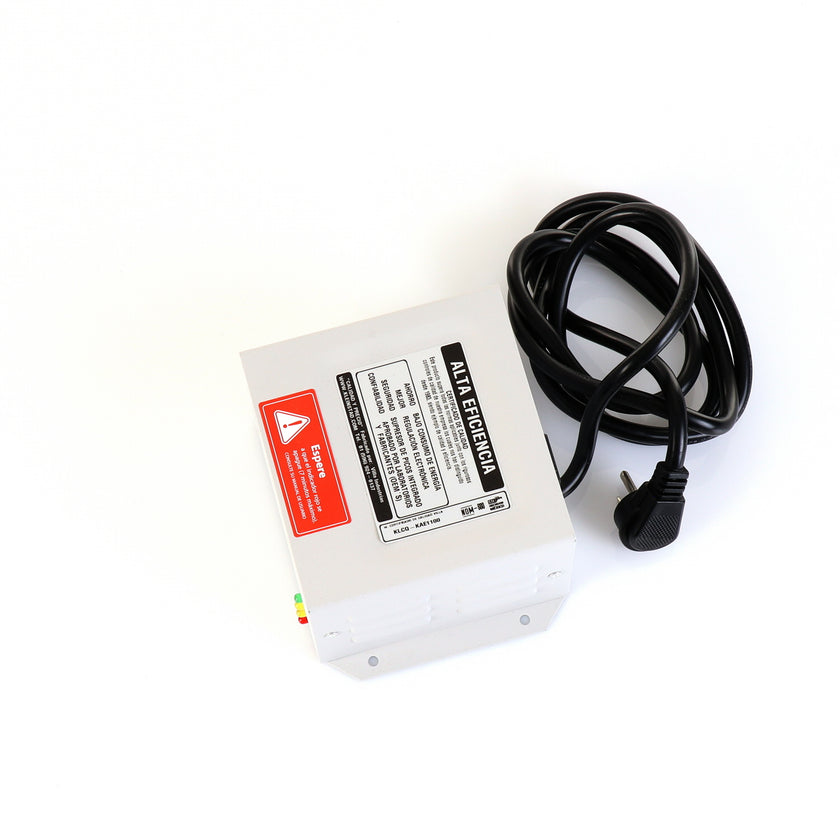

VOLTAGE REGULATOR RE-DELAY 2000RT, 2000W 16GA EXTERNAL USE ONLY. FIELD INSTALL FOR 115V CABINETS
RIVNUT TOOL KIT 8-32 INCLUDES: 830335 RIVNUT TOOL, 855589 DRILL BIT, 991288 INSTRUCTIONS, 837577 RIVNUTS.
LEVELING SCREW, 1/2-13 X 1 1/2 A3 TOOL STL ASTM A681 REPLACES 996897 PER PCN 10596

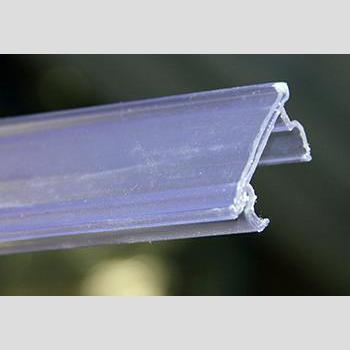

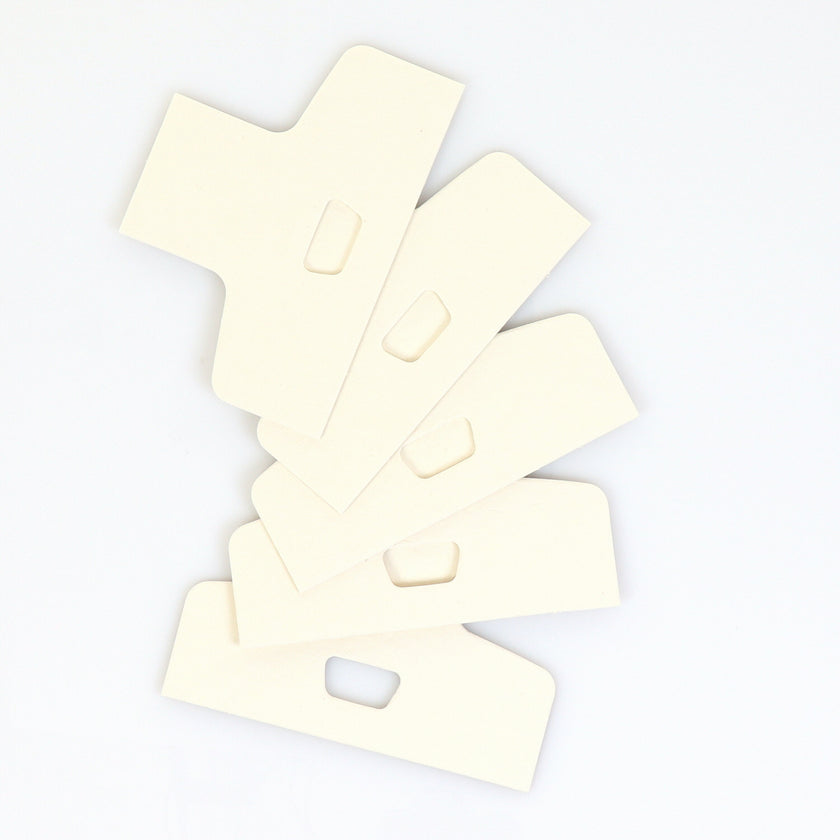

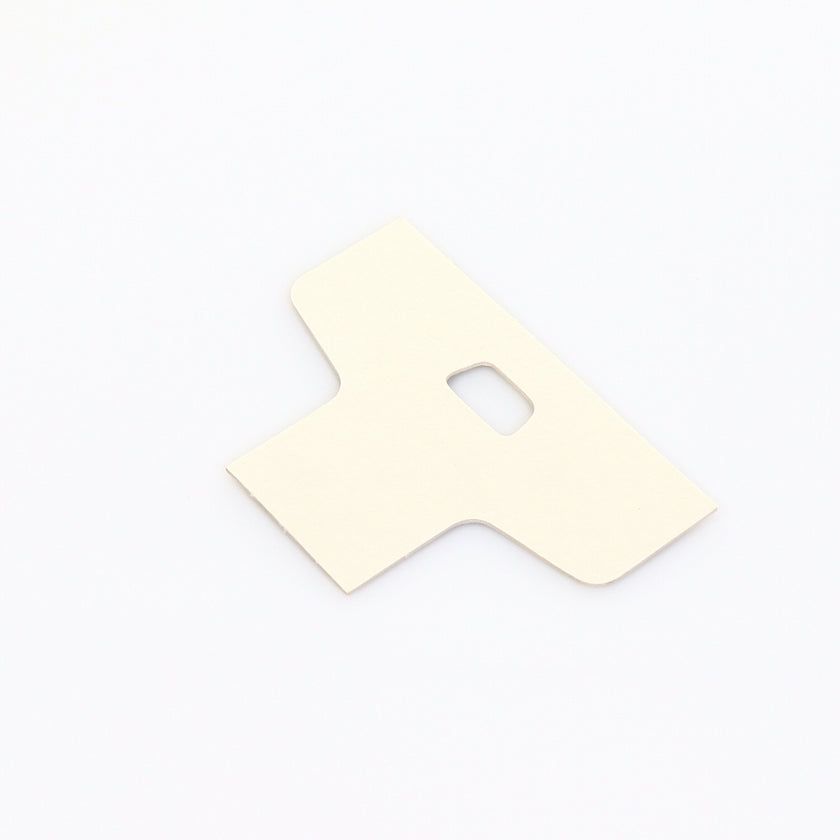

PROD ID STRIP CLR 21 1/2 FLM-27/GDM-19/23/45/SPEC2 HAS PLASTIC FLAP ON FRONT OF STRIP. DRAWING #812127

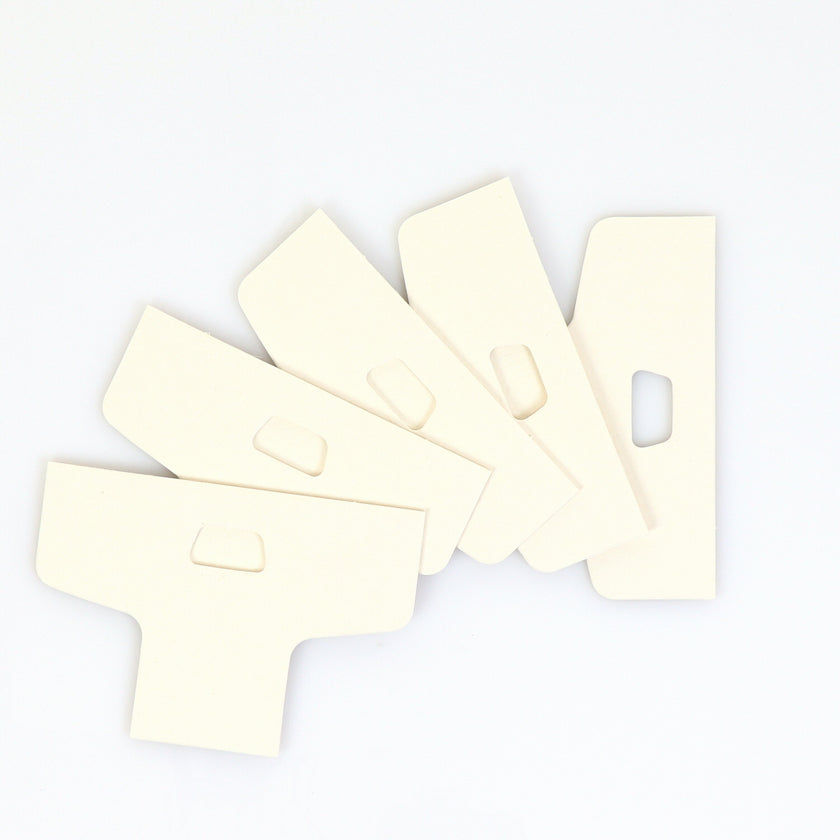

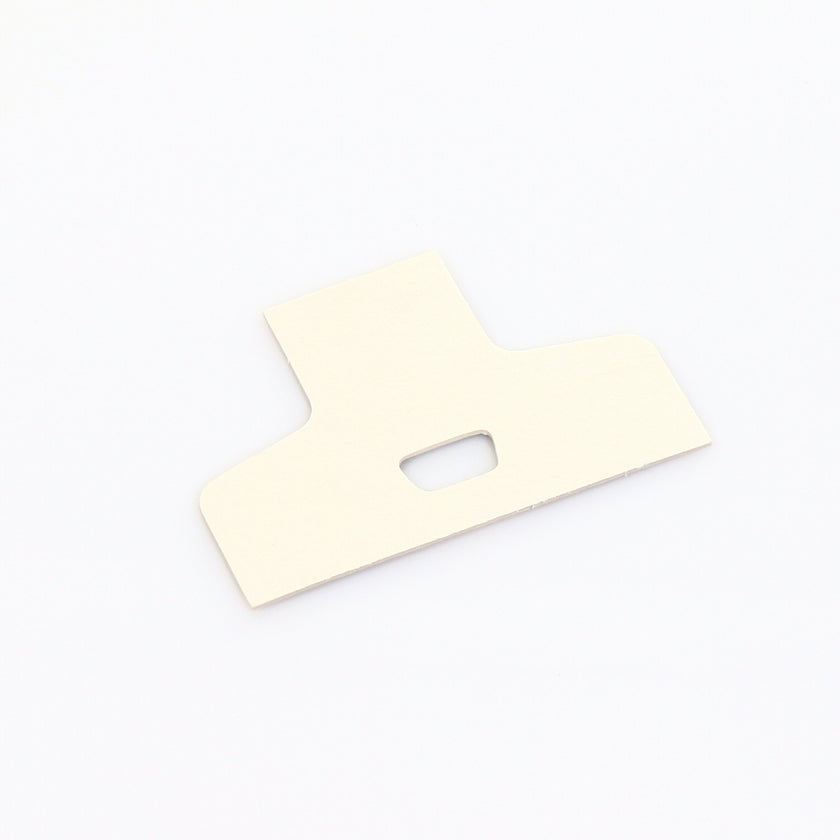

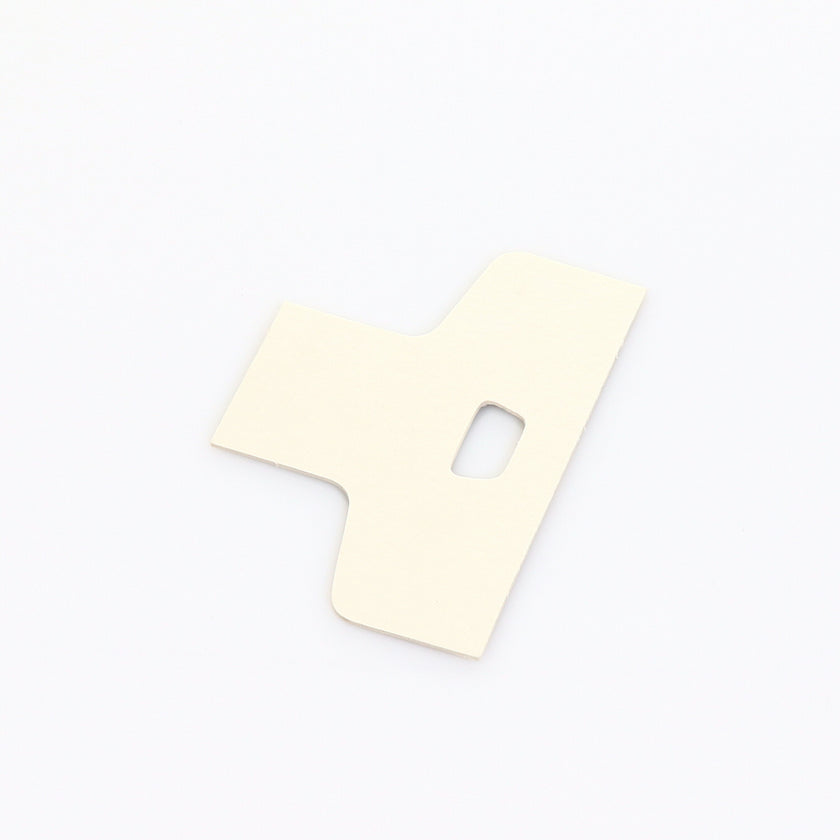

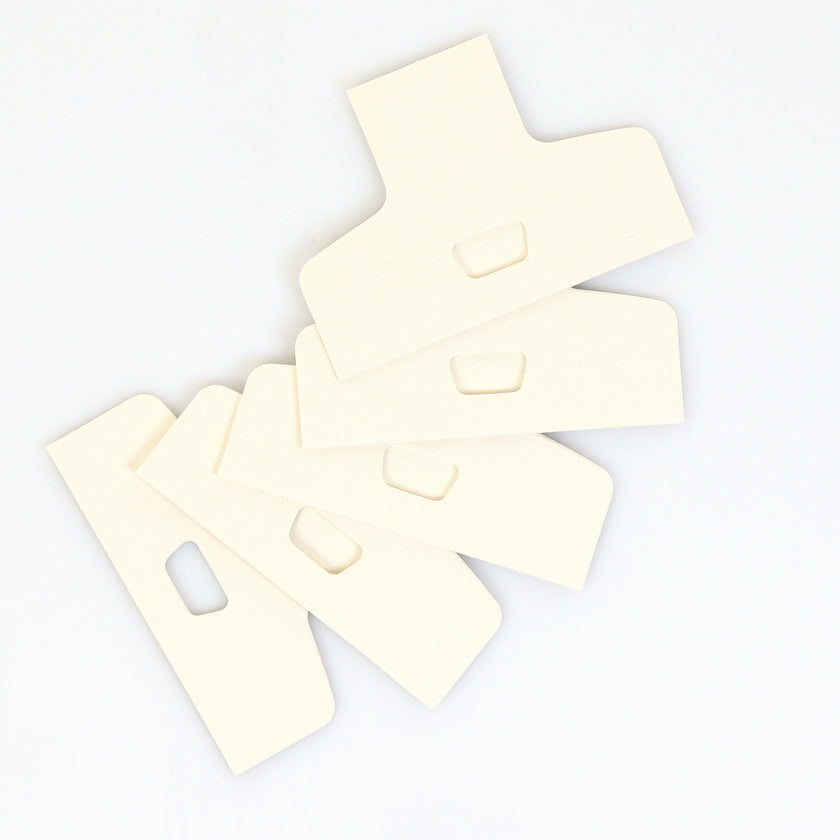

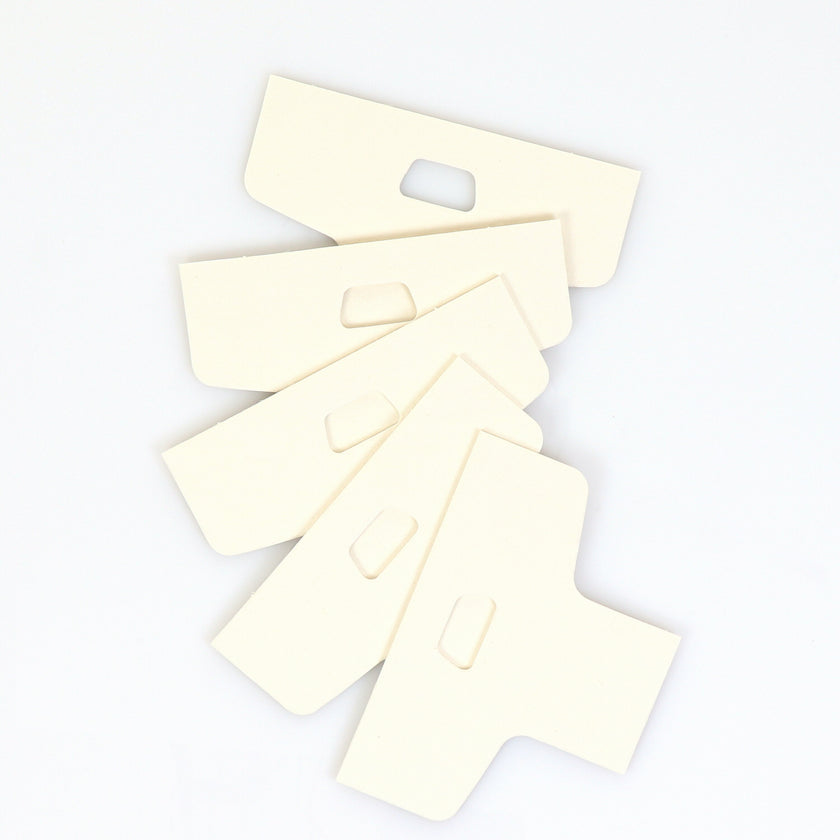

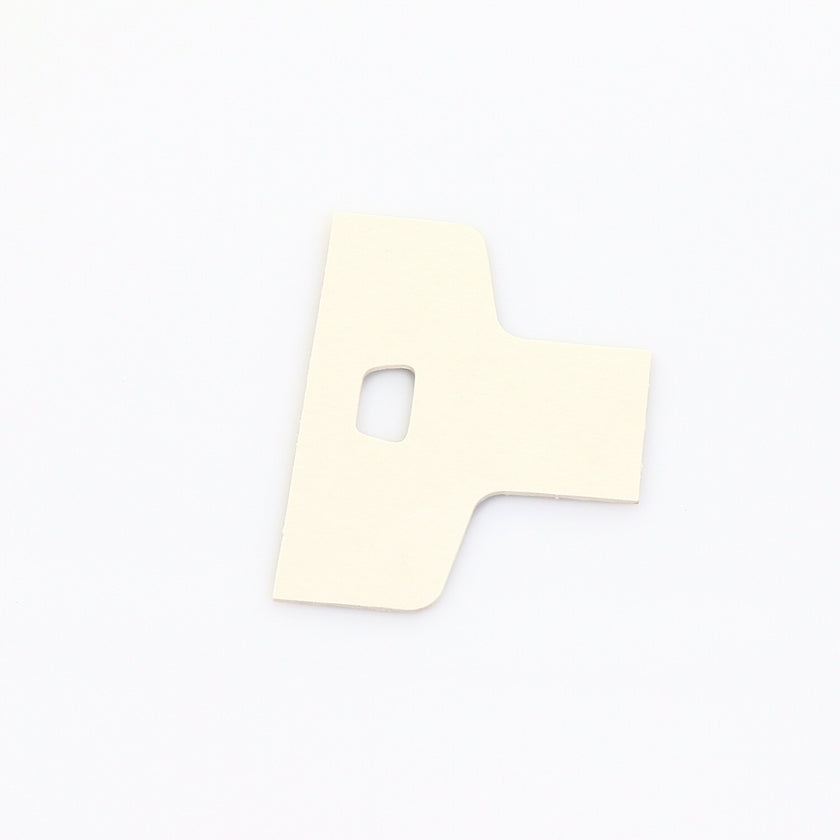

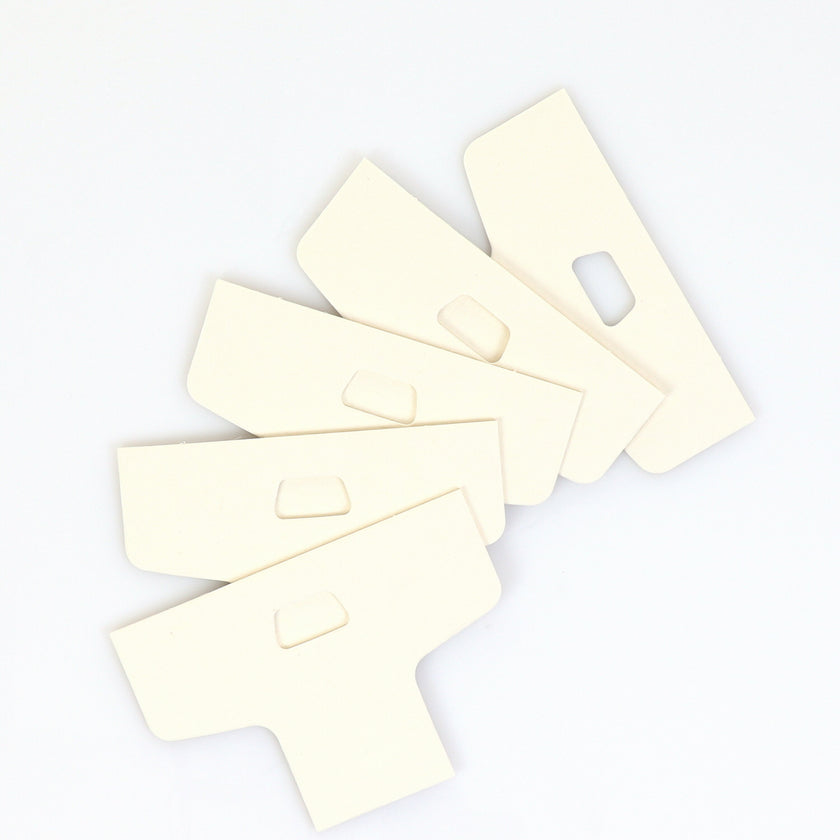

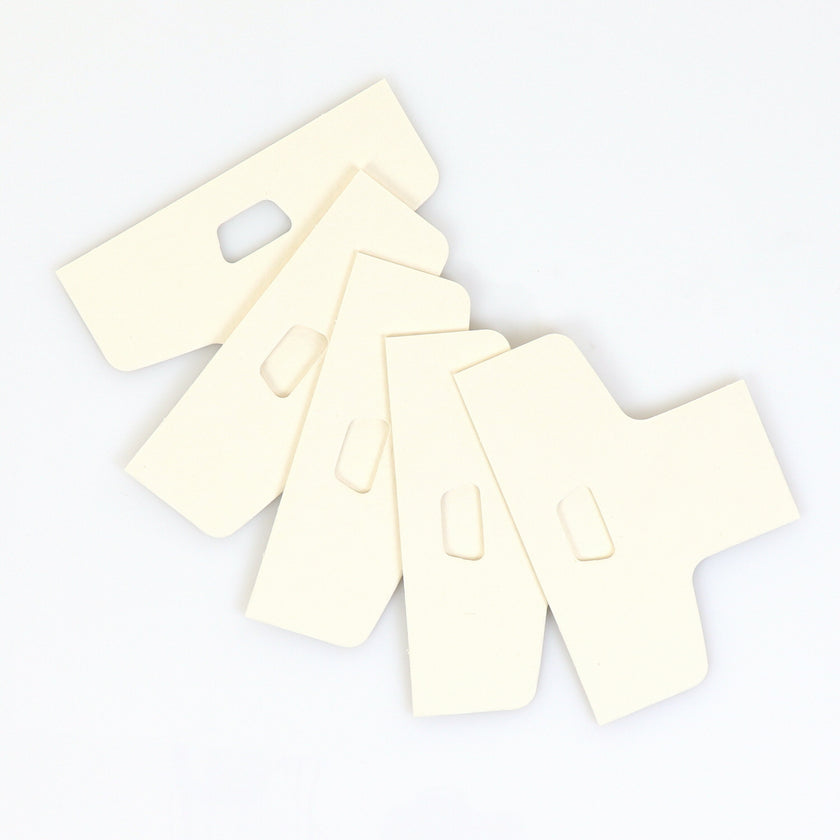

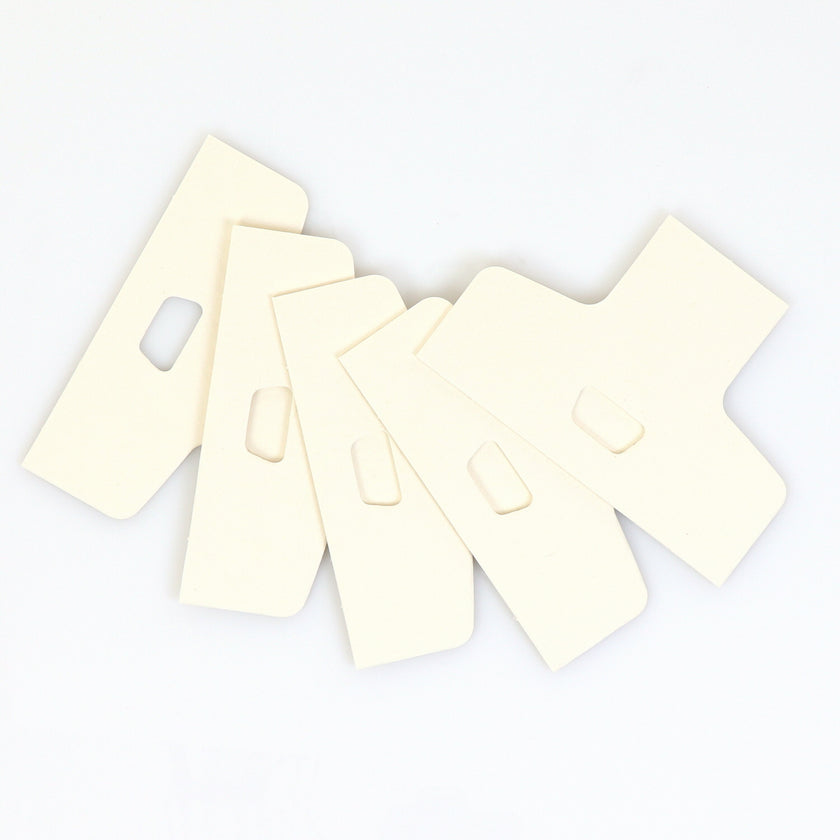

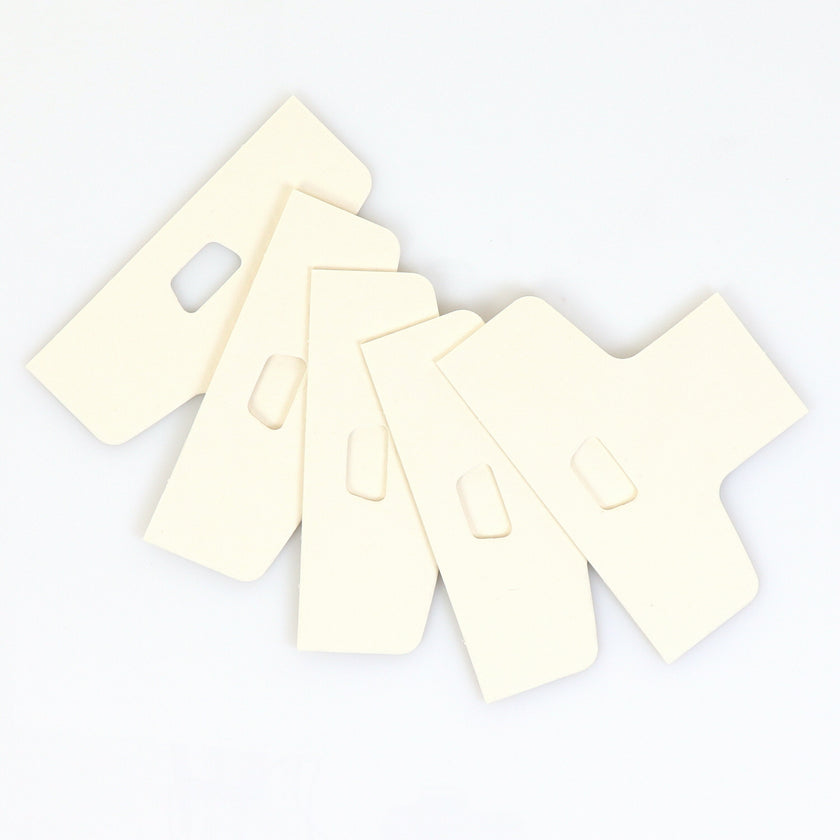

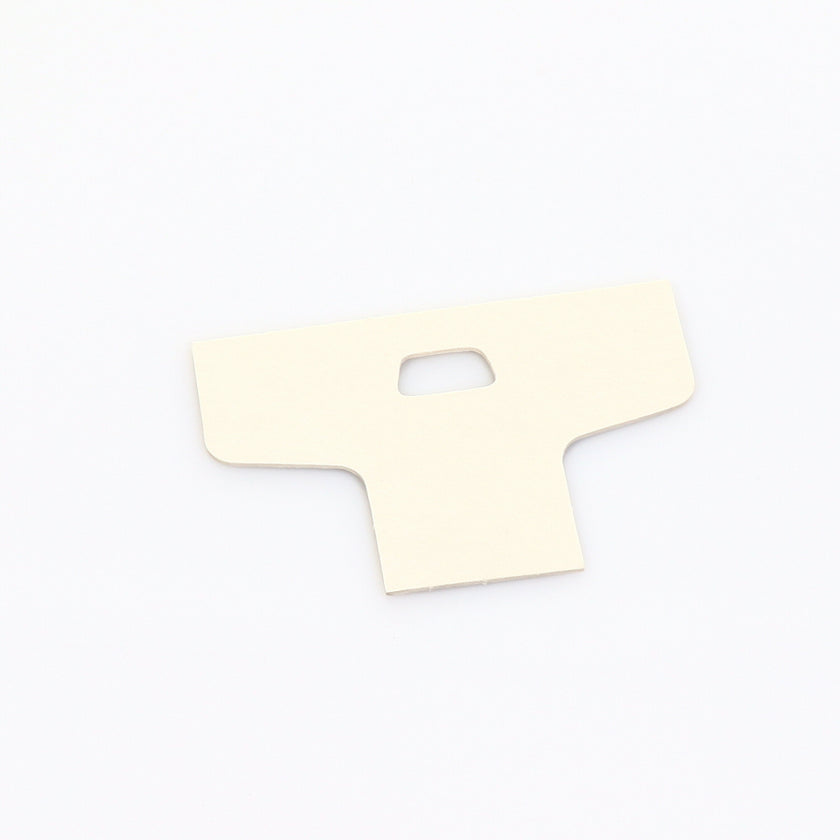

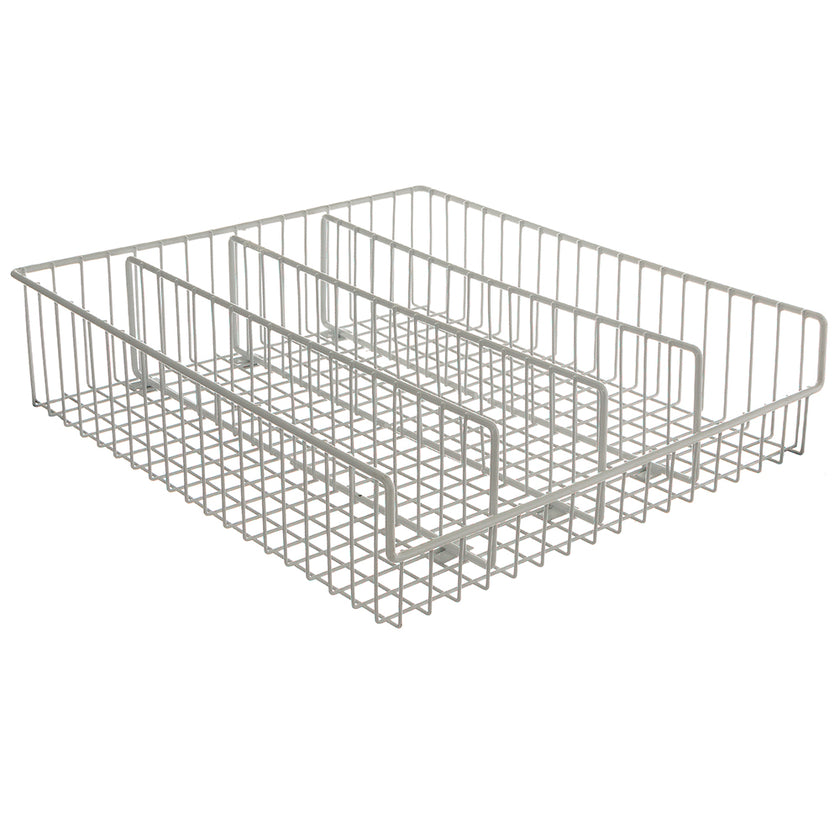

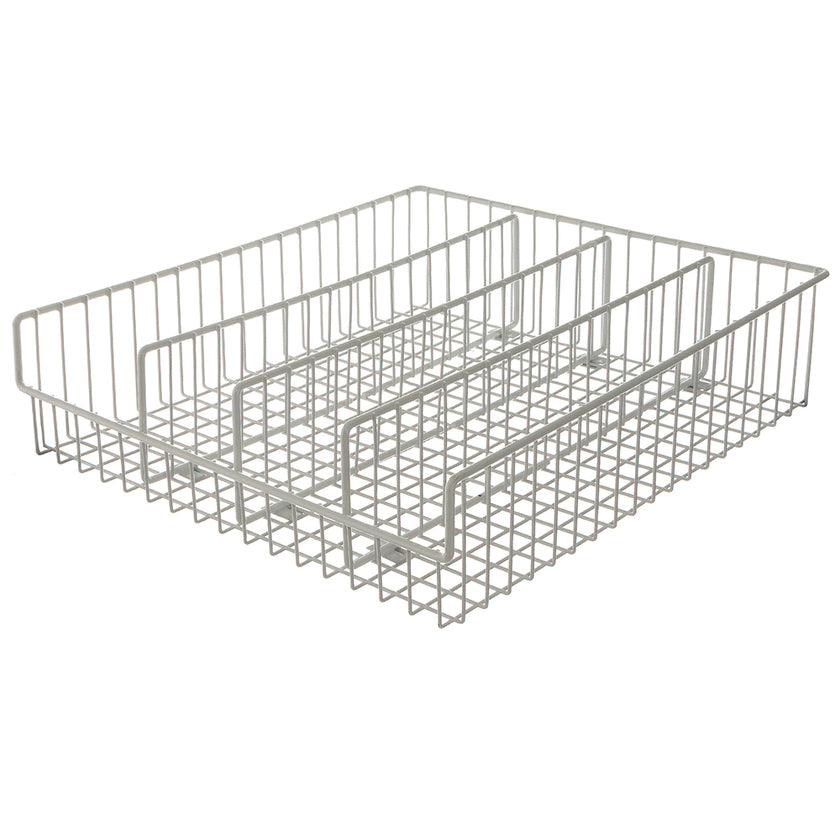

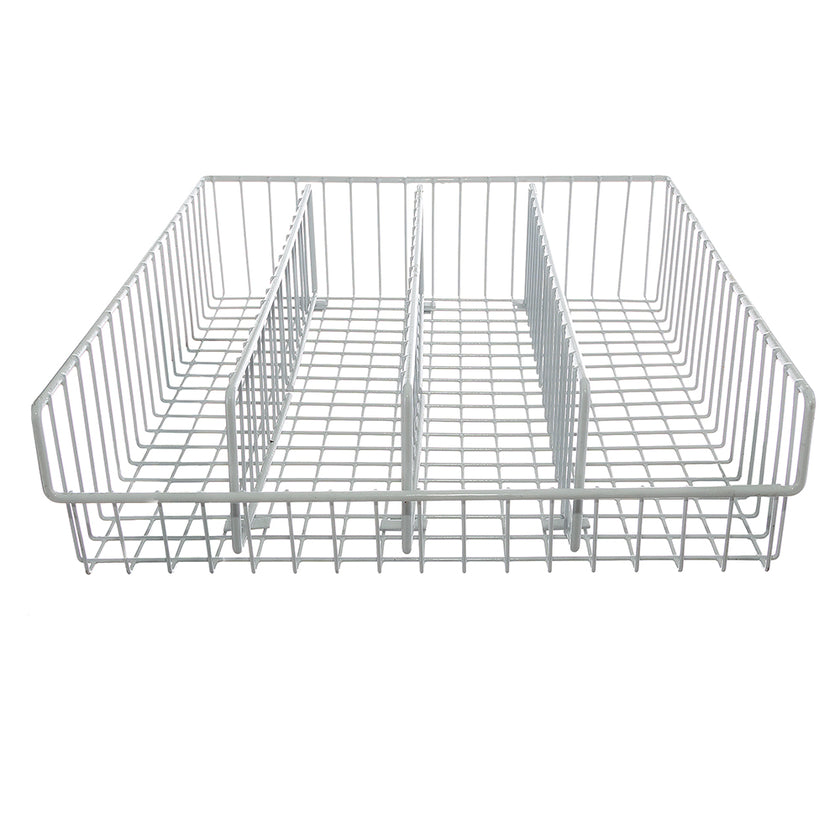

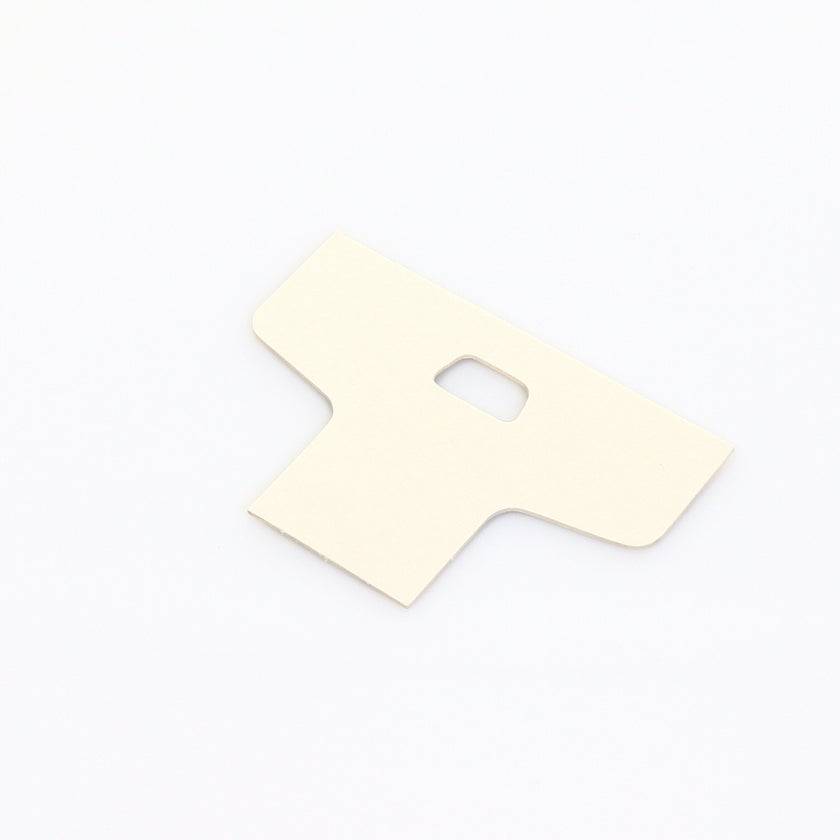

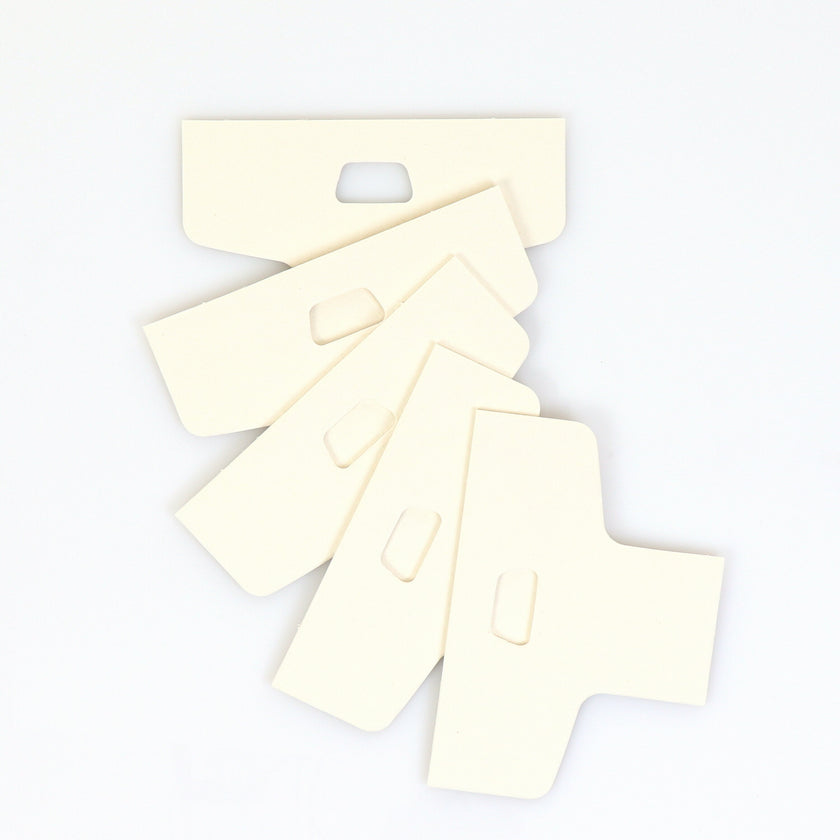

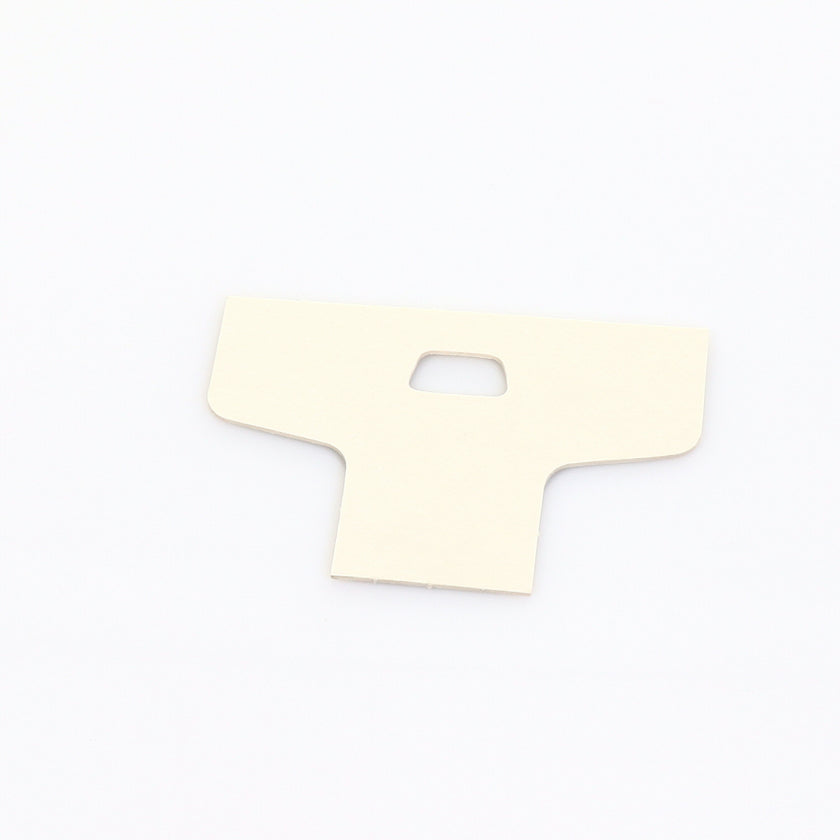

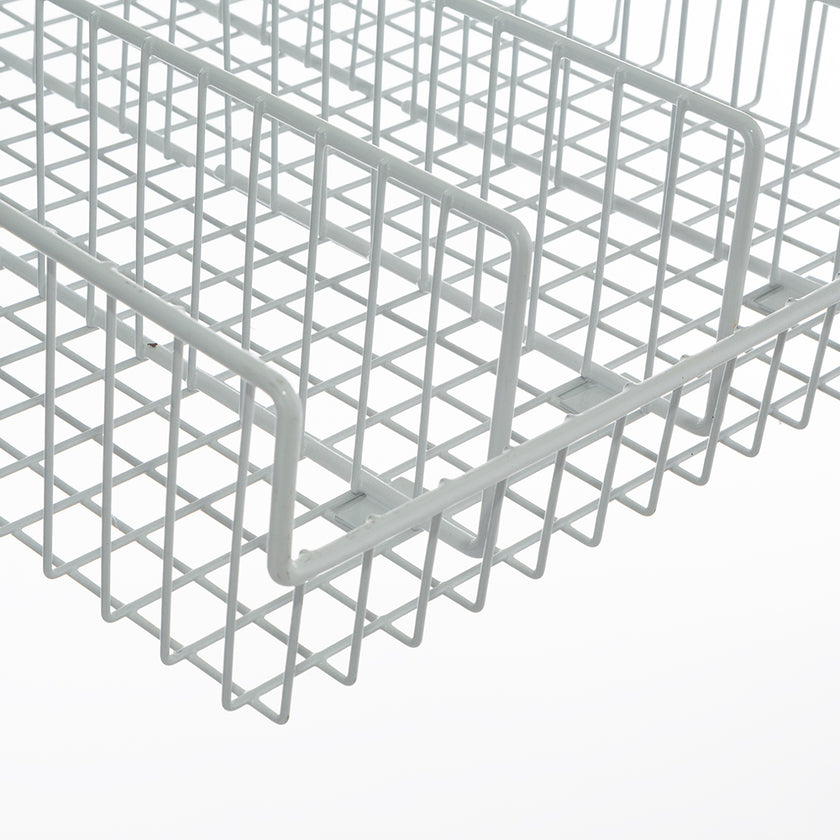

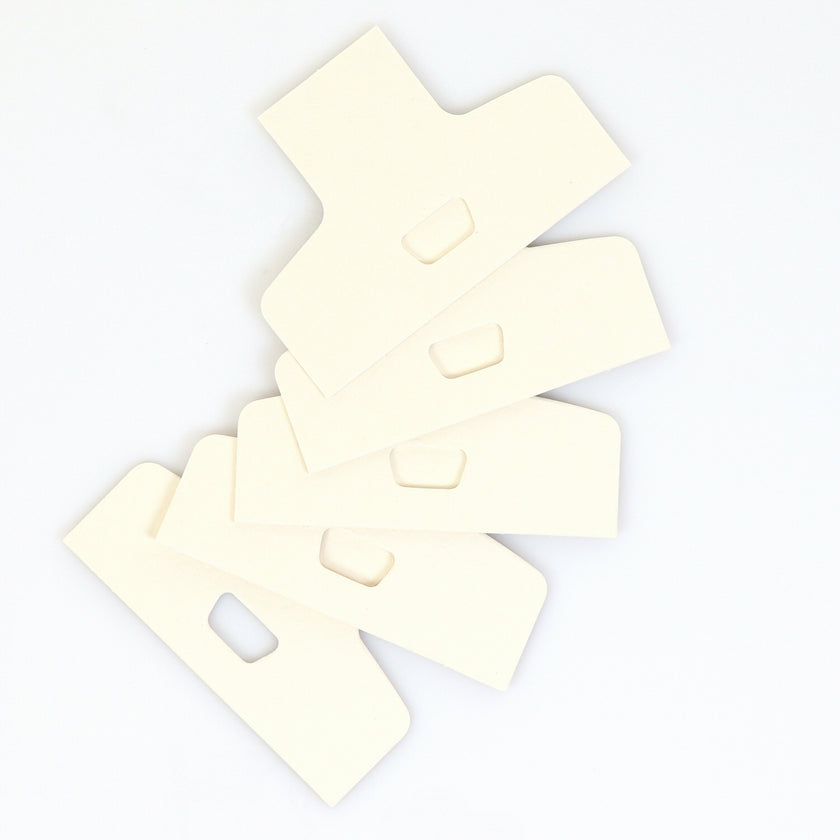

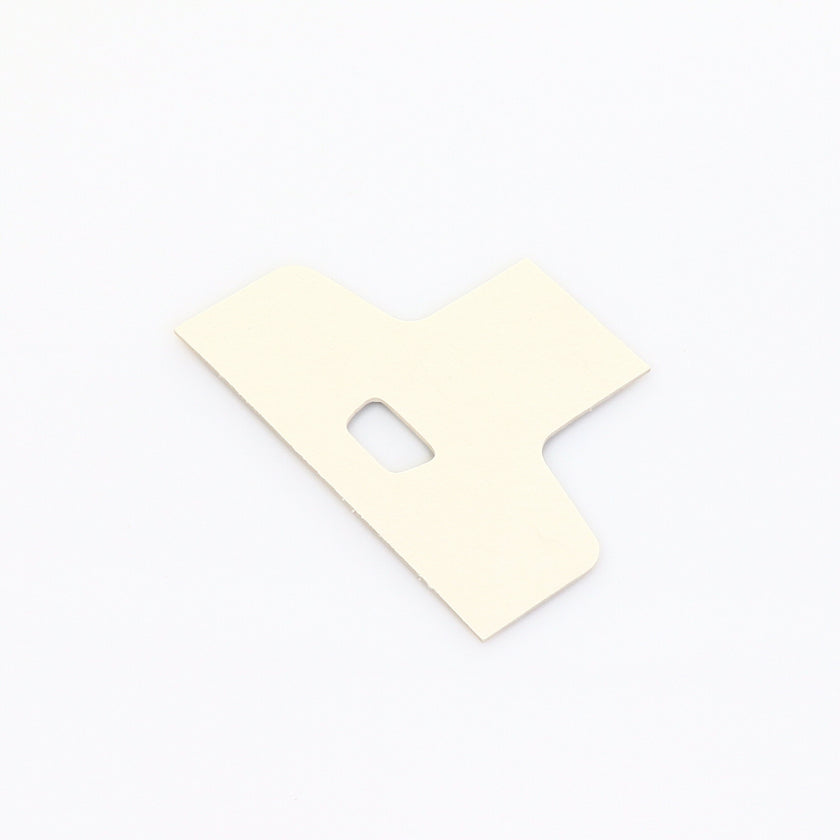

NOVELTY BASKET ASM WHITE 19 1/4" x 21 3/8" W/3 DIVIDERS SETS ON A SHELF. 891093-038 WHITE BASKET, 3)910448 DIVIDERS INCLUDED.
