True Parts OEM - GDM-33CPT-54: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
LEG, 6" 1/2-13 x 1" SEISMIC STEM ADJUSTABLE STAINLESS BOTH TOP AND BOTTOM PIECE. EXPOSED STEM. USED TO BOLT COOLER TO FLOOR. ADJUST 6" TO 8". 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER. TOP DIAMENTER OF LEG IS 2 1/4"
LEG KIT 6" 4)830409 1/2" STEM GDM/T/TM/TR/TSSU/TPP ADJUSTS FROM 6" TO 7-1/2". MADE OF ZINC DIE CAST. 4)830409 LEGS & SCREWS. TOP DIAMETER IS 2 1/4"
LEG KIT 6" 4)830437 SEISMIC 1/2" STEM INCLUDES: 4)830437 LEGS. LEG HAS TWO HOLES IN FOOT TO USE SCREWS TO SECURE TO FLOOR. LEGS ADJUST FROM 6" TO 8". STAINLESS STEEL. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.
STARTER FS-2NA CODE 42812 THIS PART WAS A 44650 AND CHANGED TO A 42812.
COPPER REDUCER 1/2 X 3/8" USED TO CONNECT THE SUCTION LINE TO THE PULLOUT TO REDUCE REFRIGERATION LEAKS
LINE SET, GDM-33CPT-54 W/COVER INCLUDES 851133 CAPILLARY TUBE, 1) 961805 WHITE COVER 39 3/8" FOR LINE SET, 1)955847 AND 1)955848 SUCTION LINE, 1)842227 COPPER ELBOW, 1)925928 DRIER, 10" 810522 5/8" CLEAR TUBING, 1) 925125 ALUMINUM TAPE, 12")810526 SPONGE TUBING, 957095 INSTRUCTIONS
LOCK CYLINDER #4198 KEYED 7130 FOR VANDAL PANEL INCLUDE 1)830906 WASHER & 831303 LOCK ASSEMBLY W/ 7130 KEYS WHEN SHIPPING
LOCK KIT, RATCHET LK GDM/DELI INCLUDES: 1) 831347 RATCHET LOCK [LOCK, BAR, & C415 KEYS], 1)872935 SHIM, 1)830335 8/32 RIVNUT TOOL, 1)811308 DRILL BIT #2, 2)830909 RIVNUTS, 2)978651 SCREWS, 1)912709 DOOR PREVENTIVE REMOVAL STRIP,4) 830511 SCREWS, 912650 AND 214330 INSTRUCTIONS
LOCK KIT BARREL GDM-33 BAR IS 18" LONG INCLUDES: 831315 BARREL LOCK, 844550 SCREW, 829420, NUT, 831307 KEY 1)890453 RETAINER PLATE, 1)867867 PLASTIC FILL PLATE, 6)830592 SCREWS, 4)830808 POP RIVETS, 1)830578 SCREW, 1)881626 LATCH TUBE, 6)830909 RIVNUTS, 6)947854 SCREWS, 2)890562 LOCKING BRACKETS, 1)891465 FORMED LOCKING BRACKET, & 1)891449 LOCK BAR
LOCK KIT, RATCHET GDM FOR TOP HUNG DOORS INCLUDES: 1) 831347 LOCK W/ RATCHET BAR, 2) 830909 RIVNUTS, 2) 947854 SCREWS, 1) 830335 RIVNUT TOOL, 912650 INSTRUCTIONS

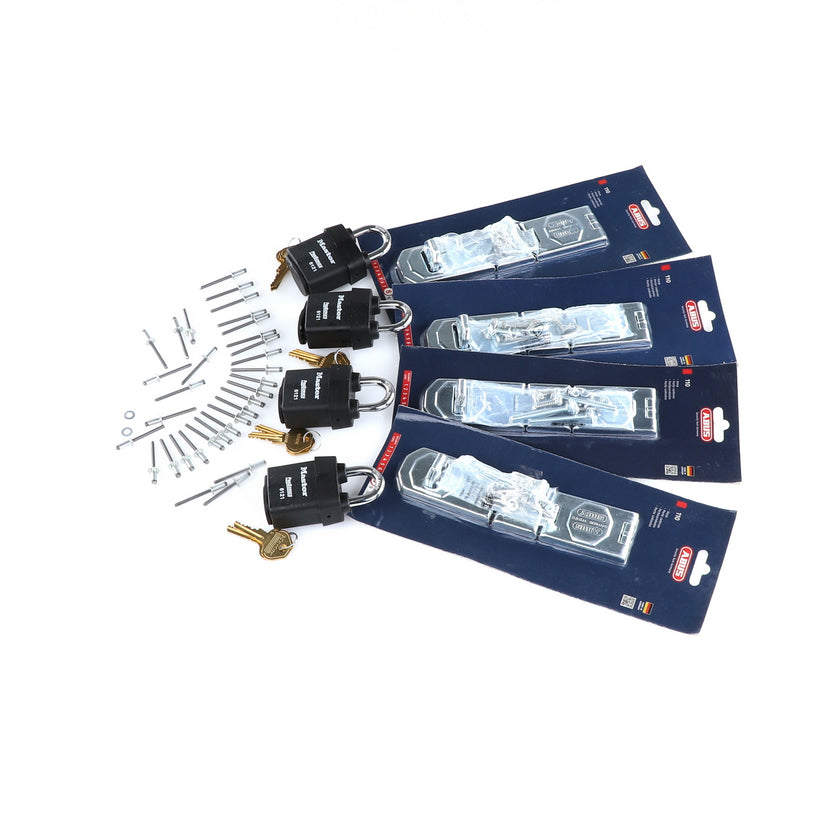

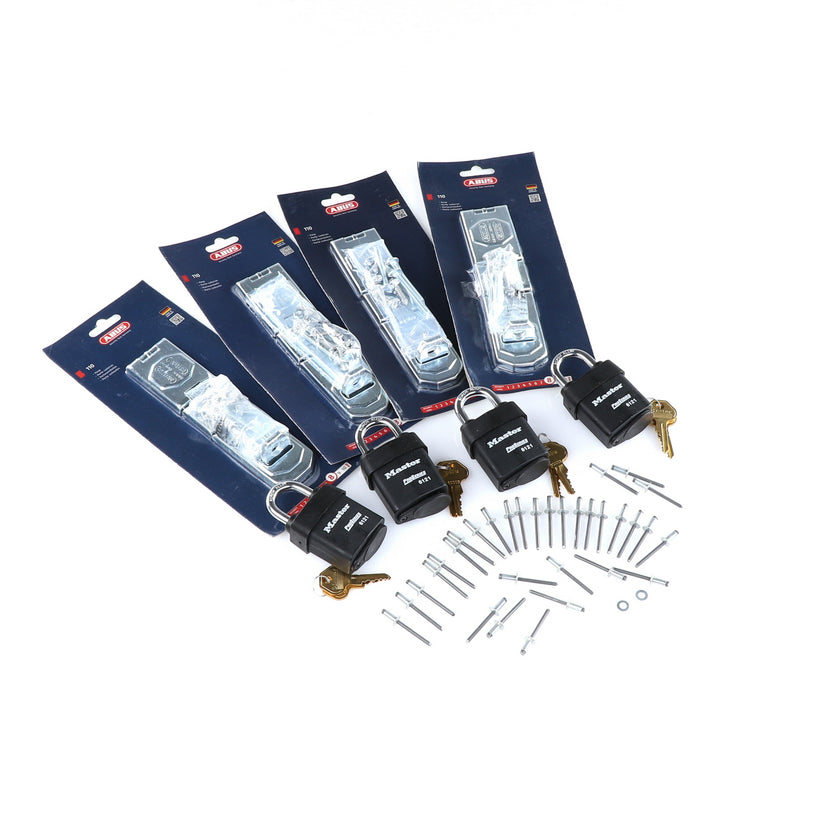

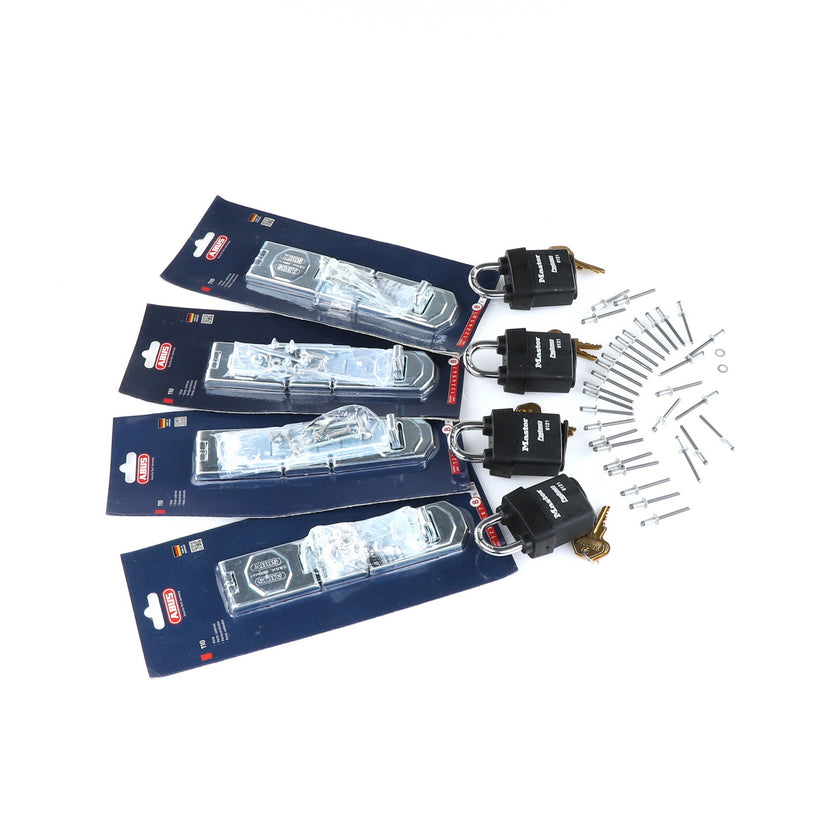

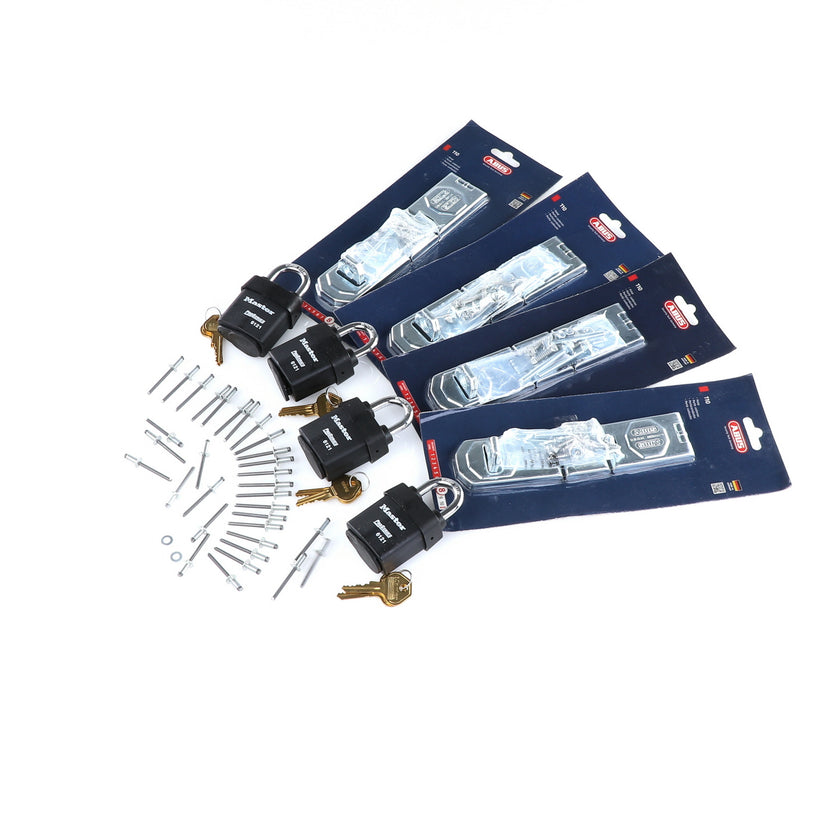

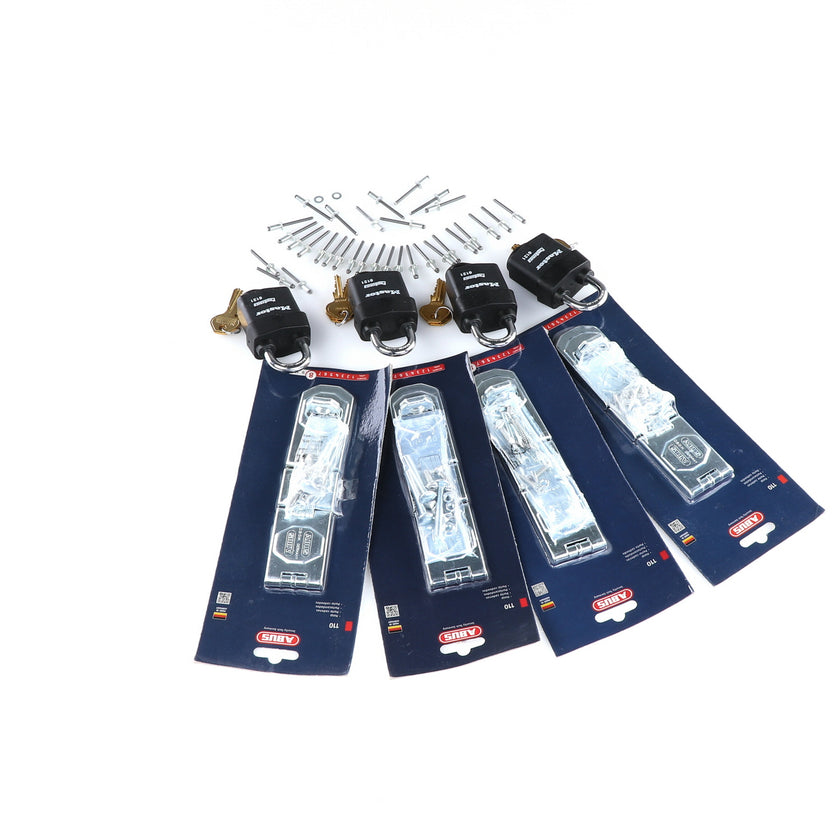

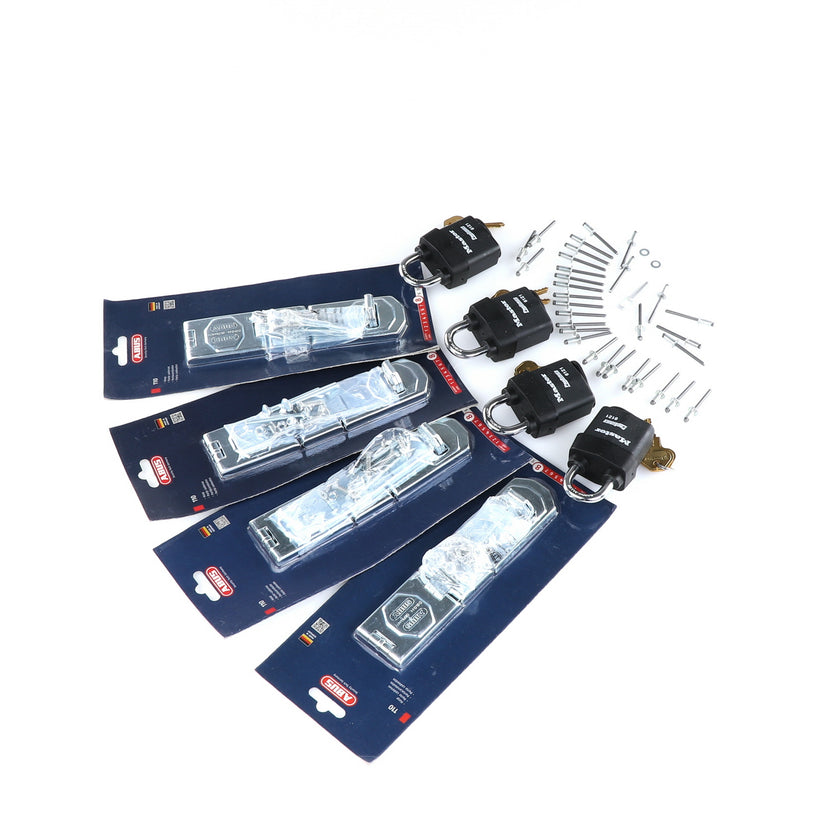

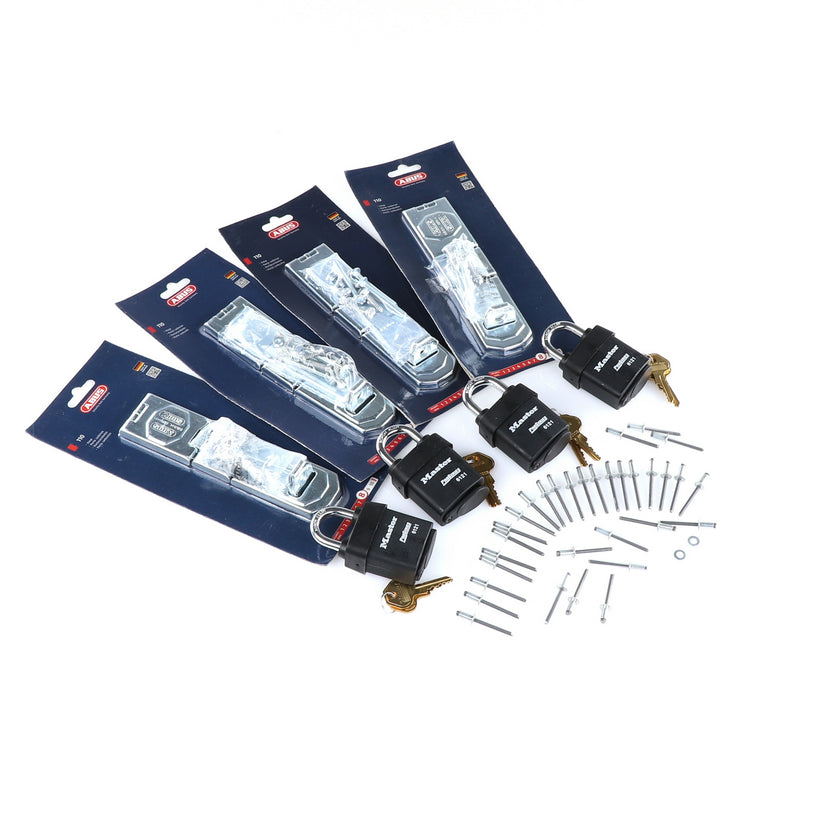

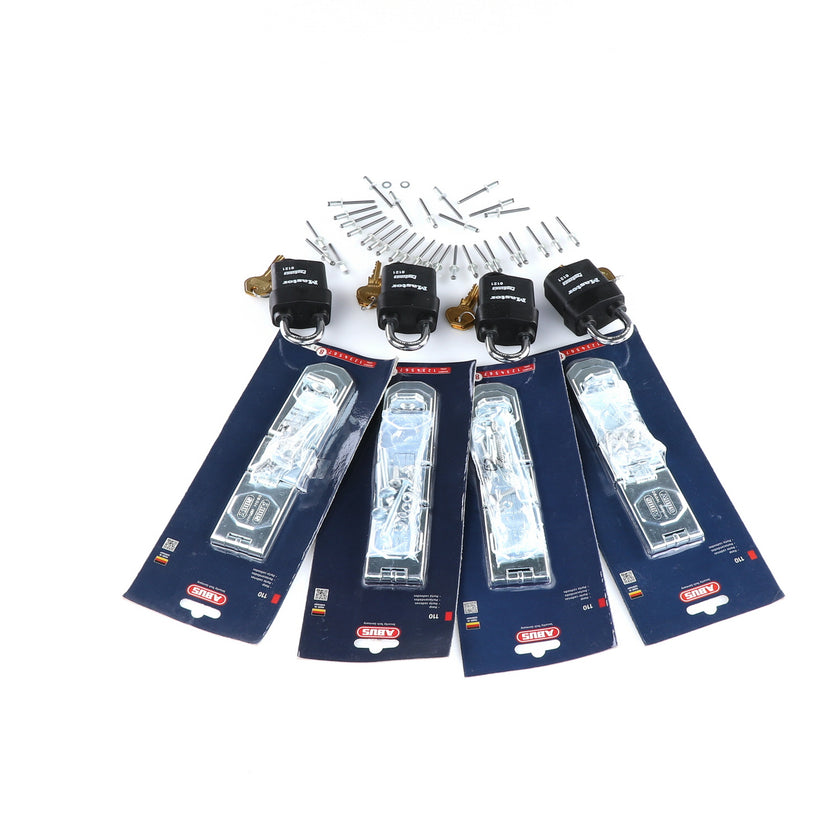

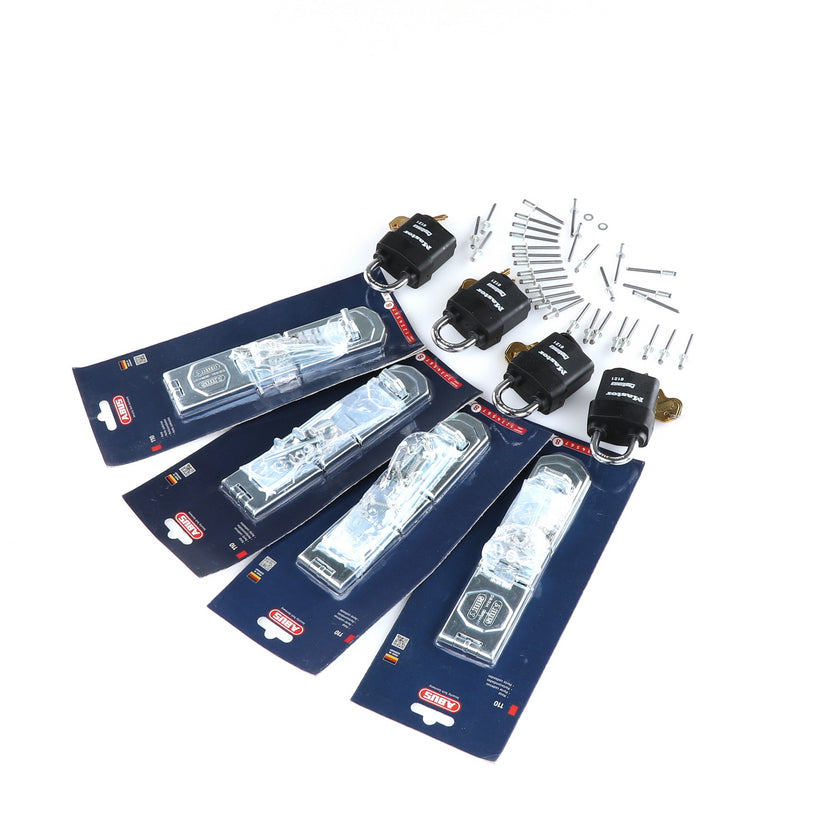

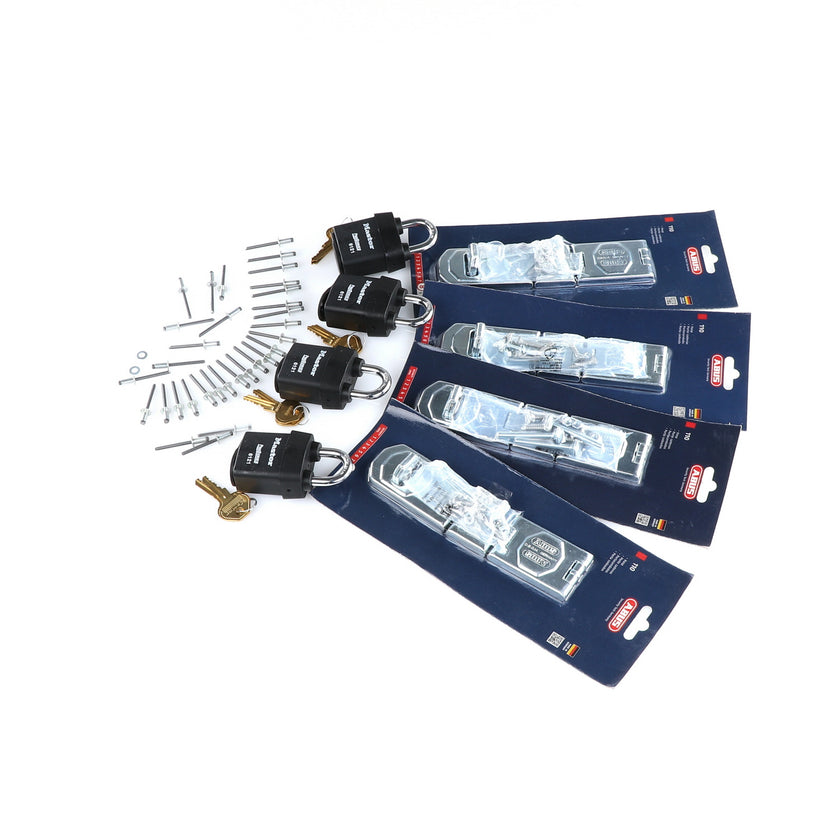

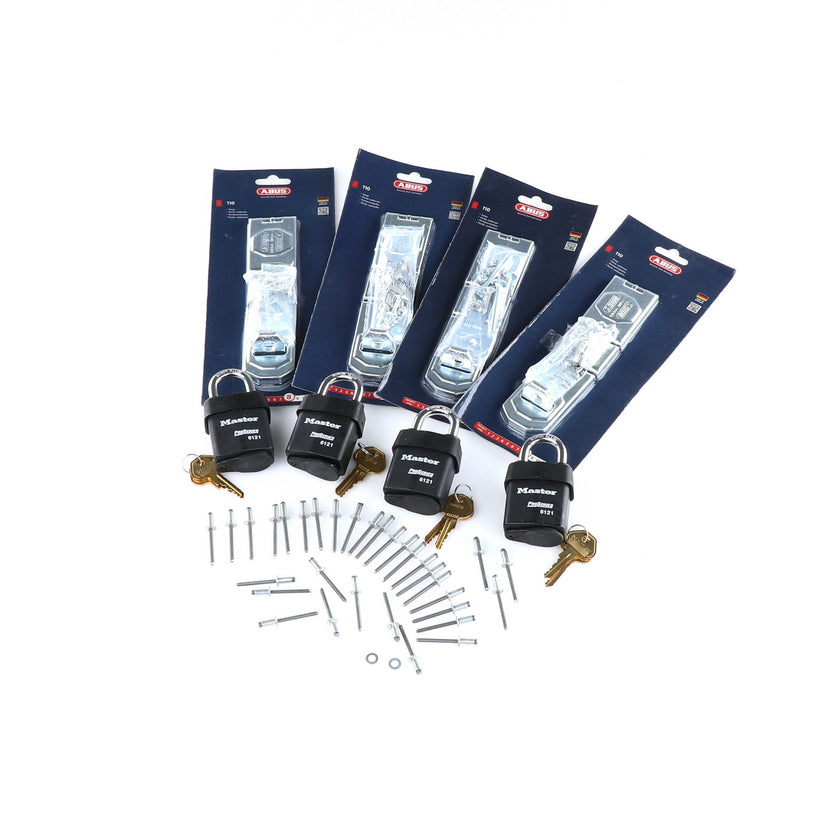

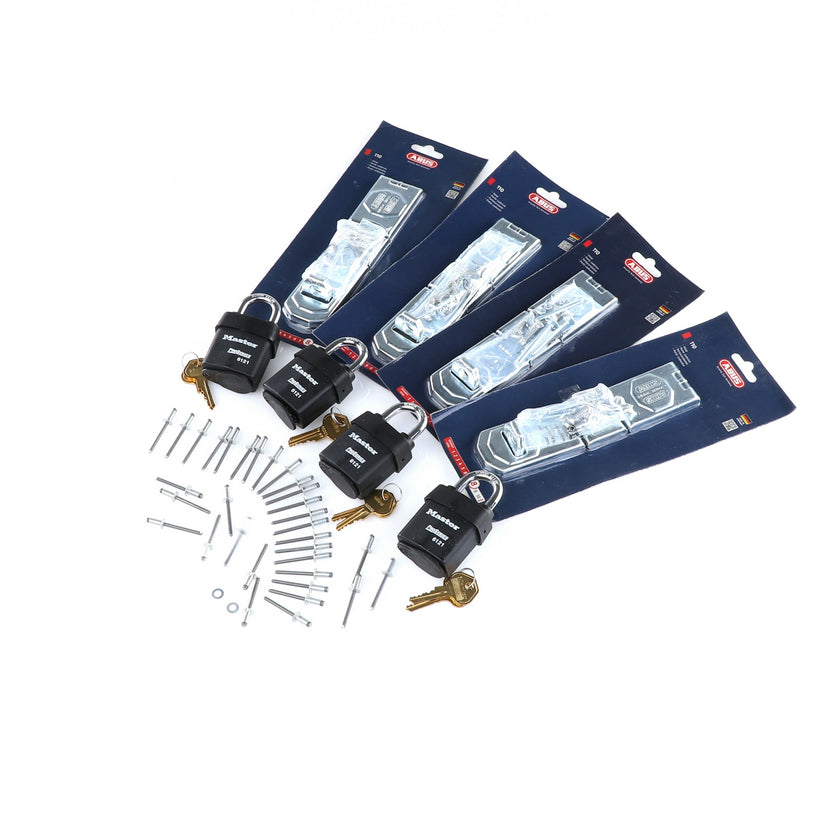

LOCK KIT VANDAL PANEL HASP GDM-33CPT INCLUDES: 4) HASP LATCH ASSEMBLY , 4) WEATHER RESISTANT PAD LOCKS W/KEYS 946324, 32) POP RIVETS 830806, INSTALLATION INSTRUCTIONS 946944
MOTOR, SP-B6HBA2, 230V 60/50HZ 6W, 1550 RPM USE TILL DEPLETED. REPLACE WITH 830038 PCN-12106.USE TILL DEPLETED. ONCE DEPLETED CONTACT PARTS DATA MANAGEMENT E-MAIL GROUP FOR REPLACEMENT OPTIONS9 WATT TURNS CLOCKWISE.
FAN MOTOR RETROFIT KIT MTR/BLADE/BRKT 115V INCLUDES: 817943 MOTOR, 3) 202747 CONNECTORS, AND 820096 INSTRUCTIONS.WARRANTY - MUST ISSUE CALL TAG FOR FAILED PART
FAN MOTOR RETROFIT KIT INCLUDES: 872093 MOTOR, 3) 202747 CONNECTORS, AND 820097 INSTRUCTIONS.WARRANTY MUST ISSUE A CALL TAG – SEE CALL TAG LIST
FAN MOTOR KIT 115V NO BLADE USE TILL DEPLETED. REPLACE WITH 243072 PCN-15300INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
FAN MOTOR KIT 220V USE TILL DEPLETED REPLACE WITH 243072 PCN-15300INCLUDES: 837870 FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET AND 830033 INSTRUCTIONS.
FAN MOTOR KIT, 115V UPS ONLY INCLUDES: 872090 FAN MOTOR, 3) 202747 5WAY LEVER CONNECTORS, 846450 INSTALLATION INSTRUCTIONS REPLACES 217268 PER PCN-12648. MOTOR/FAN BLADE W/PLASTIC HOUSING COMBO. MOTOR COMES WITH POWERCORD ATTACHED.
NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE
NUT, 8-32 HEX NUT, 18-8 STAINLESS FOR SCREW ON CENTER STANDARD
RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG
PAINT, AEROSOL GLOSS WHITE #1501 KRYLON OFFICE WILL ALWAYS SHIP THE PAINT. HAZMAT "DANGER" .... MUST HAVE DOCUMENTATION WITH SHIPMENT....SHIP BY GROUND ONLY NO AIR, INTERNATIONAL OR VESSEL SHIPMENTS!
PAINT, AEROSOL TRUE BLACK OFFICE WILL ALWAYS SHIP THE PAINT. HAZMAT "DANGER" .... MUST HAVE DOCUMENTATION WITH SHIPMENT....SHIP BY GROUND ONLY NO AIR, INTERNATIONAL OR VESSEL SHIPMENTS!
