GDM-35F-HC~TSL01

FRAME - Part #: 217425

SIGN FRAME ASM GDM-35~TSL01 SS

GASKET - Part #: 811134

GASKET, GDM-35/T-35/F WIDE #3720-005

GASKET - Part #: 861301

GASKET BASE SS VERT CENTER GDM/T 2 13/16 X 52 5/8 LOCATED ON CABINET BETWEEN THE DOORS.

GASKET - Part #: 874760

GASKET BASE KIT T-35(F) LOCATED ON CABINET. SURROUNDS DOOR OPENING. INSERTS INTO PERIMETER PLASTIC. 4 PIECES INCLUDES: 2)992590 38 29/32" PIECES, 2)861260 53 1/16" PIECES

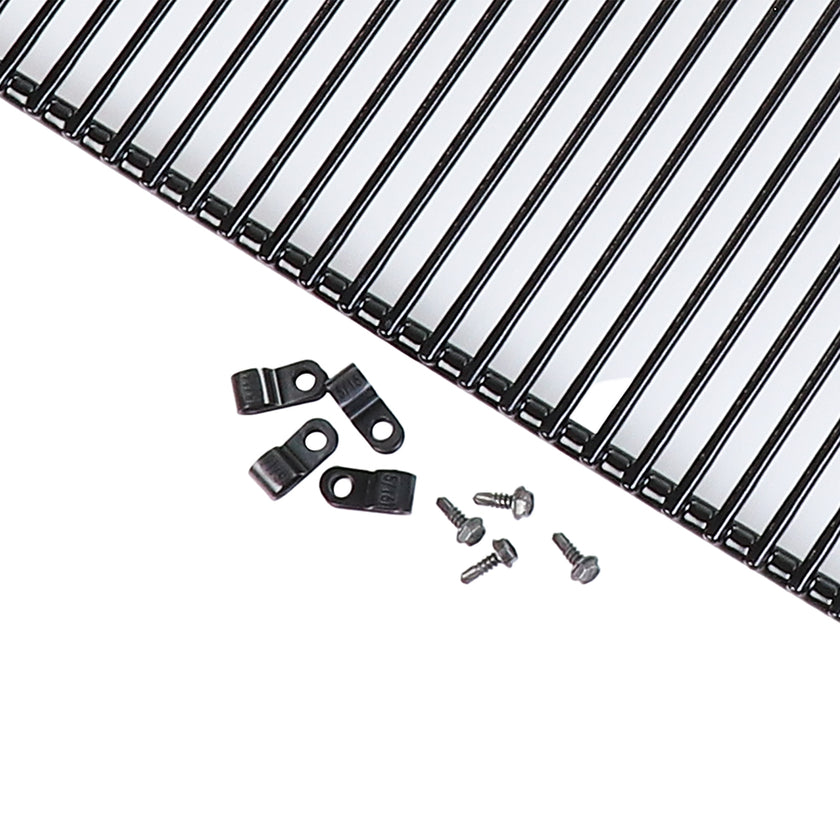

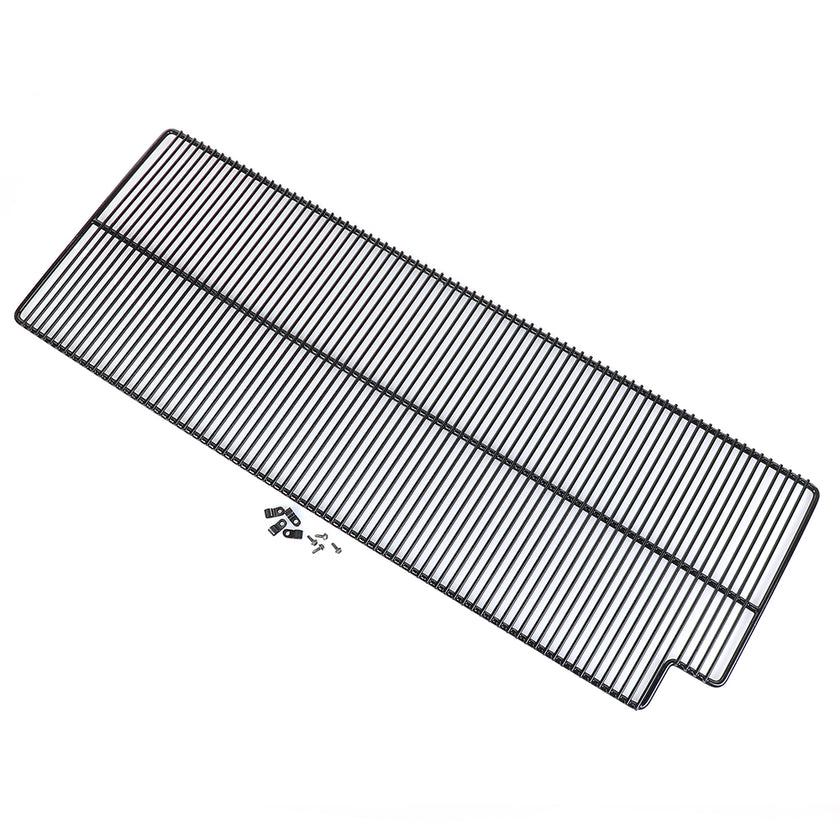

GRILL - Part #: 201136

BACKSCREEN ASSEMBLY

STANDARD AFTER 3/27/16. NEW WIRE SCREEN DESIGN

BACKSCREEN ASM GDM-35/F HC INCLUDES 996873 BACKSCREEN, 4)802202 CLAMPS AND 830516 SCREWS.

GRILL - Part #: 210131

GRILL ASM GDM-35-HC TSL01 SS INCLUDES: 226708 GRILL ASSEMBLY AND 200936 NAMEPLATE

GRILL - Part #: 830366

GRILL ASM GDM-35F~TSL01 BLK INCLUDES: 226701 GRILL ASSEMBLY AND 200936 NAMEPLATE

GRILL PARTS - Part #: 823969

GRILL BRKT KIT GDM-26 INCLUDES: 2) 202526 BRACKETS, 4) 947731 MAGNETS, 4) 830569 SCREWS, 8) 830592 SCREWS, 1) 838260 SUPPORT BRACKET (WAS 813738 SUPPORT BRACKET)

GRILL PARTS - Part #: 947731

MAGNET, #8 SCREW SIZE, EPOXY COATING, N35 50-1113 APPROXIMATELY 3/4" ROUND. REQUIRES 830566 SCREW.

HANDLE - Part #: 204904

HANDLE KIT BLK INCLUDES: 209579-106 ROUNDED HANDLE AND 2) 990483 SCREWS: CHANGED PER PCN 9588

HANDLE - Part #: 210127

HANDLE KIT TSL01 SS INCLUDES 999457 HANDLE AND 2)990483 SCREWS

HEATER - Part #: 206875

HEATER WIRE, PVC 181.5" 1.7 W/FT 115V 20" RED/WHT LEADS

HEATER - Part #: 214545

DRAIN PAN HEATED KIT GDM/T-HC 115V INCLUDES 214508 INSTRUCTION, 960247 HEATED DRAIN PAN, 1) 802202 CABLE CLAMP, 1) 802205 CABLE CLAMP, 4) 830592 SCREWS, 1) 213670 BRACKET, 4 FT)810524 TUBING, 1) 851184 STRAIGHT COUPLER, 1) 830114 ELBOW, 1) 964078 STRAIN RELIEF, 1) 930068 DRILL BIT, 1) 219015 STRAIN RELIEF BRACKET, 1) 830592 SCREW, 36" 820212 FOAM TAPE ****TDN 0319 TEMPORARY CHANGED DRAIN PAN TO 213003 AND ADDED 995955 HEATER, 964073 POWER CORD, 802141 CONNECTORS TDN WAS BETWEEN APPROX 12/25/18-01/01/19***

HEATER - Part #: 220484

HEATER WIRE, SILICONE/ALUM BRAID SHEATH, 400", 1.7 W/FT,

HEATER - Part #: 223970

HEATER, DRAIN TUBE SILICONE 10" 2.5W/FT 230V 38" GRAY/

HEATER - Part #: 226901

HEATER, DRAIN TUBE SILICONE 10" 2.5W/FT 115V 38" WHT/GRY

HEATER - Part #: 801887

HEATER, DRAIN TUBE 72" HEATED 3.0-3.5W/FT 144" OVERALL LENG

HEATER - Part #: 818674

HEATER WIRE, SILICONE/METAL BRAID W/GND 102" 1.7W/FT 230V

HEATER - Part #: 818801

HEATER, DEF 450W, 115V 18.5" LEADS DEFROST HEATER

HEATER - Part #: 829070

HEATER, DEF 450W 230V W/18.5 LEADS

HEATER - Part #: 994037

HEATER WIRE, PVC 51" 115V 1.7 W/FT 25" LEADS 8MM FERRUL

HEATER - Part #: 997816

DRAIN PAN LOOP COILED GDM-41SL-48 REPLACES 867254 PER PCN 8995

HINGE - Part #: 214733

HINGE SHAFT, HOLLOW ALUM REPLACES THE 951052 PER PCN 9770

LD PARTS - Part #: 216946

POWER SUPPLY, 24VDC 40W I2SYSTEMS 24V
