True Parts OEM - GDM-45: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
LEG, 6" 1/2-13 x 1" SEISMIC STEM ADJUSTABLE STAINLESS BOTH TOP AND BOTTOM PIECE. EXPOSED STEM. USED TO BOLT COOLER TO FLOOR. ADJUST 6" TO 8". 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER. TOP DIAMENTER OF LEG IS 2 1/4"
LEG KIT 6" 4)830409 1/2" STEM GDM/T/TM/TR/TSSU/TPP ADJUSTS FROM 6" TO 7-1/2". MADE OF ZINC DIE CAST. 4)830409 LEGS & SCREWS. TOP DIAMETER IS 2 1/4"
LEG KIT 6" 4)830437 SEISMIC 1/2" STEM INCLUDES: 4)830437 LEGS. LEG HAS TWO HOLES IN FOOT TO USE SCREWS TO SECURE TO FLOOR. LEGS ADJUST FROM 6" TO 8". STAINLESS STEEL. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.
LIGHT ASM GDM45/47/49/69/72 FOR SIGN LAMP INCLUDES 1)860546 TRACK, 1)801223 & 1)801224 LAMPHOLDERS

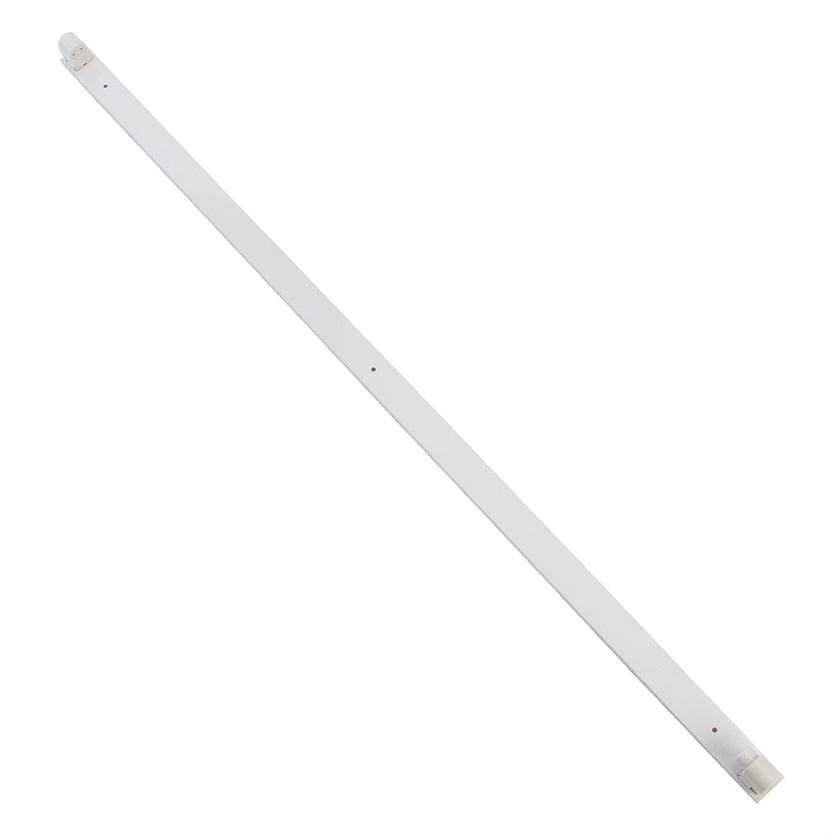

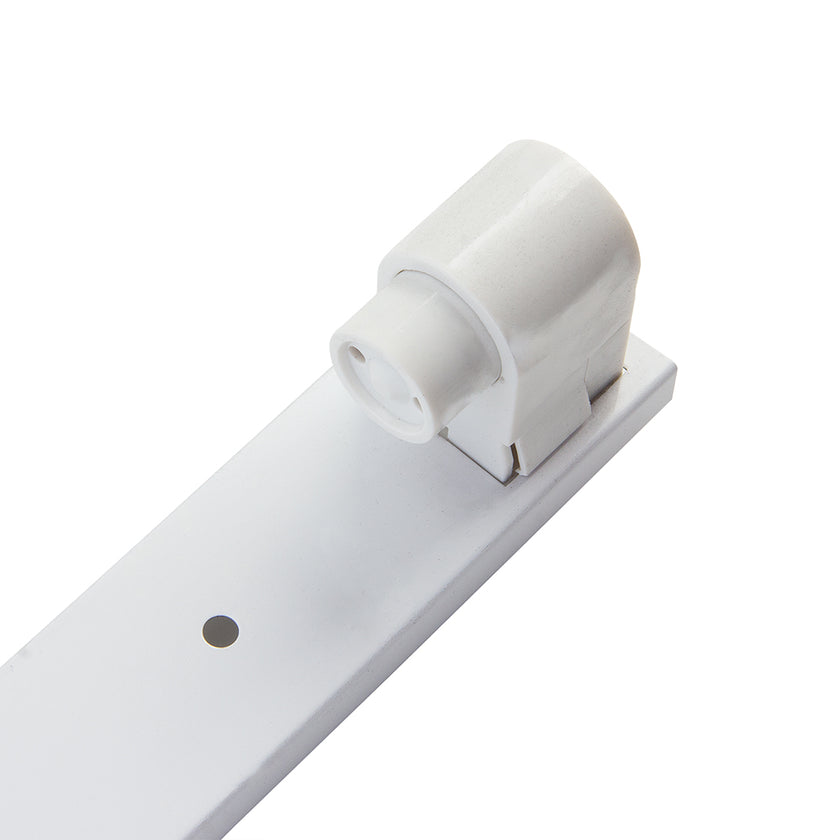

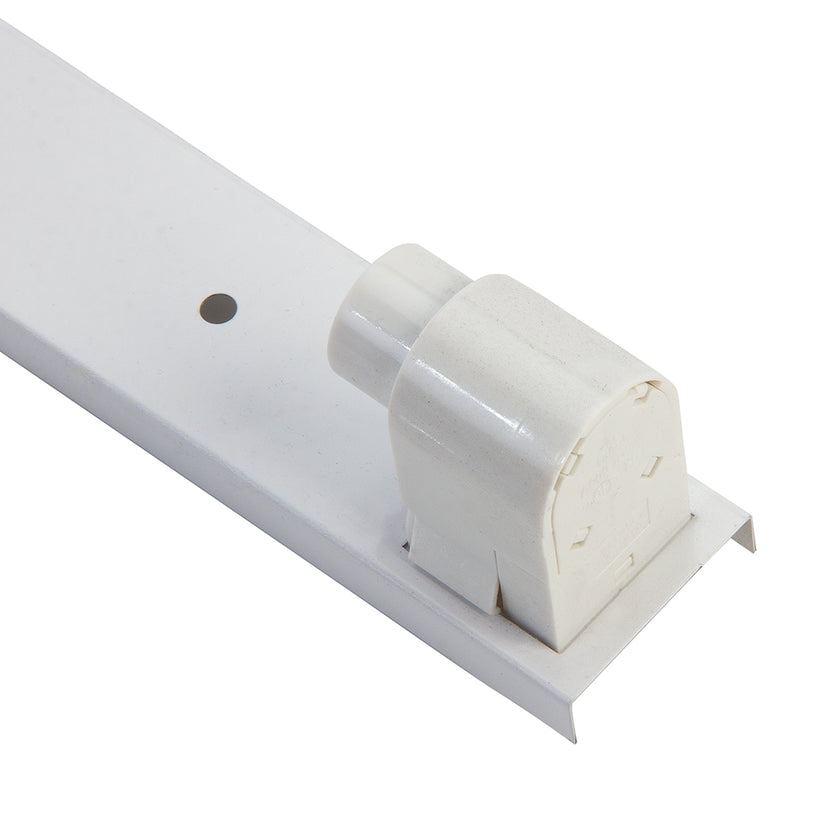

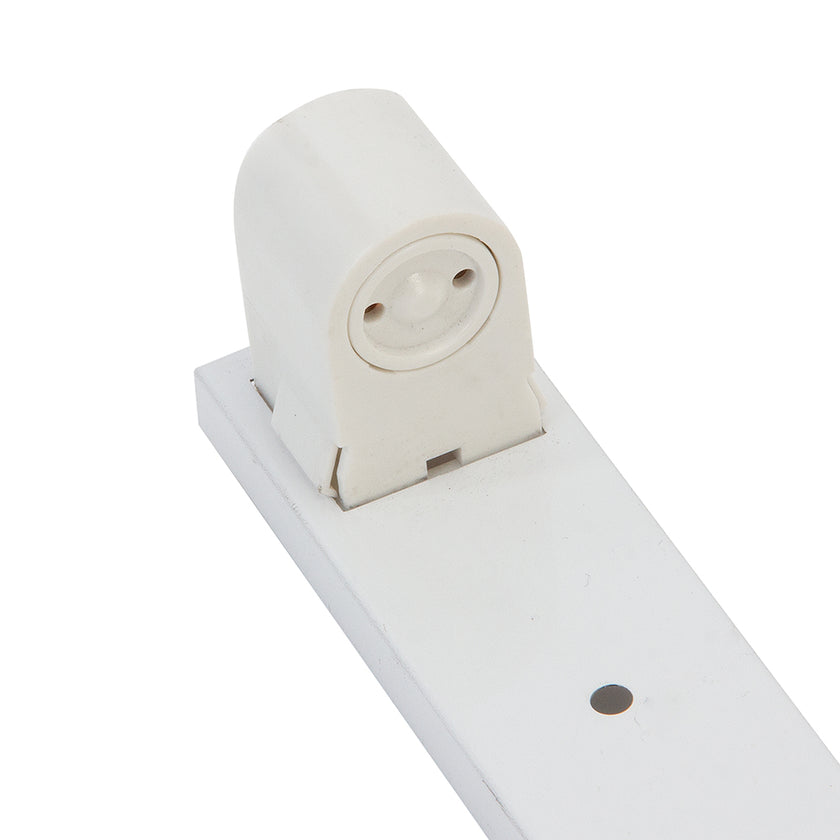

LIGHT ASM GDM/TSD 2 DR SLIDE FOR T-8 BULBS FOR T-8 & 24K BULB. INCLUDES: 1)860080 WHITE WIRE COVER, WIRES, LAMPHOLDERS.
LIGHT ASM GDM-33 SIGN INCLUDES: 1)801223 & 1)801224 LAMPHOLDER, 1)866306 WIRE COVER, WIRES
LIGHT ASM GDM-LD VERTICAL BLK GDM-33/37/41/45/47 INCLUDES LAMPHOLDER BASE, 2)LED LIGHT MODULES, 980286 WIRE HARNESS, 2)963187 COVER, 2)980643 INPUT WIRES
LINE SET, GDM-45/47 INCLUDES: 866743 ACCUMULATOR, 851134 CAP TUBE, 864719 SUCTION LINE, 55" 820204 TAPE, 27" 820223 TAPE, 1)867461 COPPER ELBOW, 24" 820223 TAPE, 1)922814 COPPER REDUCER, 1)905624 COPPER TUBE.
COPPER REDUCER 1/2 X 3/8" USED TO CONNECT THE SUCTION LINE TO THE PULLOUT TO REDUCE REFRIGERATION LEAKS
LINE SET, GDM-45/47 115V NEK6214Z INCLUDES: 938960 ACCUMULATOR, 938961 CAP TUBE, 864719 SUCTION LINE
LOCK CYLINDER #4198 KEYED 7130 FOR VANDAL PANEL INCLUDE 1)830906 WASHER & 831303 LOCK ASSEMBLY W/ 7130 KEYS WHEN SHIPPING
LOCK KIT, RATCHET LK GDM/DELI INCLUDES: 1) 831347 RATCHET LOCK [LOCK, BAR, & C415 KEYS], 1)872935 SHIM, 1)830335 8/32 RIVNUT TOOL, 1)811308 DRILL BIT #2, 2)830909 RIVNUTS, 2)978651 SCREWS, 1)912709 DOOR PREVENTIVE REMOVAL STRIP,4) 830511 SCREWS, 912650 AND 214330 INSTRUCTIONS
LOCK KIT BARREL GDM-45 BAR IS 24" LONG INCLUDES: 844549 BARREL LOCK, 844550 SCREW, 829420, NUT, 831307 KEY 1)890562 LOCKING BRKT, 1)891465 LOCKING BRKT., 4)830592 SCREWS, 2)830520 SCREWS 1)890453 RETAINER PLATE, 1)867867 PLASTIC FILL PLATE, , 4)830808 POP RIVETS, 1)830578 SCREW, 1)881626 LATCH TUBE, 6)830909 RIVNUTS, 6)947854 SCREWS, & 1)891452 LOCK BAR
LOCK KIT, RATCHET GDM FOR TOP HUNG DOORS INCLUDES: 1) 831347 LOCK W/ RATCHET BAR, 2) 830909 RIVNUTS, 2) 947854 SCREWS, 1) 830335 RIVNUT TOOL, 912650 INSTRUCTIONS
FAN MOTOR KIT 115V NO BLADE INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
FAN MOTOR KIT 220V INCLUDES: 837870 FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET AND 830033 INSTRUCTIONS.
NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE
NAMEPLATE, TRUE DECAL SILVER VINYL HAS TWO WAY TAPE ON BACK OF NAMEPLATE
NUT, 8-32 HEX NUT, 18-8 STAINLESS FOR SCREW ON CENTER STANDARD
RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG
