GDM-49F-HC~TSL01

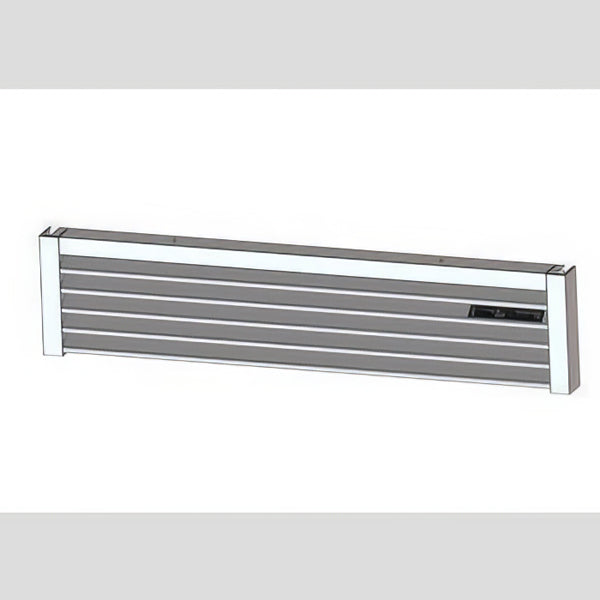

GRILL - Part #: 997791

GRILL ASSEMBLY , BLACK, TSL01,

GRILL ASM GDM-49-HC~TSL01 INCLUDES: 226731 GRILL ASSEMBLY AND 200936 NAMEPLATE

GRILL PARTS - Part #: 947731

MAGNET, GRILL MOUNTING

LOCATED ON CABINET. 4 PER GRILL. REQUIRES 830569 SCREW SOLD SEPARATELY PER PCN 6343 8/23/12

MAGNET, #8 SCREW SIZE, EPOXY COATING, N35 50-1113 APPROXIMATELY 3/4" ROUND. REQUIRES 830566 SCREW.

GRILL PARTS - Part #: 997792

GRILL MOUNT KIT, TSL 01, FACELIFT

GRILL MOUNT KIT GDM-49-HC~TSL 01 INCLUDES 2) 838260 SUPPORT BRACKETS (USED TO BE 813738 SUPPORT BRACKETS), 4) 830592 SCREWS

GUARD - Part #: 861087

SCREEN, COND FAN, 1/2HP

GUARD - Part #: 872930

BACKGUARD KIT, WHITE WIRE

BACKGUARD KIT GDM-23F/49F/72F WHT *REQUIRES 2 PER FULL DOOR OPENING* INCLUDES: 1)909272 WHITE BACKGUARD 4)830546 SCREWS AND 4)802207 CLIPS PER BACKGUARD. (BEFORE 5/2000 THE BACKGUARDS WERE 22 5/8" WIDE)

GUARD - Part #: 997582

COVER, EVAPORATOR FAN MOTOR BLADE WHITE ALUMINUM (GUARD)

EVAP FAN BLADE COVER KIT WHT INCLUDES: 994184 COVER, 4) 830592 SCREWS REPLACES THE 872901 PER PCN 8757 - WILL RETROFIT

HANDLE - Part #: 204904

HANDLE KIT BLACK, TSL01

REPLACES THE 997707 KIT

HANDLE KIT BLK INCLUDES: 209579-106 ROUNDED HANDLE AND 2) 990483 SCREWS: CHANGED PER PCN 9588

HANDLE - Part #: 210127

HANDLE KIT, TSL01, SS

HANDLE KIT TSL01 SS INCLUDES 999457 HANDLE AND 2)990483 SCREWS

HANDLE - Part #: 823994

HANDLE KIT, ANTIMICROBIAL

HANDLE KIT GDM ANTIMICROBIAL 209579 REPLACE WITH 204904 INCLUDES: 209579-106 HANDLE, 2) 990483 SCREWS, 823970 LABEL, 823995 INSTRUCTIONS RETAIL/INTERNET $65.00

HANDLE - Part #: 833506

HANDLE KIT TSL01, WHITE, ANTIMICROBIAL

HANDLE KIT GDM ANTIMICROBIAL WHT CONTAINS: 1) 209579-108 HANDLE, 2) 990483 SCREWS

HEATER - Part #: 214545

DRAIN PAN, HEATER, ASSEMBLY, 115V OPTION

DRAIN PAN HEATED KIT GDM/T-HC 115V INCLUDES 214508 INSTRUCTION, 960247 HEATED DRAIN PAN, 1) 802202 CABLE CLAMP, 1) 802205 CABLE CLAMP, 4) 830592 SCREWS, 1) 213670 BRACKET, 4 FT)810524 TUBING, 1) 851184 STRAIGHT COUPLER, 1) 830114 ELBOW, 1) 964078 STRAIN RELIEF, 1) 930068 DRILL BIT, 1) 219015 STRAIN RELIEF BRACKET, 1) 830592 SCREW, 36" 820212 FOAM TAPE ****TDN 0319 TEMPORARY CHANGED DRAIN PAN TO 213003 AND ADDED 995955 HEATER, 964073 POWER CORD, 802141 CONNECTORS TDN WAS BETWEEN APPROX 12/25/18-01/01/19***

HEATER - Part #: 214546

DRAIN PAN, HEATED ASSEMBLY, 208V/220V

OPTION

DRAIN PAN HEATED KIT GDM/T-HC 220V INCLUDES: 213003 HEATED PAN, 214508 INSTRUCTION, 1) 802205 CABLE CLAMP, 4) 830592 SCREWS, 1) 213670 BRACKET, 4 FT) 810524 TUBING, 1) 851184 STRAIGHT COUPLER, 1) 830114 ELBOW, 1) 214579 INSTRUCTIONS, 1) 980014 STRAIN RELIEF, 1) 830592 SCREW, 1) 930068 DRILL BIT, 1) 219015 STRAIN RELIEF BRACKET, 36" 820212 FOAM TAPE

HEATER - Part #: 223970

HEATER, DRAIN TUBE , 230V 50/60H

HEATER, DRAIN TUBE SILICONE 10" 2.5W/FT 230V 38" GRAY/

HEATER - Part #: 226901

HEATER, DRAIN TUBE, WHITE/GRAY

HEATER, DRAIN TUBE SILICONE 10" 2.5W/FT 115V 38" WHT/GRY

HEATER - Part #: 801849

HEATER, EVAPORATOR DRAIN TUBE, 115V

WARRANTY - MUST ISSUE CALL TAG FOR FAILED PART

HEATER, DRAIN TUBE 32"/50"LEAD 10W 115V. STRIP 1/2" HISTORY; PER TDN-0349 REPLACED WITH 801805 - WHEN 801849 WAS TEMPORARILY OUT OF STOCK. TDN-0349 ENDED 6/4/19

HEATER - Part #: 801887

HEATER, EVAPORATOR DRAIN TUBE, 115V, OPTIONAL

HEATER, DRAIN TUBE 72" HEATED 3.0-3.5W/FT 144" OVERALL LENG

HEATER - Part #: 818674

HEATER WIRE, SILICONE/METAL BRAID W/GND 102" 1.7W/FT 230V

HEATER - Part #: 818801

HEATER, DEF 450W, 115V 18.5" LEADS DEFROST HEATER

HEATER - Part #: 829103

HEATER WIRE, SILICONE/METAL BRAID 195.5", 1.7 W/FT, 230V

HEATER - Part #: 829110

HEATER, DEF 600W, 115V W/18.5" LEADS

HEATER - Part #: 829111

HEATER, DEF 600W, 230V W/18.5" LEADS

HEATER - Part #: 979637

HEATER WIRE, PVC 212" 115V 1.7W/FT 20" RED/WHT LEADS 1.7 WATTS/FT GLASS BRAID HEATER WIRE W/ ONE RED LEAD AND ONE WHITE LEAD.

HEATER - Part #: 979640

HEATER, DOOR MULLION, 115V

HEATER WIRE, PVC 102" 115V 2.5W/FT GRAY/WHT LEAD 8mm FERR

HEATER - Part #: 979646

HEATER, DRAIN TUBE 44" PVC 115 9W W/8mm FERRULES 9 WATT
