True Parts OEM - GDM-49W-RF: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.

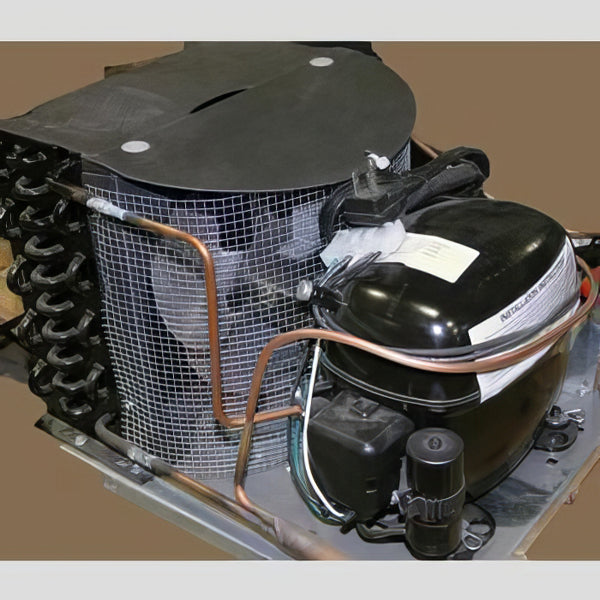

UNIT 1/2 134 AK169ET/EH GDM INCLUDES: COMPRESSOR WITH RUBBER MOUNTING BLOCKS, RELAY, OVERLOAD, START CAPACITOR, FAN MOTOR, FAN BLADE, DRIER, CONDENSING COIL, SHROUD, DRIER, POWER CORD ALL MOUNTED TO BASE.
UNIVERSAL COMPRESSOR KIT, NT6215Z 115/60 UPS ONLY INCLUDES: 955148 COMPRESSOR, 889255 INSTRUCTION, 848196 COPPER TUBE, 931868 COPPER TUBE, 2) 949496 TAPE, 4, 975517 PUSHNUT, 3) 202747 CONNECTOR,
COMP, SC15G, 104G7550 1/2HP DANFOSS REPLACE WITH 889254/972398INCLUDES START COMPONENTS: 920135 RELAY, 920133 START CAPACITOR. OVERLOAD IS INTERNAL.
UNIT 1/2 134 SC15G, 104G7550 GDM-45/49 115V RCU INCLUDES: 918731 DANFOSS COMPRESSOR
COMP, NEK6214Z, 1/2HP INCLUDES START COMPONENTS 940896 OVERLOAD, 940897 POWER PACK, 934663 COMPONENT COVER
UNIT 1/2 134 NEK6214Z 115V GDM 45/47 INCLUDES NEK6214Z COMPRESSOR
COMP, NT6215Z CSR 211AG06D7AZ INCLUDES: OVERLOAD, RELAY, START CAPACITOR, 971414 INSTRUCTIONS
UNIT NT6215Z 115V “NON-PRODUCTION CONDENSING UNIT: Lead time is 2 weeks at minimum. If order is required sooner, individual components are likely available in P15 stock.”INCLUDES: 955148 COMPRESSOR WITH RUBBER MOUNTING BLOCKS, RELAY, OVERLOAD, START CAPACITOR, 800457 REVERSING FAN MOTOR, 801006 FAN BLADE, 801501 CONDENSING COIL, SHROUD, 925928 DRIER, 831971 TIMER, 801797 POWER CORD, DISCHARGE LINE AND ELECTRICAL BRACKET ALL MOUNTED TO 861074 BASE.
STRAP, BALE 70723 METAL SPRING CLIP ON COMPONENT COVER. USED ON ANY 1/2 HP TUCUMSEH COMPRESSOR(AK168AH, AK169AH, ETC)
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
TEMP CONTROL, 077B6806 KIT #077B7172 . REPLACE WITH REFROFIT KIT 882636 IF UNIT WAS BUILT W/RELAY.INCLUDES: KNOB AND SCREWS. WILL REPLACE THE 963056 CONTROL PER PCN 7784
TEMP CONTROL, 077B1228 KIT #077B7186 WHITE WINE INCLUDES: 2) SCREWS AND KNOB.
PROBE, THERMISTOR 1M EPC B57025M2103A018 USED TO REPLACE PROBES FROM KIT 844950
TEMP CONTROL, 077B0995 KIT # 077B7313 RED WINE/CHOC INCLUDES: 2) SCREWS AND KNOB.
CONTROL KIT, TEC22 CONTAINS: 1) 834327 CONTROL ASSEMBLY, 1) 834326 KNOB, 2) 210680 SCREW, 1) 808218 PROBE, 1) 808219 PROBE, AND 1) 844949 INSTRUCTIONS, 1) 998598 WIRE WHBU, 1) 919558 WIRE BLK, 3) 802179 BLST, 2) 2WAY LEVER CONNECTOR, 1) 3WAY LEVER CONNECTOR, 1) 5 WAY CONNECTOR, 6) 802149 CABLE TIE, 2) 802207 1/4 CLAMP, 4) 3/16 CLAMP. 6) 830592 SCREW, 2) 990592 SCREW,
UNIVERSAL CONTROL KIT, TEMP FCA23 UPS OLD#S ARE UTD REPLACES 985434, 991224, 845563, 847649. 846763,952478 INCLUDES: 837360 TEMP CONTROL, 837358 KNOB, 2) 210680 SCREW, 995941 PROBE, 995942 PROBE, 841889 RELAY,2) 901878 WIRE ASM, 901879 WIRE ASM, 919558 WIRE ASM, 913157 WIRE ASM,842199 TERMINAL, 802179 TERMINAL, 802128 TERMINAL, 200962 CONNECTOR,6) 995655 ONECTOR, 202747 CONNRCTOR,6) 802149 CABLE TIE, 2) 802207 CLAMP, 4) 802259 CLAMP, 2) 990592 SCREW, 845565 INSTRUCTIONS.
TEMP CONT KIT, XR02CX-4N1F1 115V W 2 PROBES & BRKTS PROGRAMMED STANDARD AS SEND WITH HOT KEY. TECH SVC. WILL NEED TO KNOW MODEL TO PROGRAM THE HOT KEY. FAHRENHEIT BUT CAN BE PROGRAMMED CELCIUS. BUILT IN TRANSFORMER,925262 CONTROL, 2)NO FAST-ON CONNECTORS AND 2) 831991 PROBES AND HOT KEY. REPLACES/RETROFITS 831919 SX49C04B1F1, 925262 PREVIOUSLY USED
PROBE, 6mm BLACK 1.5M 24AWG 6MM BLACK 1.5MUSED WITH SOLLATEK CONTROL. SENSING AIR SUPPLY.FAILED PARTS TO BE RETURNED VIA CALL TAG
PROBE, 6mm WHITE 1.5M 24AWG REPLACED THE 9685376MM WHITE 1.5MUSED WITH SOLLATEK CONTROL READ COIL TEMP.FAILED PARTS TO BE RETURNED VIA CALL TAG
POWER CORD, 108" NEMA 5-15P 14/3 SJT POWER CORD TO WALL OUTLET, 15 AMP HAS THREE PRONG PLUG
POWER CORD, COMP C1147 W/AMP 40589 #10 RING 2 RINGS AND ONE HORSESHOE CONNECTORS
POWER CORD, DOOR 27" Y SPLIT 2/3 DOOR MOLEX CONNECTORS ALL VOLTAGE. GOES FROM BALLAST BOX TO 20" DOOR POWER CORD.
