True Parts OEM - GDM-72F FAMILY DOLLAR: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
CRATE KIT, GDM-72F INCLUDES: 1)820801 BAG, 1)820120 TOP CAP, 13)841514 PAD, 3)863642 BRACKET, 3)820918 COLLAR, 4)910297 FOAM, 3)820164 WRAP AROUND, 4)970264 CORNERPOST, AND 6)820718 FOAM
DOOR ASM GDM-72F-LD-SS LH SS DOOR ASM HANDLE , AND GASKET.
DOOR ASM GDM-72F-LD LH BLK RETROFIT IDL TO LED INCLUDES, 855420 DOOR ASM, 2) 832292 SCREW, 917479 HANDLE, 2) 810383 SPACER, 4) 919286 SHIM, 216945 POWER SUPPLY, 6) 202747 CONNECTOR, 2) 830592 SCREWS/ 811135 GASKET
DOOR ASM GDM-72F-LD CNT RH BLK RETROFIT IDL TO LED INCLUDES, 855421 DOOR ASM, 2) 832292 SCREW, 917479 HANDLE, 2) 810383 SPACER, 4) 919286 SHIM, 216945 POWER SUPPLY, 6) 202747 CONNECTOR, 2) 830592 SCREWS/ 811135 GASKET
DOOR ASM GDM-72F-LD RH BLK RETROFIT IDL TO LED INCLUDES, 855422 DOOR ASM, 2) 832292 SCREW, 917479 HANDLE, 2) 810383 SPACER, 4) 919286 SHIM, 216945 POWER SUPPLY, 6) 202747 CONNECTOR, 2) 830592 SCREWS/ 811135 GASKET
BRKT, FRONT BTM SUPPORT LOCATED BETWEEN RAIL FRAME AND BOTTOM OF DOOR MULLION. CENTER BOTTOM HINGES ARE ATTACHED TO THIS SUPPORT BRACKET.
GASKET RETAINER KIT GDM-72/T-7 2G DOOR GASKET NARROW LOCATED ON BACK OF DOOR TO HOLD THE DOOR GASKET. 4 PIECES. INCLUDES: 2) 867693 TOP/BOTTOM BACKPLATES, 2)867699 SIDE BACKPLATES, 16)830569 SCREWS
SPRING KIT, DOOR GDM/T-SERIES 52 3/8" W/2)832110 BRASS BUSH TORSION STYLE, INCLUDES: 1)925005 SPRING ASSY(SPRING WITH PLASTIC TUBE, 2)832110 BRASS BUSHINGS
DOOR ASM GDM-72F RH BLK IDL 115V 42" CORD FAMILY DOLLAR INCLUDES: FRAME, 812033 GLASS INSERT, 810802 GASKET, HANDLE, SPRING, BRASS BUSHING, 801897 FRAME HEATER, 801668 LAMP, 1)801358, 1)801359 LAMPHOLDERS, 906832 FILLER CHANNEL, 2)868081 LAMPHOLDER BRACKET, 1)801606 42" DOOR CORD
GASKET RETAINER KIT GDM-72/F T-72G NWDG INCLUDES: 2)928846 PCS OF BLACK PLASTIC, 2)928840 PCS OF BLACK PLASTIC, & 16)830569 SCREWS.
NOZZLE & SCREW, BLK FC FREEZER INCLUDES 938020 BLACK ANGLED NOZZLE & 811514 SCREW. USED ALSO ON CABINETS WITH BLACK OR STAINLESS INTERIORS PER PCN 7844

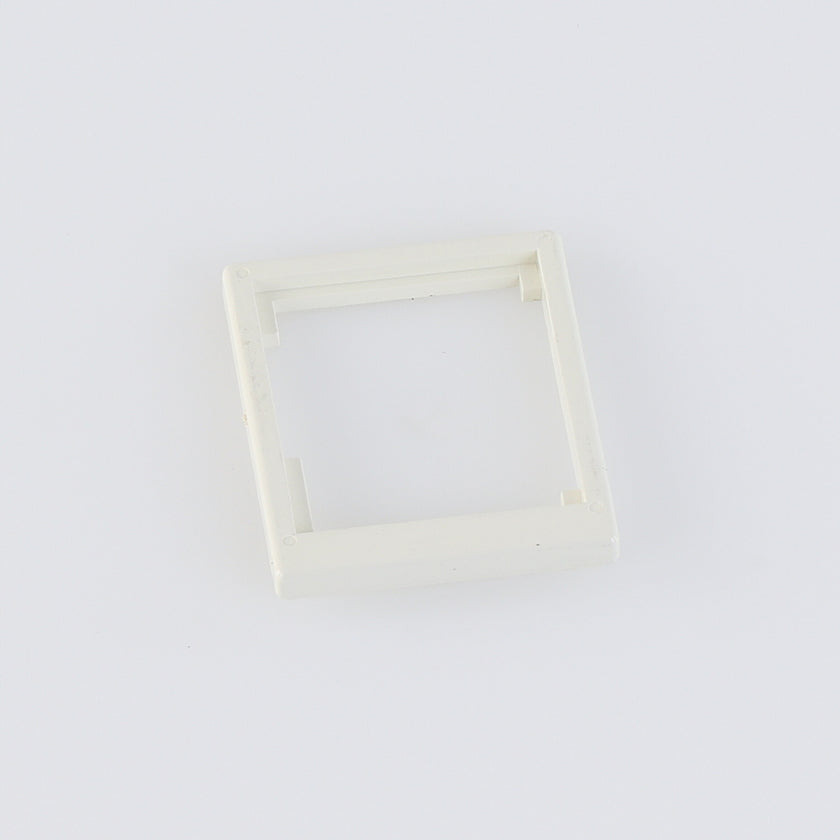

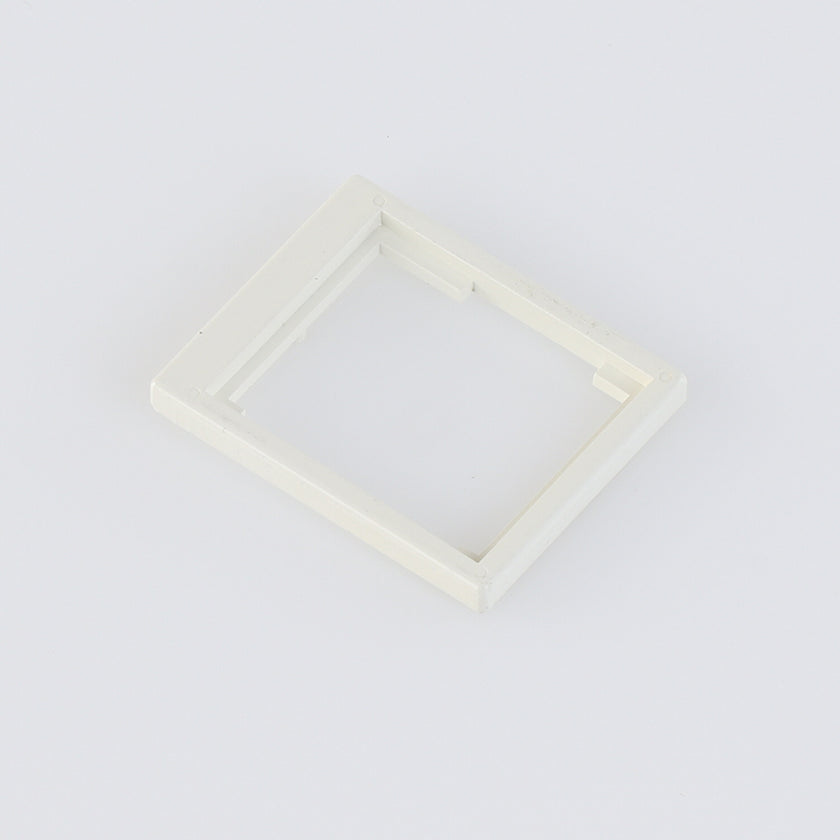

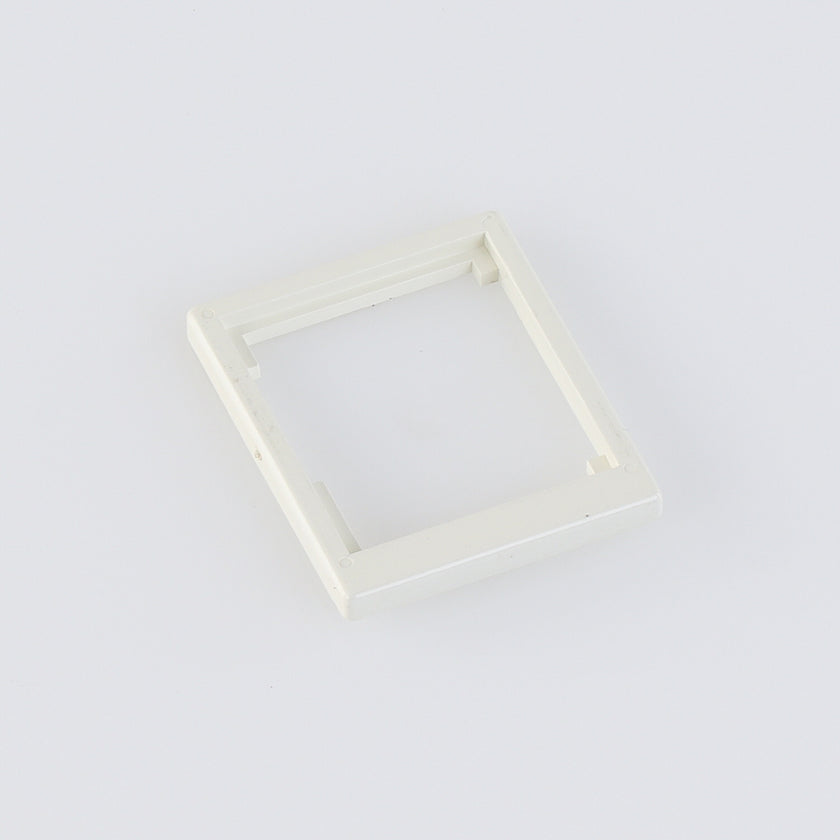

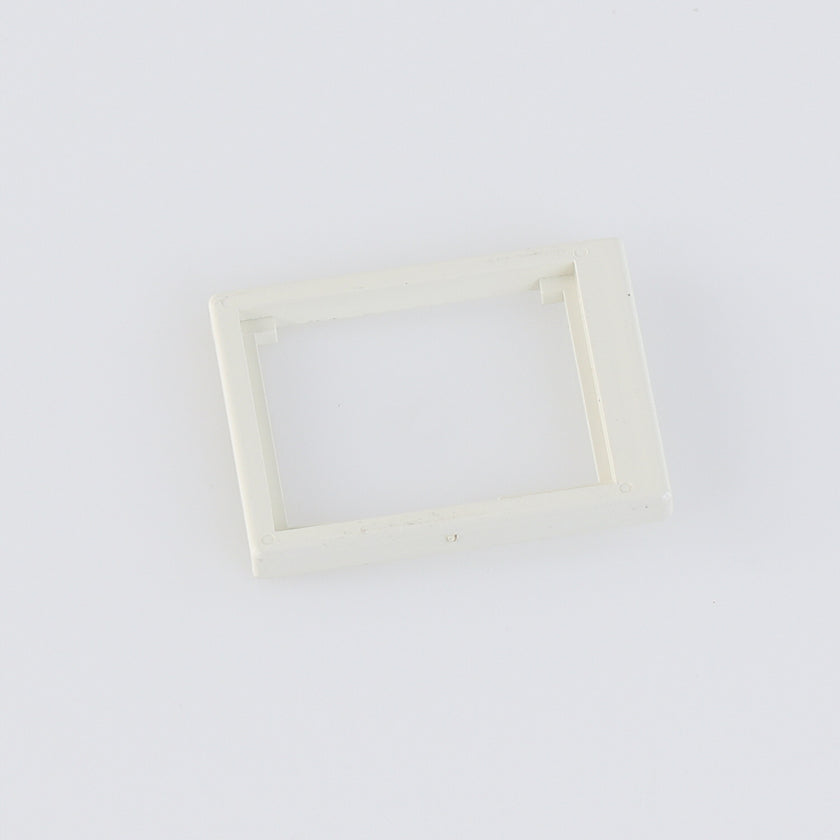

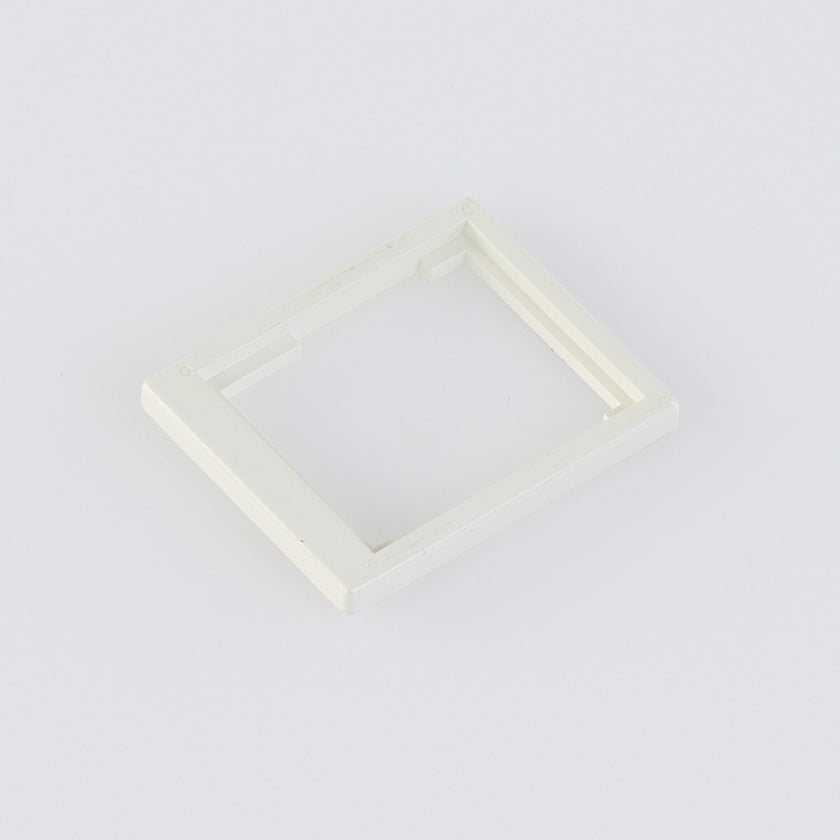

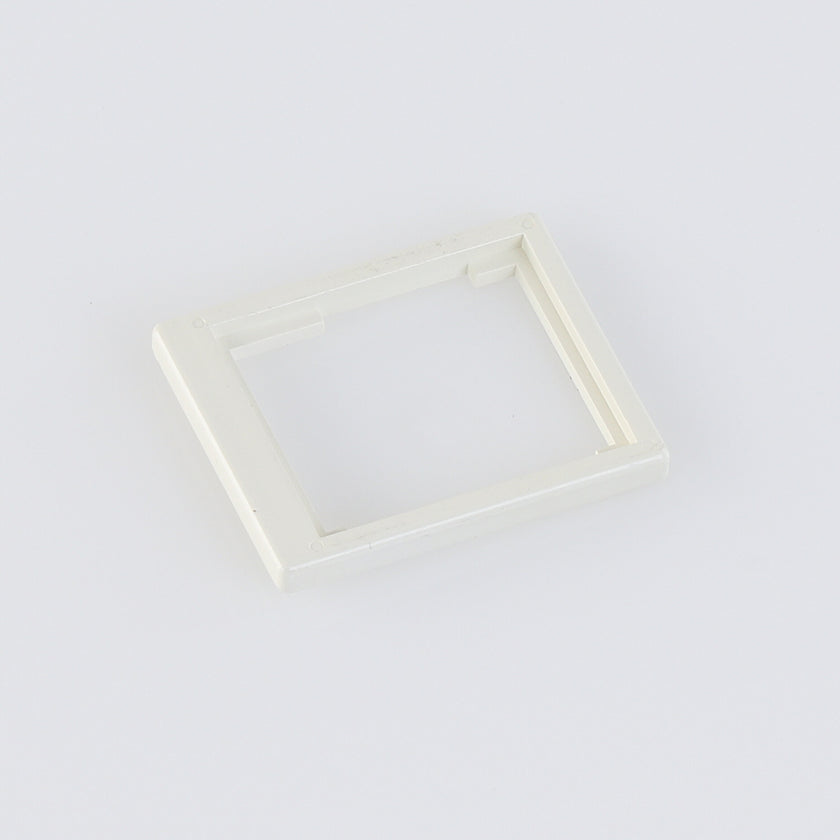

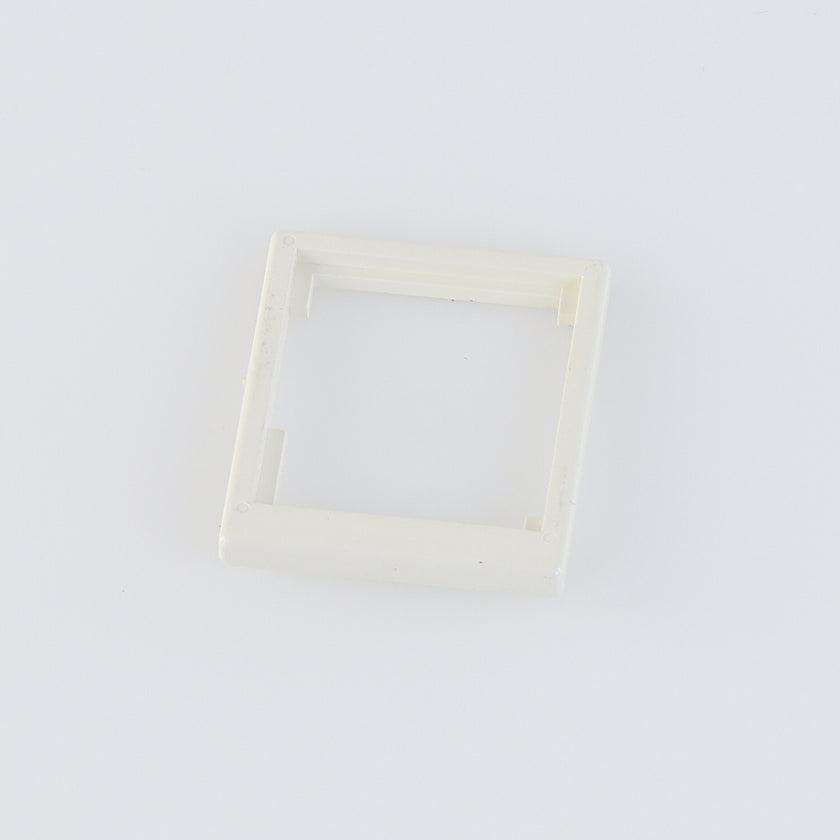

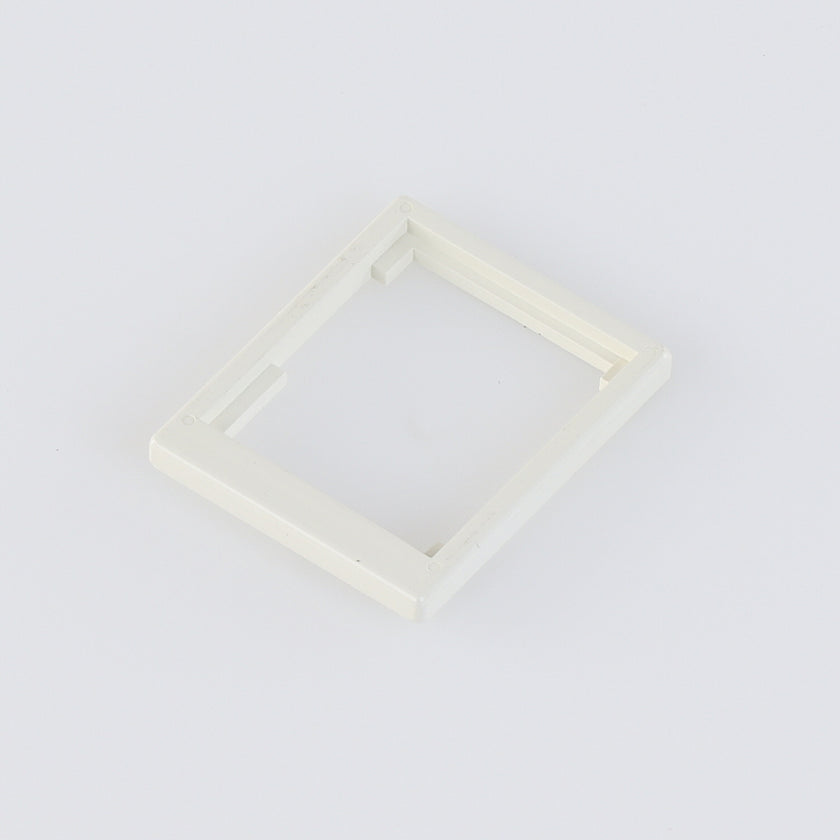

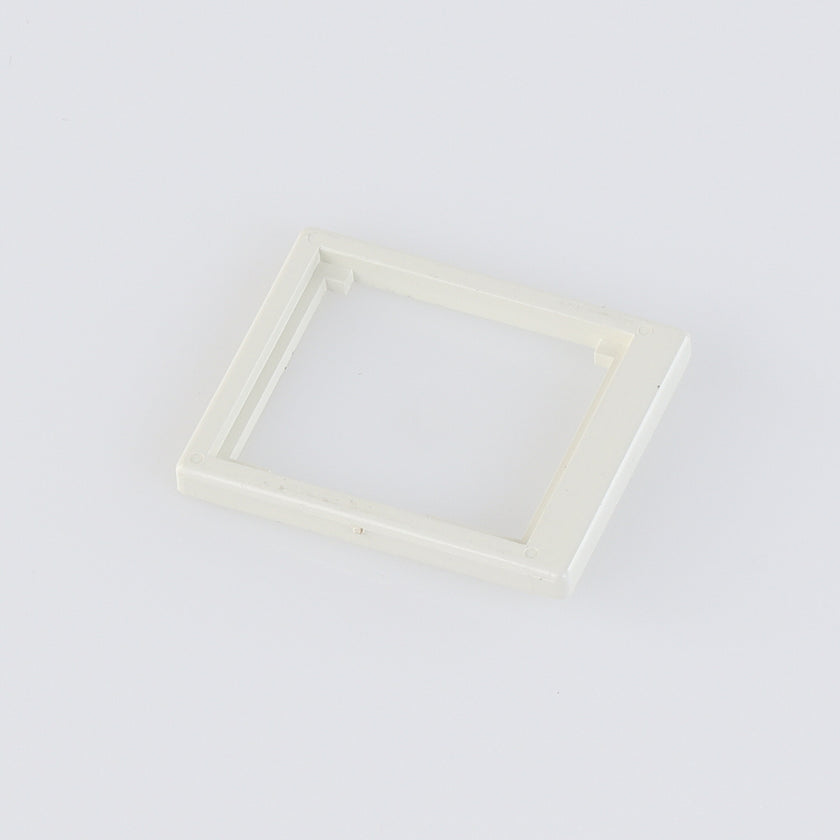

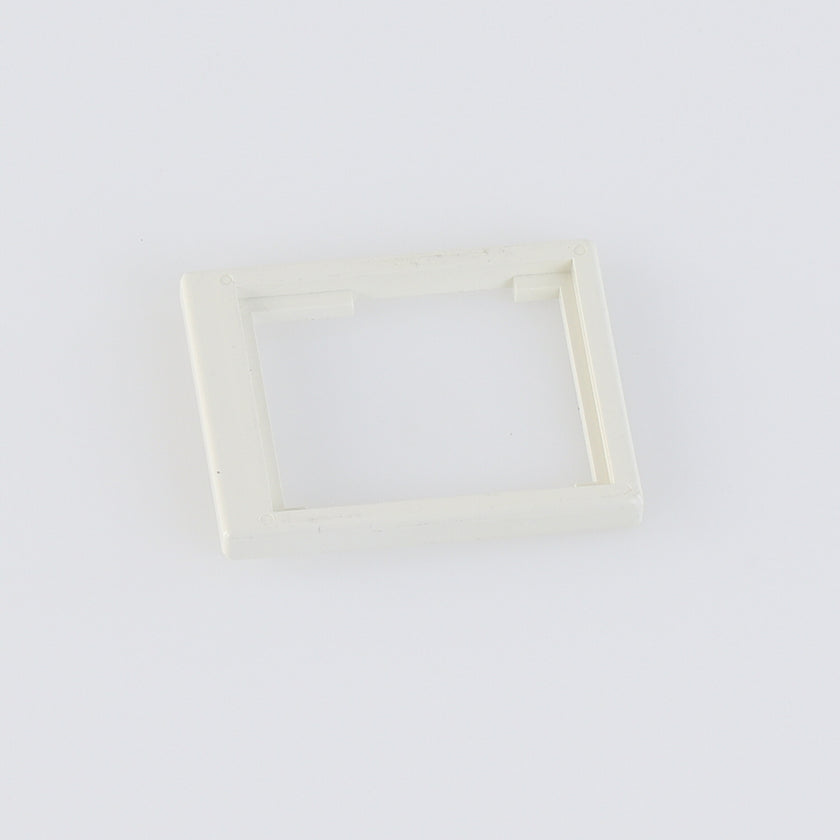

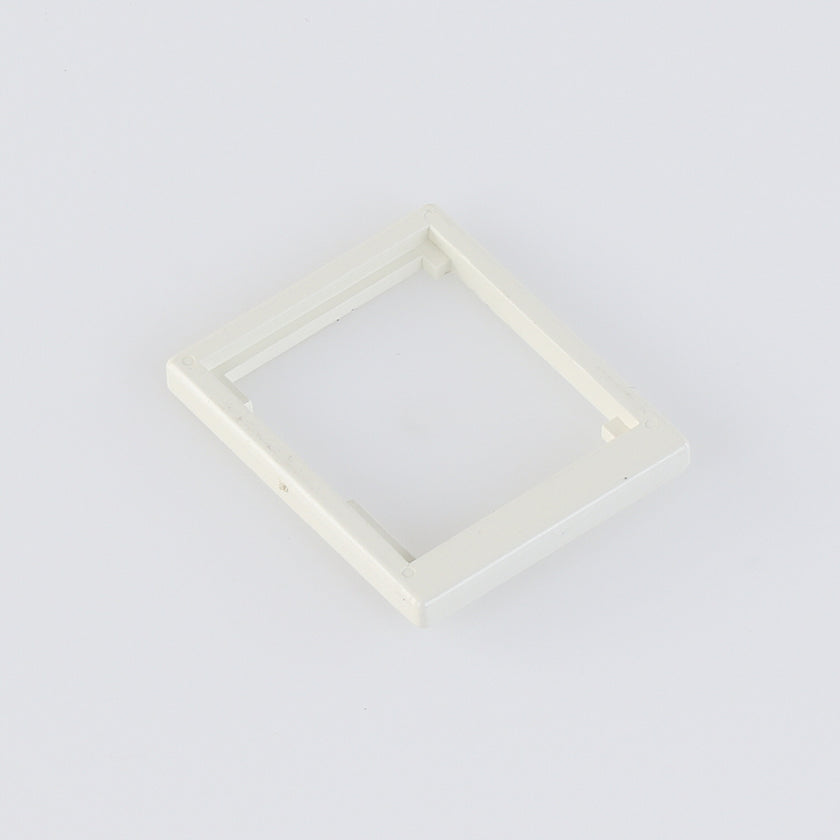

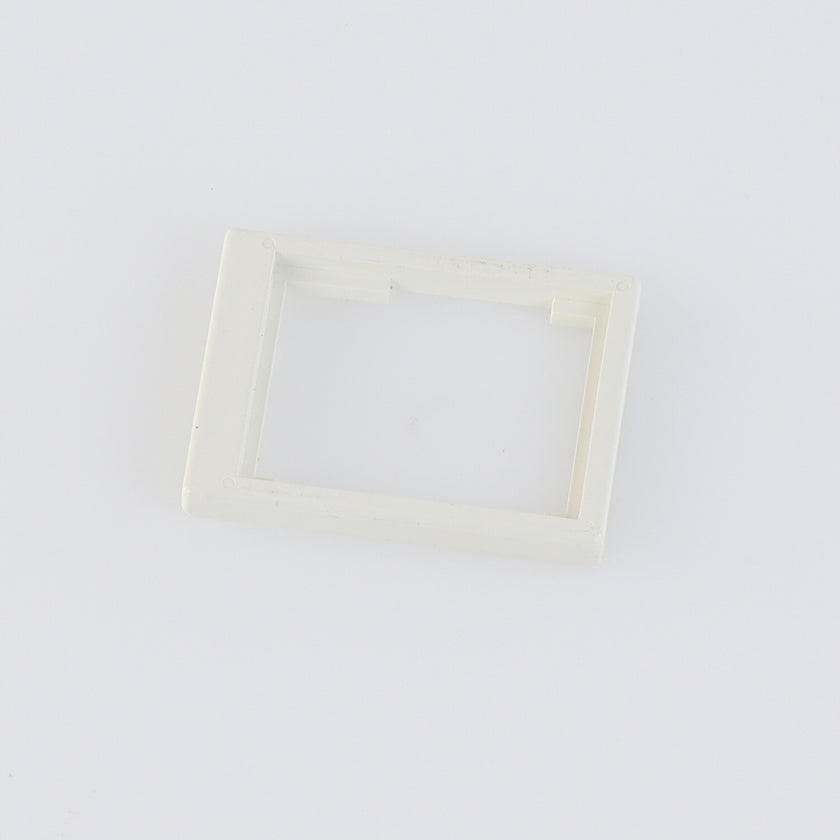

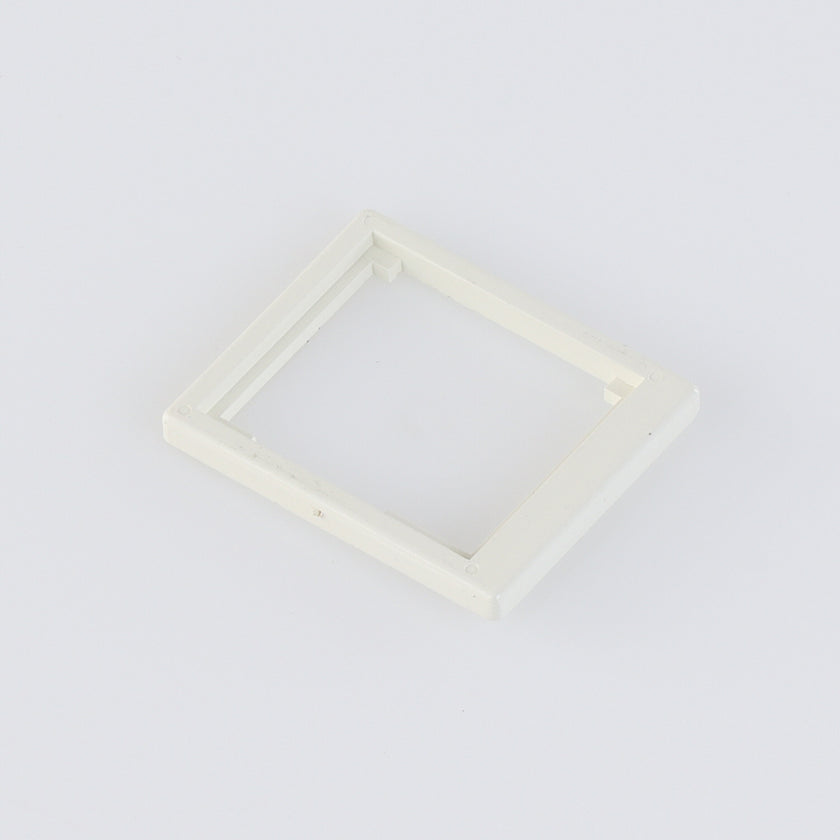

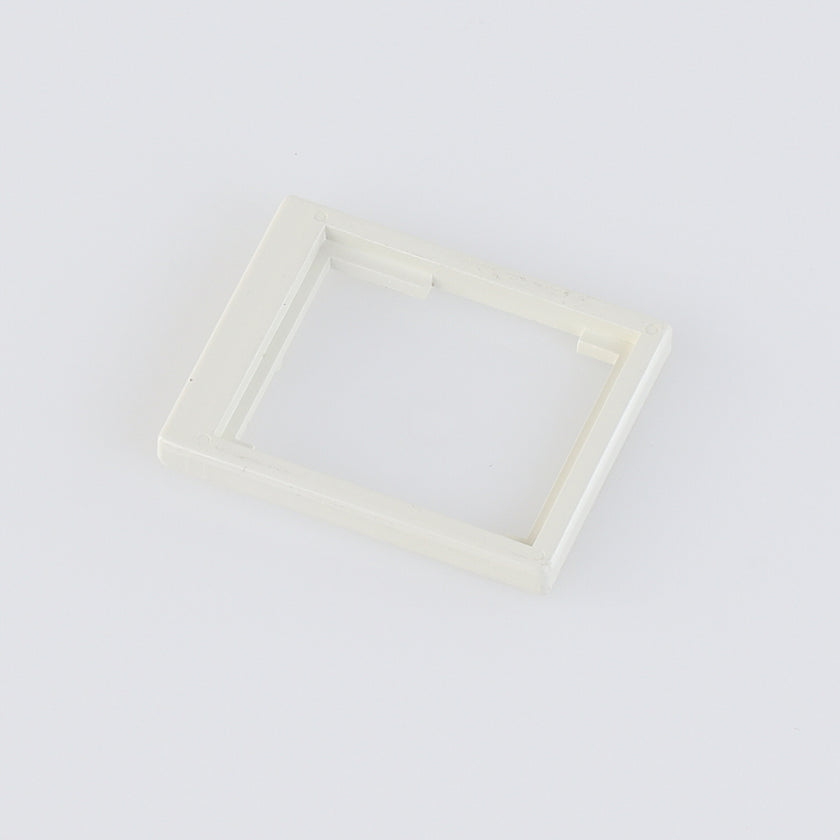

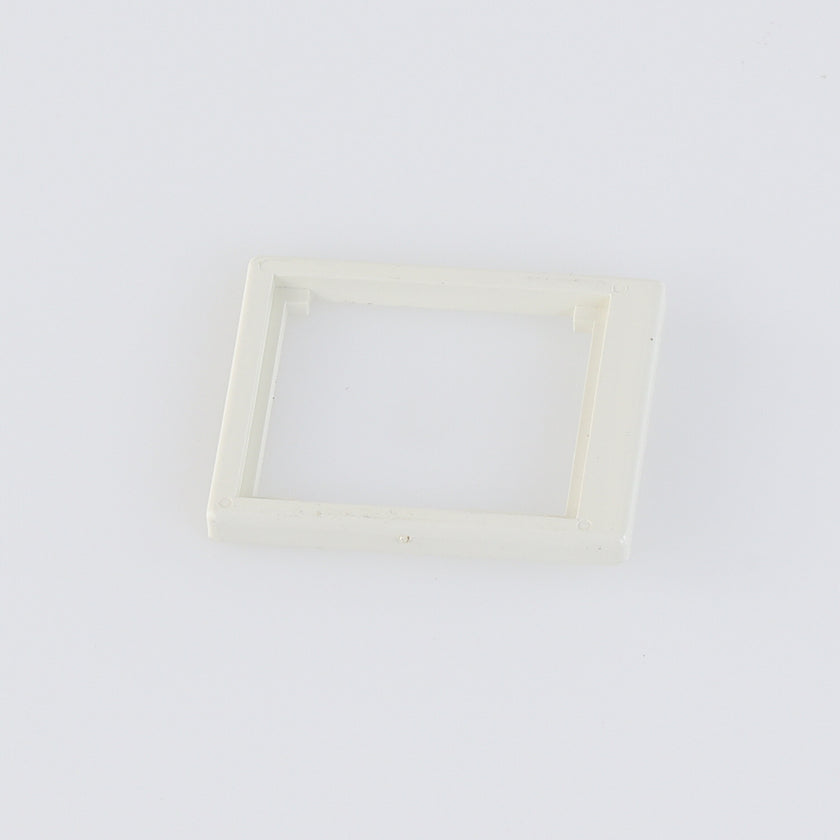

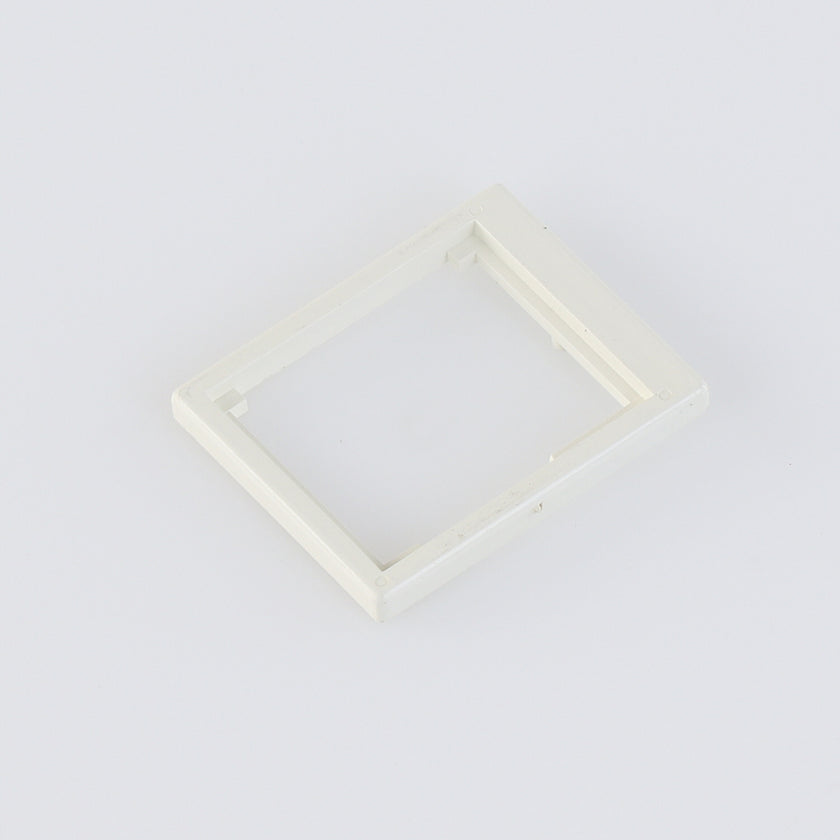

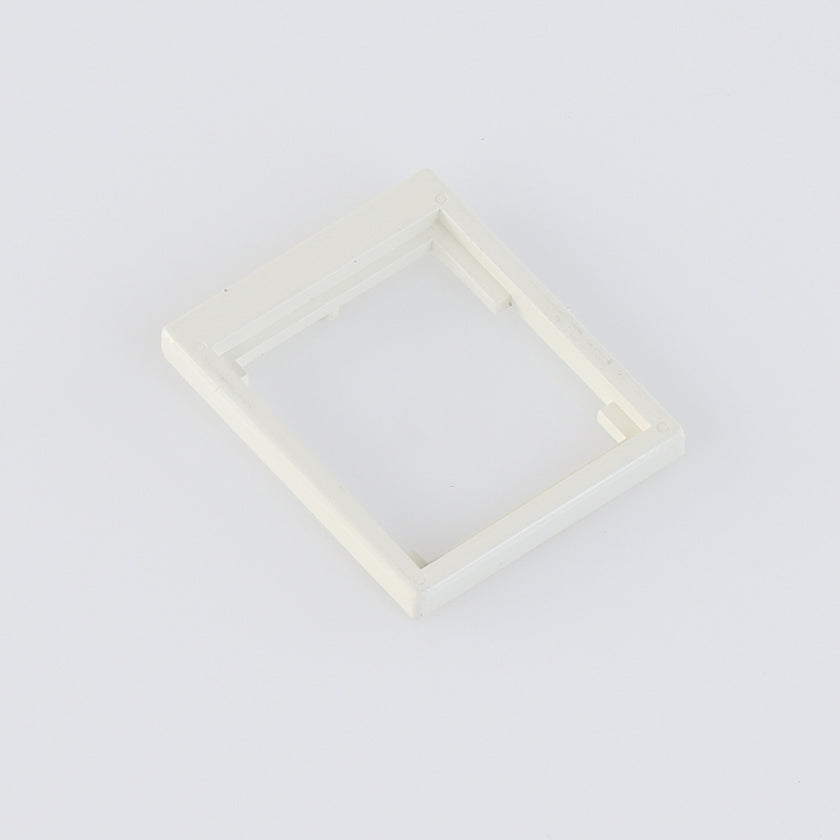

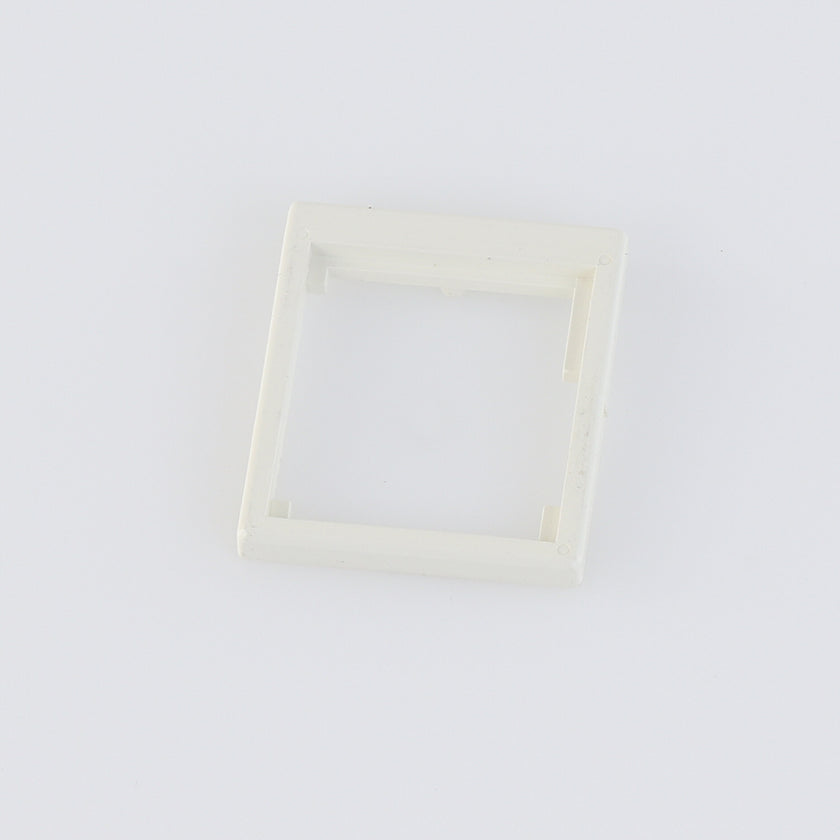

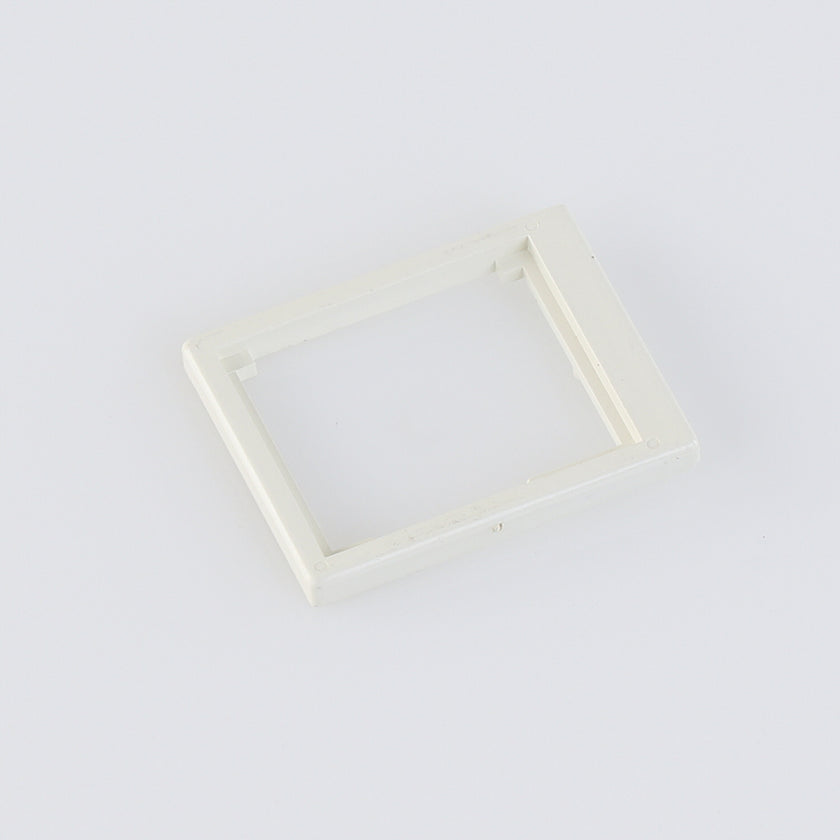

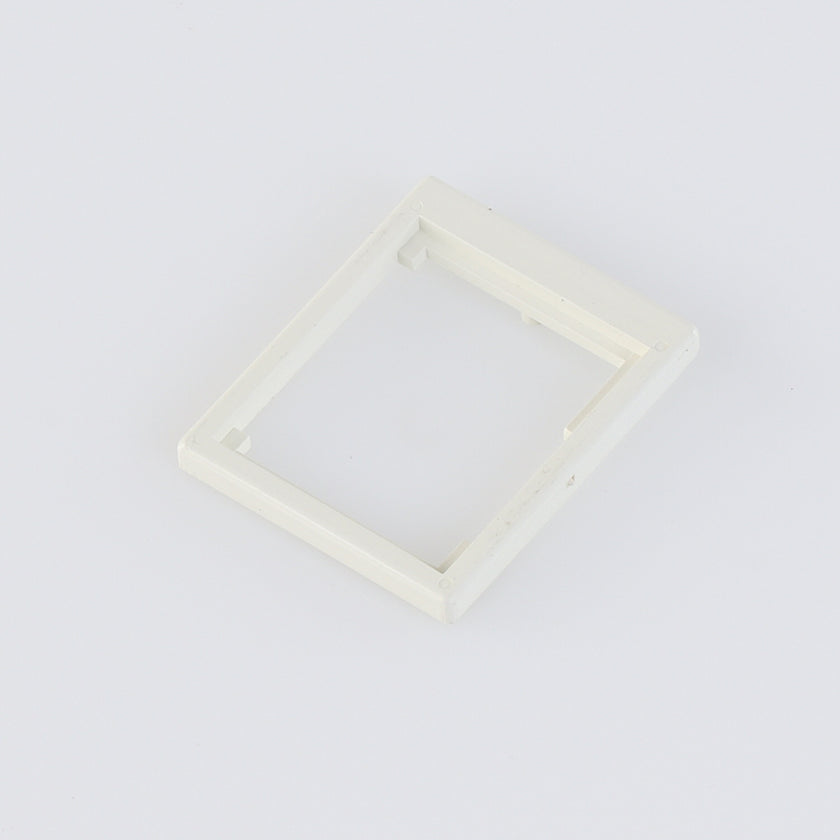

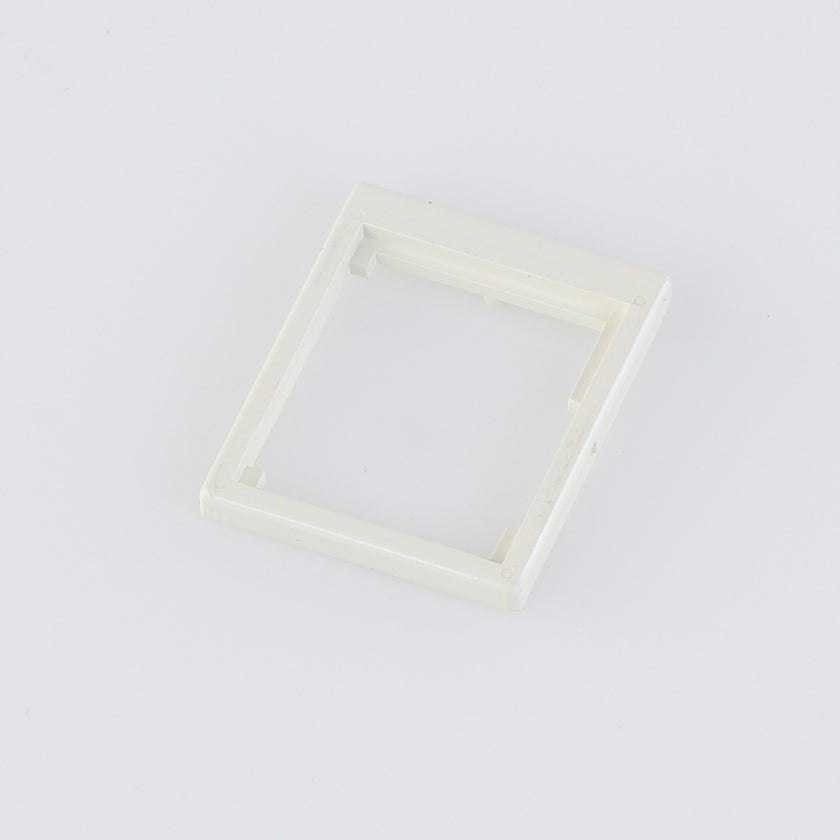

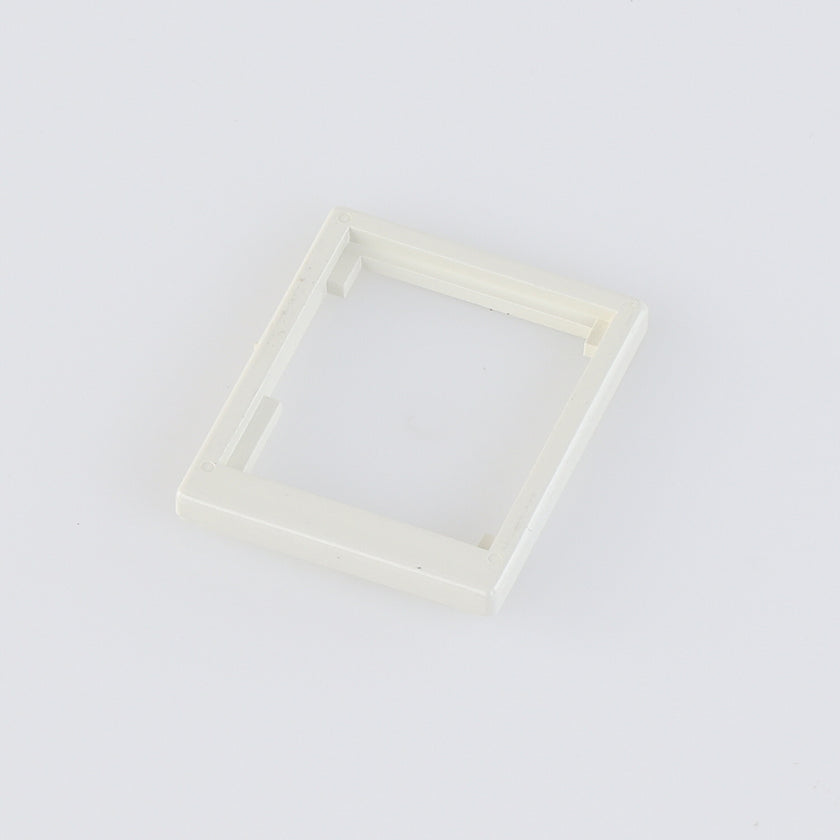

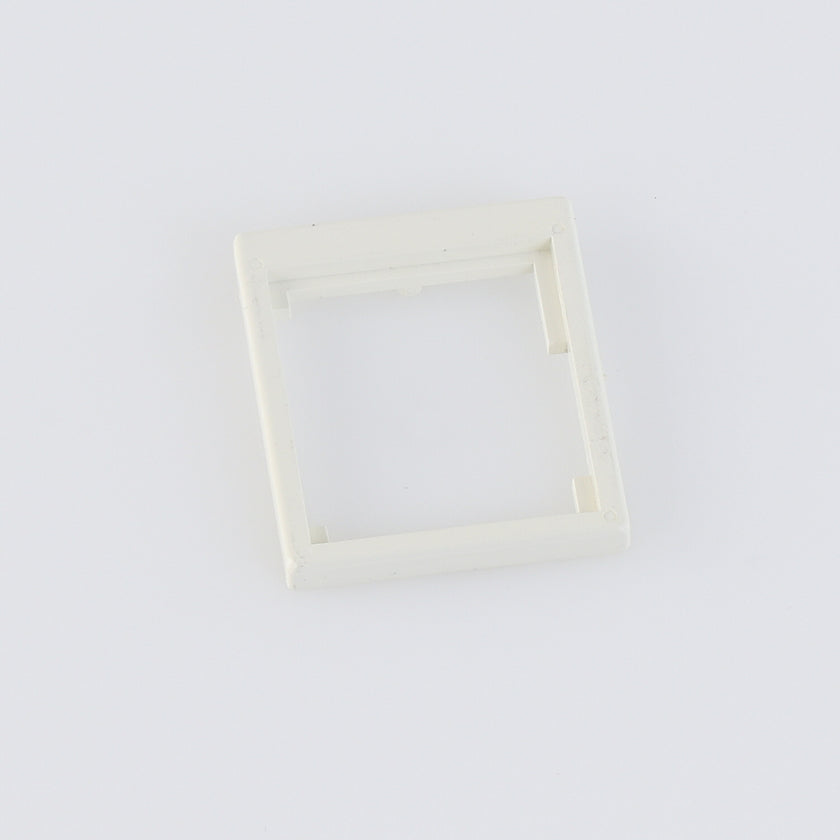

FACE PLATE, ROCKER SWITCH 3 & 4 PRONG WHITE FACE PLATE USED W/ 801912 & 901941 WHITE ROCKER SWITCHES
SIGN FRAME ASM GDM-72F BLK INCLUDES: TOP, BOTTOM AND SIDE PIECES.
SIGN FRAME END KIT GDM-BLK USED W/ FLAT SIGNS BOTH ENDS CUT TO 45 DEGREE ANGLE WITH 2 WAY TAPE INCLUDE 2)830511 MOUNTING SCREWS

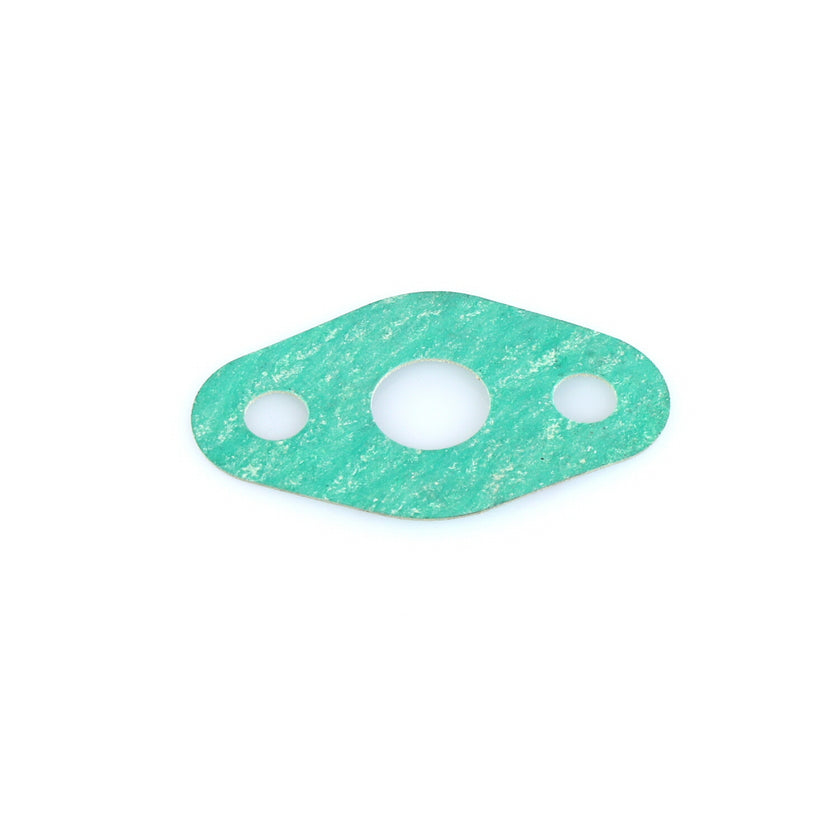

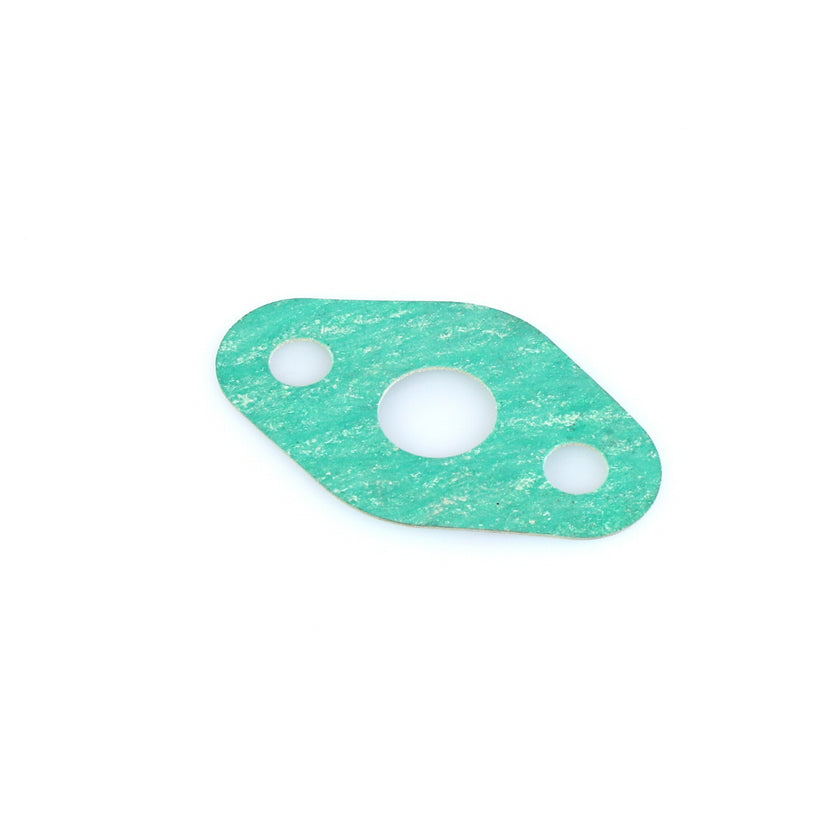

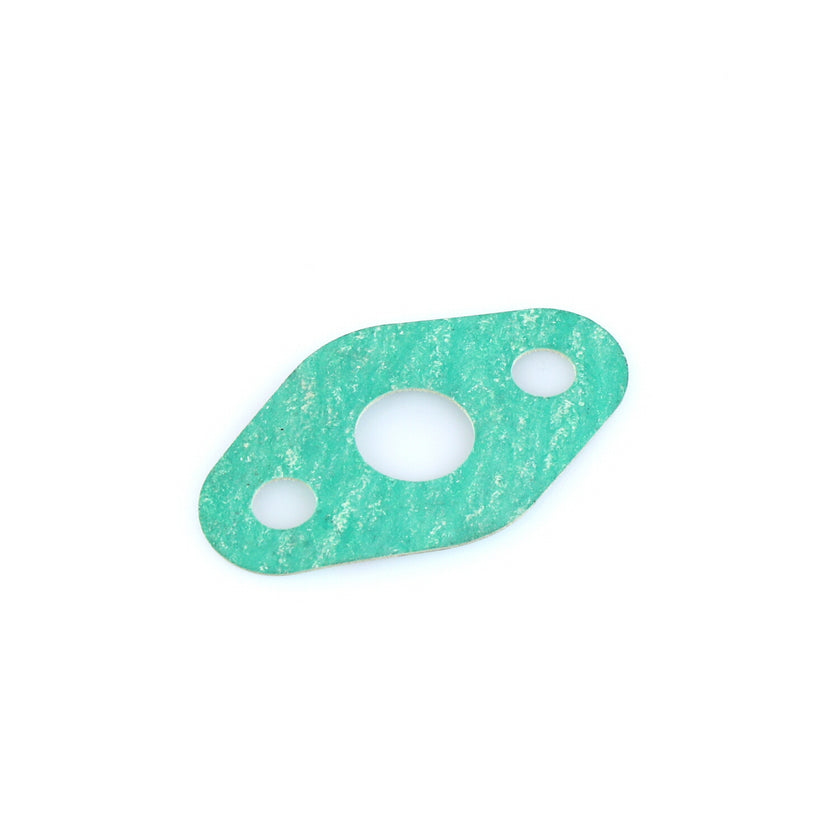

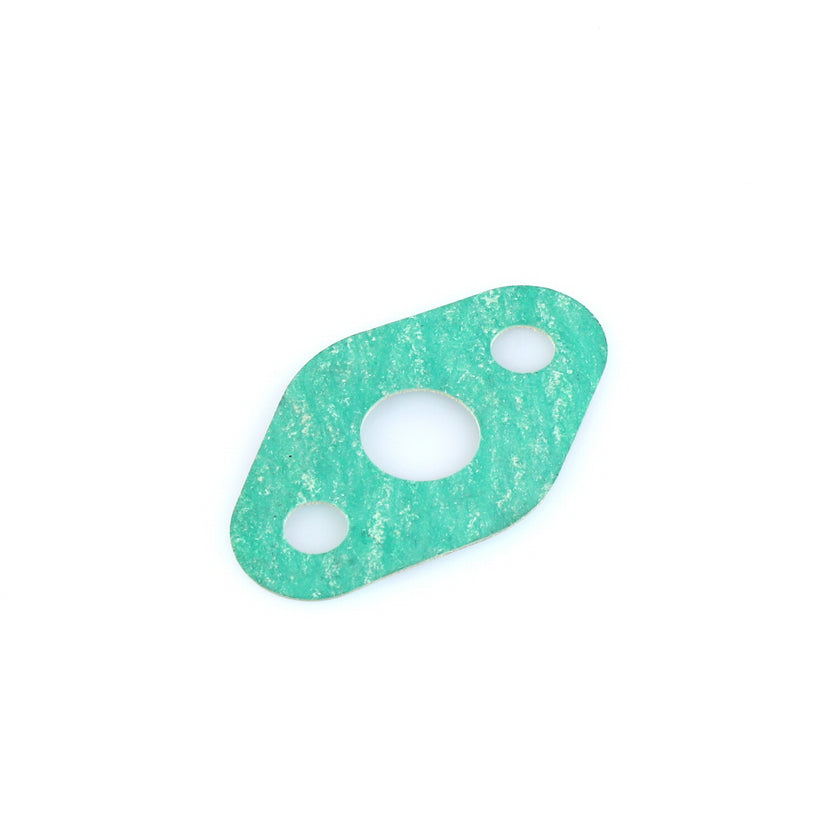

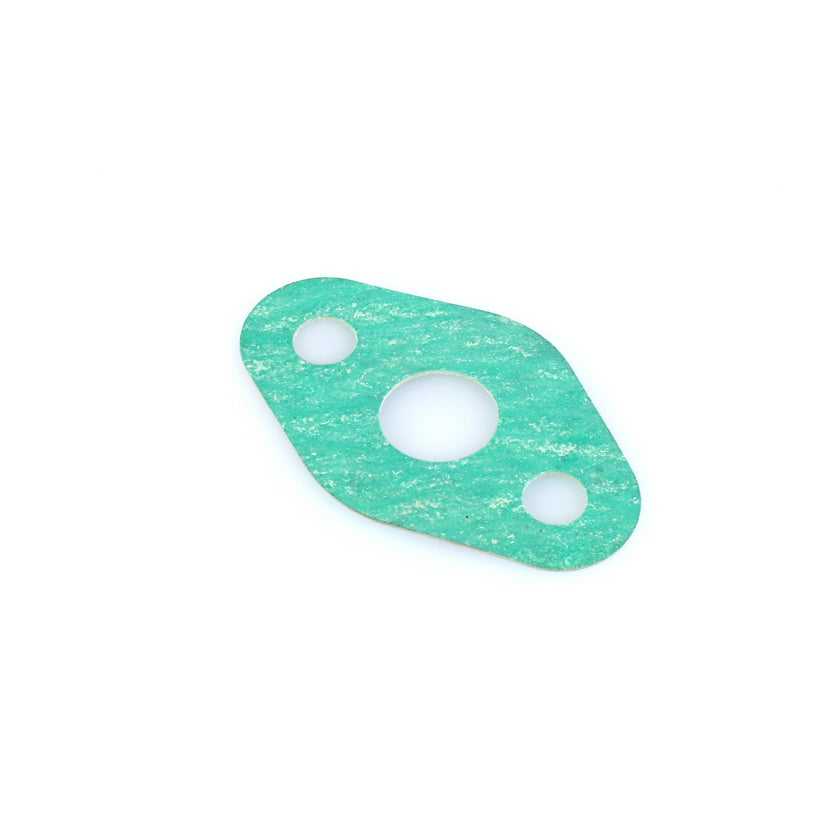

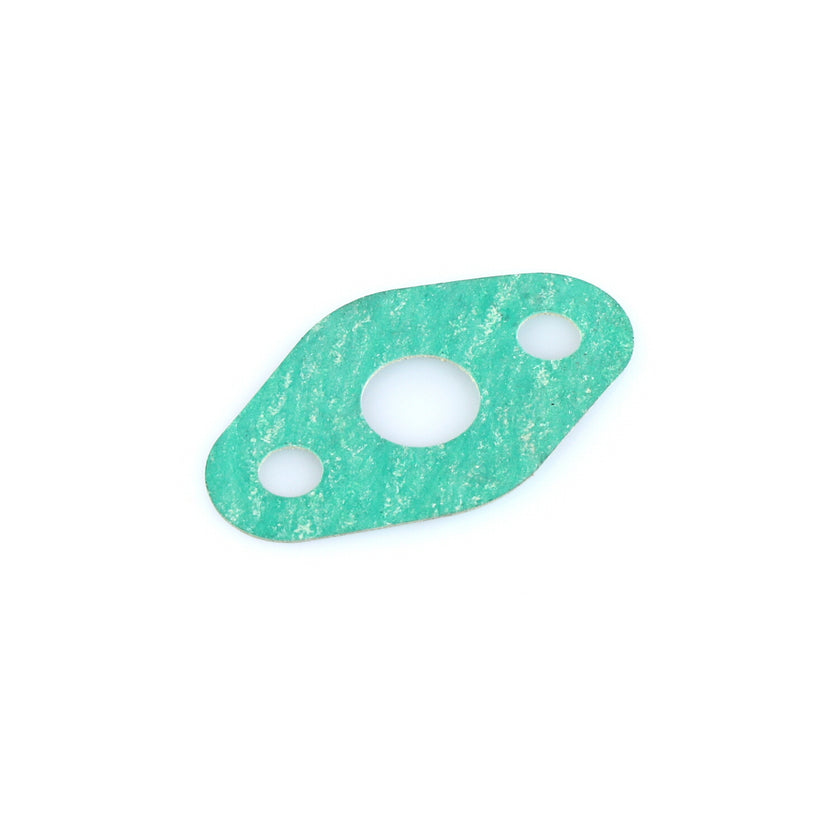

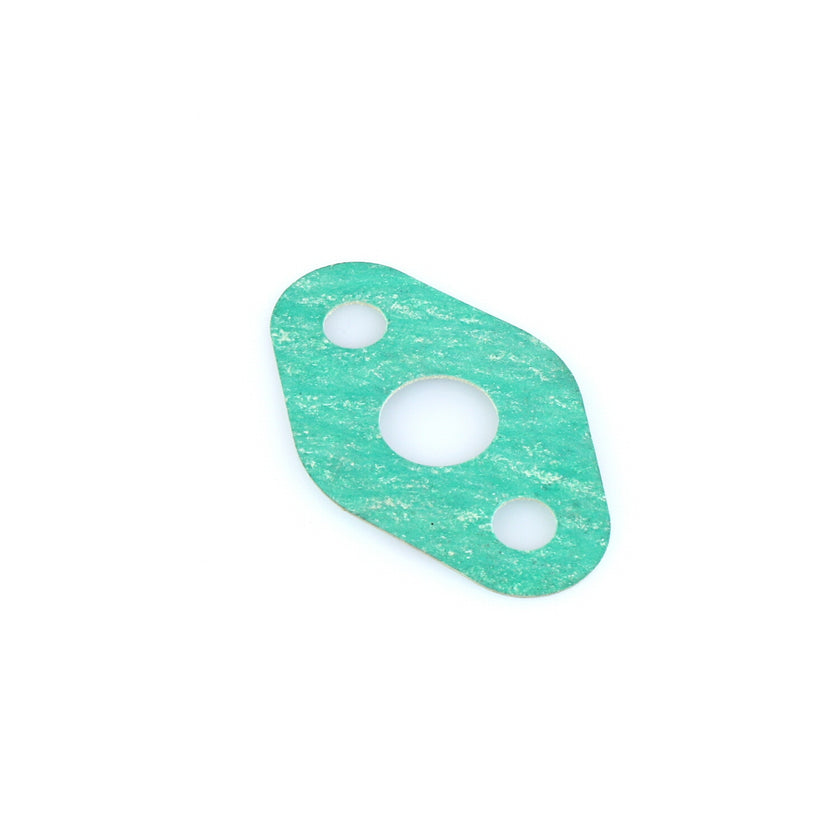

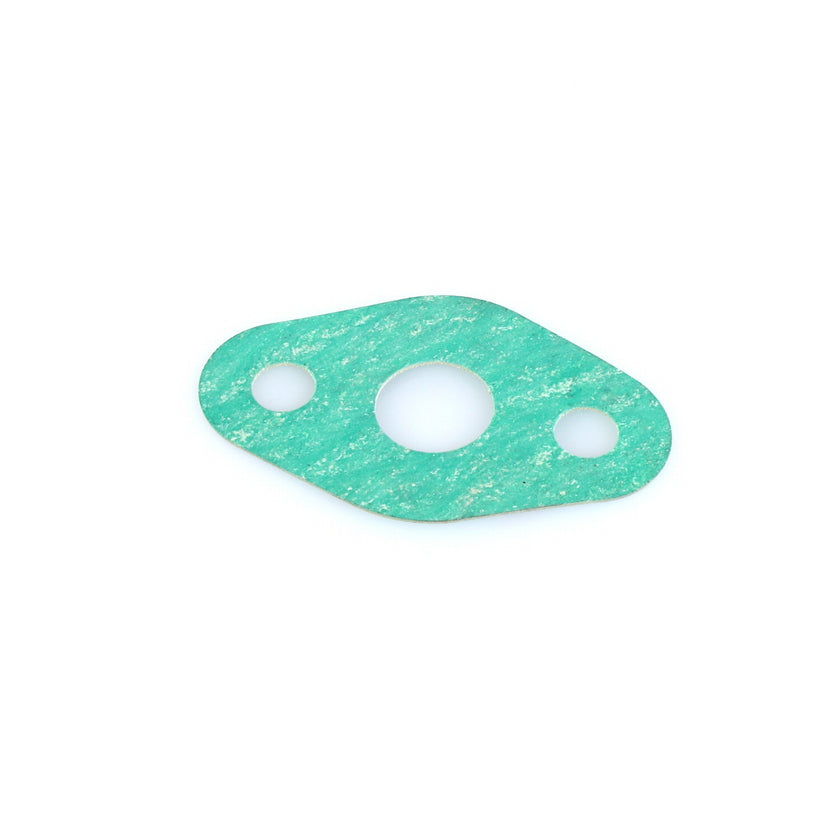

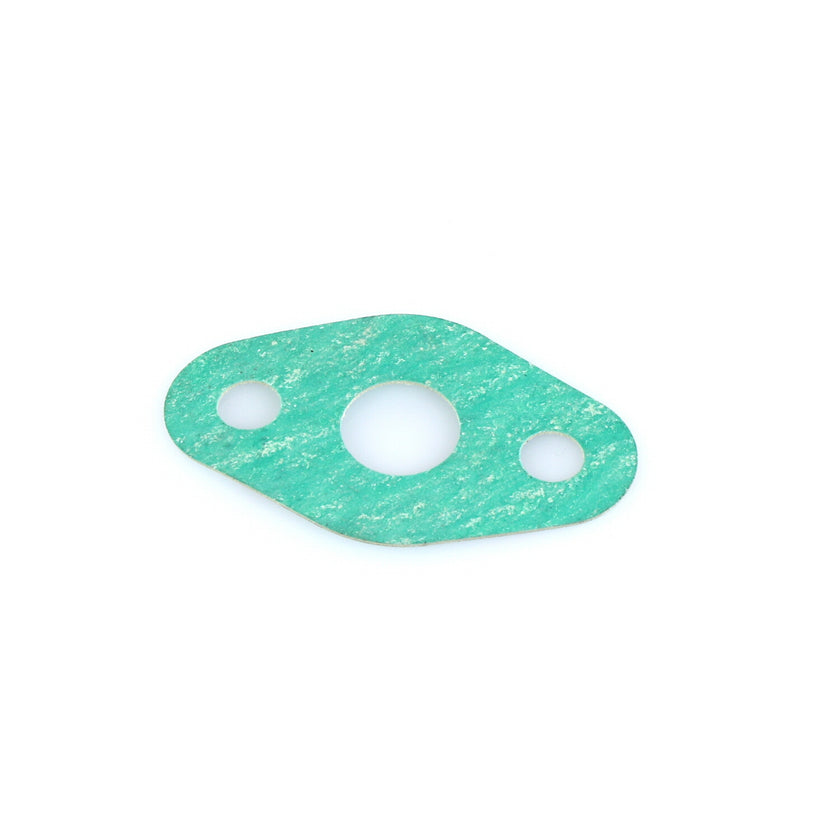

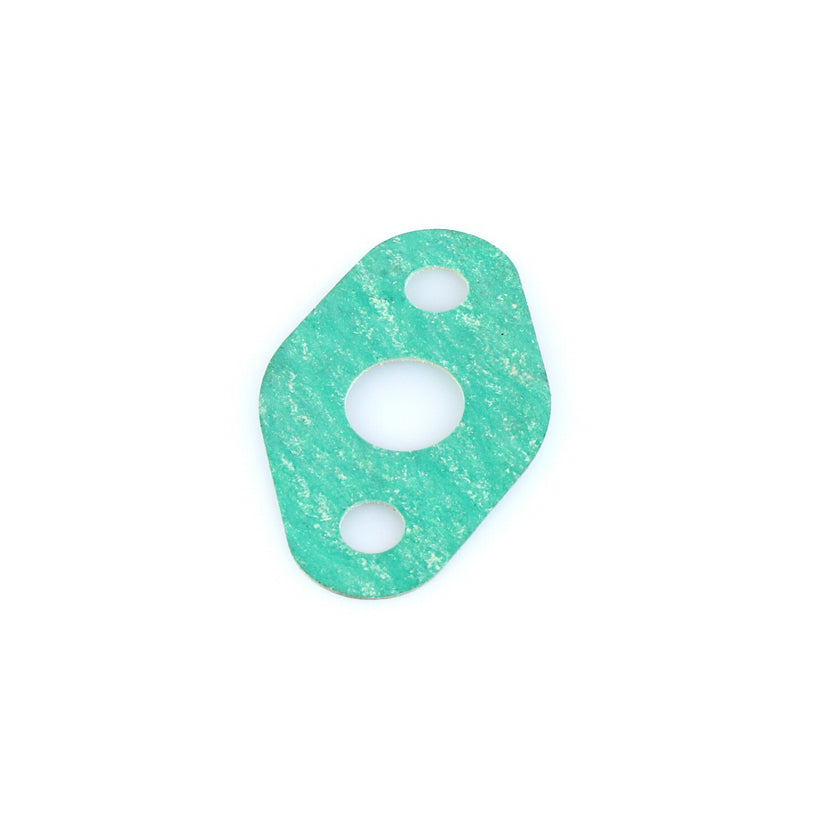

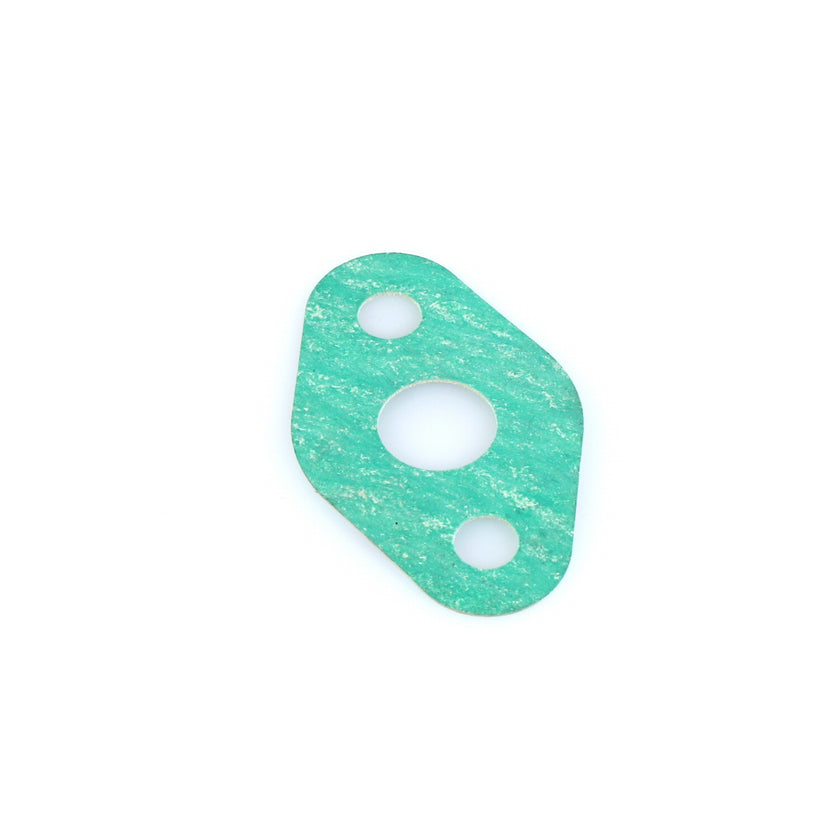

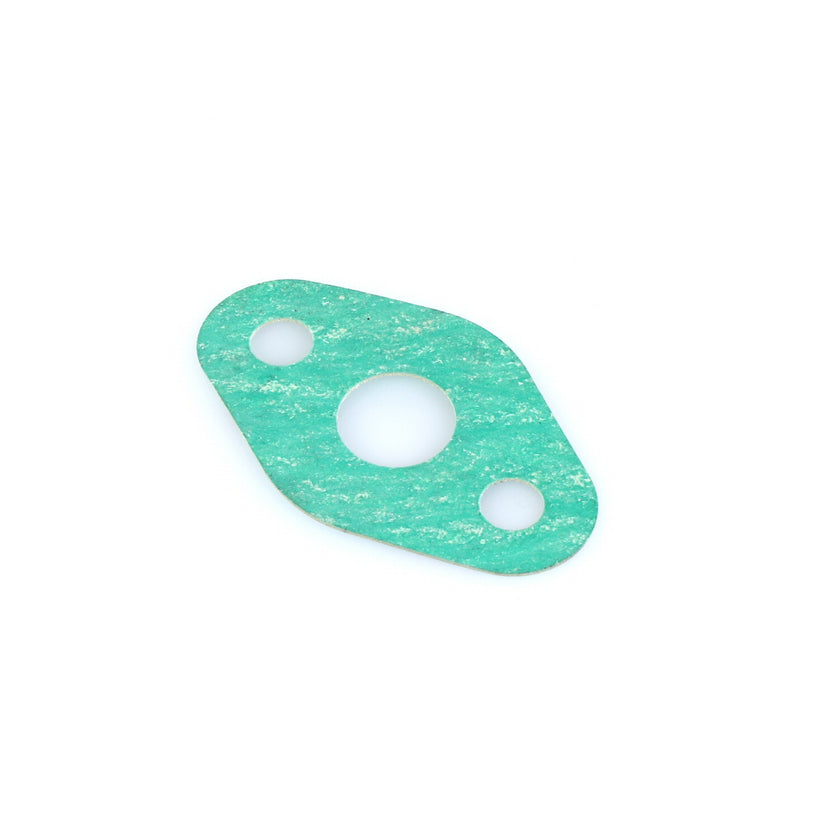

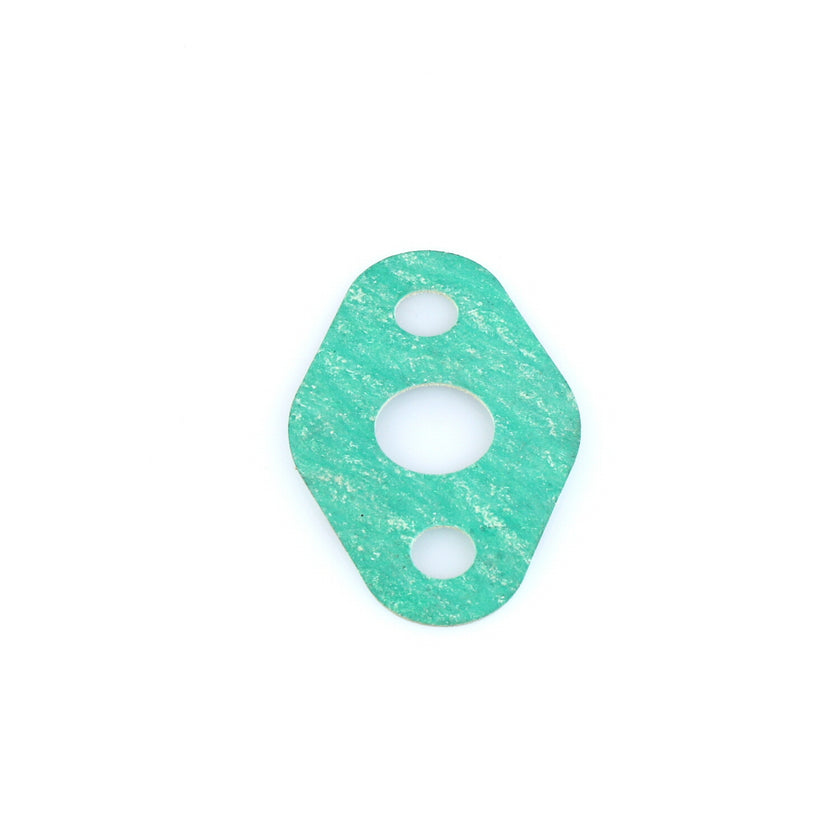

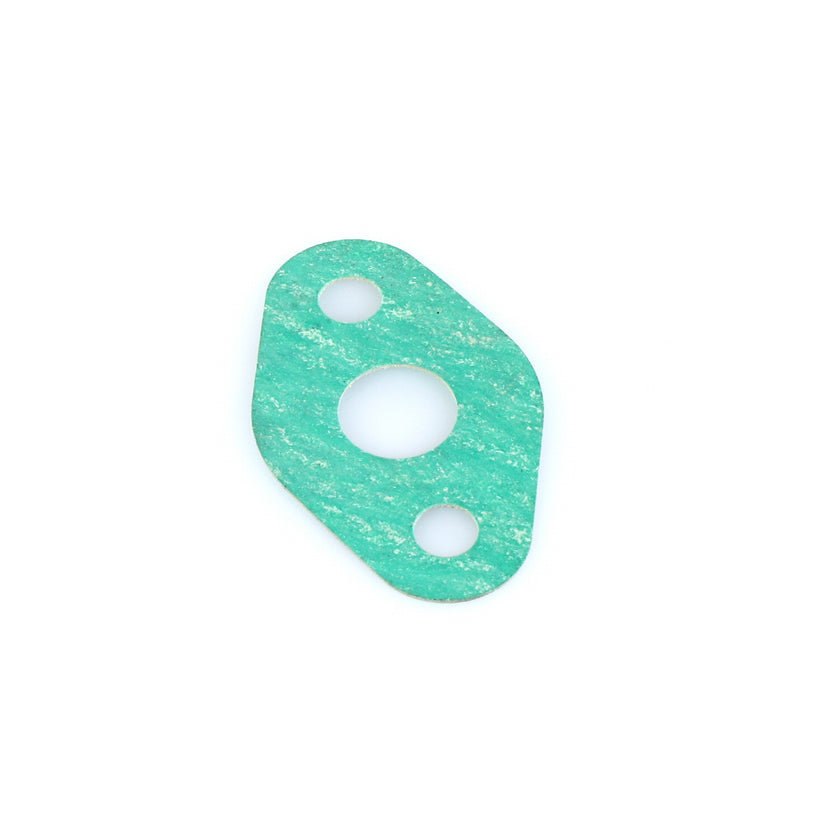

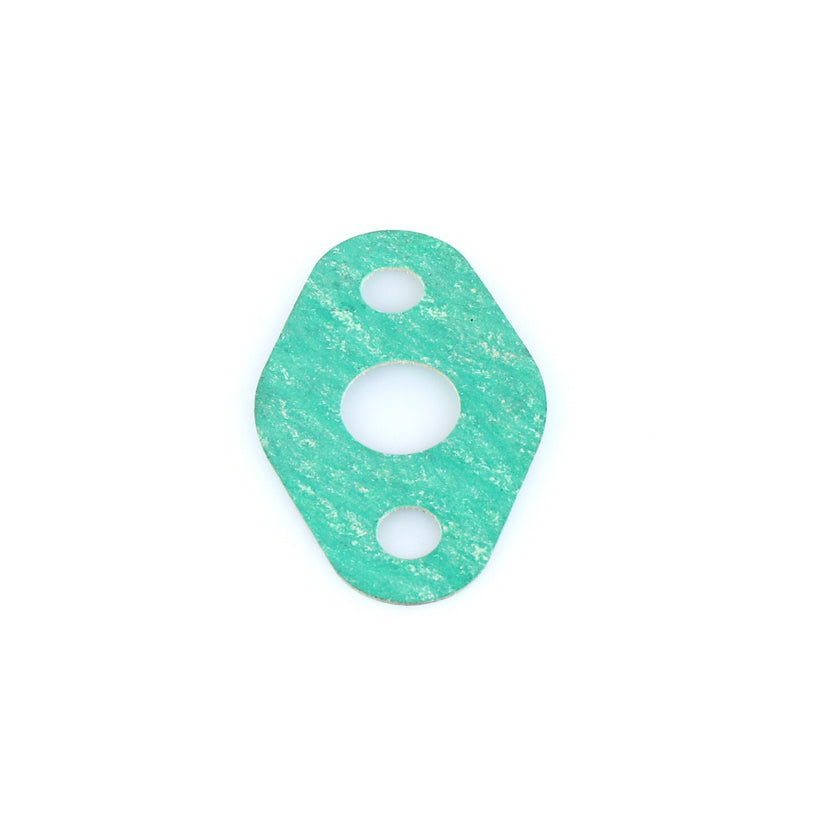

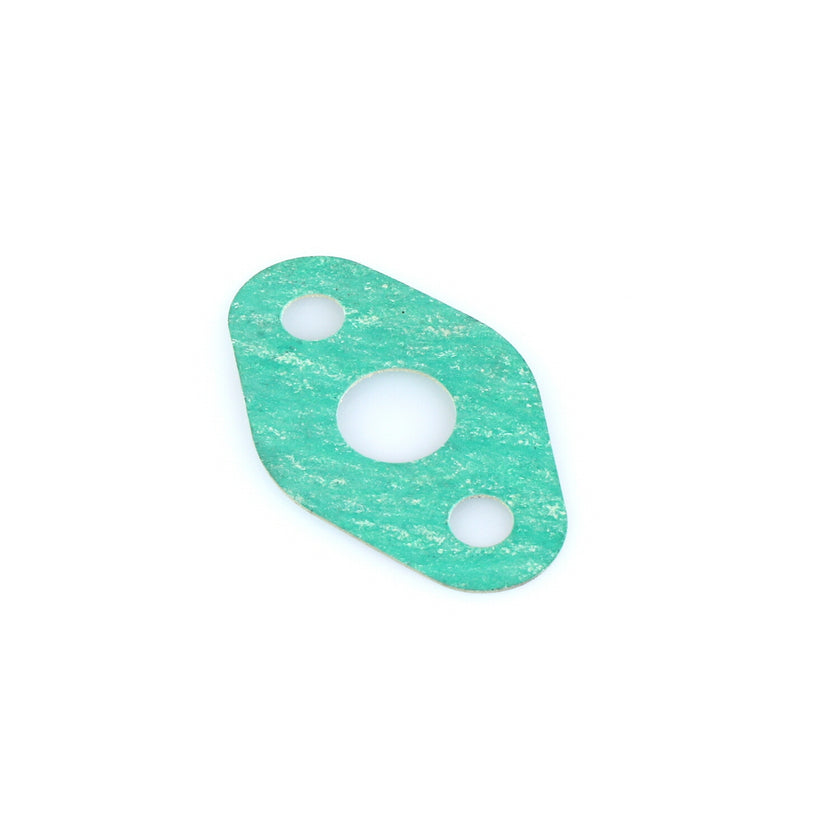

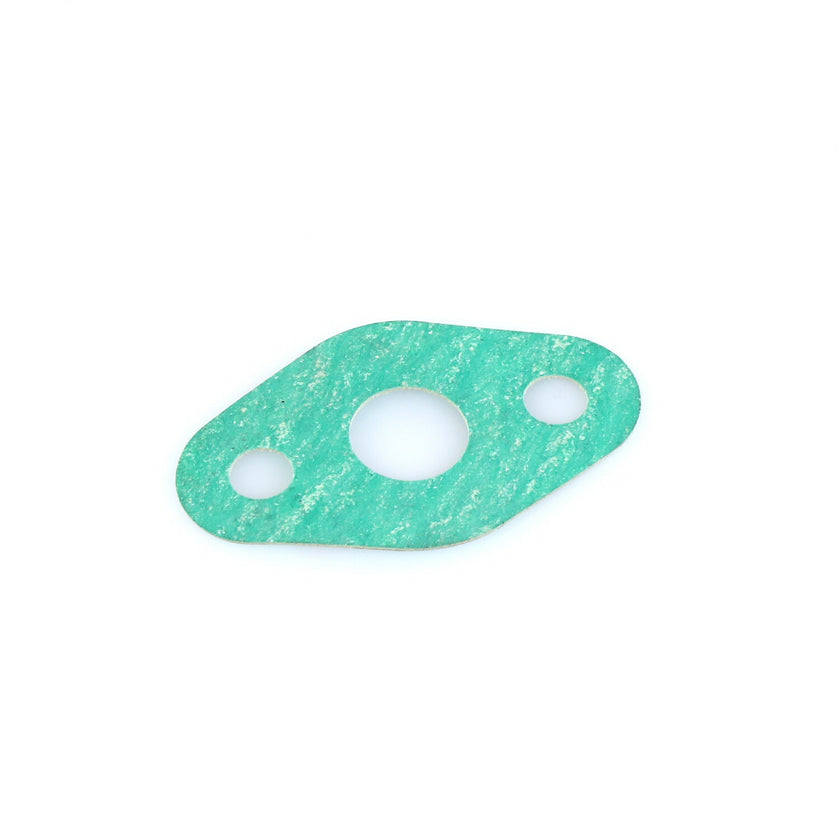

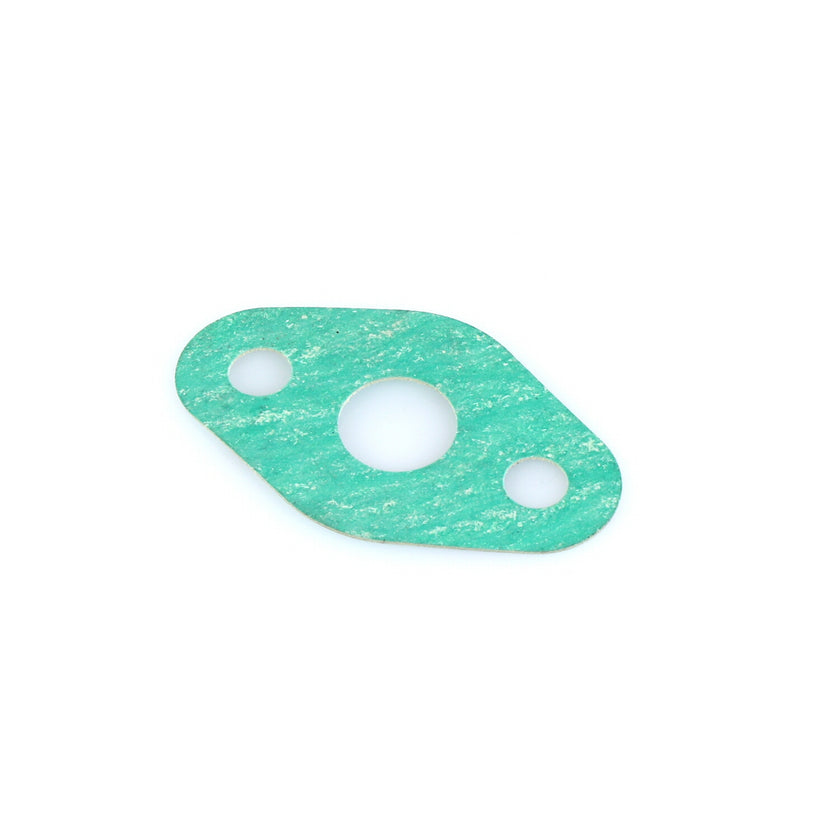

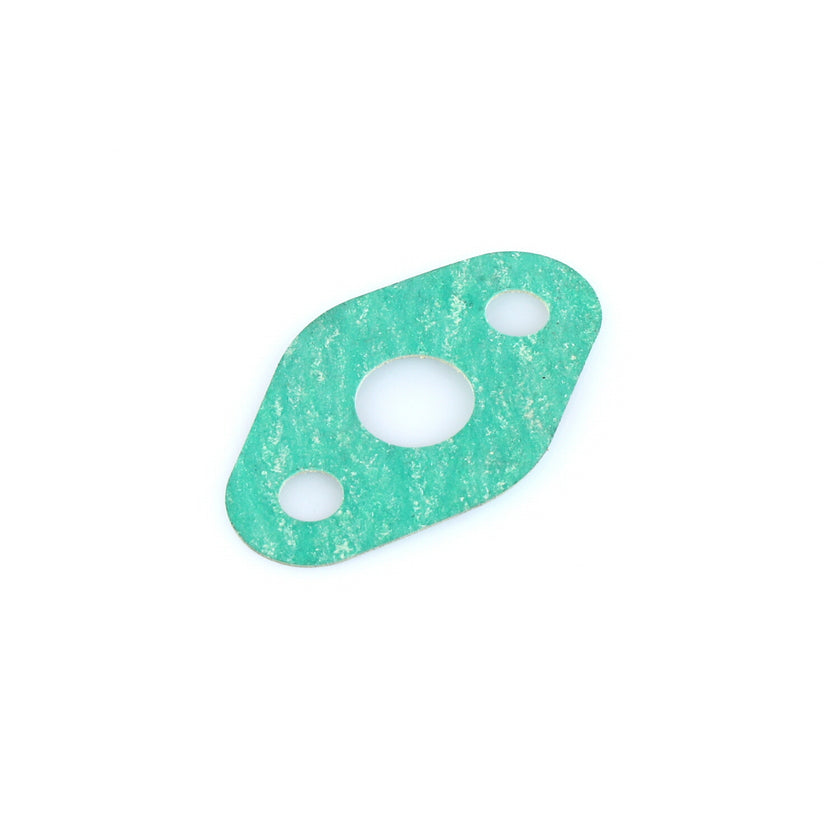

GASKET, VALVE 020-1224-01 WAS 010-0012-10 FOR SUCTION & DISCHARGE VALVE
GASKET, LAMPSHIELD LFS-FD-2-WJ FOR IDL FREEZERS GOES BETWEEN LAMPSHIELD AND BASE.
GASKET BASE SS VERT CENTER GDM/T 2 13/16 X 52 5/8 LOCATED ON CABINET BETWEEN THE DOORS.
GASKET BASE SS ASM GDM/T72/F LOCATED ON CABINET "NOT ON DOOR". SURROUNDS DOOR OPENING. INSERTS INTO PERIMETER PLASTIC. 4 PIECE ASSEMBLY. INCLUDES: 2)992582 AND 2)992590
PLASTIC, #3792, 3" NOTCHED BLACK GRILL TRIM THAT GOES AROUND THE CUTOUT ON IDL GRILLS FOR THE POWER CORD. PROTECTS THE DOOR CORD. 3" LENGTH CUT FROM PART #811239
PLASTIC, #1679, 78" 1/2" BLK ABS PLASTIC EXT, #1679, 78" 1/2" BLK ABS GRILL EXTRUSION. CUT FROM 811288 USED ON WALNUT OR PAINTED GRILLS
