Refrigerator system parts for peak performance for your True OEM cooler.
UNIVERSAL COMPRESSOR KIT, NT6217Z UPS INCLUDES: 934656 COMP, 889255 INSTRUCTION, 848196 COPPER TUBE, 931868 COPPER TUBE, 12" 810526 TUING, 2) 949496 TAPE, 975517 4) PUSH NUT, 3) 202747 ONNECTOR
UNIT TUC-24-HC 230V 50/60 INCLUDES: 217339 COMPRESSOR, 200075 RELAY, 998902 CAPACITOR HOLDER, 217340 RUN CAPCITOR, 979609 OVERLOAD, 991567 COVER, 22824 FAN MOTOR, 970783 FAN MOUNT, 945035 BLADE, 945036 COIL, 970784 SHROUD, 945039 DRIER ALL MOUNTED TO A BASE.
UNIT TUC-24F-HC 230V 50/60 INCLUDES: 991510 COMPRESSOR, 991564 STARTING DEVICE. 991566 OVERLOAD, 991567 COVER. 991565 START CAPACITOR, 934998 HOLDER, 225824 FAN MOTOR, 945035 BLADE, 945036 COIL, 970784 SHROUD, AND 945039 DRIER ALL MOUNTED ON A BASE.
UNIVERSAL COMPRESSOR KIT, NT6217Z 200-240V50HZ 230V/60HZ INCLUDES: 1) 889255 INSTRUCTION, COMP REPLACMEt 1) 848196 COPPER TUBE STRAIGHT 1/4 X 24" 1) 931868 COPPER TUBE STRAIGHT 3/8 X 12 12" 810526 TUBING, SPONGE R180-FS 2) 949496 TAPE, 1/8" X 6" X 107.5'''''''''''''''''''''''''''''''' 4) 975517 PUSH NUT, M-7 3) 202747 CONNECTOR, 5WAY LEVER 12-24G
UNIT GDM-10PT-HC INCLUDES 213142 COMPRESSOR WITH START COMPONENTS, 803117 BRACKET, 225824 MOTOR, 963186 BLADE, 803118 COIL, 803119 SHROUD, 997816 LOOP, 925928 DRIER, 825977 DRAIN PAN, WICK ASSEMBLY, 205980 WIRE HARNESS ALL MOUNTED TO A BASE.
UNIT 1/2 404 T2168GK TR2DT (936DG63D7AK) UN-OBSOLETED AS COMPRESSOR WAS CHANGED FROM 842129 TO 950220 IN BOM INCLUDES: 950220 COMPRESSOR WITH RUBBER MOUNTING BLOCKS, 842134 RELAY, OVERLOAD, 842135 START CAPACITOR, 837869 FAN MOTOR, 801006 FAN BLADE, 865417 FAN MOTOR BRACKET, 800805 DRIER, 800601 CONDENSING COIL, SHROUD, COMPRESSOR BASE, 801706 POWER CORD. BILL OF MATERIALS HAVE BEEN THREE VERSIONS, 906DG630AC, 936DG63D8AY AND NOW 936DG63D7AK
UNIT TFP-48-HC CONTAINS: 1) 898860-CONDENSING UNIT, 1) 221731-UPS COPPER, 1) 221732-UPS COPPER, 1) 956901-SLEEVE
LINE SET KIT, T-49F WHT COVER INCLUDES: 916160 LINE SET (866743 ACCUMULATOR, 1)851143 10' X .064" ID CAPILLARY TUBE, SUCTION LINE), 865450 WHITE ALUMINUM COVER, 800805 DRIER, 811287 BUSHING
UNIVERSAL COMPRESSOR KIT, NEX6217UA 230/50 INCLUDES: 850000 COMPRESSOR, 848195 INSTRUCTION, 848196 COPPER TUBE, 835513 PULLOUT EXT,12") 810526 TUBING, 2) 949496 TAPE, 4) 975517 PUSH NUT, 215035 WIRE HARNESS
UNIT TSSU-48-HC BEFORE 10-3-25 INCLUDES: 872313 COMPRESSOR, 834449 RELAY, 834448 START CAP, 850538 OVERLOAD, 999170 FAN MOUNT, 225824 MOTOR, 945035 BLADE, 999190 COIL, 973910 SHROUD, 945039 DRIER, 903862 PULLOUT, 852233 LABEL
COMP RETROFIT KIT EMX4134U 115V/60HZ INCLUDES: 872313 COMPRESSOR, 903862 PULLOUT, 852233 LABEL, 237515 INSTRUCTION
UNIT GDM-33CPT/41CPT-HC INCLUDES: 213142 COMPRESSOR, 969235 RELAY, 969245 RUN CAP, 204495 OVERLOAD, 803117 FAN BRKT, 854926 MOTOR, 963186 BLADE, 803118 COIL, 803119 SHROUD, 925928 DRIER, 92297 PAN 825977 WICK KIT
TRM PRP ASSEMBLY CONTAINS: 1) 834955- PRESSURE RELIEF PORT, 1) 837946-PLATE, 4) 830557-SCREW, 1) 837945-SPACER, 4) 830592-SCREW
EVAP COIL ASM TFP-64-HC INCLUDES: 873296 COIL, 898730 SUCTION LINE, 851167 CAP TUBE, 980203 ADAPTER TUBE

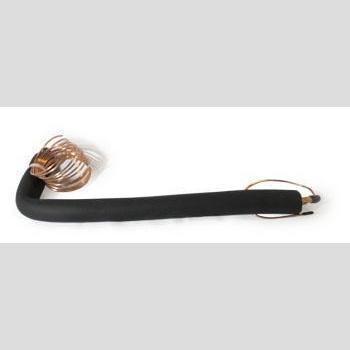

LINE SET TCR INCLUDES 217321 SUCTION LINE, 917893 CAP TUBE
CAP TUBE ADAPTER/LIQUID LINE 80" X 3/16" OD X .025
UNIT TOAM-36 RETROFIT INCLUDES: COMPRESSOR 837427, 20307 RELAY, 837413 OVERLOAD, 837415 RUN CAP, 837419 START CAP, 837417 CSR BOX, 837869 FAN, 960276 BLDE, 221515 FAN BRKT, 817307 COIL, 225832 SHROUD, 985044 DRIER, 806597 PAN, 807023 WICKING ASM, 843364 PULLOUT
UNIT T-49FG-HC INCLUDES: 837427 COMPRESSOR, 203307 RELAY, 837413 MOTOR PROTECTION, 837419 START CAP, 837412 RUN CAP, 837417 POWER PACK, 221515 FAN BRKT, 854926 MOTOR, 960276 BLADE, 817307 COIL, 225832 SHROUD, 997816 LOOP, 985044 DRIER. 810583 PAN
UNIT T-23-HC INCLUDES: 998905 COMP, 969235 RELAY, 969345 RUN CAP, 931549 OVERLOAD, 223965 COIL, 223966 SHROUD, 854926 FAN MOTOR, 810583 PAN, 985044 DRIER, 945035 BLADE
