True Parts OEM - T-19FZ: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
LEG KIT 6" 4)830437 SEISMIC 1/2" STEM INCLUDES: 4)830437 LEGS. LEG HAS TWO HOLES IN FOOT TO USE SCREWS TO SECURE TO FLOOR. LEGS ADJUST FROM 6" TO 8". STAINLESS STEEL. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.

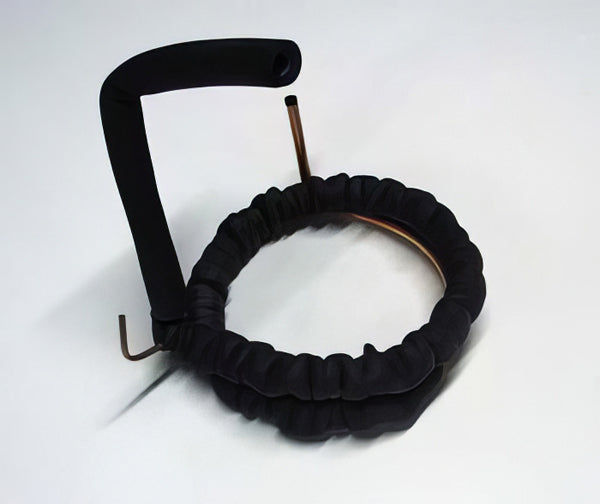

LINE SET, T-19FZ R404A INCLUDES 1)867255 SUCTION LINE, 1)851178 CAP TUBE, 1)927201 ACCUMULATOR, 1)868176 90 DEGREE COPPER ELBOW, 1)927201 ACCUMULATOR LINE, SPONGE TUBING AND TAPE.

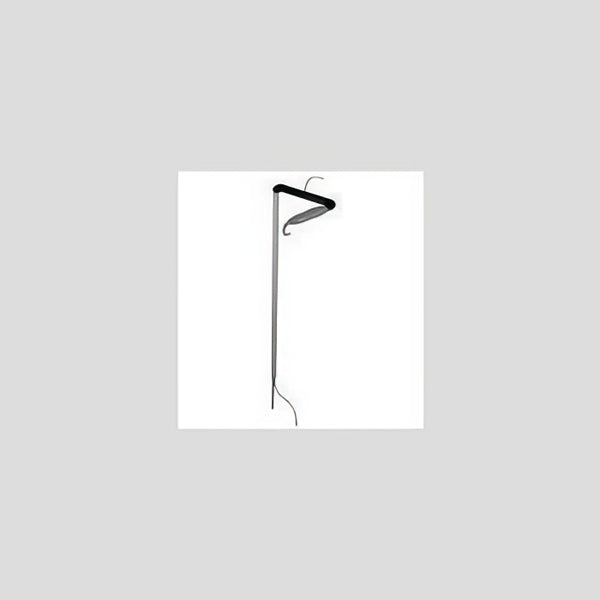

LINE SET KIT, T-19FZ WHT COVER INCLUDES: 1)877871 (ACCUMULATOR, 14'' X .042ID CAPILLARY TUBE, SUCTION LINE), 1)865450 WHITE ALUMINUM COVER, 1)800801 DRIER, & 1)811211 BUSHING, 2) 872977 BACKGUARD KITS, 4) 830592 SCREWS
COPPER REDUCER 1/2 X 3/8" USED TO CONNECT THE SUCTION LINE TO THE PULLOUT TO REDUCE REFRIGERATION LEAKS
LINE SET, T-19FZ R404A 13 FOOT INCLUDES 1)867255 SUCTION LINE, 1)851178 CAP TUBE, 1)868709 ACCUMULATOR, 1)868176 90 DEGREE COPPER ELBOW, 1)927201 ACCUMULATOR LINE, SPONGE TUBING AND TAPE.
LOCK KIT T SERIES SOLID/GDM INCLUDES FROM MANUFACTURER: 831373 LOCK, 927444 CAM, LOCK NUT, WASHER, SCREW, & 2 (932992) KEYS.
FAN MOTOR KIT 115V NO BLADE USE TILL DEPLETED. REPLACE WITH 243072 PCN-15300INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
FAN MOTOR KIT 220V USE TILL DEPLETED REPLACE WITH 243072 PCN-15300INCLUDES: 837870 FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET AND 830033 INSTRUCTIONS.
NAMEPLATE, TRUE FREEZER 51171-P HAS TWO WAY TAPE ON BACK OF NAMEPLATE. REPLACES THE 820345 WHEN STOCK IS DEPLETED.
RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG
EVAP DRAIN PAN ASM GDM/T-19 6 7/8"W X 21"L X 3/4"D TOP LOCATED BELOW EVAP. COIL. INCLUDES: 1)892986 PAN, ELBOW
PAN, DRAIN COND METAL W/HOLE USE WITH ONE PIECE-DRAIN PAN HEATER. INCLUDES: 1)868686 PAN W/ HOLE IN BOTTOM
PLUG-LEVITON STRAIGT BLADE #515PA WAS USED WITH 801815 OR 801817 115V DRAIN PAN HEATERS, WHICH ARE NO LONGER AVAILABLE
POWER CORD, COMP 28" P-59S 14/3 SPT-3 BLK 208V/220V 14GA MODIFIED GDM/T FREEZER
