True Parts OEM - T-49DT-1-G-1: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
GRILL KIT, T-49 ALL RH MAGNETI W/MOUNTING BRKTS INCLUDES: 1)928664 GRILL, 2) 926524 BRACKETS, 4) 926534 MAGNETIC CATCH, 8) 830566 SCREWS, 2)913451 SCREWS, 2) 927441 SUPPORT BRACKET, 8) 830592 SCREWS, 928718 RETROFIT INSTRUCTIONS
GRILL KIT, T-49 ALL LH MAGNETI W/MOUNTING BRKTS INCLUDES: 1)928665 GRILL, 2) 926524 BRACKETS, 4) 926534 MAGNETIC CATCH, 8) 830566 SCREWS, 2)913451 SCREWS, 2) 927441 SUPPORT BRACKET, 8) 830592 SCREWS, 928718 RETROFIT INSTRUCTIONS
GRILL KIT, T-49 LH/RH MAGNETIC W/MOUNTING BRKTS INCLUDES: 1)928666 GRILL, 2) 926524 BRACKETS, 4) 926534 MAGNETIC CATCH, 8) 830566 SCREWS, 2)913451 SCREWS, 2) 927441 SUPPORT BRACKET, 8) 830592 SCREWS, 928718 RETROFIT INSTRUCTIONS
FASTENER, LATCH FASTEX #7800-02-9909 THIS IS A SQUARE PLASTIC PIECE ON MOUNTING BRACKET. LOCATED ON GRILL MOUNTING BRACKET AND INSERTED INTO SQUARE HOLES. SERVES AS A BASE FOR THE STRIKER TO GO THROUGH TO SECURE GRILL TO MOUNTING BRACKET. REQUIRES 2 PER MOUNTING BRACKET.
MAGNETIC CATCH, RT ANGLE MOUNT PLASTIC HOUSING MAGNETIC CATCH WITH PLASTIC HOUSING WITH RIGHT ANGLE MOUNTING
GRILL ASM T-49/F/G LH MAGNET 54"W X 11 3/4"H X 2 3/4" INCLUDES: 5) ROUNDED LOUVERS 893742, 1) LEFT ROUNDED LOUVER END 893750, 1) RIGHT ROUNDED LOUVER END 907245, 12) SCREWS 830592, 6) SCREWS 830506, 2) MAGNETIC BRACKETS 926525, 1) TOP LOUVER FRAME LH 893765
GRILL ASM T-49/F/G LH/RH MAGNETIC 54"W X 11 3/4"H INCLUDES: 5) ROUNDED LOUVERS 893742, 1) LEFT ROUNDED LOUVER END 964095, 1) RIGHT ROUNDED LOUVER END 964096, 12) SCREWS 830592, 6) SCREWS 830506, 2) MAGNETIC BRACKETS 926524, 1) TOP LOUVER FRAME RH/LH 893763
BRKT KIT GRILL T-49, TS-53 FOR MAGNETIC GRILLS INCLUDES: 2) 926524 BRACKETS, 4) 926534 MAGNETIC CATCH, 8) 830566 SCREWS, 2)913451 SCREWS, 2) 927441 SUPPORT BRACKET, 8) 830592 SCREWS
EVAP FAN GUARD KIT CLR INCLUDES: 994303 CLEAR COVER AND 4) 830592 SCREWS.

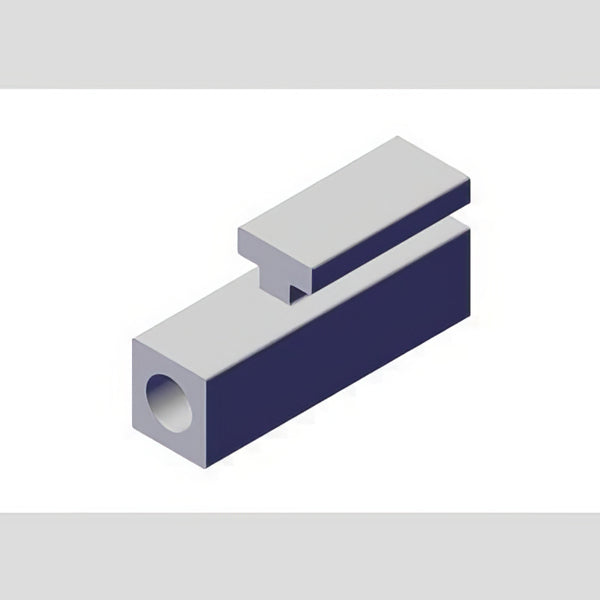

LOCK, HALF DOOR COMPONENT A DRAWING #2435 .625 POSITIONED IN DOOR GASKET BASE ON THE BAR.

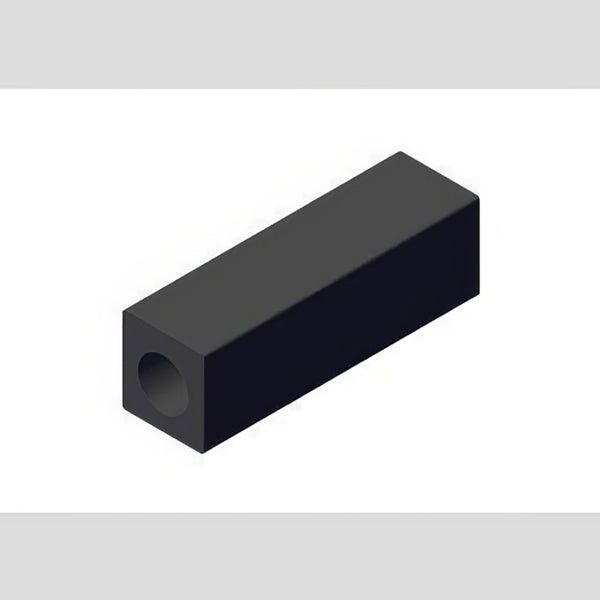

LOCK, HALF DOOR COMPONENT B DRAWING #1492 1.250 POSITIONED IN DOOR GASKET BASE ON DOOR BELOW LOCK BAR TO GUIDE THE BAR GOING INTO LOCK POSITION.

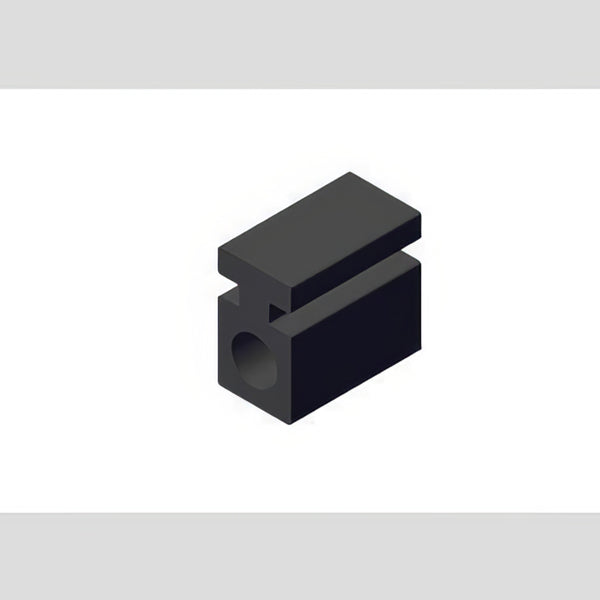

LOCK, HALF DOOR COMPONENT C DRAWING #2435A 1.188 POSITIONED IN DOOR GASKET BASE ON DOOR ABOVE LOCK BAR TO PREVENT BAR FROM COMING OUT.
HANDLE KIT RECESSED HANDLE FIELD RETROFIT INCLUDES: 1)954427 HANDLE, 6)954428 CLIPS, 1)811311 DRILL BIT, 1 TUBE 992535) BLACK SEALANT, 954429 INSTALLATION INSTRUCTIONS.
DRAIN PAN, HEATED 115V 2799-1262-2000 ONE PIECE HEATER AND PAN WITH CIRCUIT BREAKER IN POWER CORD. 160 WATT. REQUIRES AN 801740 POWER CORD ADAPTOR AND A METAL DRAIN PAN WITH HOLE FOR HEATER TO SET IN.

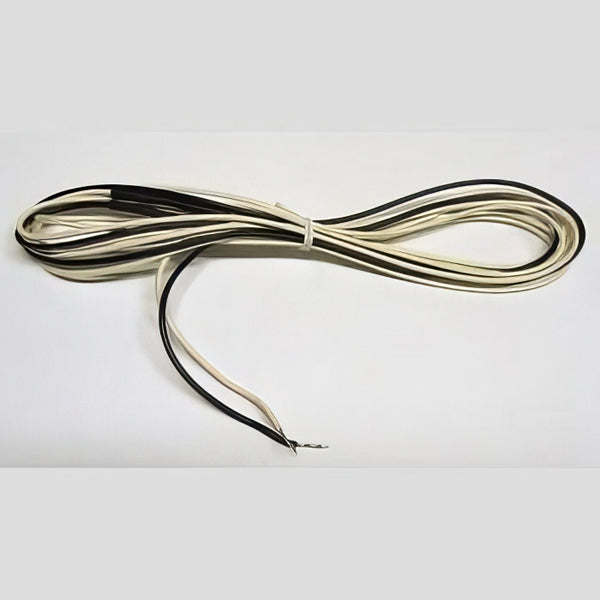

HEATER WIRE GL BRAID 160" 115V 3.5W/FT 18" BLUE/WHT LEADS
HEATER WIRE GL BRAID 160" 115V 1.7W/FT W/18" RED/WTE LEADS
HEATER WIRE GL BRAID 152" 115 1.7W/FT, W/18" RED/WHT LEADS
DRAIN PAN, HEATED 160W 115V W/132" CORD W/NEMA 5-15 PLUG HAS POWER CORD WITH PLUG.
HINGE PIN KIT INCLUDES: 1) 832103 HINGE PIN, 1) 204380 LOCTITE, 1)872904 TORSION SPRING WRENCH, 214147 INSTRUCTIONS
