TAC-14GS-HC-LD

CRATING - Part #: 920928

SKID KIT

SKID KIT, TAC-14GS INCLUDES: 1)908314 SKID, 4)831513 BOLTS, 4)204366 NUTS, 4)830605 WASHERS, & 4)830631 LOCK WASHERS

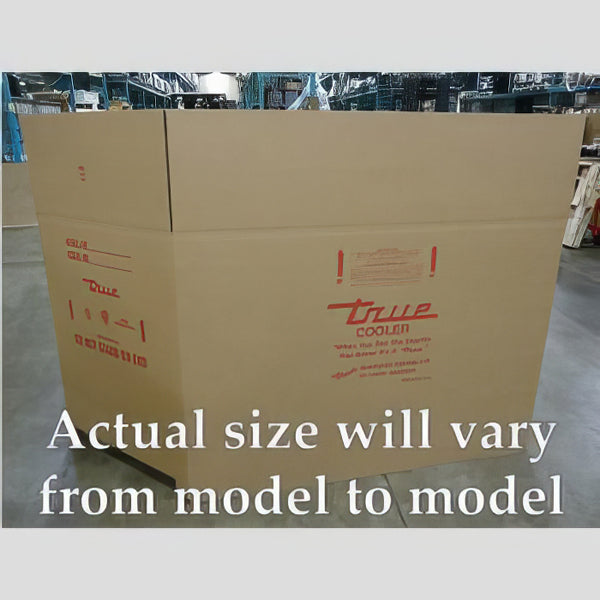

CRATING - Part #: 920929

CRATE KIT

CRATE KIT, TAC-14GS INCLUDES: 4)830814 RIVET, 1)820863 BAG, 4)970262 CORNERPOST, 8)841626 PAD, 1)841630 TOP CAP, AND 2)820164 WRAP AROUND

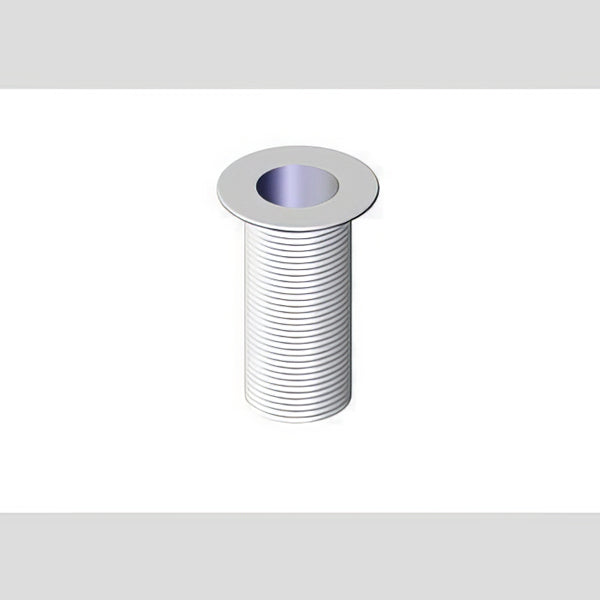

DRAIN PIPE - Part #: 811512

FLOOR DRAIN, 1"DIA ABS

DRAIN 1"NPS, ABS GRAY THERMOPLASTIC E16-3020 USES THE 830650 NUT

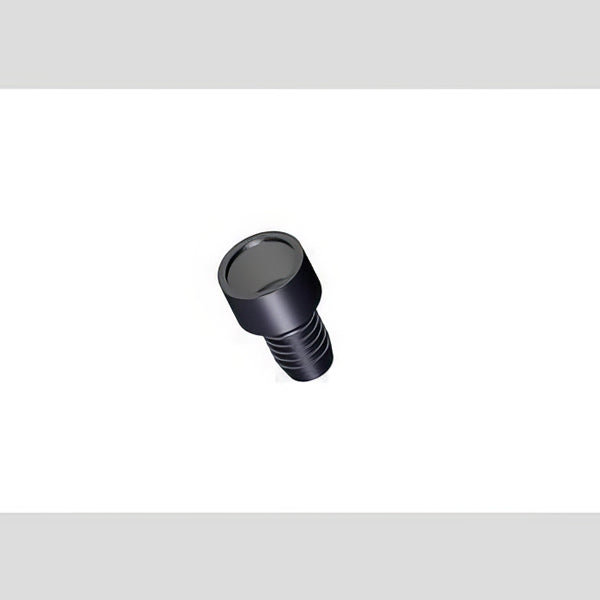

DRAIN PIPE - Part #: 851182

FLOOR DRAIN, ADAPTER, FEMALE & 1" PVC INSERT

PVC INSERT X FEMALE ADAPTER 1INSFX ADPT This is an adapter that screws into the drain in the floor and then drain tubing is hooked to the adapter and a 90 degree barb for the drain tubing HBFL1

ELBOW - Part #: 811502

NOZZLE, EVAPORATOR DRAIN, PLASTIC, WHITE (45 DEGREE ELBOW) AND SCREW

NOZZLE & SCREW SET H.I.P.S. NAT. ANGLED INCLUDES 938024 WHITE ANGLED NOZZLE & 811508 SCREW

EVAPORATOR PARTS - Part #: 831725

BULBSTRAP KIT

5/16 BULBSTRAP KIT TOAM CONTAINS: 1) 806570 TUBE BULBSTRAP ASSEMBLY, 2.5IN) 807328 TAPE

GRILL - Part #: 200008

BACKSCREEN KIT, BLACK, WIRE, 115V

STANDARD

BACKSCREEN KIT GDM-26 INCLUDES: 995648-093 BACKSCREEN, 4) 996876 CLIPS AND 4) 830516 SCREWS.

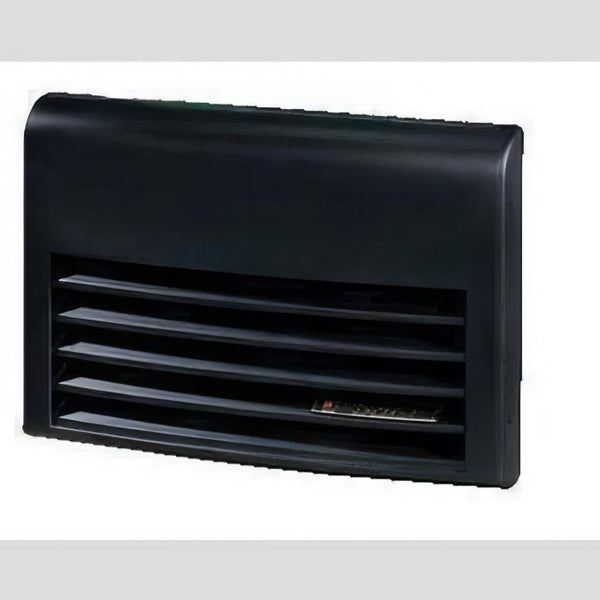

GRILL - Part #: 951171

GRILL, ASSEMBLY, BLACK (ALSO IS CABINET FRONT PANEL BELOW AIR CURTAIN.

RETROFITS ALL CABINETS. USED AFTER 11/30/11 PRODUCTION DATE OR SER NO.1-7302816

GRILL, LOUVERED TAC-14GS BLK INCLUDE 4)830552 SCREWS

HEATER - Part #: 815887

DRAIN PAN KIT, HEATED, 115V

HEATED DRAIN PAN KIT 115 INCLUDES: 808088 DRAIN PAN HEATER ASSEMBLY, 36" 820225 TAPE, 2) 830592 SCREWS, 802203 CLAMP, 802149 CABLE TIE, 2) 822754 DRAIN PAN CLIP, 2) 205403 SCREWS, 815886 INSTRUCTIONS

HEATER - Part #: 997816

HEATER, DRAIN PAN, HOT GAS CONDENSATE LOOP

DRAIN PAN LOOP COILED GDM-41SL-48 REPLACES 867254 PER PCN 8995

HOSE - Part #: 810520

HOSE, DRAIN, 1" DIAMETER X 37"

HOSE, CHILL CLR VNYL HP4778 1.0312IDX37" WIRE REIN RoHS 1"ID X 3

KIT - Part #: 807023

WICKING ASSEMBLY

WICKING ASM TOAM-30GS INCLUDES 807024 WICK HOLDER TOP, 807025 WICK HOLDER BOTTOM, 25)807026 PADS AND 4)205403 SCREWS

LD PARTS - Part #: 216945

DRIVER, POWER SUPPLY, 24V

USED AFTER APPROXIMATELY 1/27/19 - PCN 10233

POWER SUPPLY, 24VDC 20W I2SYSTEMS INCLUDES 816343 INSTRUCTIONS PER PCN 11113 24VDC 20W I2SYSTEMS

LD PARTS - Part #: 216949

LED MODULE, 24", LD LIGHTING, CLEAR COVER, 24V

USED AFTER APPROXIMATELY 1/27/19 PER PCN 10233 / 10589 WENT FROM 9V TO 24V LIGHTING

LED MOD, 24" 5700K 300LM 24V CLEAR COVER 7 LED 24V

LD PARTS - Part #: 221855

INPUT WIRE, 12"/8", LED CABLE, 24V

USED AFTER APPROXIMATELY 3/3/19 PER PCN 10233 (24V). WENT FROM 9V TO 24V LED LIGHTING

CABLE, LED 12"/8" NSF ST0.7MM I2SYSTEMS

LD PARTS - Part #: 221862

LED INPUT WIRE, 12", (DOOR INPUT WIRE) LD LIGHTING, 24V

USED AFTER APPROXIMATELY 1/27/19 PER PCN 10233/10589. WENT FROM 9V LIGHTING TO 24V LIGHTING

CABLE, LED 12" ST0.7MM I2SYSTEMS INPUT WIRE FOR LED LIGHTING. 24V

LIGHTHOLDER - Part #: 200660

LED HOLDER KIT, WHITE

LED HOLDER KIT TDM-59 INCLUDES: 1) 993343 LED HOLDER, 1) 830507 SCREW

MOTOR - Part #: 872377

MOTOR, EVAPORATOR

MOTOR, EC12038B00ML-S5-FR-A02

NAMEPLATE - Part #: 200931

NAMEPLATE, TRUE REFRIGERATOR

PER PCN 9109 USED AFTER 6/7/16

NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE

PAD - Part #: 807026

PAD, DRAIN PAN WICKING

PAD, DRAIN PAN WICK EMI GRADE 52595

PAN - Part #: 814854

PAN, DRAIN KIT

STANDARD STAINLESS STEEL METAL PAN

DRAIN PAN KIT TOAM-30GS INCLUDES: 806597 PAN, 938024 NOZZLE, AND 811508 SCREW

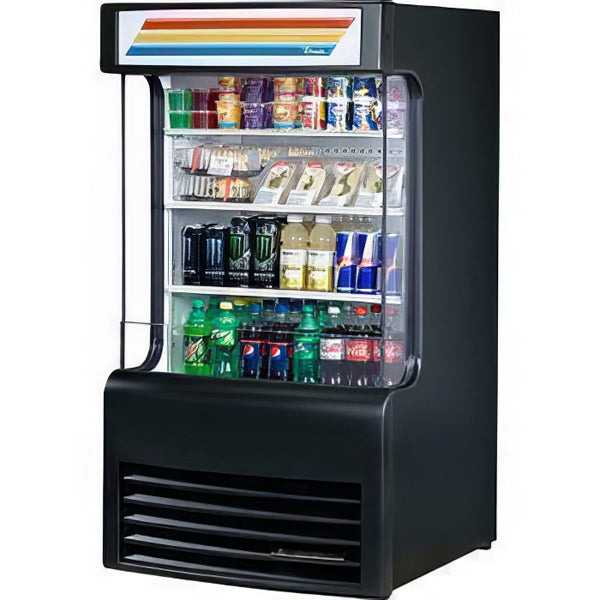

PANEL - Part #: 908858

WINDOW, FRONT, CLEAR POLYCARBONATE (LOOKS LIKE GLASS)

WINDOW FRONT, TAC-14GS CLEAR POLYCARBONATE

PANEL - Part #: 947896

WINDOW SIDE, TAC-14GS CLEAR POLY-CARBONATE (LOOKS LIKE GLASS)

USED AFTER 5/15/11 PRODUCTION DATER PER PCN 5068

WINDOW SIDE, TAC-14GS CL POLY- CARBONATE 1/2x29 3/4 X 6 15/32

PLUG - Part #: 811208

PLUG, FOAM SHOT HOLE

LOCATED ON CABINET TO COVER PRE PUNCHED HOLE WHERE FOAM IS SHOT IN.

CAPLUG, BP-1-1/16 BLK
