True Parts OEM - TAC-48GS: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
UNIT 1HP 404 AJ202ET-426 TAC-48, 41 1/2" X 20 1/2" INCLUDES: 1)842179 COMPRESSOR, 1)907159 COMPRESSOR BASE, 3)800452 FAN MOTORS, 3) 801005 FAN MOTOR BLADE, 3)865416 FAN MOTOR BRACKETS, 1)800608 COIL, 1)905211 SHROUD, & 1)801743 COMPRESSOR POWER CORD
COMP, NTU6238GKV COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 974505-W. EXTENDED WARRANTY IS PART #857950.

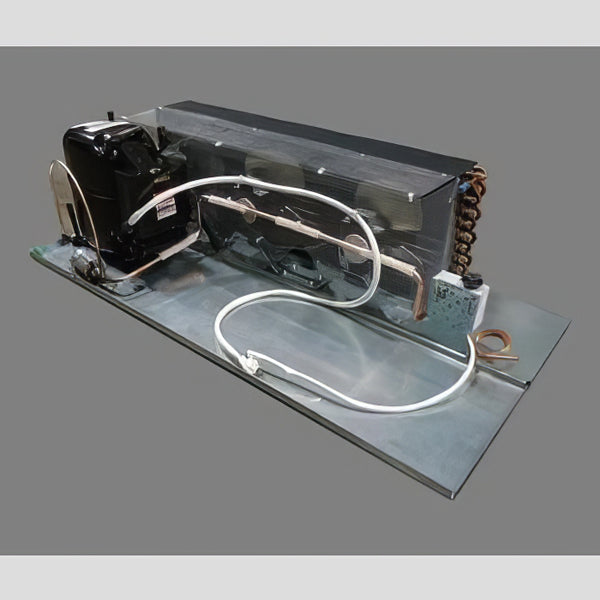

UNIT TAC-48/GS/SM NTU6238GK INCLUDES NTU6238GKV COMPRESSOR, 974507 COMPRESSOR BASE, 974508 COND COIL, 943283 SHROUD, 817940 MOTOR, 980763 DRIER.
CONNECTOR, CLOSED END SMALL TPC, CE233R CLEAR WHITE COLOR. SLEEVE #16-14 WIRE RANGE
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
TEMP CONTROL, 077B6806 KIT #077B7172 . REPLACE WITH REFROFIT KIT 882636 IF UNIT WAS BUILT W/RELAY.INCLUDES: KNOB AND SCREWS. WILL REPLACE THE 963056 CONTROL PER PCN 7784
PROBE, #18NB-NTC-2.5M DIXELL XW60VS SET OF 3. USED WITH THE 822222 XW60VS-5N1FO CONTROL, THE 831984 XW60VS-ONOFO CONTROL, & THE 822231 XW60VS-4N1FO CONTROL. 3 PROBE HARNESS
LOW PRESSURE CONTROL PSI-X3K FOR TAC-48 208-230V 60HZ
DISPLAY, LCD-5S-1TM BLUE LED BLACK W/TRUE LOGO BLUE LED DISPLAY USED W/ 930205 & 943172 TEMPERATURE CONTROLS. HAS BLACK FRAME
PROBE, LAE SN4B20P1 2.0M (T1) IS SENSING THE AIR SUPPLY FOR CONTROLLING THE OPERATION OF THE CABINET
TEMP CONTROL KIT, XW60VS-5N1FO MODEL AND SERIAL NUMBER INFORMATION REQUIRED FOR SALES ORDERS.INCLUDES: 1)822222 CONTROL W/ FACE PLATE, 1 SET OF 831985 PROBES, & 1) HOT KEY. SERVES AS TEMPERATURE CONTROL, DIGITAL THERMOMETER, TIMER FOR BOTH DEFROST AND REVERSE FAN MOTOR, DEFROST TERMINATION SWITCH, & FAN DELAY SWITCH. TECH SVC. WILL NEED TO KNOW MODEL TO PROGRAM THE HOT KEY. (FAHRENHEIT)
COMMUNICATION CABLE, LAE FC04 03D04 14" P PIN FEMALE ON ONE END 4 PIN FEMALE ON OTHER
PROBE, LAE SN4B20P2-B(T2) 2.0M REPLACES THE 930280 PER PCN 6150
PROBE, LAE SN4B20P3-Y(T3) 2.0M YELLOW WILL REPLACE THE 936945 WHEN INVENTORY USED UP.
WIRE HARNESS, MALE 54" WITH 44" SLEEVE, 2 BLUE CONNECT TO THE 801744 RECEPTACLE. HAS 7-PIN MALE PLUG

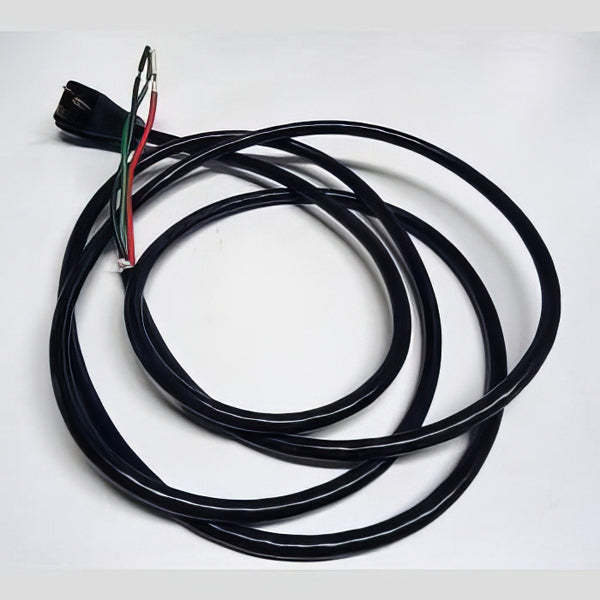

POWER CORD, 108" NEMA 6-15P 14/3 SJTOW CORD TO WALL OUTLET, NEMA 6-15
WIRE HARNESS, MALE 8017, 33" MALE PLUG EMF P-7-1 PVC WHT HAS WHIE MALE PLUG EMF P-71 WITH 7 PINS WITH 7 33" LEADS. RED LEAD HAS STEPDOWN INSULATED BUTT SPLICE, BLACK WIRE HAS #10 RING TERMINAL, GREEN WIRE HAS #10 LOCKING FORK TERMINAL, WHITE WIRE HAS #10 RING, YELLOW WIRE HAS STEPDOWN INSULATED BUTT SPLICE, 2 BLUE WIRES HAVE NO TERMINALS.
POWER CORD, 14/3 SJTOW WITHOUT PLUG 300 VOLT, NO PLUG ON CORD
COND FAN MOTOR JUNCTION TM-JB31-R42 LOCATED ON CONDENSING UNIT. CONNECTS FANS TO COMPRESSOR.
POWER CORD, 108" NEMA 6-20P 14/3 SJTOW REPLACE WITH 857470NEMA 6-20 RIGHT ANGLE PLUG, 20 AMP
POWER CORD, 138" NEMA 6-15P 14/3 SJTOW CORD TO WALL OUTLET, NEMA 6-15. WILL REPLACE 801702 WHEN LONGER CORD IS REQUIRED.
