True Parts OEM - TAC-72: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
ALARM, 140-100 HRB. FAHRENHEIT IN BOX FOR FIELD INSTALL FIELD INSTALLED FAHRENHEIT DIGITAL DISPLAY. MONITORS TEMPERATURES AND SOUNDS ALARM WHEN TEMPERATURE GOES BEYOND RANGE SET. INCLUDES NIMH BATTERY BACKUP, POWER CORD & PLUG AND PROBE
CLAMP, CABLE 1/4" NATURAL NYLON #22CC37DO250 INCLUDE 1)830592 MOUNTING SCREW
COMP, NT6222GKV 208-230V/60HZ 922KD04D7QZ INCLUDES 977531 INSTRUCTION SHEET

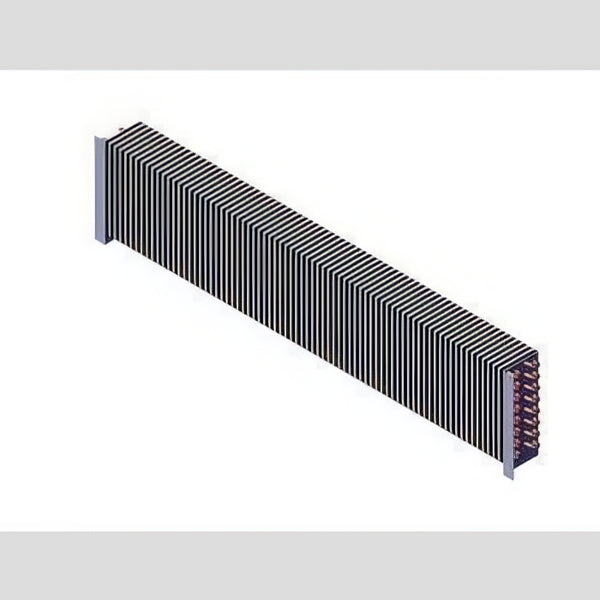

UNIT NT6222GK 906ZD80 208/60 TAC-72 INCLUDES 963196 COMPRESSOR, 800608 CONDENSER COIL, 2)800452 MOTOR, 2)801027 BLADE, 2)865417 MTG BRACKET, 892493 COMPRESSOR BASE, 801619 COMPRESSOR POWER CORD.
CONNECTOR, CLOSED END MEDIUM TPC, CE551R CLOSED END. CLEAR WHITE COLOR. SLEEVE #12-10 WIRE RANGE
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
CONNECTOR, 2WAY PUSH, 12-18G WAGO, 773-102 (2 hole) WAGO #773-102-VE00-2500 yellow
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
TEMP CONTROL, 077B6806 KIT #077B7172 . REPLACE WITH REFROFIT KIT 882636 IF UNIT WAS BUILT W/RELAY.INCLUDES: KNOB AND SCREWS. WILL REPLACE THE 963056 CONTROL PER PCN 7784
PROBE, #18NB-NTC-2.5M DIXELL XW60VS SET OF 3. USED WITH THE 822222 XW60VS-5N1FO CONTROL, THE 831984 XW60VS-ONOFO CONTROL, & THE 822231 XW60VS-4N1FO CONTROL. 3 PROBE HARNESS
LOW PRESSURE CONTROL PSI-X3K FOR TAC-48 208-230V 60HZ
TEMP CONTROL KIT, XW60VS-5N1FO MODEL AND SERIAL NUMBER INFORMATION REQUIRED FOR SALES ORDERS.INCLUDES: 1)822222 CONTROL W/ FACE PLATE, 1 SET OF 831985 PROBES, & 1) HOT KEY. SERVES AS TEMPERATURE CONTROL, DIGITAL THERMOMETER, TIMER FOR BOTH DEFROST AND REVERSE FAN MOTOR, DEFROST TERMINATION SWITCH, & FAN DELAY SWITCH. TECH SVC. WILL NEED TO KNOW MODEL TO PROGRAM THE HOT KEY. (FAHRENHEIT)
WIRE HARNESS, MALE 54" WITH 44" SLEEVE, 2 BLUE CONNECT TO THE 801744 RECEPTACLE. HAS 7-PIN MALE PLUG
POWER CORD, 14/3 SJTOW WITHOUT PLUG 300 VOLT, NO PLUG ON CORD
COND FAN MOTOR JUNCTION TM-JB31-R42 LOCATED ON CONDENSING UNIT. CONNECTS FANS TO COMPRESSOR.
POWER CORD, 108" NEMA 6-20P 14/3 SJTOW REPLACE WITH 857470NEMA 6-20 RIGHT ANGLE PLUG, 20 AMP
TEMP CONTROL KNOB COVER KIT INCLUDES 810391 COVER, 2)830587 SCREWS AND 2)830588 SCREWS..

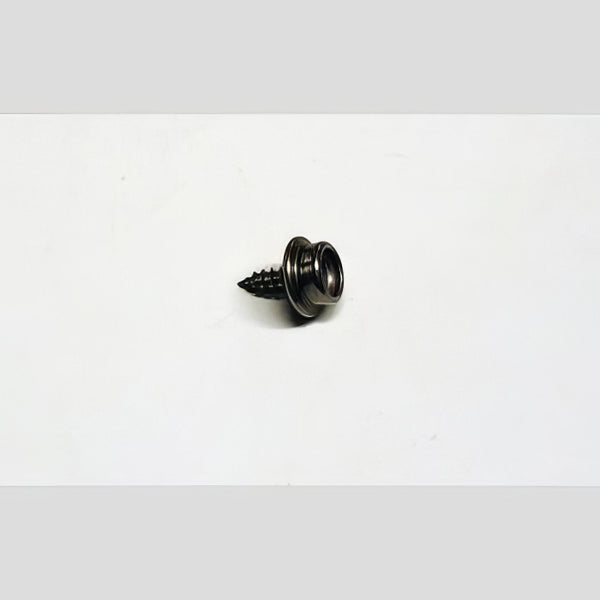

SNAP FASTENER 95707A820 7X5/8" 8/18SS TAC NIGHT SHADE THIS IS A SCREW WITH A SNAP FOR A HEAD.
