True Parts OEM - TBB-24-GAL-60G-SD: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
COMP, AE4440Y-AA1A AE-1383-E 115V/60HZ COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 984085-W. EXTENDED WARRANTY IS PART #857955.INCLUDES COMPRESSOR, 992815 OVERLOAD, 992820 RELAY, 992816 START CAPACITOR, 992817 COVERPCN 8501, 8468, 8021, 8544, 8552, 8569, 8880
COMPRESSOR KIT AE444Y-AA1A 115 134A REPLACES THE 842050. PCN 8569. AND 842086 PER 8880.INCLUDES 984085 COMPRESSOR, OVERLOAD, RELAY, START CAPACITOR AND 2)981148 AND 1)200962 CONNECTORS AND 991721 INSTRUCTIONS.
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
TEMP CONTROL, 077B6806 KIT #077B7172 . REPLACE WITH REFROFIT KIT 882636 IF UNIT WAS BUILT W/RELAY.INCLUDES: KNOB AND SCREWS. WILL REPLACE THE 963056 CONTROL PER PCN 7784
POWER CORD, 14/3 SJTOW WITHOUT PLUG 300 VOLT, NO PLUG ON CORD
COUNTERTOP SILICONE KIT TD/GC/TBB/TBR/TDR CONTAINS: 1) 820560 SEALANT, NEW ADVISEMENT
TEMP CONTROL KNOB COVER KIT INCLUDES 810391 COVER, 2)830587 SCREWS AND 2)830588 SCREWS..
COVER, DOOR PULLEY, NYLON, BLACK BLACK NYLON. THIS WILL KEEP THE DOOR CORD FROM PULLING OUT OF THE PULLEY. ONE USED PER DOOR IN "TOP" TRACK.
CRATING DOOR BLOCK TOP H.I.S GDM SLIDE DOOR MAY USE REGRIND FOR TOP DOOR CHANNEL, V SHAPED PLASTIC PIECE.
CRATING DOOR BLOCK BTM H.I.S. GDM SLIDE DOOR MAY USE REGRIND FOR BOTTOM DOOR CHANNEL NO TAB
CRATING DOOR BLOCK BTM W/TAB H.I.S MAY USE REGRIND FOR BOTTOM DOOR CHANNEL W/ TAB
DOOR LATCH HOLD OPEN LH KIT TBB-24-48 BLK INCLUDES: 1) 946107-027 DOOR LATCH, 2) 945579 CLIPS. LATCH USED TO HOLD THE LEFT DOOR OPEN. USED W/ TOP HUNG DOORS. PER PCN 9903
DOOR LATCH HOLD OPEN RH KIT TBB-24-48 BLK INCLUDES: 1) 946105-027 DOOR LATCH, 2) 945579 CLIPS. LATCH USED TO HOLD THE RIGHT DOOR OPEN. USED W/ TOP HUNG DOORS. PER PCN 9903
BUMPER, M8-24 MOLDED RECESS TD MODELS 13/32"T x 11/16 OD
PULLEY BEARING SA-675 REQUIRES 2 PER DOOR FOR 4 PER CABINET. ORDER 2 830510 SCREWS PER PULLEY SOLD SEPARATELY.
DOOR STOP BLOCK ASM GDM-SLIDE DOORS 1)810855, 1)810856 TWO RUBBER BLOCKS. SERVES AS BUMPER FOR DOOR. INCLUDES: 1)810855 RUBBER STOP, 1)810856 RUBBER STOP, & 2)830520 MOUNTING SCREWS
DOOR LATCH W/SCREWS INCLUDES: 1)861118 LATCH & 2)830562 SCREWS. USED TO HOLD DOOR OPEN
DOOR CORD-NYLON (4 FOOT) CUT FROM 811700 3/32" CORD FOR ONE DOOR ONLY.
CORD PULLEY KIT, 4)832321 PULL 8)830510, 2)879863, 2)908863 INCLUDES: 4)832321 PULLEYS, 8)830510 SCREWS, 2)879863 DOOR CORD, 2)908863 PULLEY COVER
DOOR ASM TBB-24-60G-SD RT 24 13/16" X 27 3/4 INCLUDES GASKET

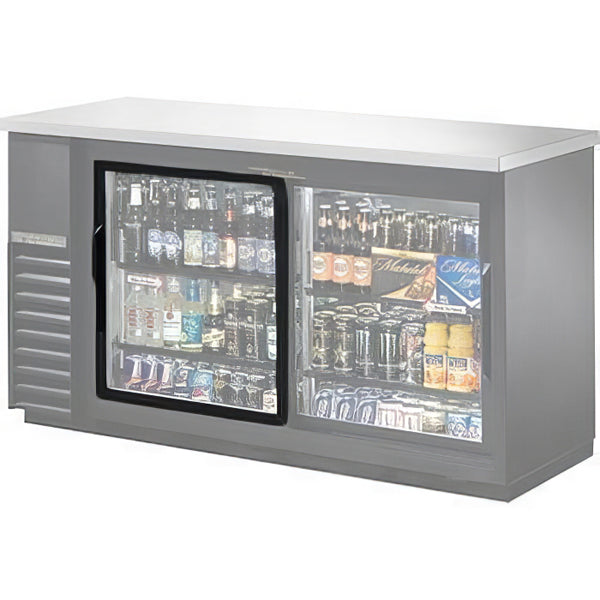

DOOR ASM TBB-24-60G-SD LT 24 13/16" X 27 3/4 INCLUDES GASKET

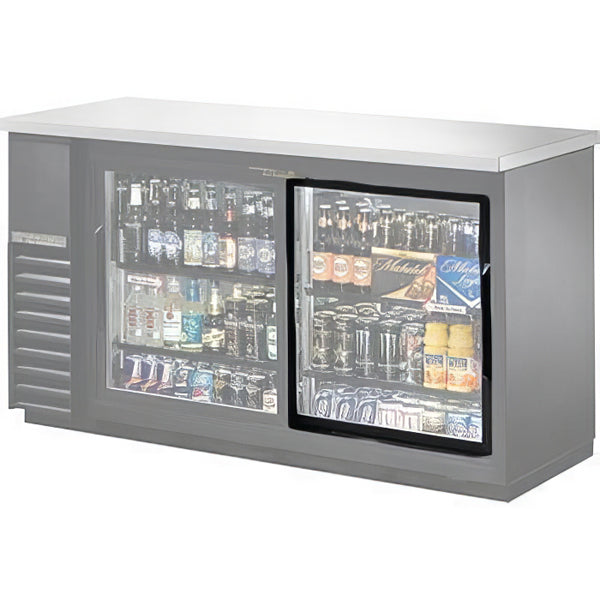

DOOR ASM TBB-24-60G-SD RT TOP HUNG RIGHT DOOR ASSEMBLY W/ WIPER GASKET, HANDLE, & TOP HUNG ROLLER BRACKETS
