True Parts OEM - TBB-3G-S: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.

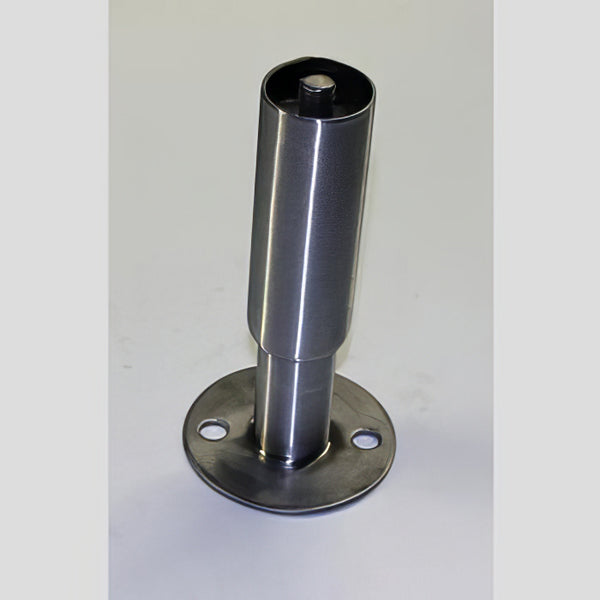

LEG, 6" SEISMIC 1/2" FLUSHSTUD ADJUSTABLE FLUSH MOUNT. USE TO BOLT COOLER TO FLOOR. STAINLESS STEEL BOTH TOP AND BOTTOM PIECE. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.
LEG KIT, 6" 4)830415 2)913232 INCLUDES: 2)913232 FRAME ASSY WHICH INCLUDES A2)913232 BASES WHICH IS A 890932 FRAME WITH 2)860416 PLATES WELDED TO EACH, 4)830415 LEGS, 8)830535 SCREWS. LEGS ADJUSTS FROM 6" TO 7-1/2". LEGS MADE OF ZINC DIE CAST
LEG KIT, 6" 4)830438 SEISMIC 2)913232 23 3/4" FRAME TDD'S INCLUDES: 2)913232 FRAME ASSY WHICH INCLUDE A 890932 FRAME WITH 2)860416 PLATES WELDED TO EACH, 4)830438 LEGS, 8)830535 SCREWS. LEGS ADJUSTS FROM 6" TO 8-1/2". 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.

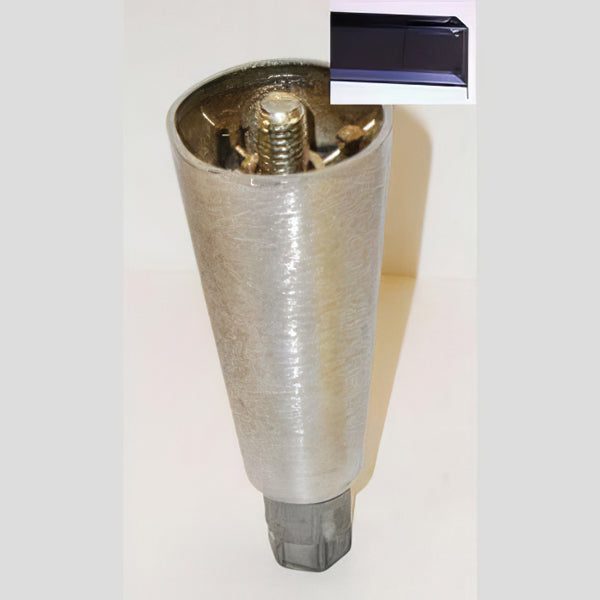

LEG KIT 6" SET/4 W/BRKTS ADJUSTS FROM 6" TO 7-1/2". MADE OF ZINC DIE CAST. INCLUDES 4)830409 LEGS, 4)924779 LEG PLATES, 16)830536 SCREWS
LEG KIT, 6" SEISMIC SET/4 W/ BRKTS INCLUDES: 4)830437 SEISIC LEGS, 4)924779 MOUNTING PLATES, 16)830536 MOUNTING PLATE SCREWS
LEG MOUNTING PLATE, BLK TRCB-RC/TBB/TDD/TDB REPLACES THE 924779. 1/2" THREADED HOLE IN CENTER. USED TO MOUNT OPTIONAL 6" LEGS.
RETRO KIT, IDL TO LED DOOR 24" LAMP 840819 LED ASM, 2) 221861 LED CABLES,, 6) 830502 SCREWS, 830512 SCREWS, 216945 POWER SUPPLY, 2) 995655 3WAY CONNECTOR, 8) 200962 2 WAY CONNECTOR, 859486 INSTRUCTION.
LINE SET, TBB/TDD-3 R134A 10' x .046 "L SHAPED SHORT LINE "L" SHAPED. INCLUDES: 851138 CAPILLARY TUBE, 870010 ACCUMULATOR, 867501 COPPER ELBOW, 915846 SUCTION LINE, 22.5" 820223 TAPE, 26" 810526 SPONGE TUBING, 922814 COPPER REDUCER.
LINE SET, TBB/TDD-3 R134A NEW "S" TUBE 10' x .046 "S" SHAPED SHORT LINE. INCLUDES 851138 CAP TUBE, 870010 ACCUMULATOR, 867501 COPPER ELBOW, 867453 SUCTION LINE, 820223 TAPE, 810526 SPONGE TUBING, 951389 CAP TUBE ADAPTER, AND 922814 COPPER REDUCER.
LINE SET, TBB-3G R-134A 1/2HP 115V 8' X .046 INCLUDES: 821110 CAP TUBE, 870010 ACCUMULATOR, 867259 COPPER TUBE, 810526 SPONGE TUBING, 820223 TAPE, AND 922814 COPPER REDUCER
LOCK KIT, BARREL TDD/TBB3 LONG OLD STYLE DOUBLE FLANGE LOCK LOCATED IN CENTER PANEL BETWEEN DOORS. INCLUDES: 1) 975516- TUMBLER, 2-C415A KEYS, LOCK NUT, AND SCREW. 2) 861984- LONG FLANGE, 2) 811209- BUSHINGS, 2) 811210 BUSHINGS, 1) 890804- CAM,PCN 7487 CHANGED LOCK BODY FROM 831357 TO 975516
LOCK KIT, BARREL TBB-2G/3G/4G BLK INCLUDES: 1)844546 BLACK TUMBLER LOCK, 1)923097 CAM/LATCH, 1)922554 LOCK FASTENER
LOCK SLOT COVER BLK ABS PLASTI BLACK PLASTIC COVER FOR THE LOCK SLOT IN TBB/TDD GLASS DOORS.
LOCK KIT, TBB-24 GLASS DOOR SS INCLUDES: 1)831357 TUMBLER LOCK, 1)923097 (PCN 4293) CAM/LATCH, 1)922554 LOCK FASTENER (FOR FACTORY INSTALLED REPLACEMENT ONLY)
FAN MOTOR KIT 115V NO BLADE USE TILL DEPLETED. REPLACE WITH 243072 PCN-15300INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
FAN MOTOR KIT 220V USE TILL DEPLETED REPLACE WITH 243072 PCN-15300INCLUDES: 837870 FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET AND 830033 INSTRUCTIONS.
NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE
PAN, DRAIN COND TBB/TDD BLACK ALUMINUM WAS GALVANIZED STEEL. RETROFITS.
LEG MTG PLATE KIT, 4)830435 TRCB-50 SET OF 4)924779, 16)830536 SCREWS
PLUG-LEVITON STRAIGT BLADE #515PA WAS USED WITH 801815 OR 801817 115V DRAIN PAN HEATERS, WHICH ARE NO LONGER AVAILABLE
POWERCORD KIT 120" EUROPEAN INCLUDES: 217786 POWER CORD, 220416 BRACKET, 217785 RECEPTACLE, 3) 830592 SCREWS, 3) 802179 TERMINALS
