TCGD-77

GASKET - Part #: 812086

PLASTIC EXT, #C-1755, 110" BLK FLEXIBLE

GASKET - Part #: 922310

GASKET, TCGR-77 FRONT BTM GLASS 77")812913 BLACK RUBBER EXTRUSION WITH RIDGES. CUT FROM #812913

GASKET - Part #: 946594

END TRIM WITH BULB 45" TCGD-36/50/77 ONE USED FRONT SIDE OF CURVED END GLASS. 2 PER CABINET. TCGD-50 46" CUT FROM 810485 REPLACES 883543

GLASS - Part #: 811010

GLASS, TCGD, LEFT SIDE 30.624 x 23.120" GRAY TEMPERED SINGLE PANE

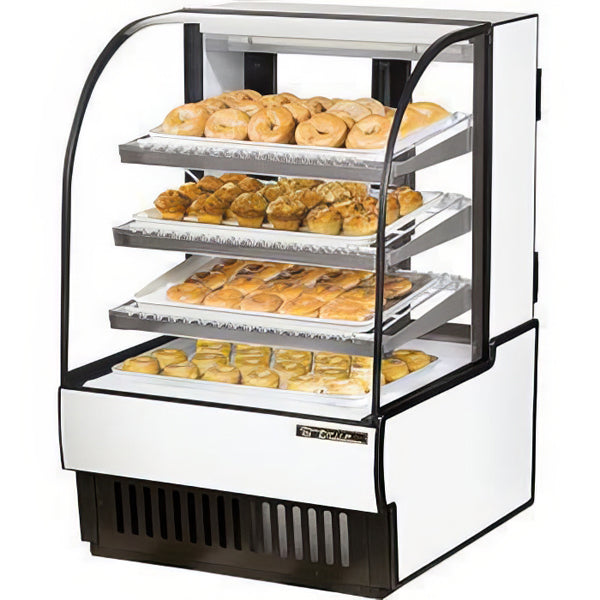

GLASS - Part #: 922047

GLASS, TCGD, RIGHT SIDE 30.624 x 23.120" GRAY TEMPERED SINGLE PANE

GRILL PARTS - Part #: 891215

BRACKET, GRILL CAB FRONT TCGB-50 GALV REQUIRES 2 PER GRILL

GROMMET - Part #: 801454

GROMMET, 2 1/8"ID FOR 2 1/2" OPENING MFG PART NO. INSERTED INTO GRILL TO PROTECT CORD.

HANDLE - Part #: 884901

HANDLE KIT DOOR SLIDE METAL 1)851221, 3)830578, 3)830602 INCLUDES: 1) HANDLE #203631, 3) SCREWS #830578, 3) WASHERS #830602

HINGE - Part #: 851248

HINGE, DELI, ALUM EXT, 6063 T-5 MILL 1-5/8" REQUIRES ONE FOR THE RIGHT AND ONE FOR LEFT SIDE. ALLOWS INSERT TO PIVOT FOR CLEANING.

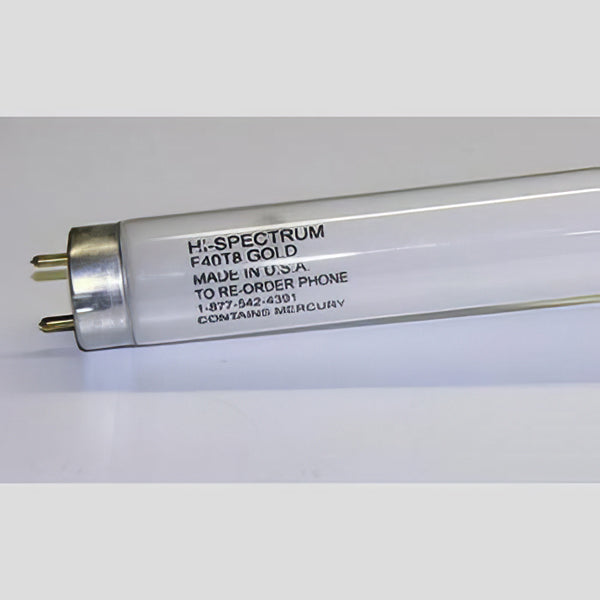

LAMP - Part #: 801164

LAMP, F040T8 GOLD FLORESCENT BAKERY LAMP

LEG - Part #: 830409

LEG, 6" EQUIPMENT 1/2 X 13 AE61-4002-CAF NICKEL FINISH EXPOSED STEM. ADJUSTS FROM 6" TO 7-1/2". ZINC DIE CAST, TOP DIAMENTER OF LEG IS 2 1/4"

LEG - Part #: 830437

LEG, ONE ONLY, 1/2" DIA. STEM, SEISMEC

USED TO BOLT COOLER TO FLOOR

LEG, 6" SEISMIC 1/2-13 x 1" STEM ADJUSTABLE STAINLESS BOTH TOP AND BOTTOM PIECE. EXPOSED STEM. USED TO BOLT COOLER TO FLOOR. ADJUST 6" TO 8". 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER. TOP DIAMENTER OF LEG IS 2 1/4"

LEG - Part #: 872025

LEG KIT 6" 4)830409 1/2" STEM SET OF LEGS -1/2" STEM T/TPP ADJUSTS FROM 6" TO 7-1/2". MADE OF ZINC DIE CAST. 4)830409 LEGS & SCREWS. TOP DIAMETER IS 2 1/4"

LEG - Part #: 880348

LEG KIT 6" 4)830437 SEISMIC 1/2" STEMMED INCLUDES: 4)830437 LEGS. LEG HAS TWO HOLES IN FOOT TO USE SCREWS TO SECURE TO FLOOR. LEGS ADJUST FROM 6" TO 8". STAINLESS STEEL. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.

LOCK - Part #: 872801

LOCK KIT, RATCHET LK GDM/DELI INCLUDES: 1) 831347 RATCHET LOCK [LOCK, BAR, & C415 KEYS], 1)872935 SHIM, 1)830335 8/32 RIVNUT TOOL, 1)811308 DRILL BIT #2, 2)830909 RIVNUTS, 2)978651 SCREWS, 1)912709 DOOR PREVENTIVE REMOVAL STRIP,4) 830511 SCREWS, 912650 AND 214330 INSTRUCTIONS

OUTLET - Part #: 801229

RECEPTACLE, 3 WAY BLK #643-01374-101 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG

PLUG - Part #: 811208

PLUG, FOAM SHOT HOLE

LOCATED ON CABINET TO COVER PRE PUNCHED HOLE WHERE FOAM IS SHOT IN.

CAPLUG, BP-1-1/16 BLK

RECEPTACLE - Part #: 222794

RECEPTICAL RETROFIT KIT TCGG INCLUDES: 1) 801229 RECEPTACLE, 3) 200962 CONNECTORS, 1) 895017 WIRE, 1) 916214 WIRE, 1) 895018 WIRE

RECEPTACLE - Part #: 801604

POWER CORD, FEMALE R-5-9, DELI 24" PROTECTIVE CAP WHITE SQUARE 5-PIN SHELF LIGHT POWER CORD

RECEPTACLE - Part #: 801779

POWER CORD, 50" R-5-9 DRAWING #C-1863

REFRIGERANT - Part #: 938752

DIGITAL VACUUM GAUGE VG64 INCLUDES: HANGER/STAND, 2 QUICK CAPS FOR FITTINGS, INSTRUCTIONS 35 - 125F, MEASURING RANGE 0 TO 12,000 MICRONS, 4 1/2 DIGIT LCD DISPLAY, REQUIRES 9 VOLT BATTERY (NOT INCLUDED)

SCREW - Part #: 801555

LEVELING SCREW, 1/2-13 X 1 1/2 A3 TOOL STL ASTM A681 REPLACES 996897 PER PCN 10596

SCREW - Part #: 830440

LEVELING SCREW, 3/8-16 X 1-1/4 STEEL ZINC PLATED FT3324 USED CENTER POSITION AFTER SERIAL NUMBER 1515747

SCREW - Part #: 830511

SCREW, 6-18 X 1 PHIL FLAT HD SMS, 410SS, TYPE A, BLK CHR.
