True Parts OEM - TCGG-36-S-HC-LD: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
SKID KIT, TCGG-36 42 5/8" X 43" INCLUDES: 1)907279 SKID, 4)831513 BOLT, 4)830605 FLAT WASHER, 4)860917 SKID MOUNTING BRACKETS, 4)830912 TEE NUTS, 4)830631 SPLIT LOCK WASHER, 4)830535 1/4 20 X 3/4" SCREW
DOOR STOP KIT CONTAINS: 1) 810856 DOOR STOP KIT, 1) 830520 SCREW.
DOOR ASM TCGG-36 RT BLK INCLUDES: DOOR ASSEMBLY 911586, WIPER GASKET 923272
DRAIN TRAP, BLK PE HIGH DENSITY LOCATED IN BOTTOM CONDENSATE PAN, ATTACHES TO DRAIN HOSE
NOZZLE & SCREW, BLK FC FREEZER INCLUDES 938020 BLACK ANGLED NOZZLE & 811514 SCREW. USED ALSO ON CABINETS WITH BLACK OR STAINLESS INTERIORS PER PCN 7844

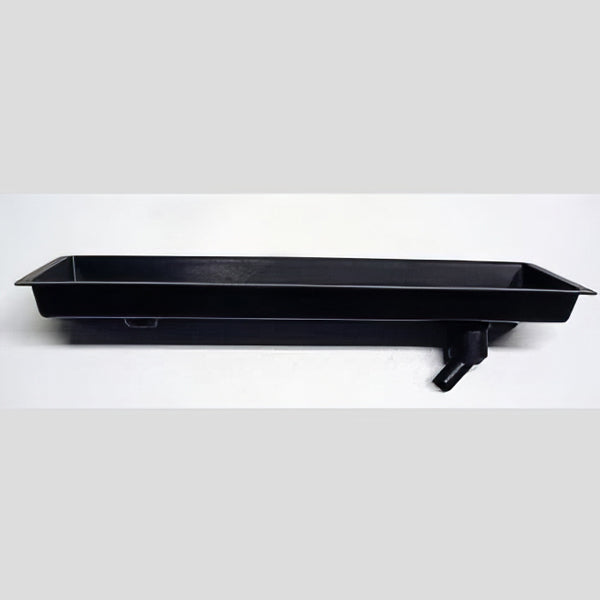

DRAIN PAN ASM TCGG/TSID BLK HOLE PUNCHED RIGHT SIDE LOCATED ON RIGHT WALL OF CABINET. DRAIN HOLE ON THE RIGHT SIDE OF PAN, CLOSEST TO FRONT OF CABINET.
STRIP, GLASS TRIM RT TCGG-36/48/60/72 CLR LOCATED ON THE RIGHT FRONT OF CABINET. IT IS THE CURVED END OF FRONTGLASS. INCLUDE SCREWS
MAGNET, #8 SCREW SIZE, EPOXY COATING, ROUND N35 50-1113 APPROXIMATELY 3/4" ROUND. REQUIRES 830566 SCREW.
HANDLE KIT DOOR SLIDE METAL 1)851221, 3)830578, 3)830602 INCLUDES: 1) HANDLE #203631, 3) SCREWS #830578, 3) WASHERS #830602
DRAIN PAN LOOP COILED GDM-41SL-48 REPLACES 867254 PER PCN 8995
POWER SUPPLY, 24VDC 20W I2SYSTEMS INCLUDES 816343 INSTRUCTIONS PER PCN 1111324VDC 20W I2SYSTEMS
LED HOLDER KIT TDM-59 INCLUDES: 1) 993343 LED HOLDER, 1) 830507 SCREW
LOCK KIT, RATCHET LK GDM/DELI INCLUDES: 1) 831347 RATCHET LOCK [LOCK, BAR, & C415 KEYS], 1)872935 SHIM, 1)830335 8/32 RIVNUT TOOL, 1)811308 DRILL BIT #2, 2)830909 RIVNUTS, 2)978651 SCREWS, 1)912709 DOOR PREVENTIVE REMOVAL STRIP,4) 830511 SCREWS, 912650 AND 214330 INSTRUCTIONS
FAN MOTOR KIT, 115V UPS ONLY INCLUDES: 872090 FAN MOTOR, 3) 202747 5WAY LEVER CONNECTORS, 846450 INSTALLATION INSTRUCTIONS REPLACES 217268 PER PCN-12648. MOTOR/FAN BLADE W/PLASTIC HOUSING COMBO. MOTOR COMES WITH POWERCORD ATTACHED.
MOTOR, FAN FP200FH-A1 ALSO AVAILABLE IN 839087 KIT 2 AND 3 DOOR SPEC SERIES, AND KIT 846449 FOR OTHER MODELS
NAMEPLATE, TRUE HC 51165-P HAS TWO WAY TAPE ON BACK OF NAMEPLATE
RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG
