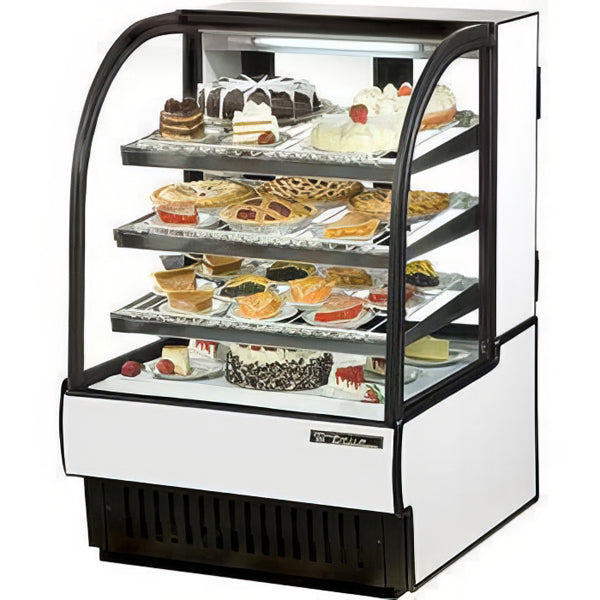

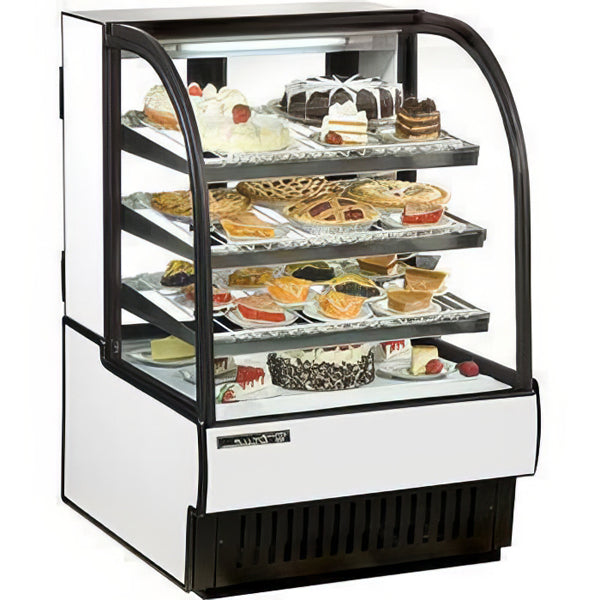

True Parts OEM - TCGR-77-CD: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
CORD KIT, COMP 8 PIN W/FLANGE TERMINAL 115V INCLUDES:1) 915105 8 PIN CORD FROM COMPRESSOR POWER CORD TO COMPRESSOR START COMPONENTS, 1) 951657 16G GREEN/YELLOW WIRE ASM, 1) 943326 16 G WHITE 12 MALE AMP WIRE ASM, 1) 943325 16G BLACK 12 MALE AMP WIRE ASSMREPLACES 965713, 937374 AND 917607, 925765, 931551 AND 925766, 937374
COVER, HOUSING TCGR-77 .WHITE PLASTIC HOUSING COVER. LOCATED ON FLOOR OF THE CABINET W/ AIR VENTS IN FRONT AND REAR.
DRIER, 1/4 & 3/8 INLET; 3/16 OUTLET #CUD100601-TRU DRIER 5/16" & 3/8" INLET; 3/16 OUTLET

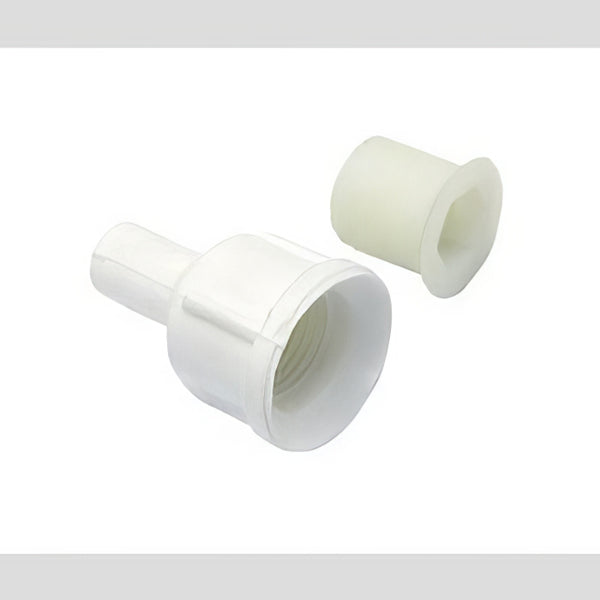

NOZZLE & SCREW SET, STRAIGHT H.I.P.S WHT INCLUDES 938116 WHITE STRAIGHT NOZZLE & 832271 SCREW. USED ON CABINETS WITH WHITE INTERIORS
NOZZLE & SCREW SET, TCGR INLCUDES: (938116 NOZZLE 832271 SCREW)

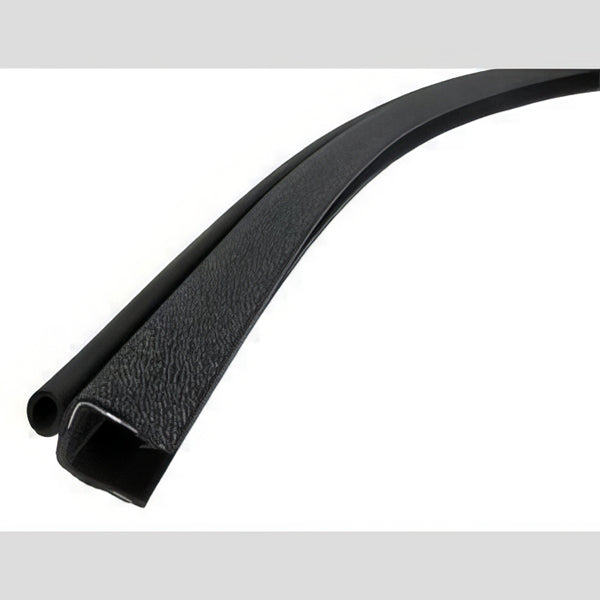

PLASTIC EXT, 34" DUAL, DOOR JAMB GASKET ATTACHES TO CABINET. ONE ONLY.
GASKET KIT, TOP FRONT GLASS INSERT INCLUDES: 2) 812802 PLASTIC 60", 2) 933906 PLASTIC, AND 2) 830808 POP RIVETS
WIPER GASKET KIT 51-1/2" SET/2 V-ROLLER ATTACHES TO DOOR. 2)810235 WIPER GASKET #1993, 4)830554 SCREWS AND TAPE BACKING.
GASKET/TRIM, TCGR-50 3 X 3/4" X 120"L FROM 812912 ATTACHES TO THE CABINET FRONT GLASS INSERT ON THE CURVED EDGE.
GASKET/GLASS INSERT SIDE TRIM TCGR-50 46" CUT FROM 812912 46" CUT FROM 812912. ONE USED FRONT SIDE OF CURVED END GLASS. 2 PER CABINET.

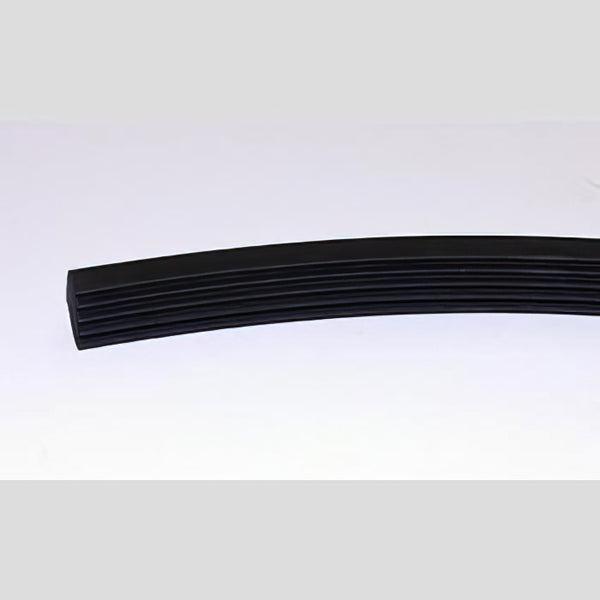

GASKET, TCGR-77 FRONT BTM GLASS 77")812913 BLACK RUBBER EXTRUSION WITH RIDGES. CUT FROM #812913
GLASS, TCGR, LEFT SIDE 29.872 x 22.371 2PC INSULATED, DOUBLE PANE WITH TRUE LOGO.
GLASS, TCGR, RIGHT SIDE 29.872 x 22.371 2PC INSULATED DOUBLE PANE

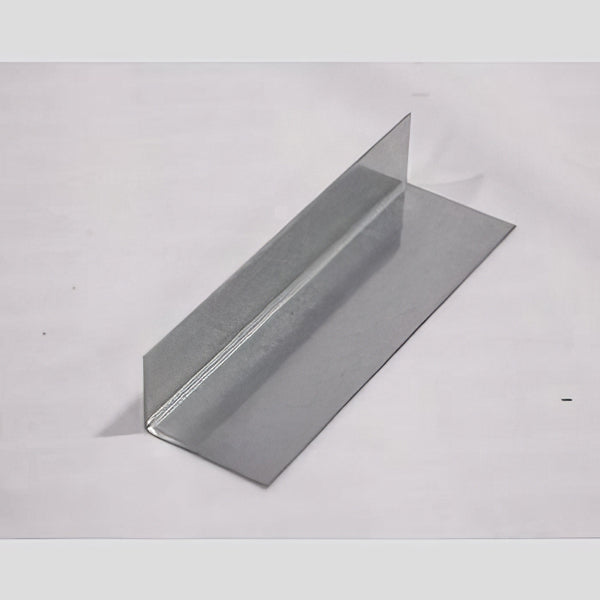

BRKT, GRILL CAB FRONT TCGB-50 GALV REQUIRES 2 PER GRILL
HANDLE KIT DOOR SLIDE METAL 1)851221, 3)830578, 3)830602 INCLUDES: 1) HANDLE #203631, 3) SCREWS #830578, 3) WASHERS #830602

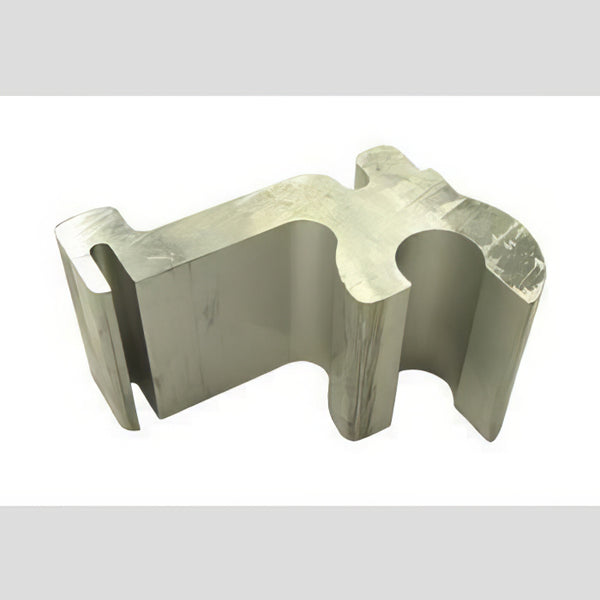

ALUM EXT, HINGE DELI T5 6063 MILL 1-5/8" REQUIRES ONE FOR THE RIGHT AND ONE FOR LEFT SIDE. ALLOWS INSERT TO PIVOT FOR CLEANING.

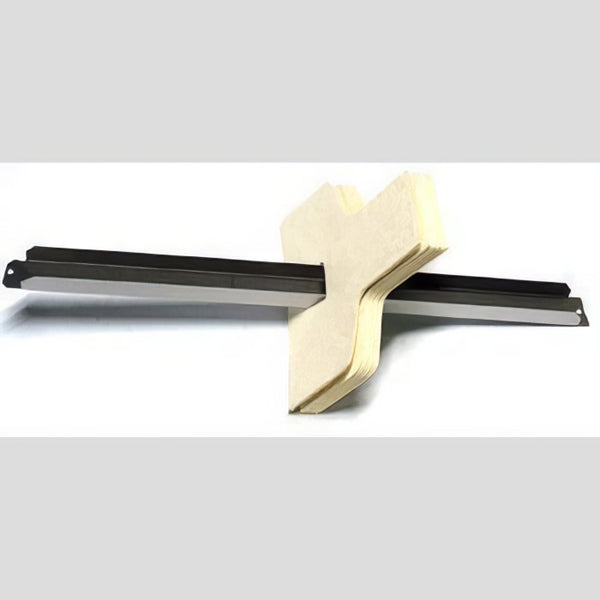

WICK KIT 1)893500 5)83192O INCLUDES 5) 831920 PADS; 1)893500 18 8/16" WICKING BAR
COPPER REDUCER 1/2 X 3/8" USED TO CONNECT THE SUCTION LINE TO THE PULLOUT TO REDUCE REFRIGERATION LEAKS
LOCK KIT, RATCHET LK GDM/DELI INCLUDES: 1) 831347 RATCHET LOCK [LOCK, BAR, & C415 KEYS], 1)872935 SHIM, 1)830335 8/32 RIVNUT TOOL, 1)811308 DRILL BIT #2, 2)830909 RIVNUTS, 2)978651 SCREWS, 1)912709 DOOR PREVENTIVE REMOVAL STRIP,4) 830511 SCREWS, 912650 AND 214330 INSTRUCTIONS

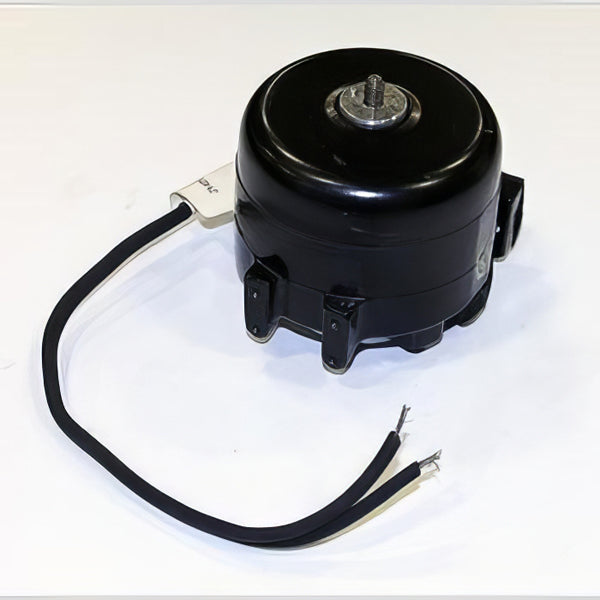

MOTOR, PSC4BG14M1 115V 60HZ 14 WATT, PSC USE TILL DEPLETED. REPLACE WITH 830037 KIT, PCN-12106.USE TILL DEPLETED. ONCE DEPLETED CONTACT PARTS DATA MANAGEMENT E-MAIL GROUP FOR REPLACEMENT OPTIONS14 WATT
FAN MOTOR KIT 115V NO BLADE USE TILL DEPLETED. REPLACE WITH 243072 PCN-15300INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE
