True Parts OEM - TD-36-12: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
ALARM, 140-100 HRB. FAHRENHEIT IN BOX FOR FIELD INSTALL FIELD INSTALLED FAHRENHEIT DIGITAL DISPLAY. MONITORS TEMPERATURES AND SOUNDS ALARM WHEN TEMPERATURE GOES BEYOND RANGE SET. INCLUDES NIMH BATTERY BACKUP, POWER CORD & PLUG AND PROBE
CLIP, CANOE, WHT 32024019-A02 WHITE BUTTON THAT SECURES THERMOMETER TO WALL OF CABINET.
EVAP COIL ASM TD-36-12 W/CONTROL SLEEVE INCLUDES: 1)800225 EVAP COIL, 1)908672 COPPER PROBE, 1)830608 TINNERMAN CLIP, & 1)830592 SCREW

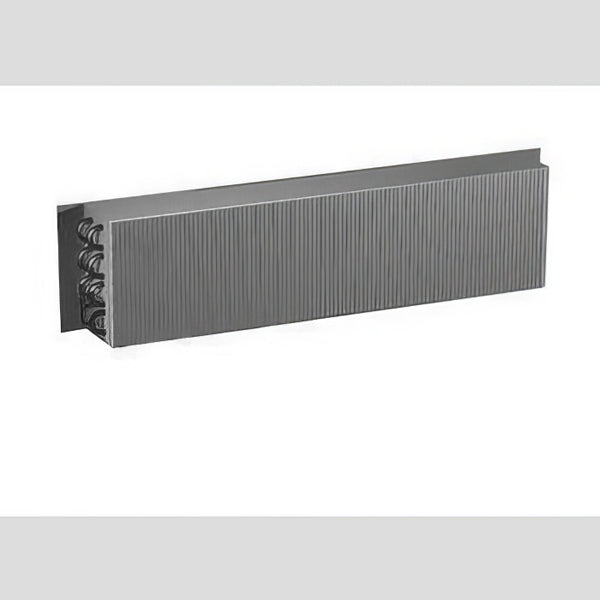

COIL, CONDENSER T-23/35/43 REPLACING 800602 COIL, PCN 8382 (T MODELS), PCN 8385 (GDM MODELS)
COMP, EMY70HER 115/60HZ 51330859094.E W/HARNESS COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 933900-W. EXTENDED WARRANTY IS PART #857952.REPLACES 842053 AEA3425YXA (AE530AR) TECUMSEH COMPRESSOR. *** INCLUDES #211428 INSTRUCTIONS EXPLAINING THE PIPING CHANGE FROM AEA3425YXA TECUMSEH TO EMY70HER EMBRACO.
UNIT TD-36 INCLUDES: 933900 COMPRESSOR, 934994 RELAY, 934995 OVERLOAD, 934997 START CAPACITOR, 934999 WIRE HARNESS, 800407 FAN MOTOR, 801022 BLADE, 989154 COIL, 989756 SHROUD, 945039 DRIER ALL MOUNTED TO A BASE
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
CONNECTOR, 3WAY LEVER 12-24G WAGO 221-413 REPLACES 981148
TEMP CONTROL, 077B6806 KIT #077B7172 . REPLACE WITH REFROFIT KIT 882636 IF UNIT WAS BUILT W/RELAY.INCLUDES: KNOB AND SCREWS. WILL REPLACE THE 963056 CONTROL PER PCN 7784
PROBE, THERMISTOR 2M, NTC W/ST EPC #B57025M2502A1 REPLACES 960670 - DEFROST SENSOR / BLUE STRIPE
PROBE, THERMISTOR 2M, NTC EPC #B57025M2502A2 THERMOSTAT PROBE
UNIVERSAL CONTROL KIT, TEMP ERC112D UPS INCLUDES: 851633 CONTROL, 812576-F PROGRAM, 807414 PROBE, 807415 PROBE, 807416 PROBE, 808094 CABLE, 836831 INSTRUCTION, 848289 INSTRUCTION, 848284 INSTRUCTION, 205419 LABEL, 6) 802179 TERMINAL, 825759 BRACKET, 848290BRACKET CONTROL MOUNRR, 848291 BRKT CONTROL MOUNR, 848292 BRACKET, CONTROL MOUNT, 4) SCREW, 811287 BUSHING, 6) 206384 CABLE TIE, 221826 TAPE.
CONTROL KIT, TEC22 CHOC/WINE REPLACES: 848326, 858313, 837359CONTAINS: 2) 200962-CONNECTER, 1) 202747-CONNECTER, 1) 205419- LABEL, 2) 210680-SCREW, 6) 802149-TIE, 3) 802179-TERMINAL, 2) 802207-CLAMP, 4) 802259-CLAMP, 1) 808218-PROBE, 1) 808219-PROBE, 1) 834326-KNOB, 1) 834328-CONTROL ASM, 1) 844949-INSTRUCTION, 1) 917739-BAG, 1) 919558-WIRE, 2) 990592-SCREW, 1) 995655-CONNECTOR, 1) 998598-WIRE ASM
PROG CONTROL KIT TD-BONEFISH ELECTRONIC REPLACED BY848288 USED AFTER 8/3/15 PER PCN 8410. TEMPERATURE RANGE OF 56 DEGREES - 60 DEGREES FPROGRAMMED 970728 CONTROL
