True Parts OEM - TDBD-48-4: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
LEG KIT 6" 4)830437 SEISMIC 1/2" STEM INCLUDES: 4)830437 LEGS. LEG HAS TWO HOLES IN FOOT TO USE SCREWS TO SECURE TO FLOOR. LEGS ADJUST FROM 6" TO 8". STAINLESS STEEL. 3-1/2" DIAMETER BASE PLATE WITH 2) 7/16"HOLES FOR BOLTS PLACED 2-1/2" CENTER TO CENTER.
LIGHT ASM TSID-48/ INT 2-PIN INCLUDES: TRACK, WIRING, LAMPHOLDERS
COPPER REDUCER 1/2 X 3/8" USED TO CONNECT THE SUCTION LINE TO THE PULLOUT TO REDUCE REFRIGERATION LEAKS
LOCK KIT, RATCHET LK GDM/DELI INCLUDES: 1) 831347 RATCHET LOCK [LOCK, BAR, & C415 KEYS], 1)872935 SHIM, 1)830335 8/32 RIVNUT TOOL, 1)811308 DRILL BIT #2, 2)830909 RIVNUTS, 2)978651 SCREWS, 1)912709 DOOR PREVENTIVE REMOVAL STRIP,4) 830511 SCREWS, 912650 AND 214330 INSTRUCTIONS
FAN MOTOR KIT 115V NO BLADE USE TILL DEPLETED. REPLACE WITH 243072 PCN-15300INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE

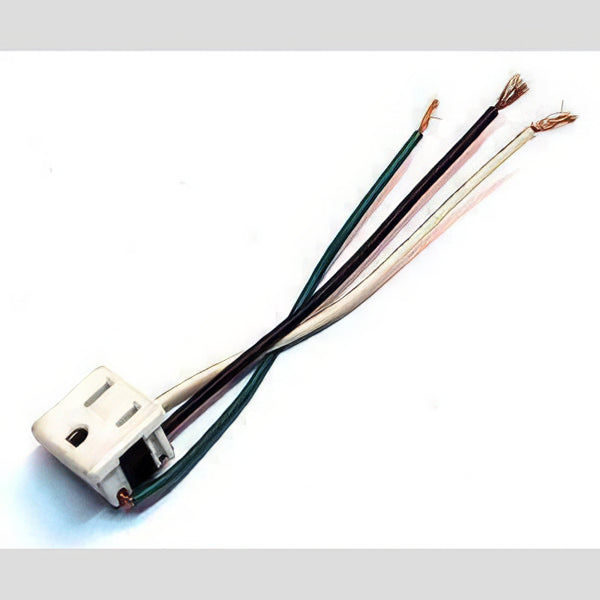

RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG

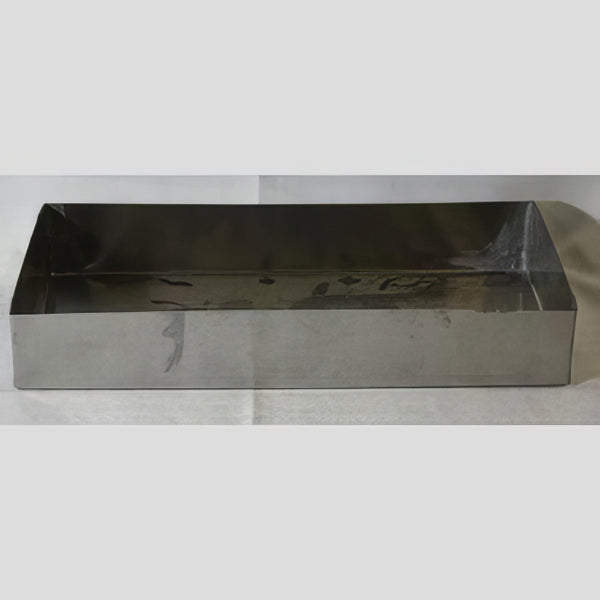

DRAIN PAN KIT EVAP TDBD-48 LOWER 1)907147 PAN W/811502 INCLUDES: 1)907147 PAN WITH 811502 NOZZEL AND SCREW SET
PLATE, CASTOR OR LEG MTG 1/2" HOLE TPP/TSSU 1/2" THREADED HOLE IN CENTER. ONE ONLY. INCLUDES 4)830519 MOUNTING SCREWS
POWER CORD, FEMALE R-5-9, DELI 24" PROTECTIVE CAP WHITE SQUARE 5-PIN SHELF LIGHT POWER CORD
OUTLET, ELECTRICAL-DELI WHT 1374-01W RECEPTACLE LOCATED ON UPPER BACK OF COOLER WHITE.
DIGITAL VACUUM GAUGE VG64 INCLUDES: HANGER/STAND, 2 QUICK CAPS FOR FITTINGS, INSTRUCTIONS35 - 125F, MEASURING RANGE 0 TO 12,000 MICRONS, 4 1/2 DIGIT LCD DISPLAY, REQUIRES 9 VOLT BATTERY (NOT INCLUDED)
RELAY, G7L-1A-TUB-CB-AC100/120 (OR JCB Alt.) 25 AMP OMRON .4 TERMINAL
RIVET, AB4-6ABL 1/8" DIA BLK ALUM .313-.375 1/8" BLACK
RIVNUT, 8-32 .040-.090 AL/SLV A8-90NA-P .222-.226 HS REPLACE WITH 855595 TOOL KIT.PRODUCTION CHANGED TO 837577. MUST RESIZE HOLE TO REPLACE WITH 837577 RIVNUT.
RIVNUT TOOL KIT 8-32 INCLUDES: 830335 RIVNUT TOOL, 855589 DRILL BIT, 991288 INSTRUCTIONS, 837577 RIVNUTS.
LEVELING SCREW, 1/2-13 X 1 1/2 A3 TOOL STL ASTM A681 REPLACES 996897 PER PCN 10596
SCREW, 6-18 X 1/2 PHIL TRS HD SMS, 410SS, ZINC & CLR. CHR. BLACK
SCREW, 6-18 X 3/4 PHIL FLAT HD SMS, 410SS, TYPE A, 500 HR SC
SCREW, 6-18 X 1 PHIL TRS HD SMS, 410SS, TYPE A, 500 HR SC
SCREW, 6-18 X 1 PHIL FLAT HD SMS, 410SS, TYPE A, 500 HR SC
