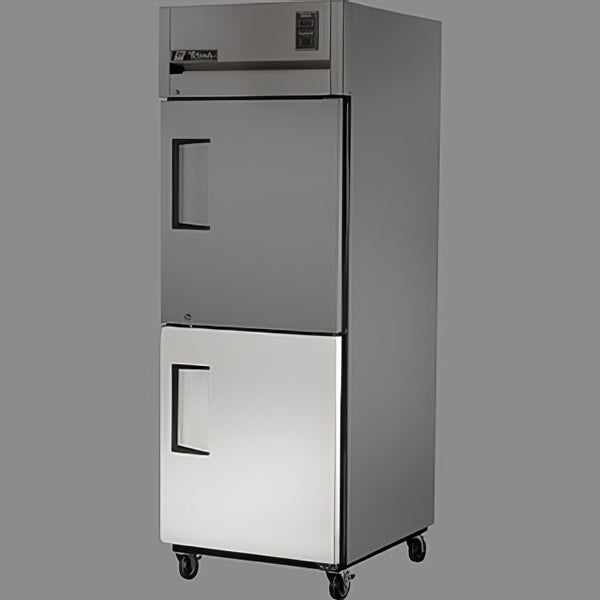

True Parts OEM - TG1DT-2HS: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
EVAP COIL ASM T-12 STOCK IS DEPLETED IN P15. ONLY AVAILABLE IN DEPOTS/WAREHOUSES. REPLACE W/800225 COIL AND 844950 CONTROL PCN 9901INCLUDES: 1)925691 COIL, 1)868139 COPPER SLEEVE, 1)830608 TINNERMAN CLIP, & 1)830592 SCREW
COMP, AEA2411ZXA AE820AR-985- A4JR, 1/3 115V 60HZ 1PH R404A INCLUDES: OVERLOAD, RELAY, START CAPACITOR.

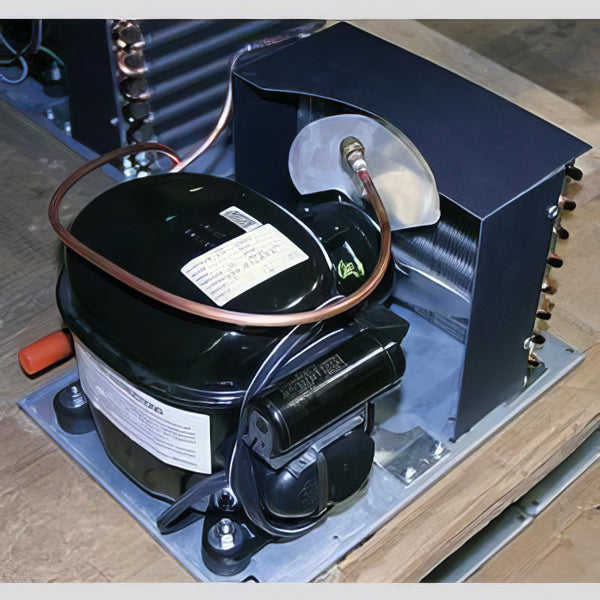

UNIT 1/5 134 AE530AT/AR TR1DT INCLUDES: COMPRESSOR WITH RUBBER MOUNTING BLOCKS, RELAY, OVERLOAD, START CAPACITOR, FAN MOTOR, FAN BLADE, DRIER, CONDENSING COIL, SHROUD, DRIER, POWER CORD ALL MOUNTED TO BASE.

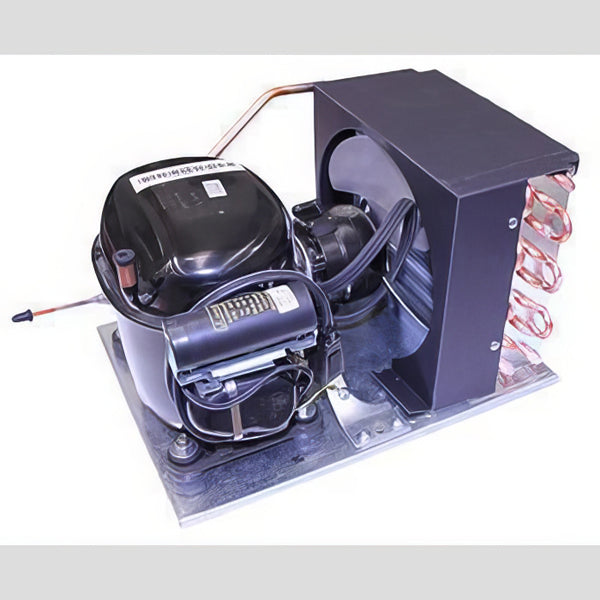

UNIT 1/3 404 AE820AT TR1DT INCLUDES: 842091 COMPRESSOR, OVERLOAD RELAY, START CAPACITOR, CONDENSER COIL, FAN MOTOR, BLADE, BRACKET, COMPRESSOR BASE, COMPRESSOR POWER CORD.
COMP, EMY70HER 115/60HZ 51330859094.E W/HARNESS COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 933900-W. EXTENDED WARRANTY IS PART #857952.REPLACES 842053 AEA3425YXA (AE530AR) TECUMSEH COMPRESSOR. *** INCLUDES #211428 INSTRUCTIONS EXPLAINING THE PIPING CHANGE FROM AEA3425YXA TECUMSEH TO EMY70HER EMBRACO.
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
TEMP CONTROL, 077B1264 KIT #077B7199 INCLUDES: 2) SCREWS AND KNOB.
TEMP CONTROL, 077B6806 KIT #077B7172 . REPLACE WITH REFROFIT KIT 882636 IF UNIT WAS BUILT W/RELAY.INCLUDES: KNOB AND SCREWS. WILL REPLACE THE 963056 CONTROL PER PCN 7784
TEMP CONTROL, ELECTRONIC DIXELL #XR160C-0N0F1 CAN BE PROGRAMED FOR EITHER CELSIUS OR FAHRENHEIT. SEND WITH HOT KEY (ORDERED SEPARATELY). TECH SVC. WILL NEED TO KNOW MODEL TO PROGRAM THE HOT KEY. REQUIRES AND SOLD SEPARATELY THREE 831991 PROBES AND ONE 831970 115V TRANSFORMER OR 831907 220V TRANSFORMER. FOR CELCIUS USE THE 831998 FACEPLATE. REPLACES THE FOLLOWING PARTS WHEN USED: MECHANICAL TEMPERATURE CONTROL, DEFROST TIMER, DEFROST TERMINATION SWITCH, FAN AND LIGHT DELAY SWITCH AND ELECTRONIC TEMPERATURE CONTROL DISPLAY.
TEMP CONTROL KIT, XR160C-0N0F1 220V 1)831978/trans INCLUDES 1)831978 CONTROL; 3)831979 PROBES NOW USE 831991 PROBES 1)831907 208V/220V TRANSFORMER. REPLACES THE FOLLOWING PARTS WHEN USED: MECHANICAL TEMPERATURE CONTROL, DEFROST TIMER, DEFROST TERMINATION SWITCH, FAN AND LIGHT DELAY SWITCH AND ELECTRONIC TEMPERATURE CONTROL DISPLAY. CAN BE PROGRAMMED LATER FOR CELCIUS, FACEPLACE SHOULD BE REPLACED WITH CELCIUS.NEED MODEL/SERIAL NUMBER TO PROGRAM
POWER CORD, COMP C1147 W/AMP 40589 #10 RING 2 RINGS AND ONE HORSESHOE CONNECTORS
COMPONENT COVER RT 70998 BALE STRAP 802271 NOT INCLUDEDCOMPRESSOR START COMPONENT COVER. USED W/ VARIOUS TECUMSEH COMPRESSORS (EX. AE530AR, AE630AR) & 842103 AE630ER-717-A2
BOX, JUNCTION, WITH LIDE, 94 HB RATED BLACK POLYPROPYLENE 94 HB RATED
EVAP COVER ASM TA/TG1DT FREZ WHT 25 27/32 X 18 1/16 INCLUDES 892656 COVER, 938020 NOZZLE BLACK, 811514 NOZZLE SCREW, 916709 DRAIN PAN, 820755 FOAN INSULATION , 861790 FAN BAND
DOOR ASM TR1F-2HS RH BTM B-REC TORSION SPRING S/L 115V INCLUDES: GASKET, HEATER WIRE, BLACK RECESSED HANDLE, TORSION SPRING, SHAFT STYLE DOOR CONNECTOR
DOOR ASM TR1F-2HS LH BTM B/REC TS B/L 115V 28" X 31 1/2" INCLUDES: GASKET, HEATER WIRE, TORSION SPRING, BLACK HANDLE, FOR BARREL STYLE DOOR CONNECTOR HAS RECTANGULAR SLOT IN TOP OF DOOR
DOOR ASM TR1F-2HS RH BTM B/REC TS B/L 115V 28" X 31 1/2" INCLUDES: GASKET, HEATER WIRE, TORSION SPRING, BLACK HANDLE, FOR BARREL STYLE DOOR CONNECTOR HAS RECTANGULAR SLOT IN TOP OF DOOR
DOOR ASM TR1R-2HS LH TOP B/REC B/L T/S 28"W X 31-1/2"L INCLUDES: GASKET, TORSION SPRING, FOR DOOR WITH BARREL LOCK STYLE DOOR CONNECTOR.
DOOR ASM TR1R-2HS RH TOP B/REC B/L T/S 28"W X 31-1/2"L INCLUDES: GASKET, TORSION SPRING, FOR DOOR WITH BARREL LOCK STYLE DOOR CONNECTOR.
DOOR ASM TA/TG/TR1DT TOP RH SOLID INCLUDES 908416 DOOR FRONT TOP GASKET, TORSION SPRING, BARREL LOCK STYLE DOOR CONNECTION
DOOR ASM TA/TG/TR1DT BTM RH SOLID INCLUDES: 90 8415 DOOR FRONTGASKET, HEATER WIRE, TORSION SPRING, BLACK HANDLE, FOR BARREL STYLE DOOR CONNECTOR HAS RECTANGULAR SLOT IN TOP OF DOOR
