True Parts OEM - TR2FRI-2S: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
COMP, J2212GKT 208-230/60HZ 943XD11D9BY COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 925003-W. EXTENDED WARRANTY IS PART #857953.REPLACES THE 842621/914565 COMPRESSORS PREVIOUSLY USED. (PCN #4129/4854)

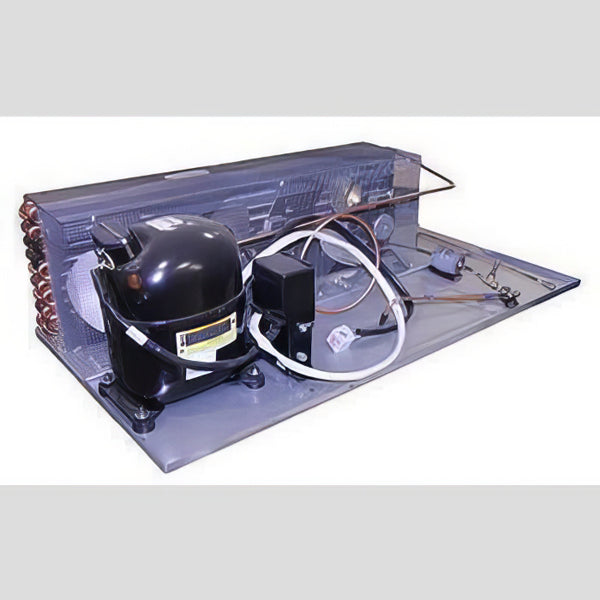

UNIT J2212GKT 943XD11D9AY TA/TG/TR2FRI-2 208V 60HZ INCLUDES COMPRESSOR, CONDENSER COIL, SHROUD, MOTORS, FAN BLADES, DRIER, & POWER CORD ALL ASSSEMBLED ON METAL BASE
COMP, NT2212GKV 208-230/60HZ 925CD02D7AZ, TA/TG/TR2F/2FPT INCLUDES: 951373 POWER PACK CSIR BOX THAT CONTAINS : 967531 RELAY, 967532 RUN CAP, 842620 START CAP. OVERLOAD INCLUDED.
UNIT NT2212GKV 208-230/60HZ 925CD02D7AZ, TA/TG/TR2F INCLUDES: 951371 COMPRESSOR, 951373 POWER PACK, 951359 COMPRESSOR BASE, 944876 MOTOR, 951360 COIL, 951362 CONDENSER SHROUD, 925525 POWER CORD, 980763 DRIER, 813323 SOLENOID VALVE, 909821 SOLENOID COIL, 832301 ADAPTOR, 832302 CAP,
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
CONNECTOR, OMC1F06001-G 6-POLE GRAY, LAE GRAY 6 POLE CONNECTOR USED W/ LAE ELECTRONIC TEMPERATURE CONTROL
TEMP CONTROL, 077B1264 KIT #077B7199 INCLUDES: 2) SCREWS AND KNOB.
TEMP CONTROL, ELECTRONIC DIXELL #XR160C-0N0F1 CAN BE PROGRAMED FOR EITHER CELSIUS OR FAHRENHEIT. SEND WITH HOT KEY (ORDERED SEPARATELY). TECH SVC. WILL NEED TO KNOW MODEL TO PROGRAM THE HOT KEY. REQUIRES AND SOLD SEPARATELY THREE 831991 PROBES AND ONE 831970 115V TRANSFORMER OR 831907 220V TRANSFORMER. FOR CELCIUS USE THE 831998 FACEPLATE. REPLACES THE FOLLOWING PARTS WHEN USED: MECHANICAL TEMPERATURE CONTROL, DEFROST TIMER, DEFROST TERMINATION SWITCH, FAN AND LIGHT DELAY SWITCH AND ELECTRONIC TEMPERATURE CONTROL DISPLAY.
PROBE, 18NB-NTC-1.5M FOR XR20C/XR160C CONTROL USED W/ XR20C/XR160C, XH240V-401FO, XR160C-0N0F1, RC-31 CONTROLS (ONE PROBE...SOME APPLICATIONS REQUIRE 3 PROBES)
TEMP CONTROL KIT 077B1264 800182 GDM-FREEZER INCLUDES: 1)800345 CONTROL, 1)800182 RELAY, 1)890353 RELAY COVER, 1)900013 PINK WIRE, 1)895118 WHITE WIRE, 2)900404 BLACK WIRES, 2)830592 SCREWS FOR RELAY COVER, 2)830566 SCREWS FOR RELAY, 1)811210 GROMMET, 4)802143 STACONS, 1) 958674 INSTRUCTIONS
DISPLAY, LCD-5S-1TM BLUE LED BLACK W/TRUE LOGO BLUE LED DISPLAY USED W/ 930205 & 943172 TEMPERATURE CONTROLS. HAS BLACK FRAME
PROBE, LAE SN4B20P1 2.0M (T1) IS SENSING THE AIR SUPPLY FOR CONTROLLING THE OPERATION OF THE CABINET
CONNECTOR, OMC1F02001 2 POLE LAE GREEN (930201,930203) GREEN 2 POLE CONNECTOR USED W/ LAE ELECTRONIC TEMPERATURE CONTROL
CONTROL MOUNTING BAR, S-28-FB PLASTIC BASE USED TO MOUNT LAE CONTROL
CONNECTOR, OMC1F06001 6 POLE GREEN, LAE GREEN 6 POLE CONNECTOR USED W/ LAE ELECTRONIC TEMPERATURE CONTROL USE WITH 943172 AR2-28C1Q5U-1TM CONTROL
COMMUNICATION CABLE, LAE FC04 03D04 14" P PIN FEMALE ON ONE END 4 PIN FEMALE ON OTHER
PROBE, LAE SN4B20P2-B(T2) 2.0M REPLACES THE 930280 PER PCN 6150
POWER CORD, 14/3 SJTOW WITHOUT PLUG 300 VOLT, NO PLUG ON CORD
POWER CORD, COMP 14GA x 28" CE 320 PLUG, AMP X 8 PIN TERM.
POWER CORD, MOTOR 23.6" W/AMP PINS 2 WIRE 10891-4-1040 23.6" W/AMP PINS 2 WIRE. WILL REPLACE THE 943721 CORD & 943644 CORD PER PCN 6171
CORD KIT, COMP 8 PIN W/FLANGE TERMINAL 115V INCLUDES:1) 915105 8 PIN CORD FROM COMPRESSOR POWER CORD TO COMPRESSOR START COMPONENTS, 1) 951657 16G GREEN/YELLOW WIRE ASM, 1) 943326 16 G WHITE 12 MALE AMP WIRE ASM, 1) 943325 16G BLACK 12 MALE AMP WIRE ASSMREPLACES 965713, 937374 AND 917607, 925765, 931551 AND 925766, 937374
BOX, JUNCTION, WITH LIDE, 94 HB RATED BLACK POLYPROPYLENE 94 HB RATED
