True Parts OEM - TSD-33G: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
LOCK KIT BARREL GDM-33 BAR IS 18" LONG INCLUDES: 831315 BARREL LOCK, 844550 SCREW, 829420, NUT, 831307 KEY 1)890453 RETAINER PLATE, 1)867867 PLASTIC FILL PLATE, 6)830592 SCREWS, 4)830808 POP RIVETS, 1)830578 SCREW, 1)881626 LATCH TUBE, 6)830909 RIVNUTS, 6)947854 SCREWS, 2)890562 LOCKING BRACKETS, 1)891465 FORMED LOCKING BRACKET, & 1)891449 LOCK BAR
LOCK KIT, RATCHET GDM FOR TOP HUNG DOORS INCLUDES: 1) 831347 LOCK W/ RATCHET BAR, 2) 830909 RIVNUTS, 2) 947854 SCREWS, 1) 830335 RIVNUT TOOL, 912650 INSTRUCTIONS
FAN MOTOR KIT 115V NO BLADE USE TILL DEPLETED. REPLACE WITH 243072 PCN-15300INCLUDES: 837869 16W FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET, AND 830033 INSTRUCTIONS. DOES NOT INCLUDE BLADESPEED 1 IN CLOCKWISE FROM THE REAR. SPEED 2 IS COUNTERCLOCKWISE FOR 30 SECONDS, THEN COUNTERCLOCKWISE FROM THE REAR. 1550 RPM
FAN MOTOR KIT 220V USE TILL DEPLETED REPLACE WITH 243072 PCN-15300INCLUDES: 837870 FAN MOTOR, 3) 202747 CONNECTORS, 2) 826842 T-BOLTS, 3) 824083 SCREWS, 3) 818619 SCREWS, 4) 824082 FLANGED NUTS, 824085 SLOTTED WASHER, 826849 DRIVE PLATE, 956425 BRACKET, 949491 BRACKET AND 830033 INSTRUCTIONS.
NAMEPLATE, TRUE 51143-P REPLACES 820343, 820346, 820541. 820345 ONCE STOCK HAS BEEN DEPLETED. HAS TWO WAY TAPE ON BACK OF NAMEPLATE
NAMEPLATE, TRUE REFRIGERATOR T COOLER & TSSU'S LOCATED ON THE GRILL OR DOOR.
NUT, 8-32 HEX NUT, 18-8 STAINLESS FOR SCREW ON CENTER STANDARD
RECEPTACLE, 3 WAY BLK #413-01374-001 15 AMP LOCATED NEXT TO THE BALLAST BOX FOR COMPRESSOR. LOCATED ON BACK OF CABINET AS CONVENIENCE OUTLET ON SOME MODELS. FOR 3 PIN PLUG
PAN, DRAIN BTM PLST 2&3 DR/ TSSU #1600, 123/8 X 25 1/4 X 2
EVAP DRAIN PAN KIT GDM/T-33/35 37/41/45/47/49/61 32"X 9 11/16 TOP LOCATED BELOW EVAP. COIL. INCLUDES: 860050 PAN, 811502 WHITE ELBOW
PAN, DRAIN COND TPP-44/67/93/ 119/ TSID-48/72/96, GDM/T REPLACES THE 871901

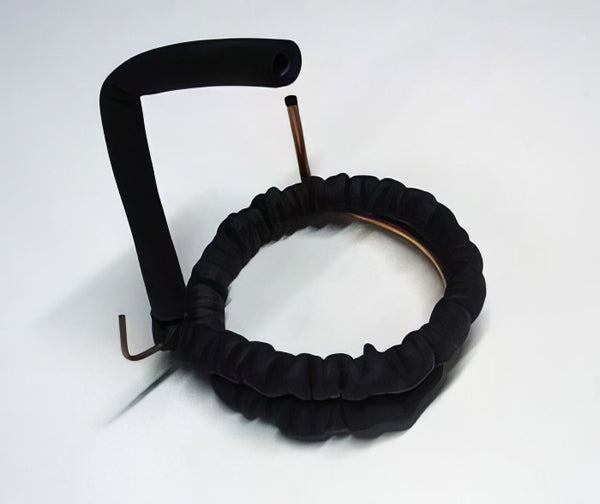

PULLOUT ASM GDM-33/37 115V INCLUDES: 976452 PULLOUT, 955173 COPPER ADAPTER/LIQUID LINE, TAPE AND SPONGE TUBING.
RECEPTACLE, 6600.4315 FELLER FOR VDE COMPRESSOR CORD FOR COMPRESSOR POWER CORD.
DETECTOR, LEAK VPE ULTRASONIC 9997, 35LX63 VPE ULTRASONIC
DIGITAL VACUUM GAUGE VG64 INCLUDES: HANGER/STAND, 2 QUICK CAPS FOR FITTINGS, INSTRUCTIONS35 - 125F, MEASURING RANGE 0 TO 12,000 MICRONS, 4 1/2 DIGIT LCD DISPLAY, REQUIRES 9 VOLT BATTERY (NOT INCLUDED)
RELAY, G7L-1A-TUB-CB-AC100/120 (OR JCB Alt.) 25 AMP OMRON .4 TERMINAL
RIVNUT, 8-32 .040-.090 AL/SLV A8-90NA-P .222-.226 HS REPLACE WITH 855595 TOOL KIT.PRODUCTION CHANGED TO 837577. MUST RESIZE HOLE TO REPLACE WITH 837577 RIVNUT.
RIVNUT TOOL KIT 8-32 INCLUDES: 830335 RIVNUT TOOL, 855589 DRILL BIT, 991288 INSTRUCTIONS, 837577 RIVNUTS.
RIVNUT TOOL 8-32 12" LONG THIS CAN BE SHIPPED OUT AS A LOANER FOR WARRANTY ISSUES, PLEASE ISSUE CALL TAG FOR RETURN. IF CUSTOMER REFUSES TO RETURN AGAINST THE CALL TAG THEN THEY WILL BE RESPONSIBLE TO PAY FOR THE TOOL .
