TSID-72-2

$4.82

CLIP - Part #: 830301

CLIP, SPRING CONDENSER WIRE

Login to shop

$17.73

CLIP - Part #: 830340

CLIP, CANOE, WHT 32024019-A02 WHITE BUTTON THAT SECURES THERMOMETER TO WALL OF CABINET.

Login to shop

$501.56

COIL - Part #: 210649

COIL, CONDENSER G4SM-23 REPLACES THE 800601 COIL PER PCN 9630

Login to shop

$2,725.04

COIL - Part #: 800239

COIL, EVAP TSID-72/TDBD 60" X 10 1/2" X 2 1/2"

Login to shop

$552.98

COIL - Part #: 800602

COIL, CONDENSER 1/3 HP 11" X 10" X 2" USE TILL DEPLETED - REPLACE WITH 989154 COIL, PCN 8382 (T MODELS), PCN 8385 (GDM MODELS)

Login to shop

$2,130.78

COMPRESSOR - Part #: 842408

COMP, AK169JR-A47A4 AKA4476YXC 220/240V 50HZ, 1/2HP REPLACE WITH 889267 PCN-14134 INCLUDES: OVERLOAD, RELAY, START CAPACITOR.

Login to shop

$2,424.91

COMPRESSOR - Part #: 842410

COMP, 1/2 HP AK169ER-A47-A4 AKA4476YXD 208V 60HZ INCLUDES: 802222 OVERLOAD, 802229 RELAY, 802160 START CAPACITOR.

Login to shop

$1,190.56

COMPRESSOR - Part #: 889254

UNIVERSAL COMPRESSOR KIT, NT6215Z 115/60 UPS ONLY INCLUDES: 955148 COMPRESSOR, 889255 INSTRUCTION, 848196 COPPER TUBE, 931868 COPPER TUBE, 2) 949496 TAPE, 4, 975517 PUSHNUT, 3) 202747 CONNECTOR,

Login to shop

$1,789.67

UNIVERSAL COMPRESSOR KIT, NT6217Z 200-240V50HZ 230V/60HZ INCLUDES:1) 889255 INSTRUCTION, COMP REPLACMEt1) 848196 COPPER TUBE STRAIGHT 1/4 X 24"1) 931868 COPPER TUBE STRAIGHT 3/8 X 1212" 810526 TUBING, SPONGE R180-FS2) 949496 TAPE, 1/8" X 6" X 107.5''''''''''''''''''''''''''''''''4) 975517 PUSH NUT, M-73) 202747 CONNECTOR, 5WAY LEVER 12-24G

Login to shop

$44.53

CONDENSING UNIT PARTS - Part #: 802271

STRAP, BALE 70640 FOR TECUMSEH MODELS THIS IS THE METAL STRAP THAT SECURES THE START COMPONENT COVER TO THE COMPRESSOR. USED W/ (AE) 1/5 & 1/3 HP TECUMSEH COMPRESSORS.

Login to shop

$7.04

CONNECTOR - Part #: 802145

TERMINAL,YELLOW RING 10-12G MOLEX, 19070-0298 RING TYPE

Login to shop

$3.04

CONNECTOR - Part #: 802179

TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL

Login to shop

$75.71

CONNECTOR - Part #: 830190

FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.

Login to shop

$22.47

CONNECTOR - Part #: 851184

WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.

Login to shop

$195.51

CONTROL - Part #: 822214

TEMP CONTROL, 077B1309 KIT #077B7334 .INCLUDES: 2) SCREWS AND KNOB.

Login to shop

$271.87

CONTROL - Part #: 911680

TEMP CONTROL KIT 077B1354 TDBD/TSID-72 1)822214 CONTROL RE-CALIBRATED, 1)800182 COIL RELAY, 1)890353 RELAY COVER, 1)900013 PINK WIRE, 1)895118 WHITE WIRE, 2)900404 BLACK WIRES, 2)830592 SCREWS FOR RELAY COVER, 2)830566 SCREWS FOR RELAY, 1)811210 GROMMET, 4)802143 STACONS, & INSTRUCTION SHEET.

Login to shop

$243.31

CORD - Part #: 201837

POWER CORD, 120" BRITISH W/ LOCKING IEC C19

Login to shop

$144.73

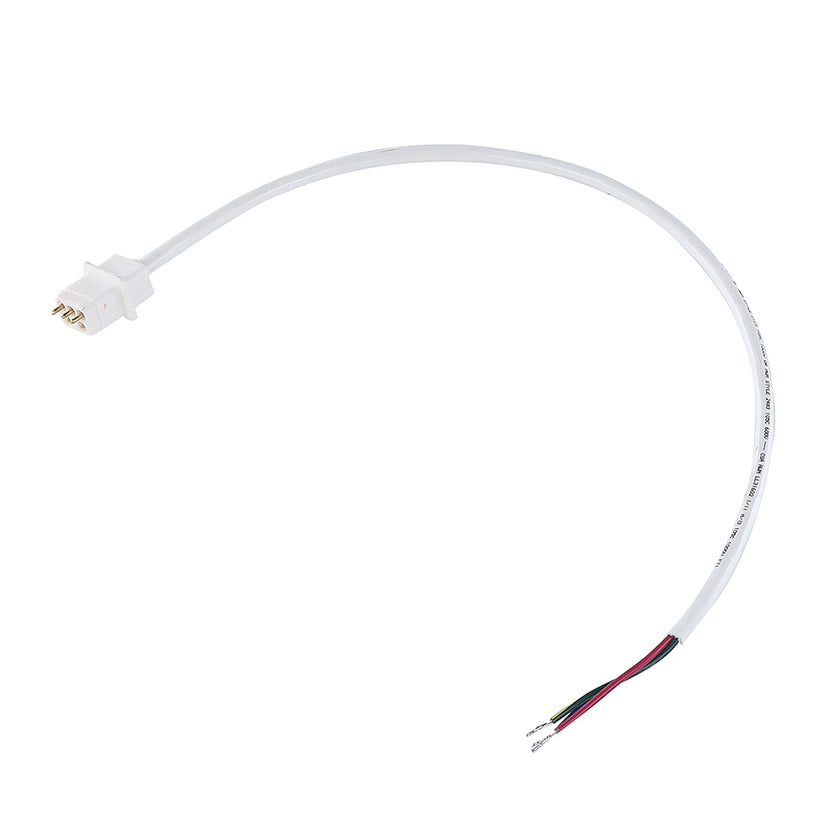

CORD - Part #: 801603

POWER CORD, SHELF 21" P-5-7 MALE FOR T8 SHELF LAMP WITH 5-PIN MALE PLUG

Login to shop

$97.38

CORD - Part #: 801701

POWER CORD, 108" NEMA 5-15P 14/3 SJT POWER CORD TO WALL OUTLET, 15 AMP HAS THREE PRONG PLUG

Login to shop

$91.58

CORD - Part #: 801714

POWER CORD, COMP 42" P-39S 14/3 SPT-3 14 GAUGE. HAS 2 RING AND 1 SPADE TONGUE. PLUG IS A 39-S...TWO PRONGWITH ONE NEUTRA PRONG

Login to shop

$97.22

CORD - Part #: 801771

POWER CORD, 14/3 SJTOW WITHOUT PLUG 300 VOLT, NO PLUG ON CORD

Login to shop

$51.93

CORD - Part #: 874100

CORD, LATEX 19" KIT 1/16" DIA RING TERMINAL, TDBD-72 UPPER LATEX. INCLUDES ONE TERMINAL RING. LENGTH OF CORD DOES NOT INCLUDE LENGTH OF TERMINAL RING. INCLUDES: DOOR CORD & 1)830519 SCREW

Login to shop

$51.93

CORD - Part #: 881735

CORD, LATEX 18" (1/16"DIA) W/2 TERMINAL RINGS, TSID-72-2 LATEX. INCLUDES TWO TERMINAL RINGS. LENGTH OF CORD DOES NOT INCLUDE LENGTH OF TERMINAL RINGS. INCLUDES: DOOR CORD & 2)830519 SCREWS

Login to shop

$52.31

COVER - Part #: 862008

TEMP CONTROL PLATE, ALUM HAS V SHAPED NOTCH CUT OUT. USED TO SET TEMPERATURE DIAL.

Login to shop
