True Parts OEM - GDM-49F FAMILY DOLLAR: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
COMP, J2212GKT 208-230/60HZ 943XD11D9BY COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 925003-W. EXTENDED WARRANTY IS PART #857953. REPLACES THE 842621/914565 COMPRESSORS PREVIOUSLY USED. (PCN #4129/4854)

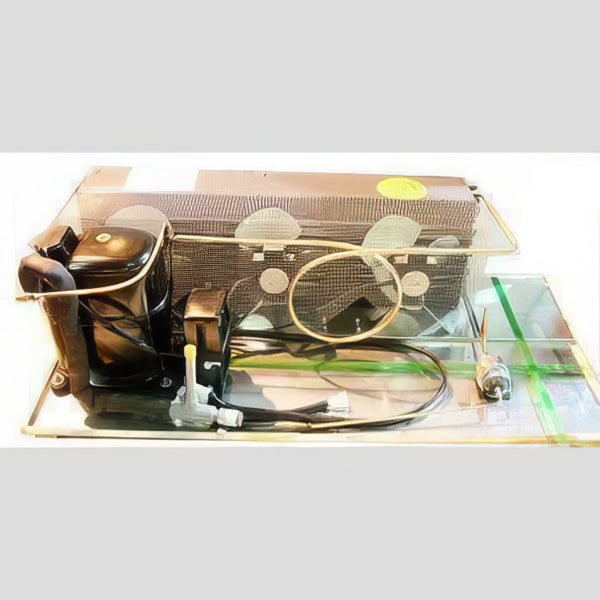

UNIT J2212GKT 943XD11D9AY GDM-49F LAE 208V INCLUDES COMPRESSOR, CONDENSER COIL, TWO CONDENSER MOTORS, FAN BLADES, SHROUD, POWER CORD, & COPPER TUBING ALL MOUNTED TO A METAL BASE.

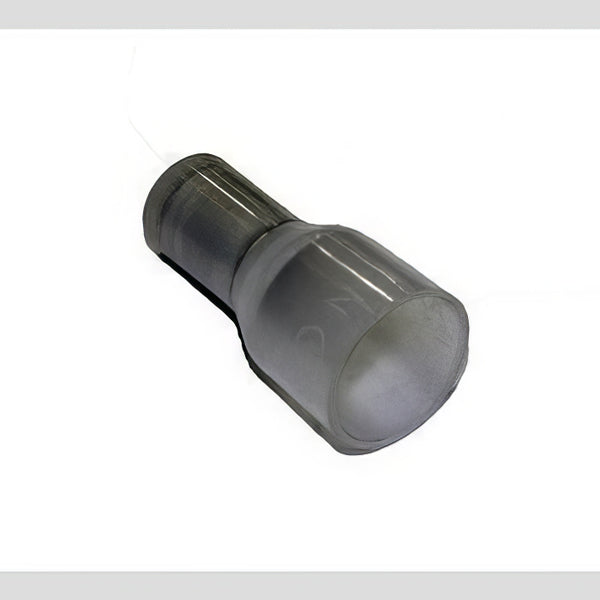

CONNECTOR, CLOSED END LARGE MOLEX, 0191600024 CLOSED END. CLEAR WHITE. 1/2" OPENING
CONNECTOR, CLOSED END MEDIUM TPC, CE551R CLOSED END. CLEAR WHITE COLOR. SLEEVE #12-10 WIRE RANGE
CONNECTOR, CLOSED END SMALL TPC, CE233R CLEAR WHITE COLOR. SLEEVE #16-14 WIRE RANGE
TERMINAL,BLST .250X032,14-16G MOLEX 19003-0040 BLUE TERMINAL CONNECTORS FOR TEMPERATURE CONTROLS. REQUIRES 2 PER CONTROL
FITTING, 1/2" X 1/2" STRAIGHT BARB HIGH DENSITY POLYETHYLENE USED TO CONNECT TWO DRAIN HOSE.
WHT 1/2" X 1/2" STRAIGHT BARBED FITTING USED TO CONNECT TWO DRAIN HOSE.
CONNECTOR, OMC1F06001-G 6-POLE GRAY, LAE GRAY 6 POLE CONNECTOR USED W/ LAE ELECTRONIC TEMPERATURE CONTROL
TEMP CONTROL, LAE BR1-28COQ5WH 2TM UTD THEN REPLACE WITH 871083. CONTROL ONLY. NO PROBES/CONNECTORS OR DISPLAY. NEED MODEL AND SERIAL NUMBER TO PROGRAM, OR UNIVERSAL KIT 848543 TO REPLACE CONTROL ONLY (NO PROGAMING). PROBE KIT IS AVAILABLE 218877 SEPARATELY.
UNIVERSAL CONTROL KIT BR1 INCLUDES: 222046 INSTRUCTIONS, 200983 TEMP CONTROL, 960461 PROBE, 970103 PROBE, 970102 PROBE, 976439 DISPLAY CABLE, 801489 WIRE LABEL, 4) 802203 CLAMP, 4) 830592 SCREW, 802149 CABLE TIE, 8) 802179 TERMINAL, 226994 PROGRAM CONTROL, 971381 DISPLAY, 1) 943173 CONNECTOR, 1) 943174 CONNECTOR, 2) 937360 CONNECTORS
PROBE, #18NB-NTC-2.5M DIXELL XW60VS SET OF 3. USED WITH THE 822222 XW60VS-5N1FO CONTROL, THE 831984 XW60VS-ONOFO CONTROL, & THE 822231 XW60VS-4N1FO CONTROL. 3 PROBE HARNESS
DISPLAY, LCD-5S-1TM BLUE LED BLACK W/TRUE LOGO BLUE LED DISPLAY USED W/ 930205 & 943172 TEMPERATURE CONTROLS. HAS BLACK FRAME
TEMP CONTROL KIT, XW60VS-5N1FO MODEL AND SERIAL NUMBER INFORMATION REQUIRED FOR SALES ORDERS. INCLUDES: 1)822222 CONTROL W/ FACE PLATE, 1 SET OF 831985 PROBES, & 1) HOT KEY. SERVES AS TEMPERATURE CONTROL, DIGITAL THERMOMETER, TIMER FOR BOTH DEFROST AND REVERSE FAN MOTOR, DEFROST TERMINATION SWITCH, & FAN DELAY SWITCH. TECH SVC. WILL NEED TO KNOW MODEL TO PROGRAM THE HOT KEY. (FAHRENHEIT)
CONNECTOR, OMC1F02001 2 POLE LAE GREEN (930201,930203) GREEN 2 POLE CONNECTOR USED W/ LAE ELECTRONIC TEMPERATURE CONTROL
CONTROL MOUNTING BAR, S-28-FB PLASTIC BASE USED TO MOUNT LAE CONTROL
CONNECTOR, OMC1F06001 6 POLE GREEN, LAE GREEN 6 POLE CONNECTOR USED W/ LAE ELECTRONIC TEMPERATURE CONTROL USE WITH 943172 AR2-28C1Q5U-1TM CONTROL
COMMUNICATION CABLE, LAE FC04 03D04 14" P PIN FEMALE ON ONE END 4 PIN FEMALE ON OTHER
PROBE, LAE SN4B40P2-B(T2) T-72F PROBE USED W/ LAE ELECTRONIC TEMPERATURE CONTROL. ONE OF THREE PROBES, CHECK T2 NUMBER ON PROBE
TEMP CONTROL/DISPLAY KIT 115V LAE KIT HISTORY: FAMILY DOLLAR ONLY INCLUDES 981391 CONTROL, 930202 DISPLAY, 970102 958733 956486 PROBES, 943173 943174 937360 CONNECTORS, 944875 157" RIBBON CABLE, NEED MODEL/SERIAL NUMBER TO PROGRAM (DID USE 943172 CONTROL LAE AR2-28C1Q5U- 1TM 115V)
