True Parts OEM - GDM-49F FAMILY DOLLAR: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
PROBE, LAE T1 SN4B40P1 (4.0M) T-35-HC PROBE USED W/ LAE ELECTRONIC TEMPERATURE CONTROL. ONE OF THREE PROBES, CHECK T1 NUMBER ON PROBE. IS SENSING THE AIR SUPPLY FOR CONTROLLING THE OPERATION OF THE CABINET
PROBE, LAE SN4B40P3-Y T3(4.0M) T-35-HC YELLOW PROBE USED W/ LAE ELECTRONIC TEMPERATURE CONTROL. ONE OF THREE PROBES, CHECK T3 NUMBER ON PROBE
POWER CORD, 160" NEMA L14-20P 14/4 SJT LOCKING SO IT DOES NOT PULL OUT OF WALL OUTLET. 20 AMP PLUG. HAS FOUR FLAT PRONGS IN CIRCLE FORMATION.
WIRE HARNESS, MALE 48 INCHES WITH 43 INCH SLEEVE NEMA 14-20, 7 PIN PLUG.. ONE RED WIRE HAS O RING, ONE BLACK WIRE HAS O RING, ONE GREEN WIRE HAS LOCKING FORK, ONE WHITE WIRE ONE YELLOW WIRE AND TWO BLUES WIRES HAVE NO CONNECTORS.
WIRE HARNESS, 7 PIN 54 1/2" 5 - 16 GAGE WIRE WITH 7 PIN CONNECTOR: 2 RED, 1 YELLOW, 1 BLUE, 1 GREEN, 1 WHITE, 1 BLACK
WIRE HARNESS, MALE 8017, 33" MALE PLUG EMF P-7-1 PVC WHT HAS WHIE MALE PLUG EMF P-71 WITH 7 PINS WITH 7 33" LEADS. RED LEAD HAS STEPDOWN INSULATED BUTT SPLICE, BLACK WIRE HAS #10 RING TERMINAL, GREEN WIRE HAS #10 LOCKING FORK TERMINAL, WHITE WIRE HAS #10 RING, YELLOW WIRE HAS STEPDOWN INSULATED BUTT SPLICE, 2 BLUE WIRES HAVE NO TERMINALS.

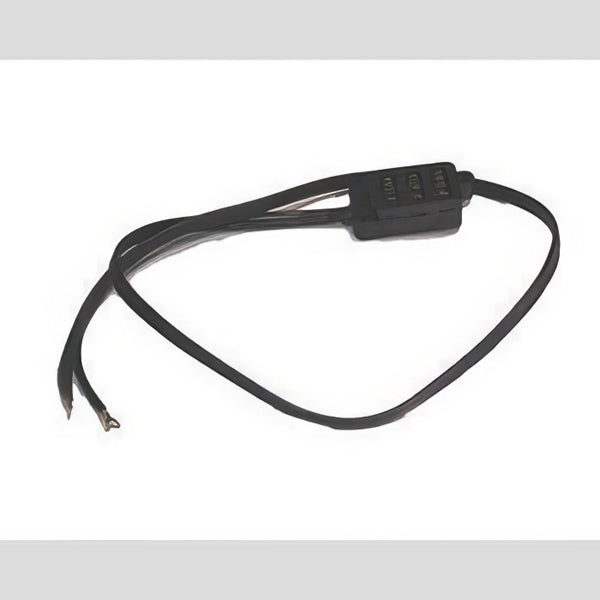

POWER CORD, DOOR 27" Y SPLIT MOLEX CONNECT, 2/3 FREEZER ALL VOLTAGE, "Y" SPLIT RUNS FROM BALLAST TO 18" POWER CORD.
COND FAN MOTOR JUNCTION TM-JB31-R42 LOCATED ON CONDENSING UNIT. CONNECTS FANS TO COMPRESSOR.
CORD KIT, COMP 8 PIN W/FLANGE TERMINAL 115V INCLUDES:1) 915105 8 PIN CORD FROM COMPRESSOR POWER CORD TO COMPRESSOR START COMPONENTS, 1) 951657 16G GREEN/YELLOW WIRE ASM, 1) 943326 16 G WHITE 12 MALE AMP WIRE ASM, 1) 943325 16G BLACK 12 MALE AMP WIRE ASSM REPLACES 965713, 937374 AND 917607, 925765, 931551 AND 925766, 937374

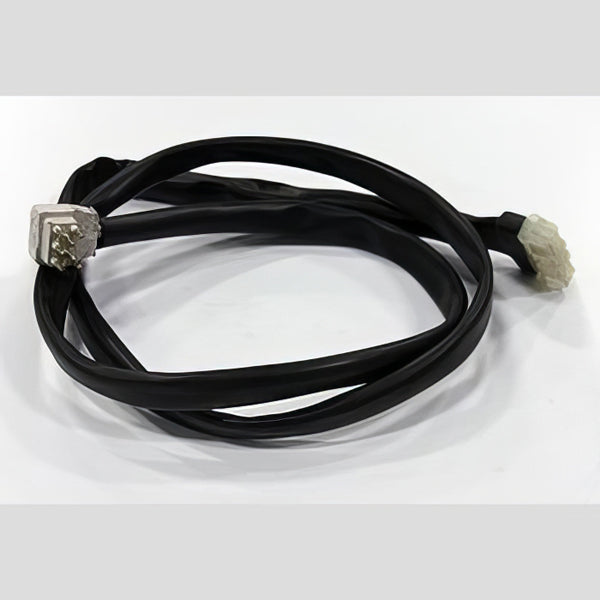

DOOR CORD, 42", 600V 6 PIN ULTRA FLEX CABLE, VW-JACKET REPLACES 801606
DOOR CORD, 20", 600V 6 PIN ULTRA FLEX CABLE, VW-JACKET 6 WIRE CORD REPLACES 801742, SEE NOTES UNDER 801742 FOR HISTORY
COVER KIT LINE SET GDM/T BLK INCLUDES 207846, 207849 COVERS, 6)830592 SCREWS, 2)811212 BUSHING AND 209719 INSTRUCTION
WIRE HARNESS, RETAINER ALL FREEZERS COVERS WIRES THAT ARE LOCATED IN COMPRESSOR AREA AND ATTACHES TO BOTTOM OF TANK BOTTOM. HAS A U SHAPED CHANNEL. INCLUDE 4)830592 MOUNTING SCREWS
EVAP COVER ASM GDM-49F 42 1/2 X 20 3/8 X 5 1/4 INCLUDES: 864565 COVER, PAN, INSULATION, ELBOW
PROBE CHANNEL KIT UPRIGHT GDM- T-SERIES INCLUDES: 8) 853135 WIRE COVER STR, 1) 853136 WIRE COVER 90 DEGREE, 18) 830592 SCREWS, 2) 811210 BUHSHING 888959 INSTRUCTIONS

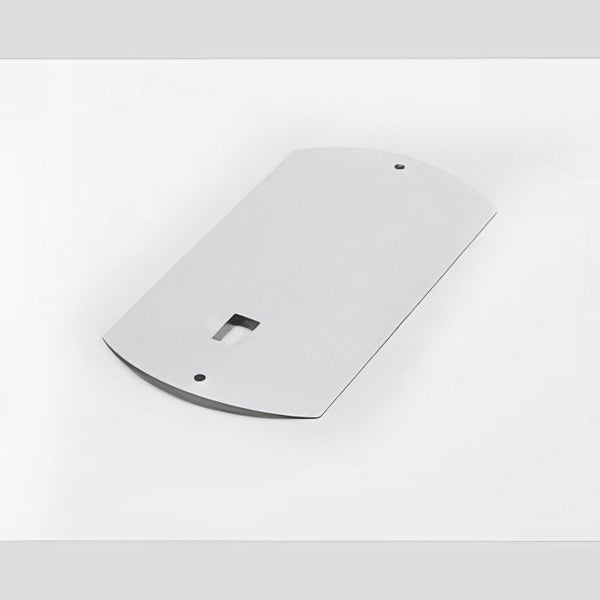

TEMP CONTROL COVER, GDM WHT W/SWITCH CONTROL COVER W/ RECTANGULAR SWITCH OPENING (3/4" X 1/2")
TEMP CONTROL COVER, BLK FOR G.E. CONTROL USE WITH ROCKER STYLE SWITCH. HAS V-SHAPED NOTCH TO SET TEMPERATURE
BRKT, DOOR SUPPORT FOR SHIPPING STEP SHAPED W/ 2)832294 MOUNTING SCREWS
CRATE KIT, GDM-49 /F INCLUDES: 1)820821 BAG, 1)820119 TOP CAP, 4)970264 CORNERPOST, 10)841514 PAD, 2)813218 FOAM, AND 2)820918 COLLAR
SKID KIT, GDM-49F 38 X 56 3/4 INCLUDES: 1)921957 SKID ASSY, 4)831508 BOLTS, 4)204366 NUTS, 4)830614 LOCK WASHERS, & 4)830605 WASHERS.
DOOR ASM GDM-23F-LD LH BLK INCLUDES: 855412 DOOR ASM, 2) 832292 SCREWS, 917479 HANDLE, 2) 810383 SPACER, 4) 919286 SHIM, 216945 POWER SUPPLY, 6) 202747 CONNECTOR, 2) 830592 SCREWS, 810719 GASKET.
DOOR ASM GDM-23F-LD RH BLK INCLUDES: 855413 DOOR ASM, 2) 832292 SCREWS, 917479 HANDLE, 2) 810383 SPACER, 4) 919286 SHIM, 216945 POWER SUPPLY, 6) 202747 CONNECTOR, 2) 830592 SCREWS, 810719 GASKET.
