True Parts OEM - GEM-12: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
RETAINER KIT DOOR GASKET GDM-12 "SHORT" USED AFTER SER. NO. 836432 ON DOOR HOLDS GASKET-ASSEMBLY. INCLUDES: 2) 867689 TOP/BOTTOM BACKPLATES, 2)923900 SIDE BACKPLATES, 14)830569 SCREWS
RETAINER KIT DOOR GASKET GDM-12 "#3" 2)51" 2)24-5/8" 4 PIECES ON DOOR HOLDS GASKET. #3 AFTER SN 1775722 BUT ASK LENGTH. INCLUDES: 2) 867689 TOP/BOTTOM BACKPLATES, 2)867698 SIDE BACKPLATES, 14)830569 SCREWS
DOOR ASM GDM-12 RH BLK "#3" NON-IDL 24 3/4"W X 51"L INCLUDES: DOOR ASSEMBLY W/O LIGHT, HANDLE, & NARROW DOOR GASKET
DOOR ASM GDM-12 LH BLK "#3" NON-IDL 24 3/4"W X 51"L INCLUDES: DOOR ASSEMLBY, HANDLE, & NARROW DOOR GASKET
SPRING KIT, DOOR GDM-12 #3 49 1/2" W/ 2 BRASS BUSHINGS INCLUDES: 1)925007 DOOR SPRING ASSY, 1)832182 BUSHING, & 1)832110 BUSHING
DOOR ASM GDM-12 RH BLK MOLDED INCLUDES: 927619 DOOR FRAME, 927620 GLASS INSERT, 929091 GASKET, 930199 SPRING ASSM. 2) 832182 BUSHING
DOOR ASM GDM-12 LH BLK MOLDED INCLUDES: 930282 DOOR FRAME, 927620 GLASS INSERT, 929091 GASKET, 930199 SPRING ASSM. 2) 832182 BUSHING
COPPER U-BEND EPC #27523 LOCATED IN BOTTOM CONDENSATE PAN. ATTACHES TO DRAIN HOSE W/ 830305 TIE WRAP INCLUDED
DRIER, 1/4 & 3/8 INLET; 3/16 OUTLET #CUD100601-TRU DRIER 5/16" & 3/8" INLET; 3/16 OUTLET
DRIER, 4.5"L SPUN COPPER DRIER W/ 2) 1/4" INLETS AND 1) 3/16" OUTLET
NOZZLE & SCREW SET H.I.P.S. NAT. ANGLED INCLUDES 938024 WHITE ANGLED NOZZLE & 811508 SCREW

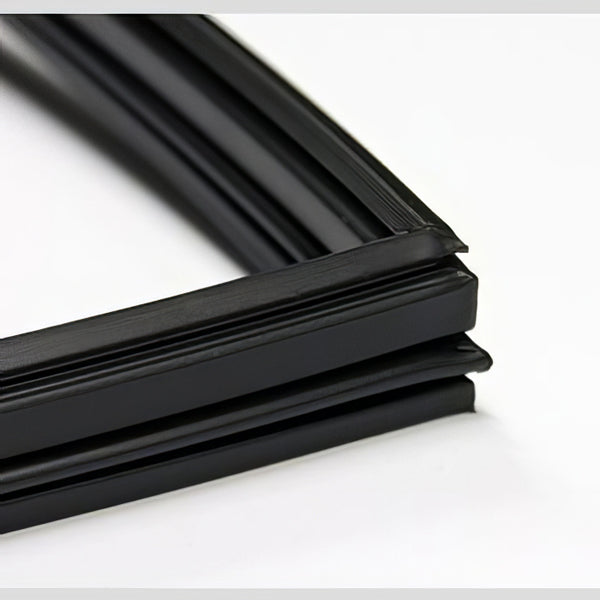

GASKET, GDM-12, BLK 2910-R036 USED AFTER SER. NO. 1-1775722

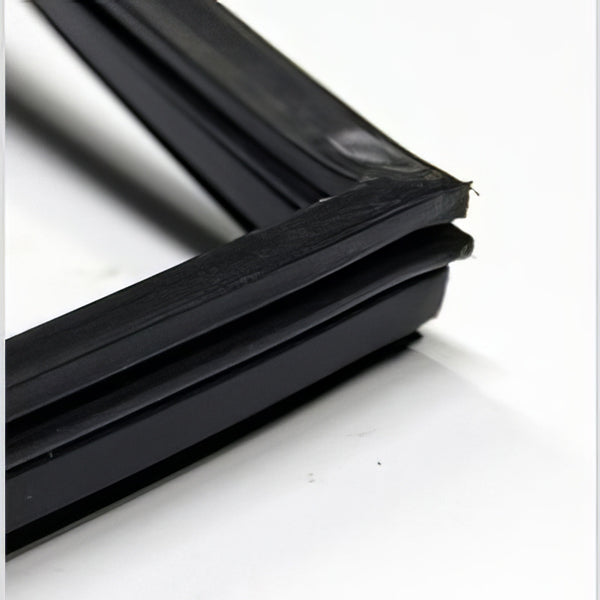

GASKET, GDM-12 LONG, BLK 2910-R008 USED BEFORE SER. NO. 1-836433

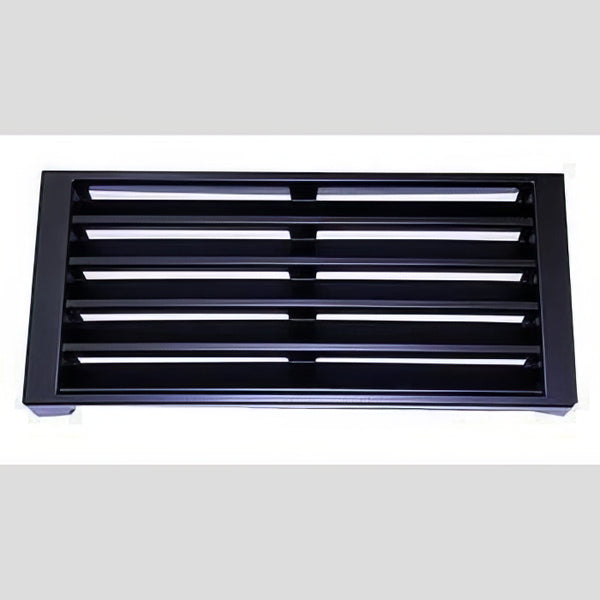

GRILL RETRO KIT GDM-10/12 LT BLK PLASTIC W/MNTG KIT INCLUDES: 1)906873 LOUVER SUPPORT BRKT, 2)862138 LOUVER GRILL HANGER, 4)820504 SCREW, 7)830592 SCREW, 1) 812519 GRILL, 1)812520 PLUG, 1)820343 NAMEPLATE, AND 1)885533 INSTRUCTION
GRILL ASM GDM-10/12 RH MOLDED INCLUDES:1) GRILL ASSEMBLY 929224, 4) SCREWS 830575, NAMEPLATE 820343
GRILL ASM GDM-10/12 LH MOLDED INCLUDES: 1) GRILL 929225, GRILL PLUG 929226, 4) SCREWS 830575, NAMEPLATE 820343
GRILL ASM GDM-10/12-HC LH MOLD NATURAL REFRIGERANT INCLUDES: 1) GRILL 929225, GRILL PLUG 929226, 4) SCREWS 830575, NAMEPLATE 962367
PLASTIC, #1679, 78" 1/2" BLK ABS PLASTIC EXT, #1679, 78" 1/2" BLK ABSGRILL EXTRUSION. CUT FROM 811288USED ON WALNUT OR PAINTED GRILLS
HANDLE KIT DOOR 12" BLK INCLUDES: 1)917479 HANDLE, 2)810383 SPACERS, & 2)832292 SCREWS.
HANDLE KIT GDM-19T SS INCLUDES: 1 )968011 HANDLE, 2 )908621 3/4" SPACERS, & 2) 832292 SCREWSPER PCN-6879 THE 968011 HANDLE IS DRILLED AND TAPPED AND IS USED WITH A STANDARD MACHINE SCREW.
