True Parts OEM - TSSU-60-16-HC: Find authentic replacement parts and accessories for your True OEM cooler, designed to ensure optimal performance, durability, and reliability.
CONDENSING UNIT, 115V, R290
UNIT TSSU-60 HC INCLUDES: 955318 COMPRESSOR WITH START COMPONENTS, 203205 FAN MOUNT, 203206 BRACKET, 979685 MOTOR, 947039 BLADE, 203207 COIL, 203208 SHROUD, 925928 DRIER ALL MOUNTED TO A BASE.

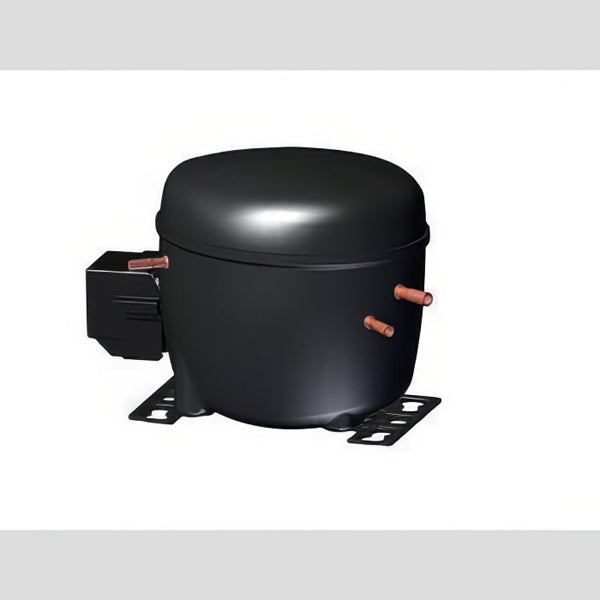

COMPRESSOR, 115V/60HZ FFU130UAX-HC R290
HAS NEW OVERLOAD 820678. THE WHOLE COMPRESSOR WILL RETROFIT THE 955318 COMPRESSOR BUT THE OVERLOAD ALONE DOES NOT PER PCN-11501.
COMP, FFU130UAX 115V/60HZ 51320902297.E COMPRESSOR AVAILABLE WITH EXTENDED WARRANTY. WHEN PURCHASED USE 820677-W. EXTENDED WARRANTY IS PART #857593.
CONDENSING UNIT, 115V, R290
USED STARTING 1/10/22 PER TDN-0620. THIS WAS PART OF TEMPORARILY REPLACING THE FFU130UAX COMPRESSOR WITH FFU160UAX COMPRESSOR
UNIT TSSU-60-HC INCLUDES: 840090 CONDENSING UNIT, 221731 UPS COPPER ASSEMBLY, 221732 COPPER ASSEMBLY, AND 2) HC INDICATOR SLEEVES
COMPRESSOR, 115V/60HZ FFU130UAX-HC R290
OBSOLETE. REPLACE WITH 820677, PCN-11501.
COMP, FFU130UAX 115V/60HZ 51320086497.E OBSOLETE DOMESTICALLY. STILL AVAILABLE IN PER, AND S15. ONCE DEPLETED, THEN USE 820677 COMPRESSOR PER PCN-11501 INCLUDES 935948 RELAY, 911756 OVERLOAD, AND 956740 START CAPACITOR USES THE 911756 OVERLOAD ONLY
COMPRESSOR, 220V/240V, FFU130UAX
COMP, FFU130UAX 220-240/50-60H 51320093694.E INCLUDES COMPONENTS
LEVER CONNECTOR KIT
PARTS STOCK KIT- TO BE USED TO REPAIR ELECTRICAL CONNECTIONS
LEVER CONNECTOR KIT INCLUDES: 3) 995655 3-WAY LEVER CONNECTORS, 3) 202747 5-WAY LEVER CONNECTORS
PROBE, ELECTRONIC TEMPERATURE CONTROL DEFROST SENSOR
REPLACES 945052 PCN-11256
PROBE, THERMISTOR 2M, NTC EPC #B57025M2502A1 REPLACES 960670 - DEFROST SENSOR / BLUE STRIPE
PROBE, THERMISTER, ELECTRONIC TEMPERATURE CONTROL SENSOR
REPLACES 945053
PROBE, THERMISTOR 2M, NTC EPC #B57025M2502A2 THERMOSTAT PROBE
DISPLAY KIT, ERC113D
USED BEFORE 6/1/21 PER PCN-12045
ERC113D DISPLAY KIT REPLACE WITH 848244 INCLUDES: 815594 REMOTE DISPLAY, 816682 ERC CONTROL, AND 844769 ADVISEMENT. REQUIRES MODEL / SERIAL NUMBER TO PROGRAM
CONTROL KIT, TEMPERATURE/DISPLAY ERC113D UPS
USED WHEN UNIT HAS REMOTE DISPLAY REPLACES: 830738, 830739, 830740, 833429, 833430, 833431, 836834, 836216 PER PCN-12898.
DISPLAY/TEMP CONTROL KIT ERC113D UPS INCLUDES: 816682 CONTROL, 829921-F PROGRAM, 807414 PROBE, 807414 PROBE, 807415, PROBE, 807416 PROBE, 808094 CABLE, 808097 CABLE, 815594 REMOTE DISPLAY, 825774 CONROL BOX, 825775 WIRE COVER, 829266 DISPLAY MOUNT, 825759 BRKT,825758 BRKT, 205419 LABEL, 6)200962 CONNECTORS,1) TIE, 6) 802179 BLUE STR TERM,992535 SILICON, 836832 INSTRUCTION, 848246 INSTRUCTION, 848245 INSTRUCTION, 848284 INSTRUCTION, 6) 830592 SCREW, 2) 830525 SCREW, 2) 917569 SCREW.
CONTROL KIT, TEMPERATURE, ERC112D
REPLACES 997758/222737
UNIVERSAL CONTROL KIT, TEMP ERC112D UPS INCLUDES: 851633 CONTROL, 812576-F PROGRAM, 807414 PROBE, 807415 PROBE, 807416 PROBE, 808094 CABLE, 836831 INSTRUCTION, 848289 INSTRUCTION, 848284 INSTRUCTION, 205419 LABEL, 6) 802179 TERMINAL, 825759 BRACKET, 848290BRACKET CONTROL MOUNRR, 848291 BRKT CONTROL MOUNR, 848292 BRACKET, CONTROL MOUNT, 4) SCREW, 811287 BUSHING, 6) 206384 CABLE TIE, 221826 TAPE.
POWER CORD, 132" NEMA 5-15P 14/3 SJTOW POWER CORD TO WALL OUTLET, 15 AMP HAS THREE PRONG PLUG. REPLACES THE 801701 WHEN LONGER CORD IS REQUIRED.
COUNTERTOP ASSEMBLY
USED APPROXIMATELY AFTER 3/3/19 PER PCN 10245 ONE DOOR HINGED LEFT, ONE DOOR HINGED RIGHT. IF CABINET HAS CENTER LOCK ALSO ORDER 897328 LOCK BRACKET PER DOOR USED AFTER APPROX 6/13/19
COUNTERTOP ASM TSSU-60-16 CBM INCLUDES: 224142 COUNTERTOP (CBM) MUST ORDER 835383 SILICONE KIT WITH COUNTERTOP
COUNTERTOP SILICONE KIT
COUNTERTOP SILICONE KIT TSSU/TWT/TUC/TFP/TPP CONTAINS: 1) 820560 SEALANT, 1) 820561 SEALANT, 835382 NEW ADVISEMENT
COUNTERTOP W/ CUTOUT FOR EXTERIOR THERMOMETER
IF CABINET HAS CENTER LOCK ALSO ORDER 897328 LOCK BRACKET PER DOOR USED AFTER APPROX 6/13/19
COUNTERTOP ASM TSSU-60-16-HC B/OERC COUNTERTOP W/ CUTOUT FOR EXTERNAL THERMOMETER MUST ORDER 835383 SILICONE KIT WITH COUNTERTOP
COUNTERTOP ASM TSSU-60-16 MUST ORDER 835383 SILICONE KIT WITH COUNTERTOP
EVAP COVER ASM TSSU-60 HC INCLUDES, 203234 LEFT COVER, 203237 RIGHT COVER, 203241 LEFT BAFFLE, 203242 RIGHT BAFFLE, BRACKET ASM, FROST SHIELD, TAPE, STRAIN RELIEF, BUSHING, SCREWS AND CLAMPS.
COVER, BACK ASSEMBLY, GALVANIZED
BACK COVER KIT TUC-60-HC INCLUDES 206379 BACK COVER, 203216 BAFFLE CORNER, 973926 PLUG, 976417 BUSHING, TAPE AND WIRE TIE
COVER, BACK ASSEMBLY, STAINLESS STEEL
BACK COVER KIT TUC-60-HC SS INCLUDES 206380 BACK COVER, 203216 BAFFLE CORNER, 973926 PLUG, 976417 BUSHING, TAPE AND WIRE TIE
SKID KIT
SKID KIT, TSSU-60/TUC-60 TWT-60 INCLUDES: 868721 SKID ASM, 4)831506 BOLTS, 820991 TUBE SPACER, 4)830601 WASHERS, 4)830631 LOCKWASHERS
CRATE KIT, TSSU-60 REGULAR INCLUDES: 1)820186 CARTON, 4)812707 CORNERPOST, 3)820273 PAD, 1)820993 FLAT PAD, AND 1)820903 HOOD TRAY
CRUMB CATCHER KIT
USED AFTER APPROXIMATELY 4/11/19 PER PCN 10245
CRUMB CATCHER KIT TSSU-60 INCLUDES: 1) 224192 CRUMB CATCHER , 1) 224096 BRACKET, 1)224097 BRACKET, 8) 971618 SCREWS, 811175 INSTRUCTIONS PCN 10245
BRACKET KIT, CRUMB CATCHER
USED AFTER APPROXIMATELY 4/11/19 PER PCN 10245
CRUMB CATCHER BRKT KIT TSSU INCLUDES: 1) 224096 BRACKET , 1) 224097 BRACKET, 8) 971618 SCREWS, 811175 INSTRUCTIONS PCN 10245
CUTTING BOARD, 11 3/4", WHITE
USED AFTER 5/6/19 PER PCN 10245, DOES NOT REQUIRE DRILLING, ORDER BRACKETS SEPARATELY.
CUT BOARD 1/2 X 11 3/4 X60 1/4 TSSU-60WHITE REQUIRES BRACKET/RIVNUT TOOL KIT.. ORDER SEPARATELY.
